Product Overview

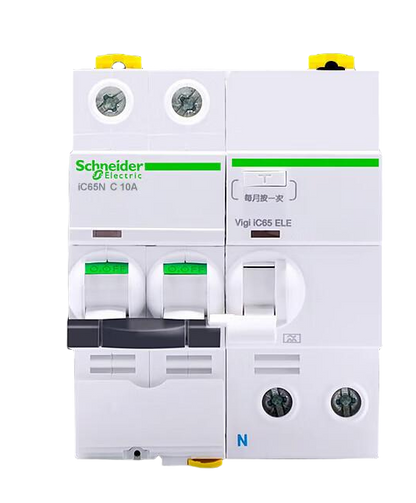

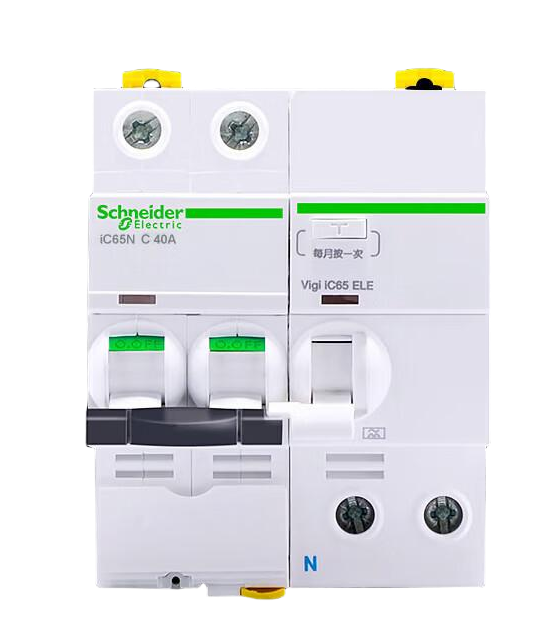

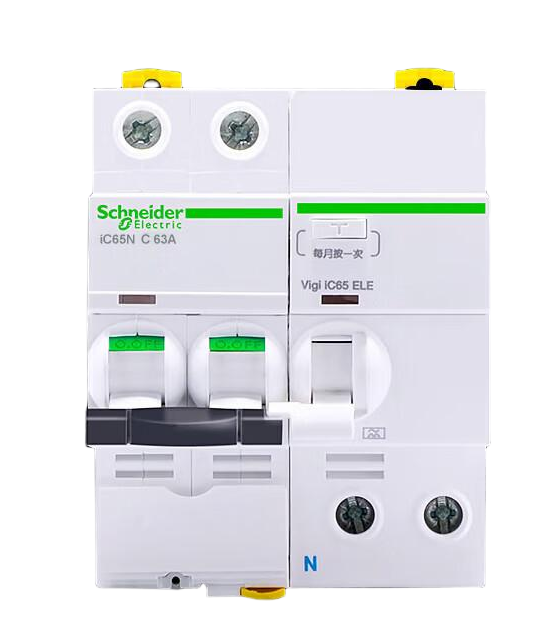

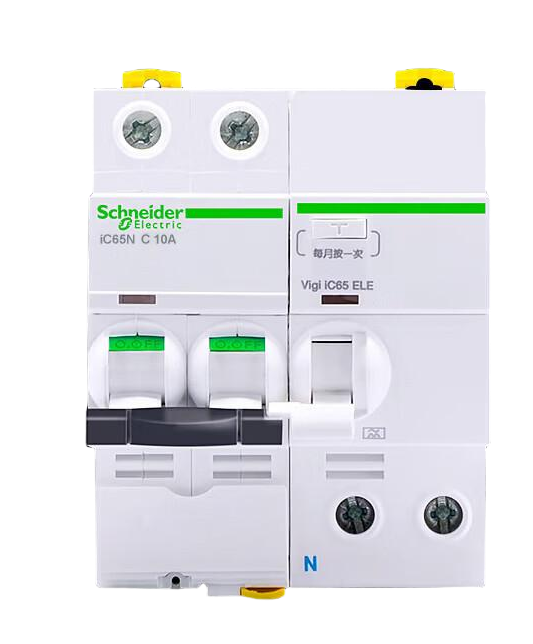

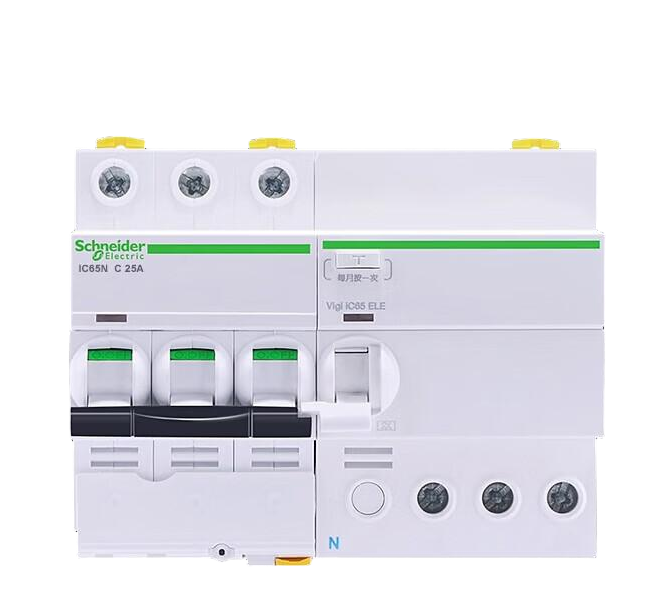

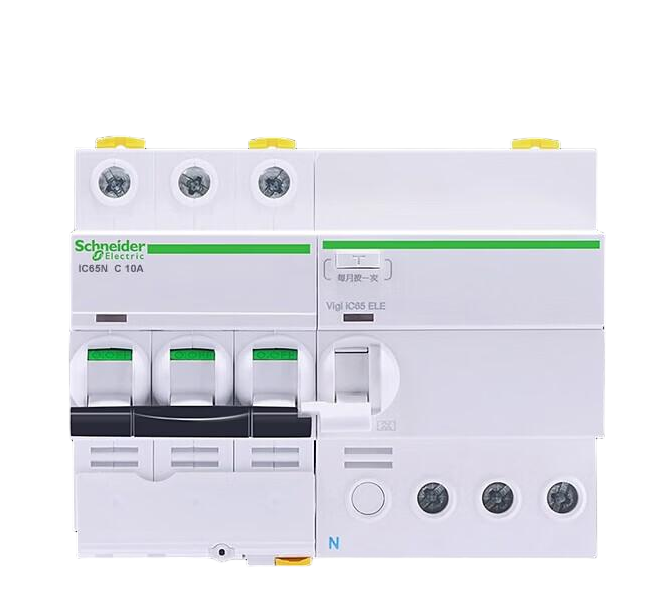

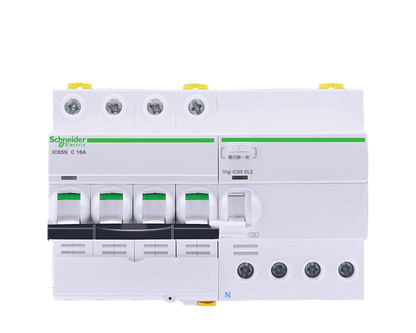

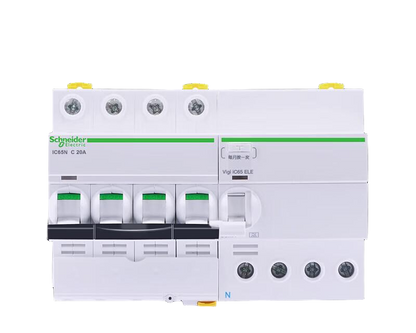

The Schneider Electric A9 Series iC65N Vigi+ is a premium, all-in-one Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO) from the renowned Acti 9 range. Combining the legendary iC65N miniature circuit breaker (MCB) with integrated Vigi+ residual current protection, this device provides comprehensive protection against overloads, short circuits, and earth leakage (residual current) faults in a single, compact unit . Designed for demanding industrial, commercial, and residential applications, the iC65N Vigi+ delivers a high breaking capacity of 6kA and advanced electronic leakage protection, ensuring maximum safety and reliability for critical electrical circuits .
Technical Specifications
| Parameter | Details |
|---|---|
| Product Series | Schneider Electric Acti 9 / A9 Series |
| Product Type | iC65N Vigi+ Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO) |

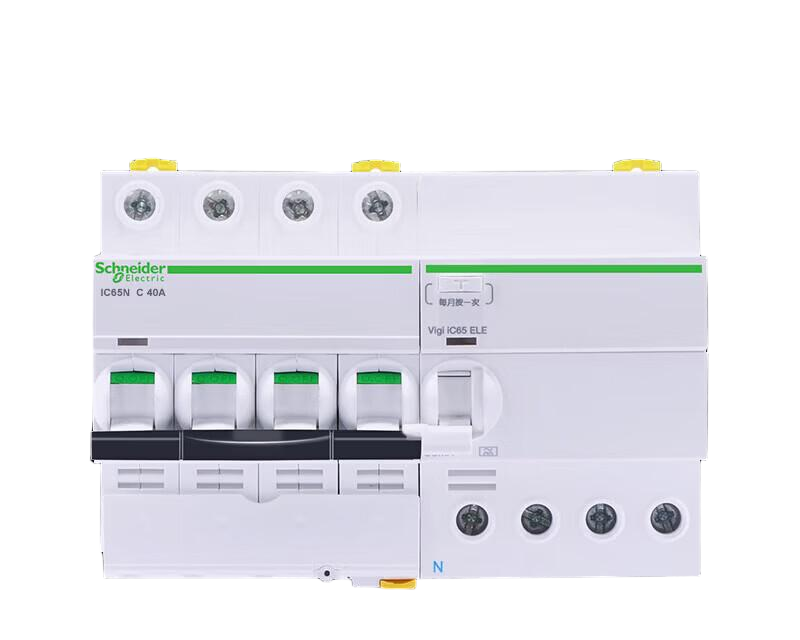

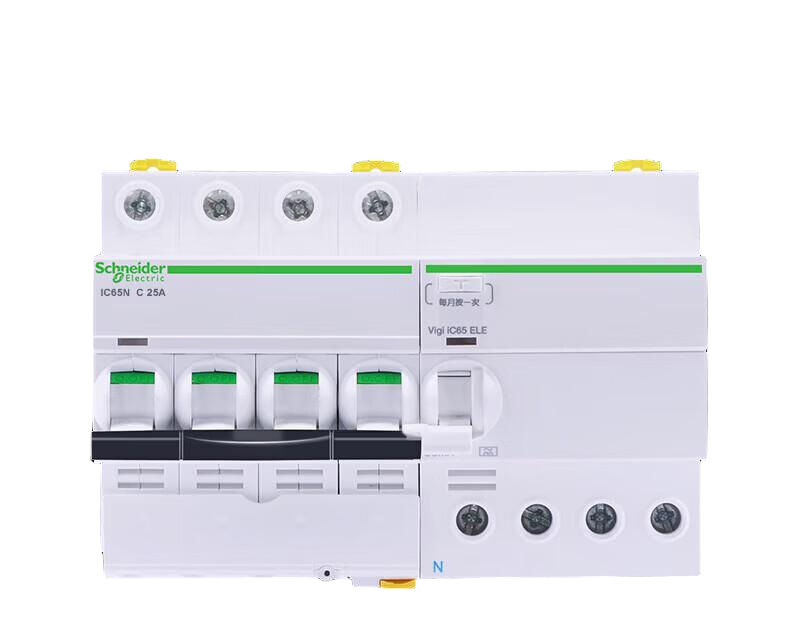

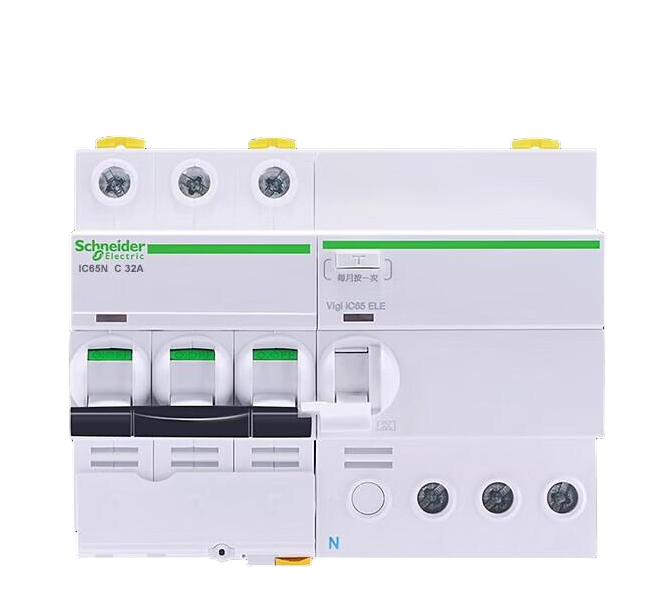

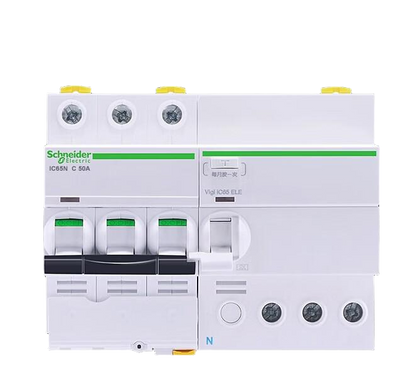

| Pole Configurations | 1P+N, 2P, 3P, 4P (2P most common) |
| Rated Currents (In) | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Rated Voltage (Ue) | 230V AC (1P+N/2P), 400V AC (3P/4P) 50 Hz |
| Tripping Characteristic | C Curve (5-10 In) |
| Rated Residual Current (IΔn) | 30 mA |
| Residual Current Type | A Type (electronic) - detects AC and pulsating DC currents |
| Residual Current Technology | ELE (Electronic) |
| Rated Short-Circuit Capacity (Icn) | 6 kA |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Width (2P model) | 36 mm (2 modules of 18mm) |
| Mounting | On 35 mm DIN rail |
| Connection Direction | Top or bottom feed |
| Terminal Capacity | Up to 35 mm² rigid (depending on model) |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Humidity Resistance | 95% at 55°C (Class 2 tropicalisation) |
| Standards & Certifications | IEC/EN 61009-1, GB/T 16917.1, CCC |
| Environmental Compliance | RoHS, REACH, Green Premium |
| Warranty | 18 months |
Typical Applications
The iC65N Vigi+ is perfectly suited for providing comprehensive protection in circuits across a variety of demanding settings:
-
Industrial Control Panels: Protection of PLC circuits, control transformers, and auxiliary supplies in factory automation systems
-
Commercial Buildings: Distribution board protection for lighting, HVAC, and socket outlet circuits in offices, retail stores, and hotels
-
Critical Residential Circuits: High-end residential applications requiring 6kA breaking capacity, particularly for kitchens, home theaters, and workshops
-
Renovation Projects: Upgrading existing electrical panels to meet modern safety standards with integrated RCBO protection
-
Electronic Load Circuits: Ideal for circuits with LED lighting, variable frequency drives, UPS systems, and other equipment generating pulsating DC leakage currents
-
Medical Facilities: Protection of circuits in clinics, laboratories, and medical offices where reliable earth leakage protection is essential
-
Temporary Installations: Construction sites, outdoor events, and temporary power distribution requiring robust, portable protection
