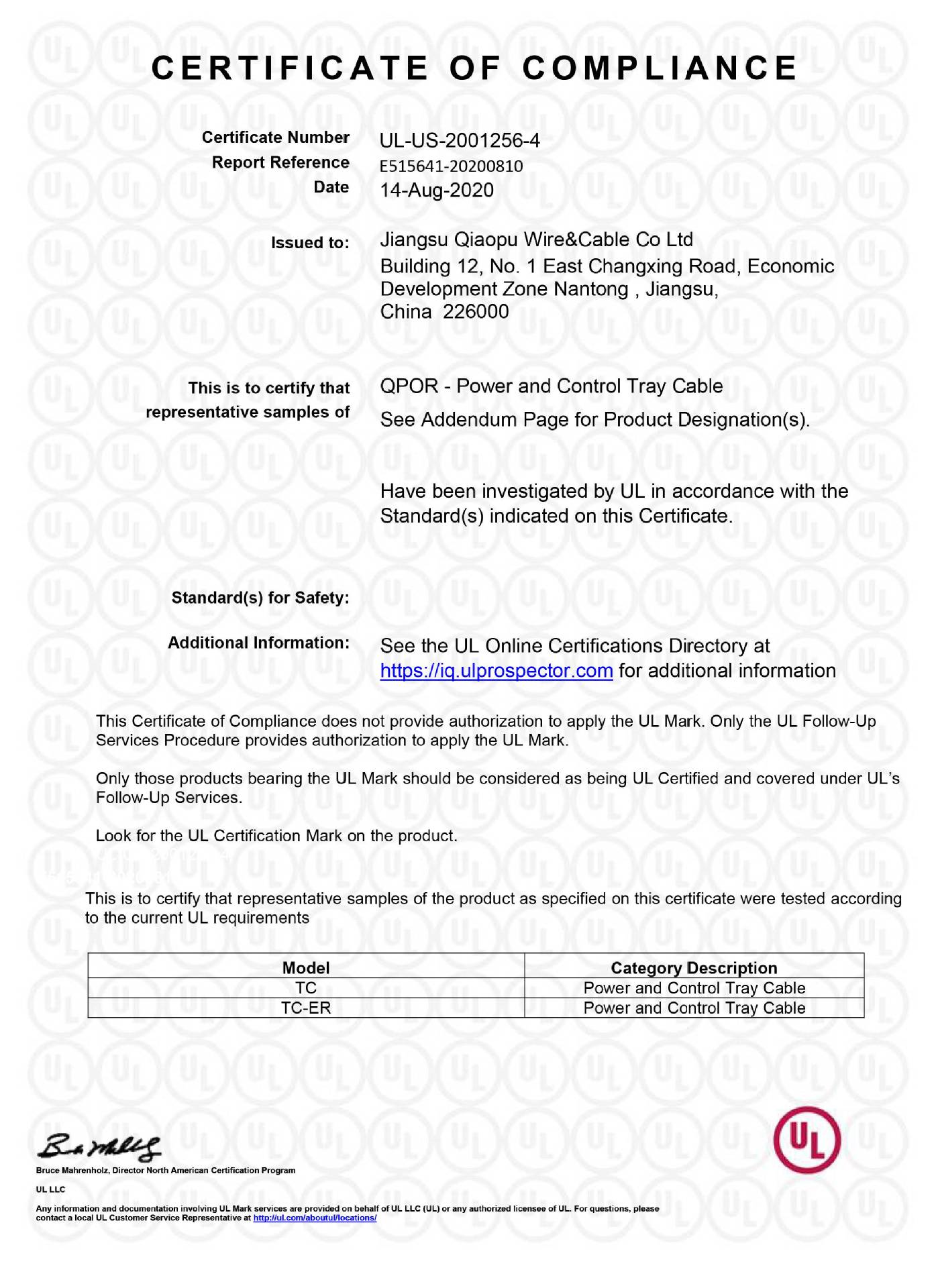

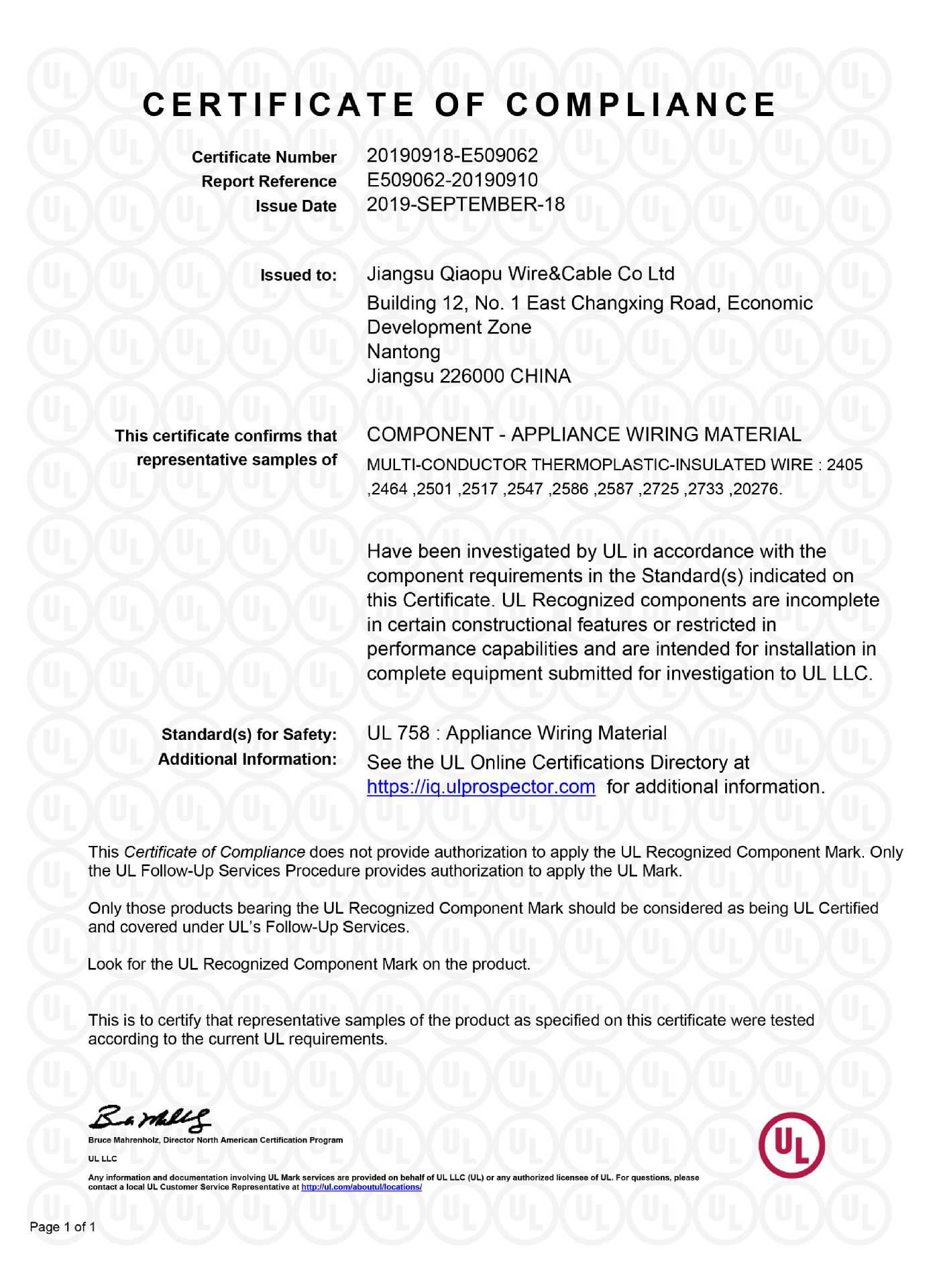

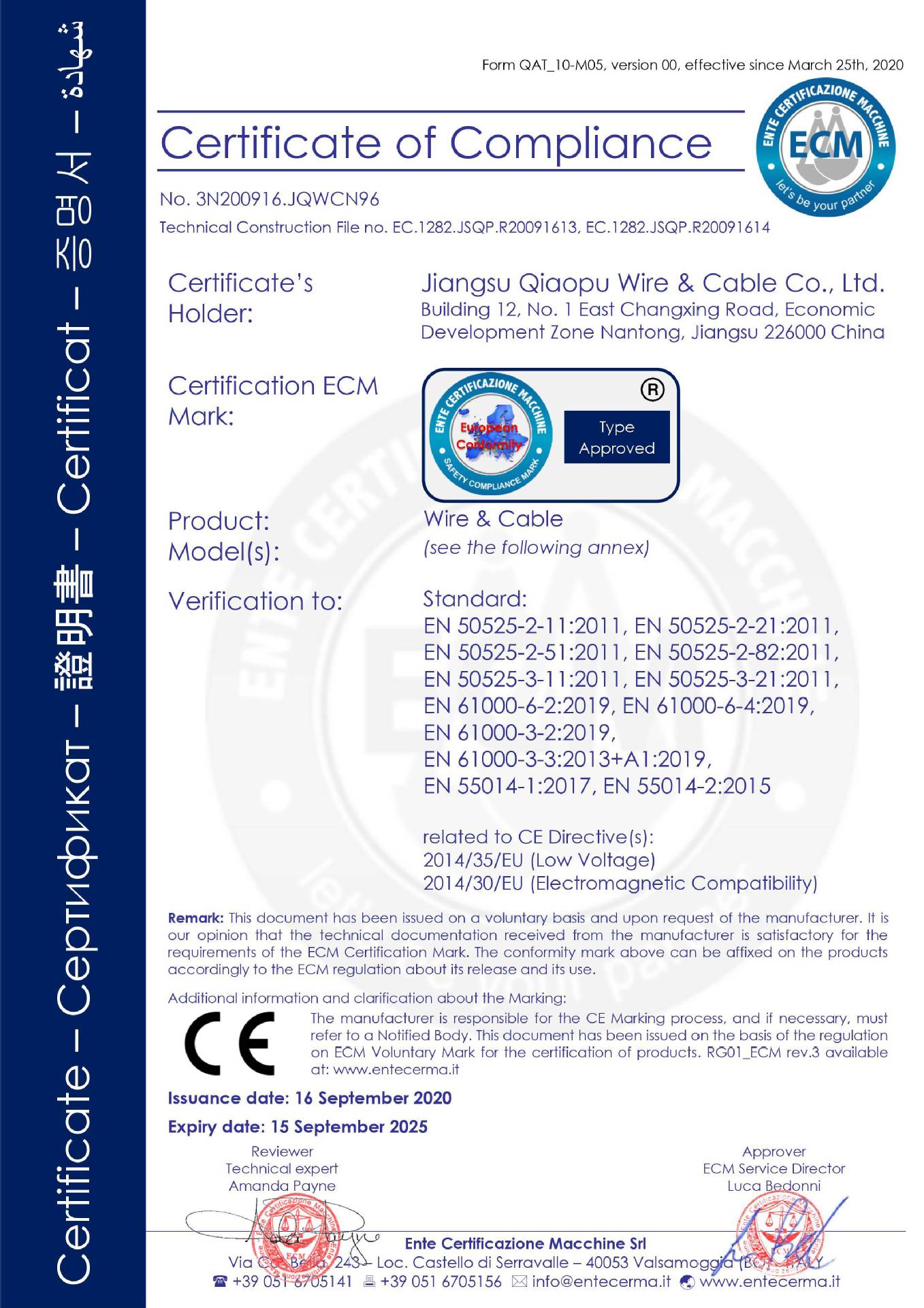

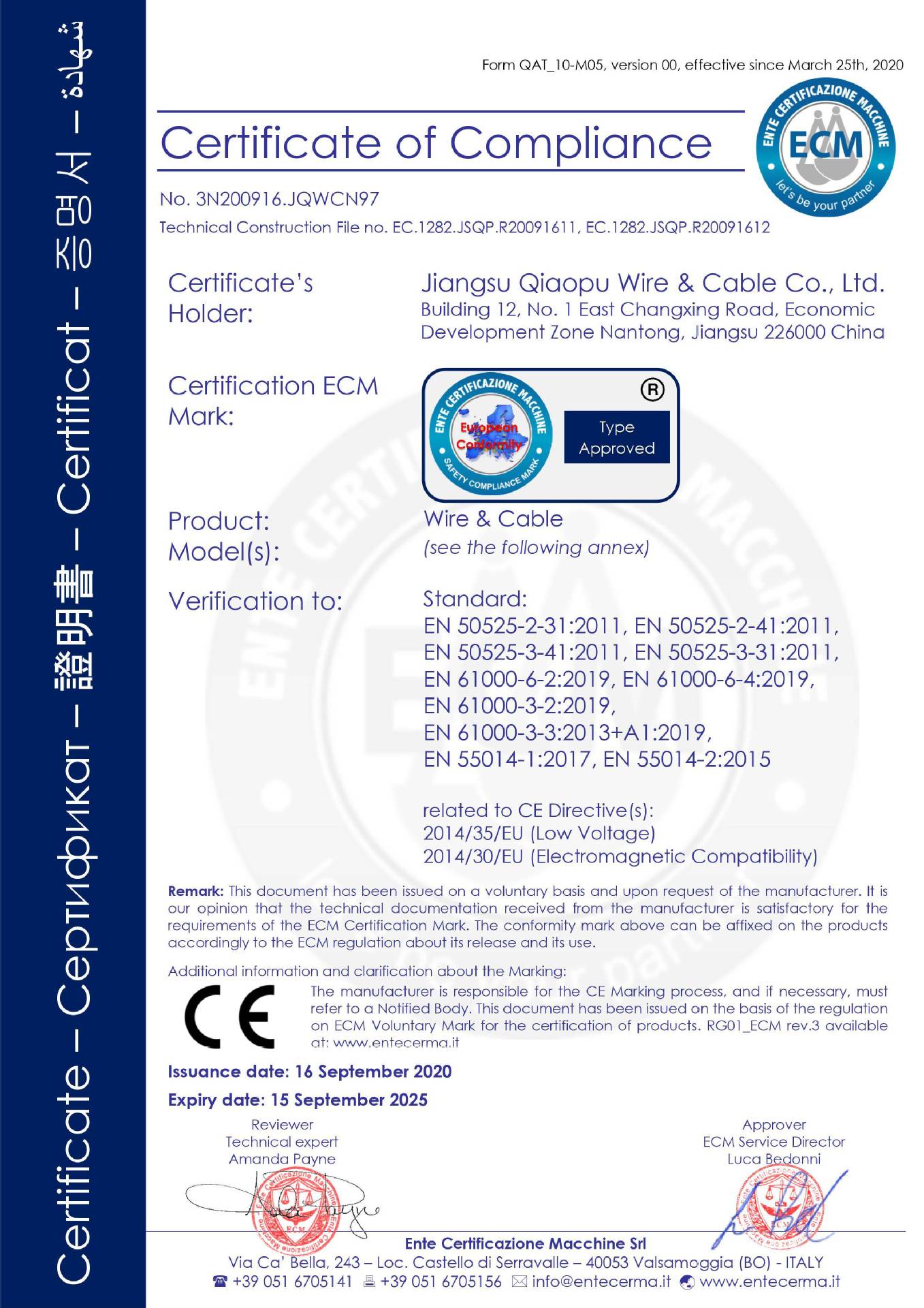

Certifications
10000 in stock ( can be backordered )
Brand:
Certified

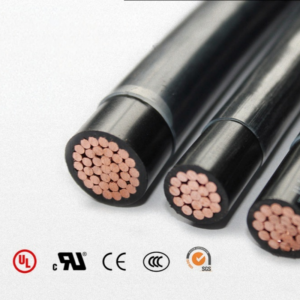

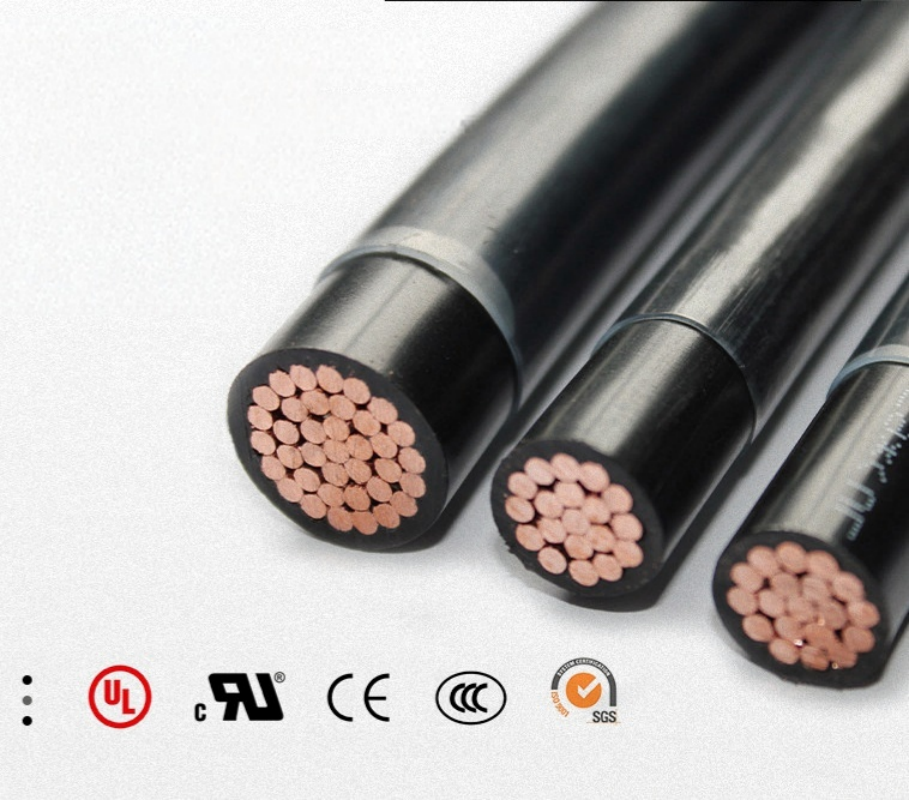

Ul83-certified THHN/THWN/THWN-2 American standard environmentally friendly nylon sheathed Copper Cable 2AWG,3AWG,4AWG,6AWG,8AWG,10AWG,12AWG,14AWG
model:
UL83 American standard THHN/THWN-2 nylon sheathed copper cable – 14AWG, 12AWG, 10AWG, 8AWG, 6AWG, 4AWG, 3AWG, 2AWG
SKU:
10197550705834
Product Type :
AC/DC
MOQ:
1 Piece
价格范围：$92.50 至 $980.70
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues

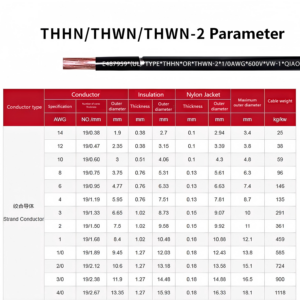

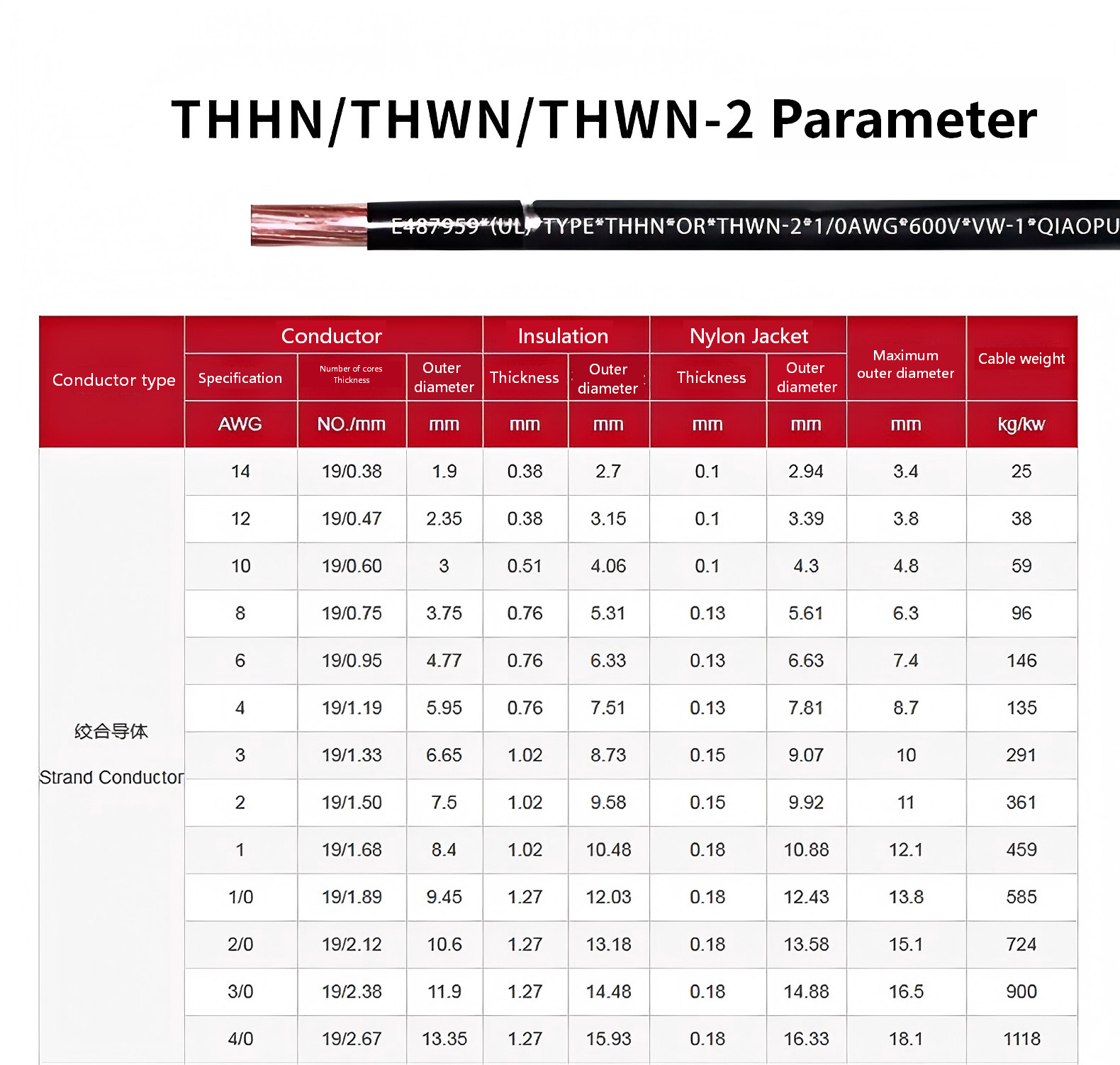

Physical Dimensions
Data for typical Copper conductors (may vary slightly by manufacturer) :
| AWG Size | Conductor Stranding | Insulation Thickness (mm) | Nylon Jacket Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|
| 14 | Solid / 19 | 0.38 | 0.10 | 2.59 – 2.79 | 7.3 |
| 12 | Solid / 19 | 0.38 | 0.10 | 3.01 – 3.30 | 10.9 |
| 10 | Solid / 19 | 0.51 | 0.10 | 3.81 – 4.06 | 17.2 |
| 8 | 7 / 19 | 0.76 | 0.13 | 5.53 – 5.84 | 29.9 |
| 6 | 7 / 19 | 0.76 | 0.13 | 6.53 – 6.60 | 44.5 |
| 4 | 7 / 19 | 1.02 | 0.15 | 8.29 – 8.38 | 70.3 |
| 2 | 7 / 19 | 1.02 | 0.15 | 9.84 – 9.91 | 106.6 |
| 1/0 | 19 | 1.27 | 0.18 | 12.35 – 12.70 | 167.8 |

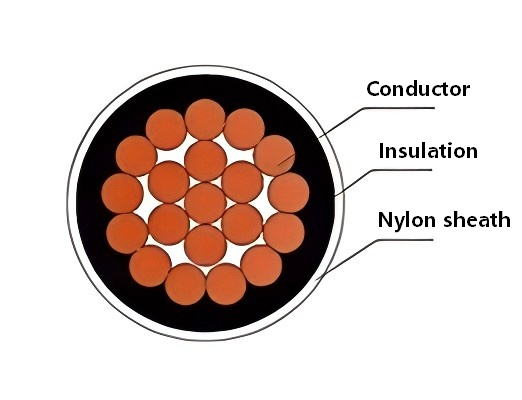

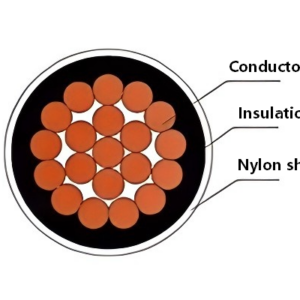

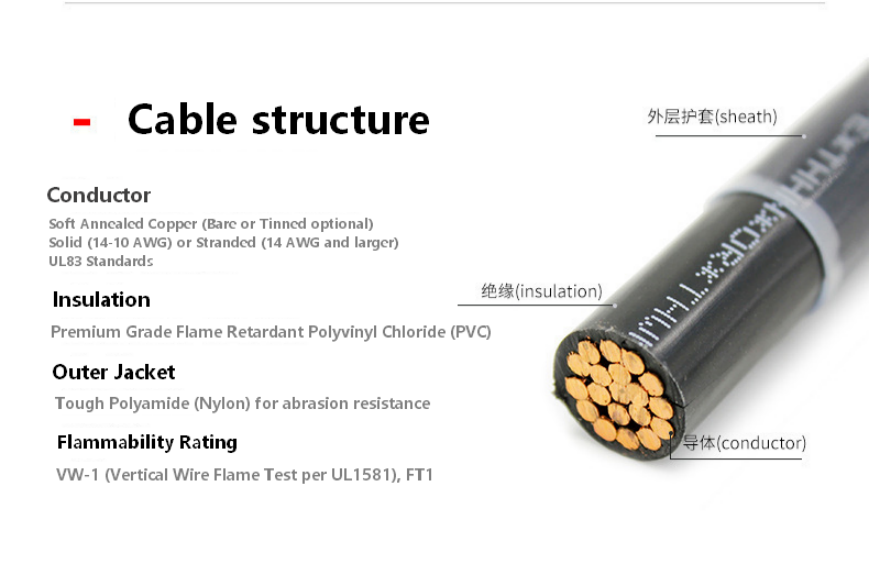

Insulation & Jacket
-
Primary Insulation: Premium Grade Flame Retardant Polyvinyl Chloride (PVC)
-

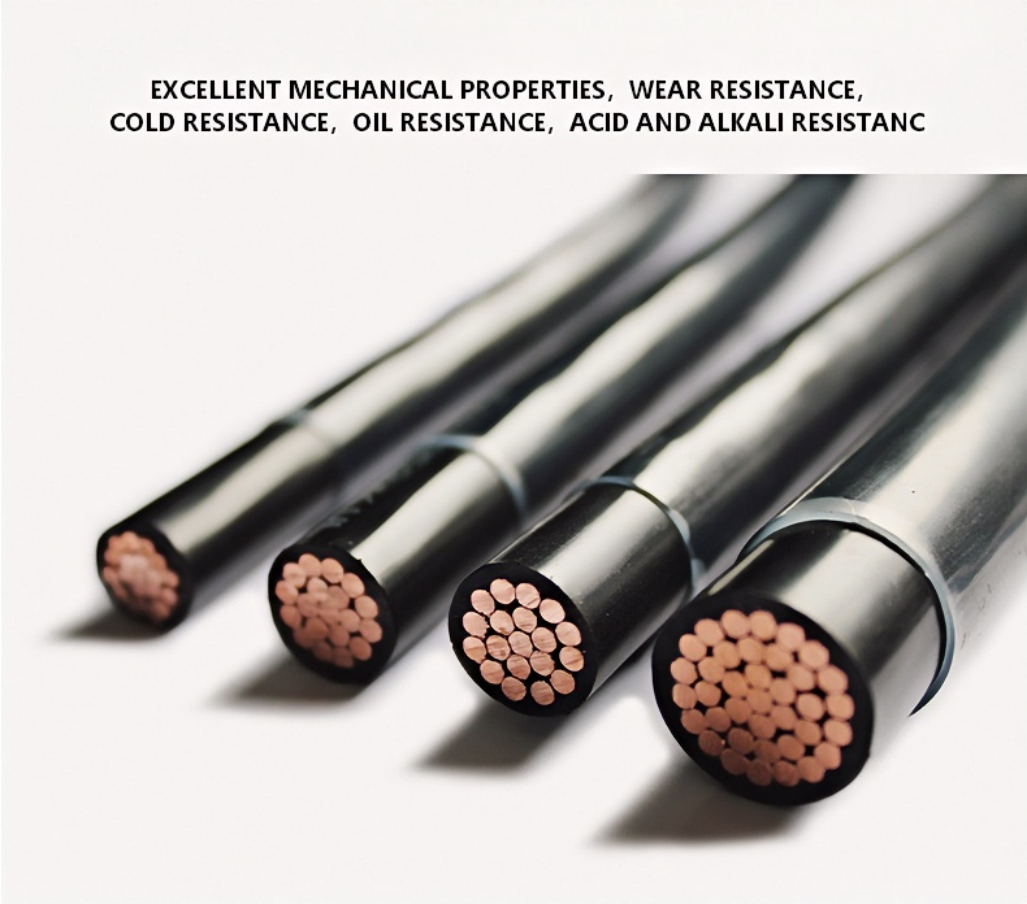

Outer Jacket: Tough Polyamide (Nylon) for abrasion resistance and easy pulling
Certification: UL/CUL
Production standard: UL83
