Discover the MEAN WELL SPV-150 (150W) and SPV-300 (300W) series—high-reliability enclosed power supplies featuring output voltage programmable from 20% to 110% via 1-5.5VDC external control signal . Universal AC input 88-264VAC with built-in active PFC function (PF>0.95) . Both series feature compact 215×115×50mm metal enclosures with screw terminal connections .

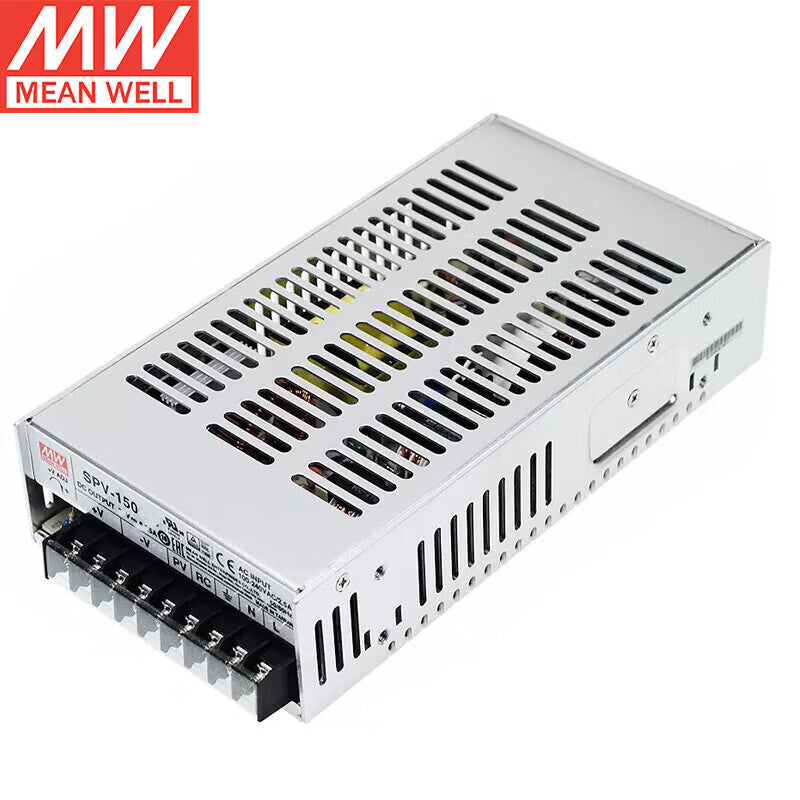

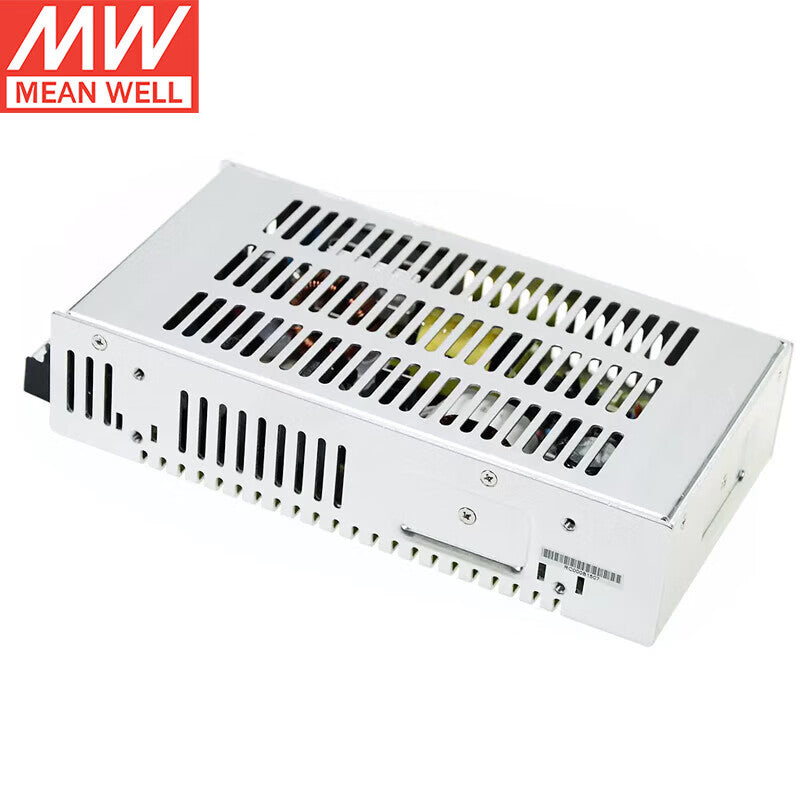

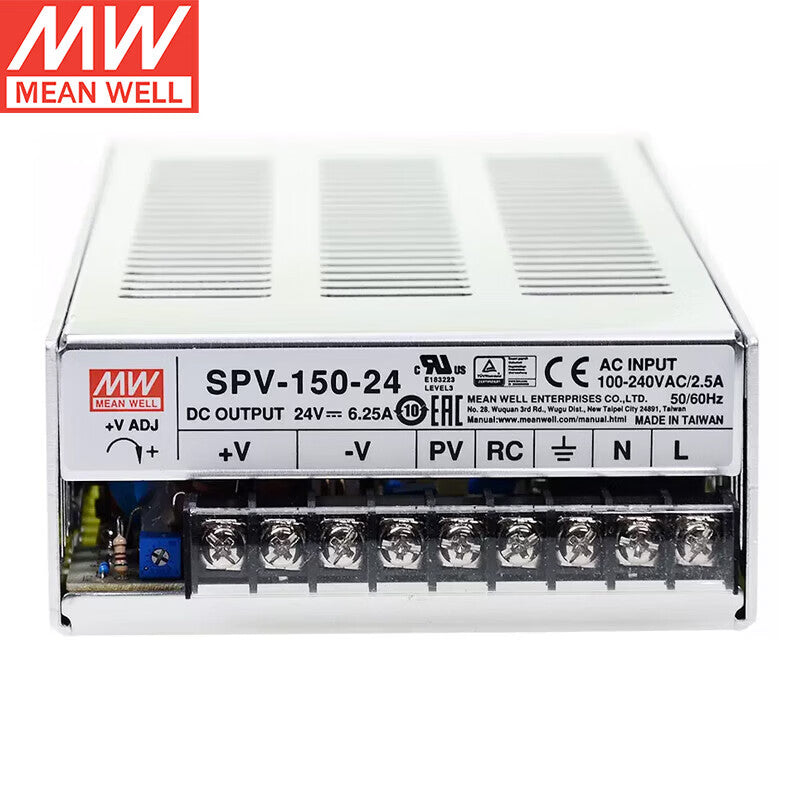

SPV-150 Series (150W, Convection Cooled) :
| Model | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|
| SPV-150-12 | 12V (2.4-13.2V adj.) | 12.5A | 150mV | 82% |

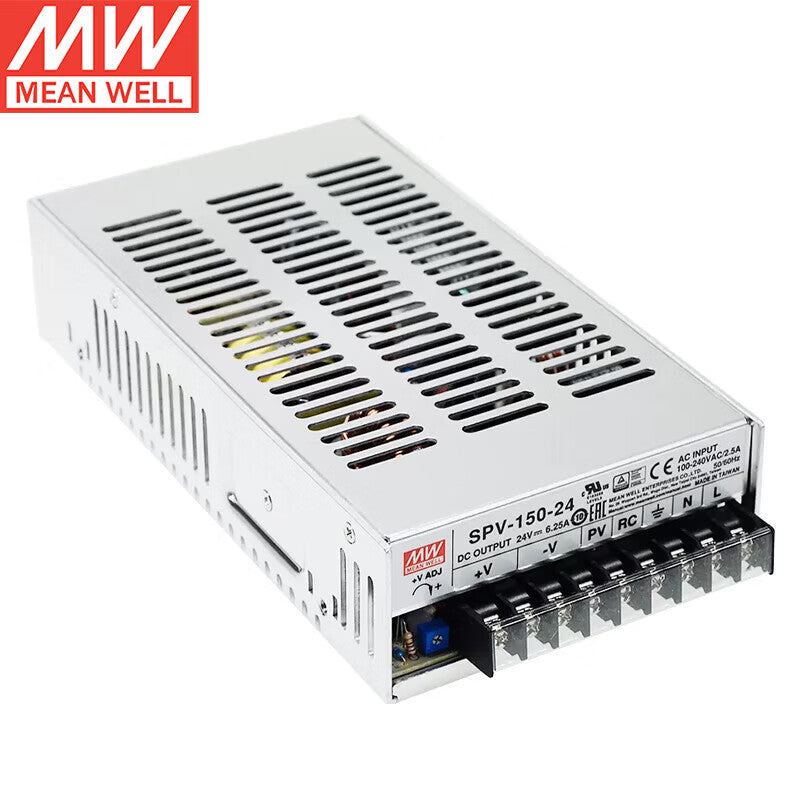

| SPV-150-24 | 24V (4.8-26.4V adj.) | 6.25A | 150mV | 83% |
| SPV-150-48 | 48V (9.6-52.8V adj.) | 3.125A | 240mV | 83% |

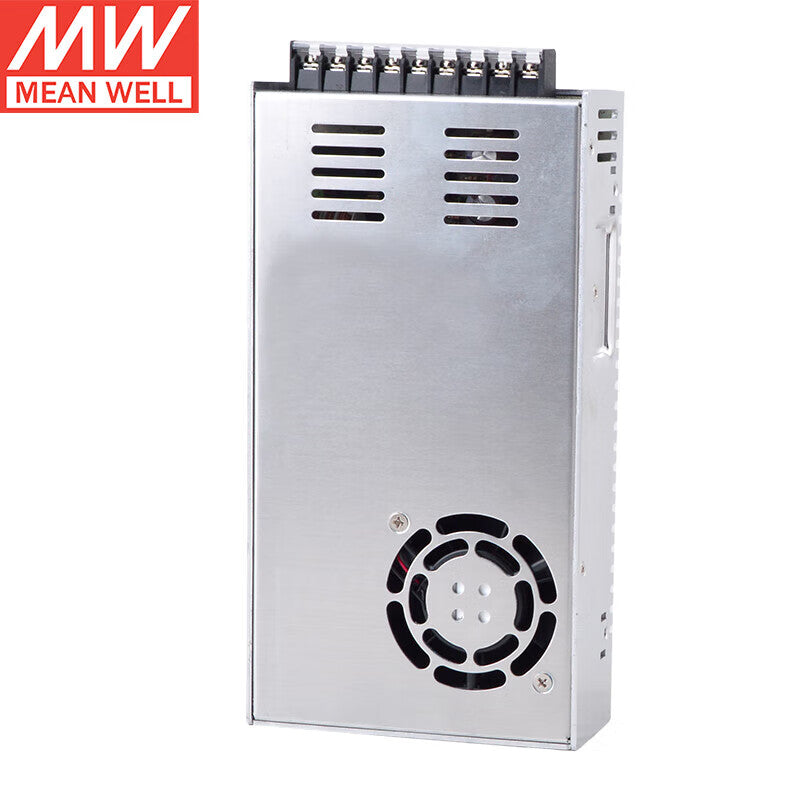

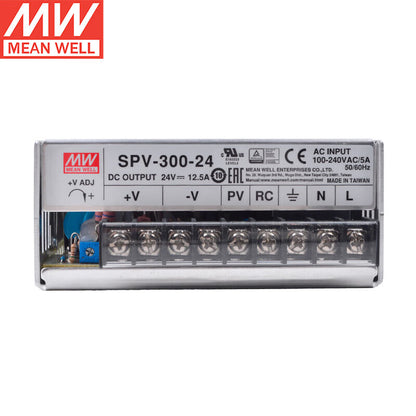

SPV-300 Series (300W, Fan Cooled) :
| Model | Output Voltage | Output Current | Ripple & Noise | Efficiency |
|---|---|---|---|---|
| SPV-300-12 | 12V (2.4-13.2V adj.) | 25A | 150mV | 83.5-84% |

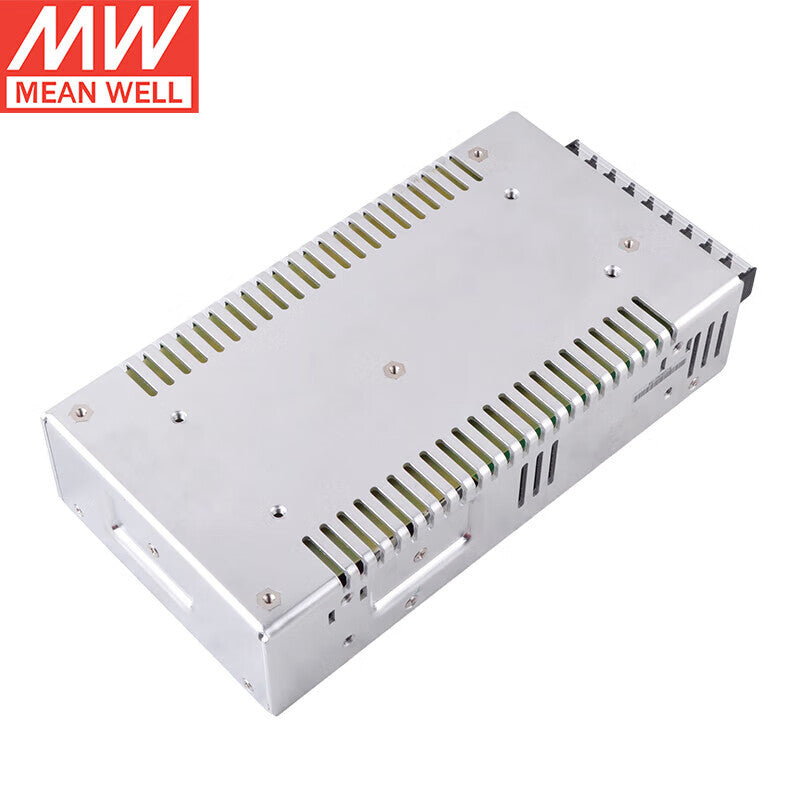

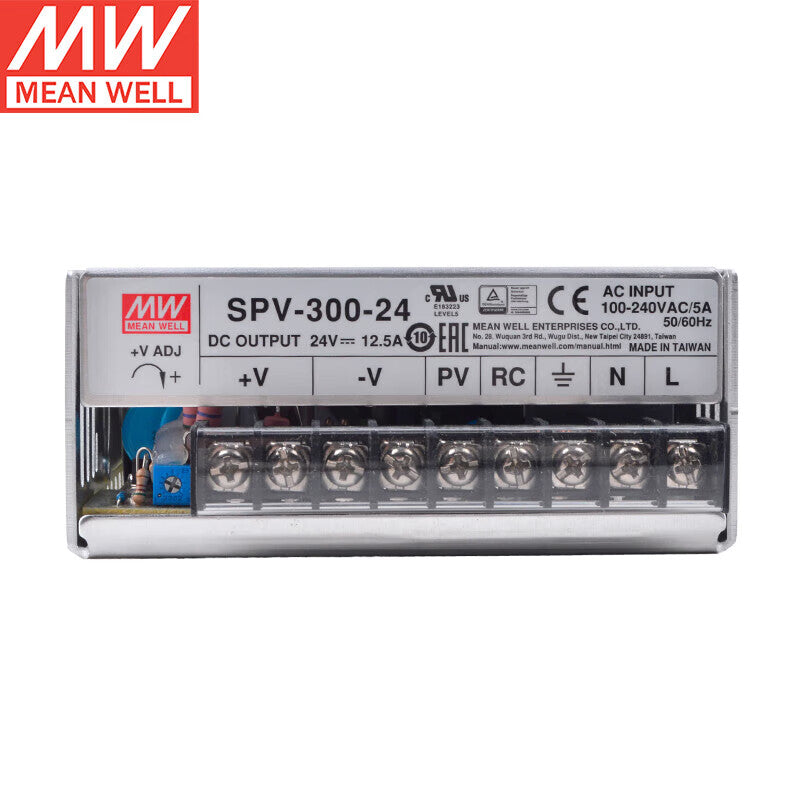

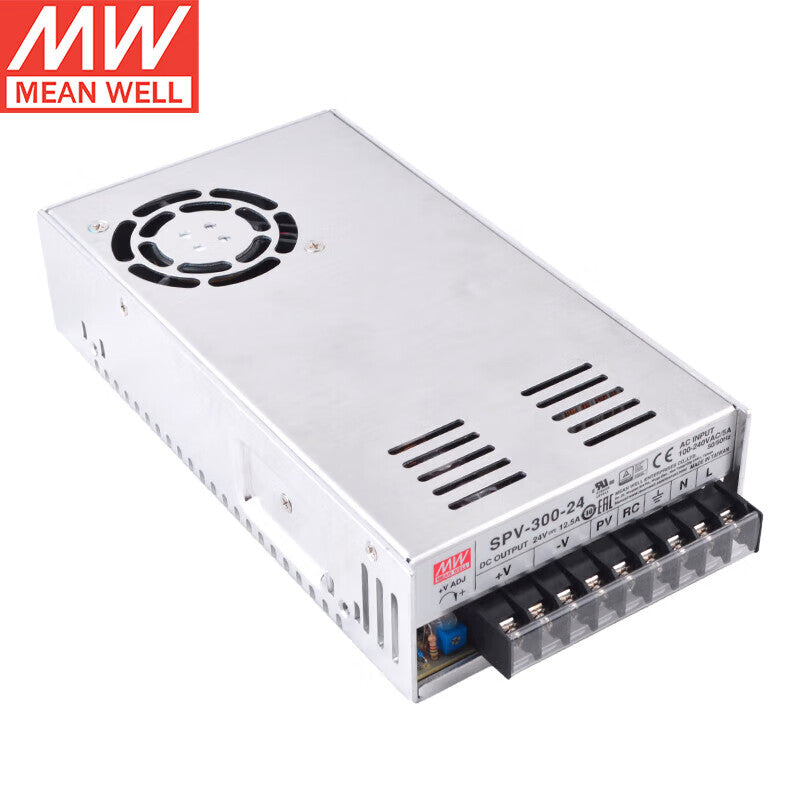

| SPV-300-24 | 24V (4.8-26.4V adj.) | 12.5-13A | 150mV | 85% |

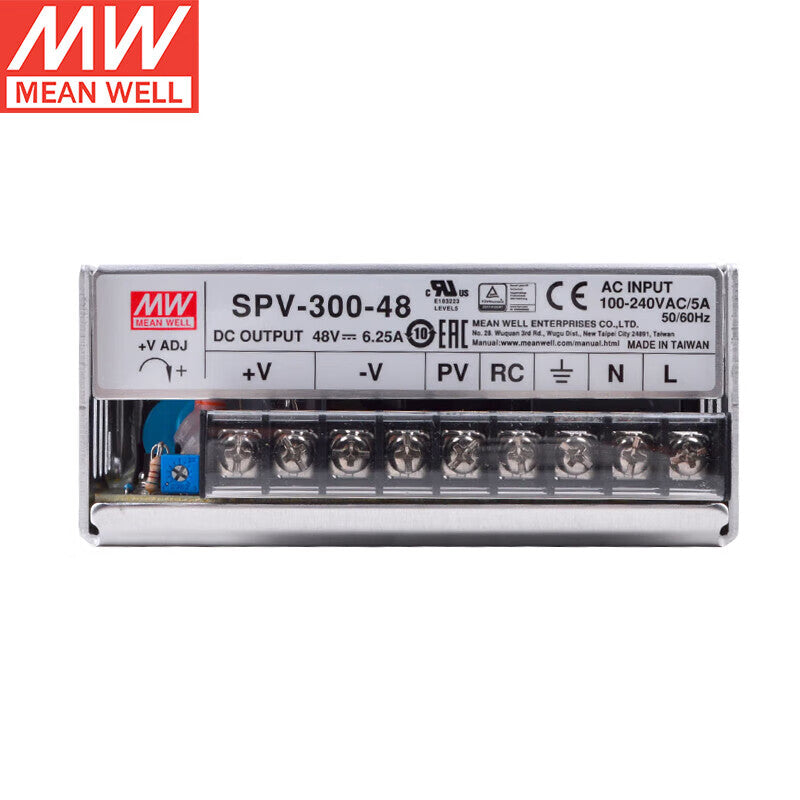

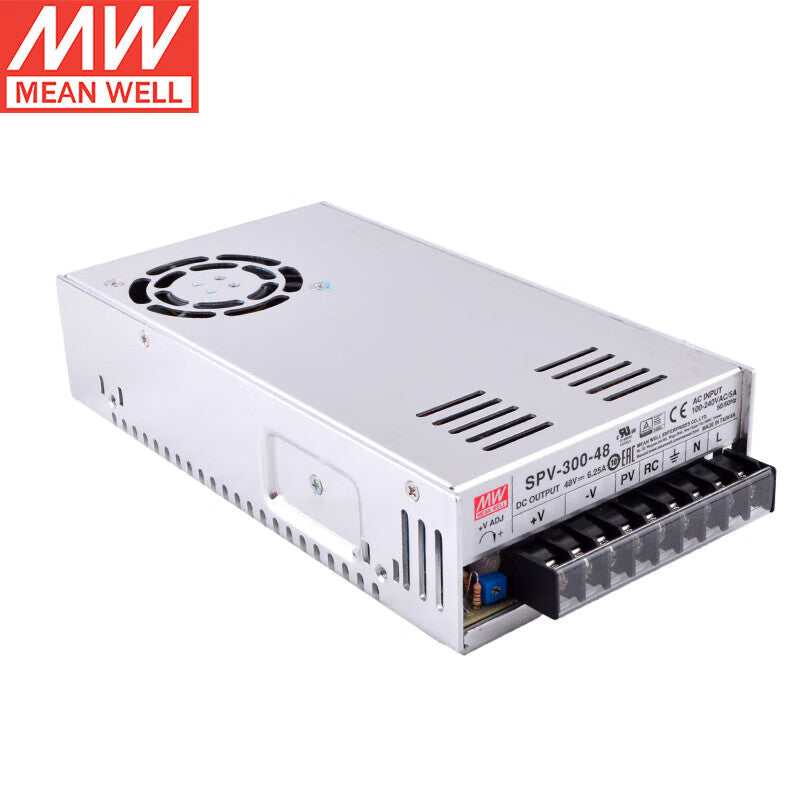

| SPV-300-48 | 48V (9.6-52.8V adj.) | 6-6.25A | 240mV | 86.5-87% |
Environmental :
-
Operating Temperature: -20°C to +65°C
-
SPV-150: Full load up to 40°C convection cooled
-
SPV-300: Full load up to 50°C with built-in fan
Safety Approvals : UL62368-1, TUV EN62368-1, EAC TP TC 004, CE, CB
EMC Standards : EN55032 class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11
Warranty : 3 years
