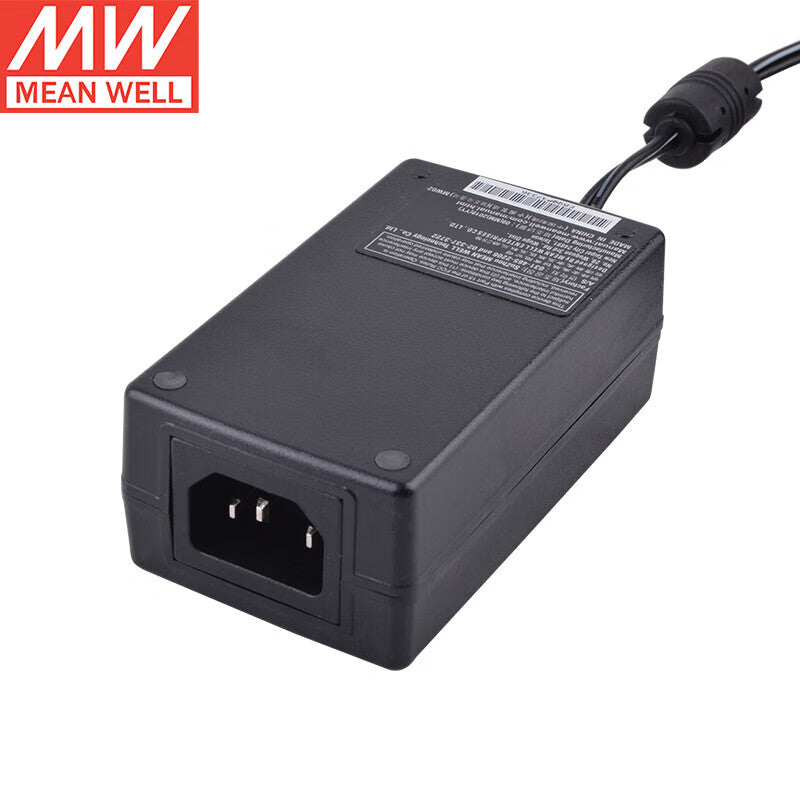

MEAN WELL GST "A" series—18W to 360W high-reliability industrial-grade desktop power adapters featuring Class I construction with IEC320-C14 AC inlet and functional earth ground pin . Designed for IT equipment (ITE) and commercial applications, these adapters meet international safety certifications including UL, TUV, PSE, RCM, KC, CCC, and more . Energy efficiency Level VI with ultra-low no-load power consumption <0.075W to <0.5W, complying with EISA 2007/DoE, NRCan, EU ErP, and CoC Version 5. Universal AC input 85-264VAC with built-in active PFC function (selected models) and wide operating temperature -30°C to +70°C. Fanless convection-cooled design with fully enclosed 94V-0 flame retardant plastic case and protections: short circuit, overload, over voltage, over temperature . Available in popular output voltages including 12V and 24V models with output current up to 30A (12V) and 15A (24V) on 360W models. 3-year warranty . Ideal for telecommunications equipment, office facilities, industrial controls, consumer electronics, 3D printers, and POE applications.
Key GST "A" Series (Class I Desktop) Features Summary (18W-360W):
| Feature | GST18A | GST25A | GST40A | GST60A | GST90A | GST120A | GST160A | GST220A | GST280A | GST360A |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Rating | 18W | 25W | 40W | 60W | 90W | 120W | 160W | 220W | 280W | 360W |
| Input | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC | 85-264VAC |
| AC Inlet | IEC320-C14 (Class I, with earth pin) | IEC320-C14 | IEC320-C14 | IEC320-C14 | IEC320-C14 | IEC320-C14 | IEC320-C14 | IEC320-C14 | IEC320-C14 | IEC320-C14 |
| 12V Model | 1.5A | 2.08A | 3.34A | 5A | 7.5A | 10A | 11.5A | 15A | 18.5A | 30A |
| 24V Model | 0.75A | 1.04A | 1.67A | 2.5A | 3.75A | 5A | 6.67A | 9.2A | 11.67A | 15A |
| Efficiency Level | Level VI | Level VI | Level VI | Level VI | Level VI | Level VI | Level VI | Level VI | Level VI | Level VI (up to 95%) |
| No-Load Consumption | <0.075W | <0.075W | <0.075W | <0.075W | <0.15W | <0.15W | <0.15W | <0.15W | <0.15W | <0.5W |
| Operating Temp | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C |
| Connector Type | P1J | P1J | P1J | P1J | P1M | R7B | R7B | R7B | C6P/C4P | XP/CP |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
Model Number Breakdown:

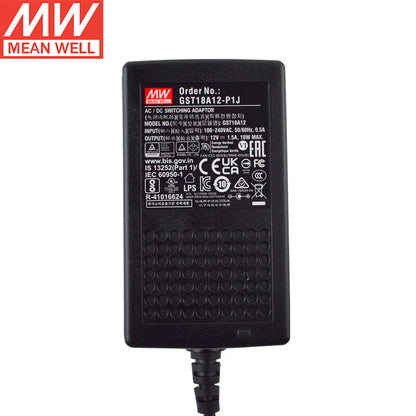

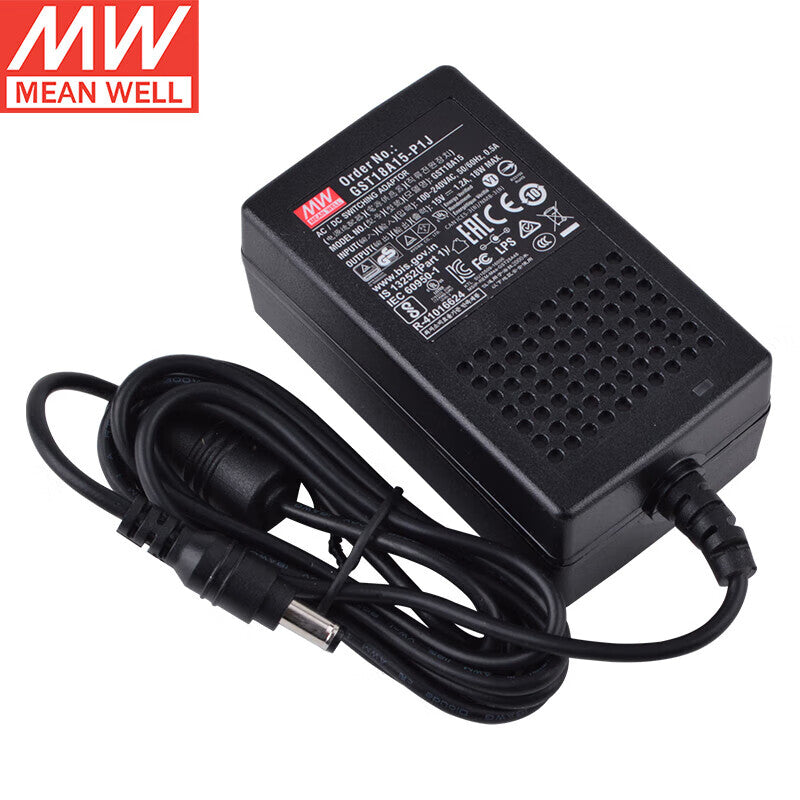

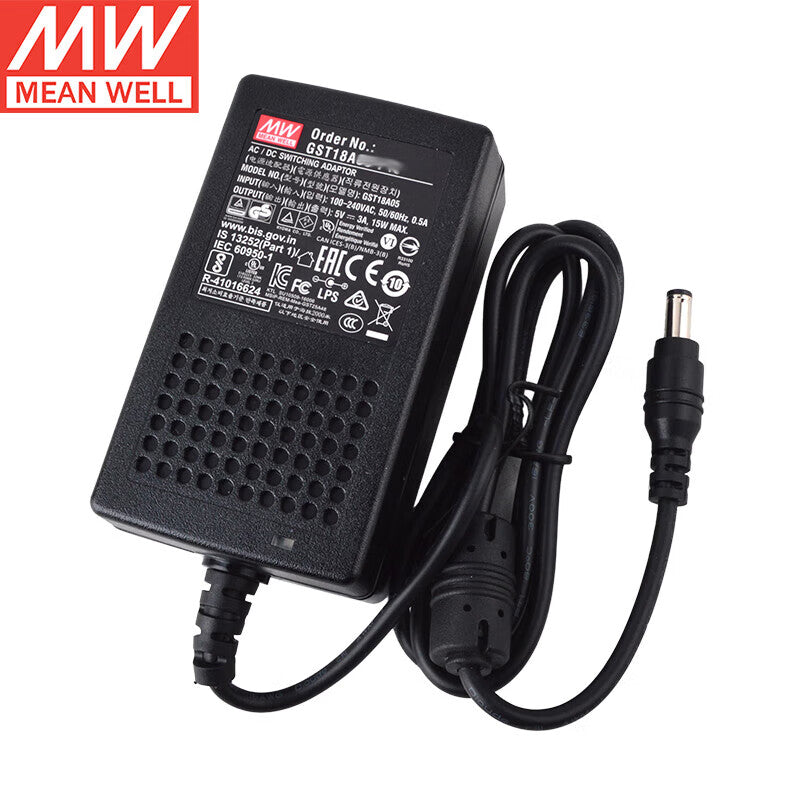

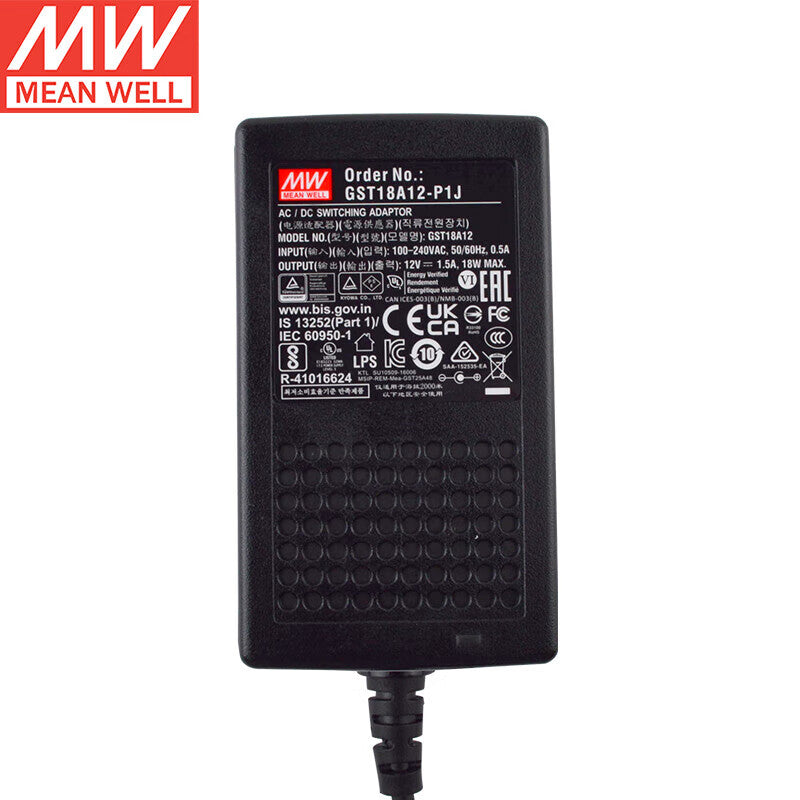

GST18A = 18W desktop series, Class I (IEC320-C14 inlet, with earth pin)

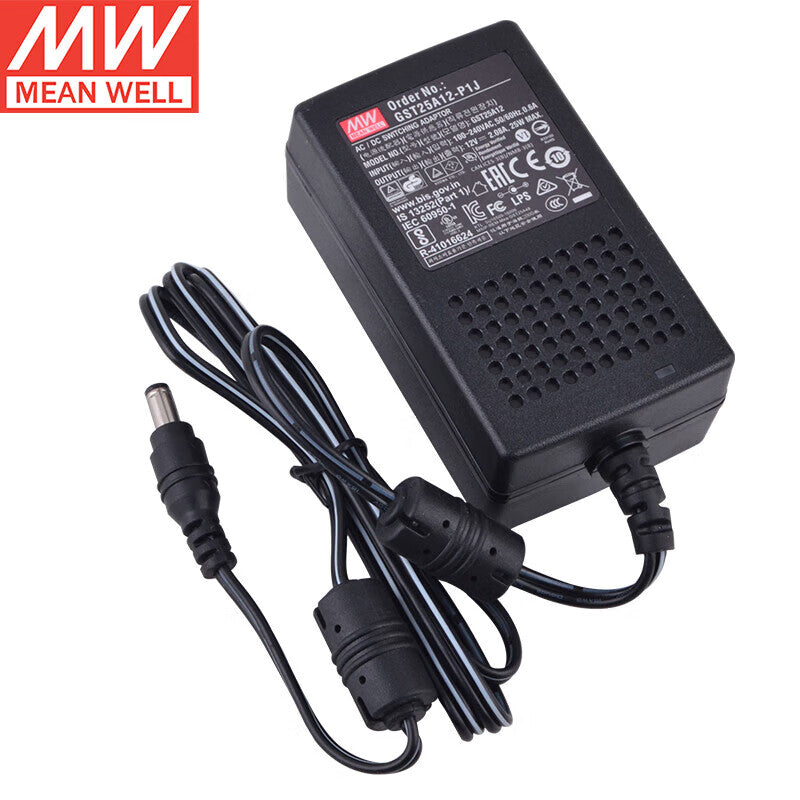

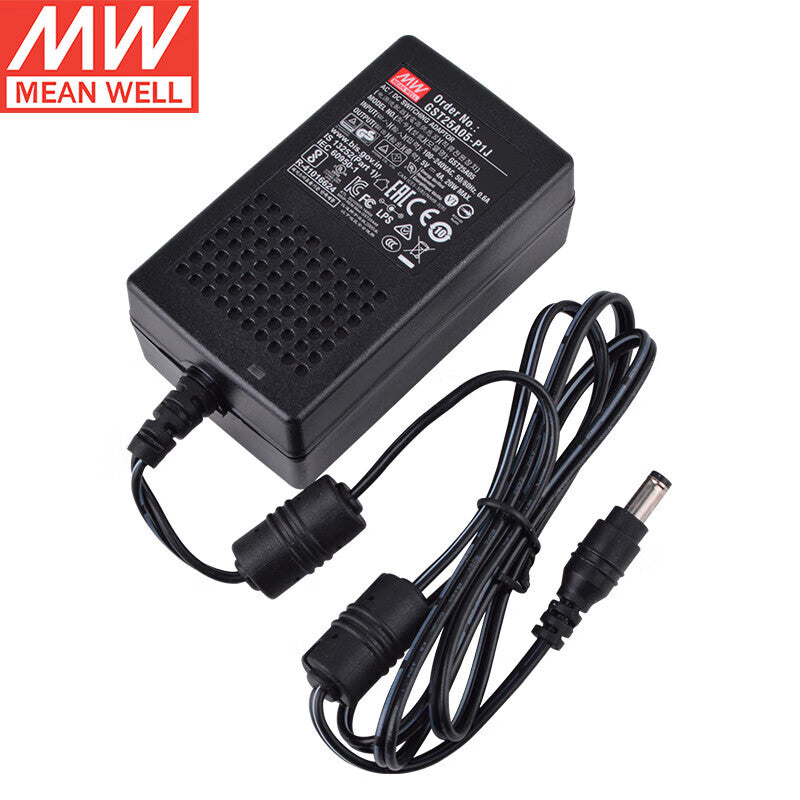

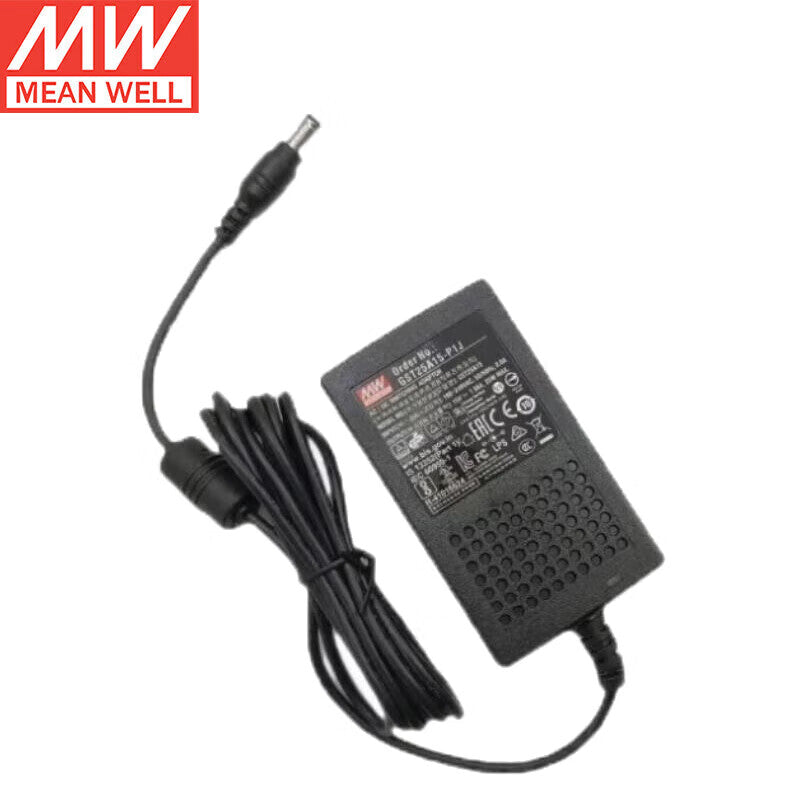

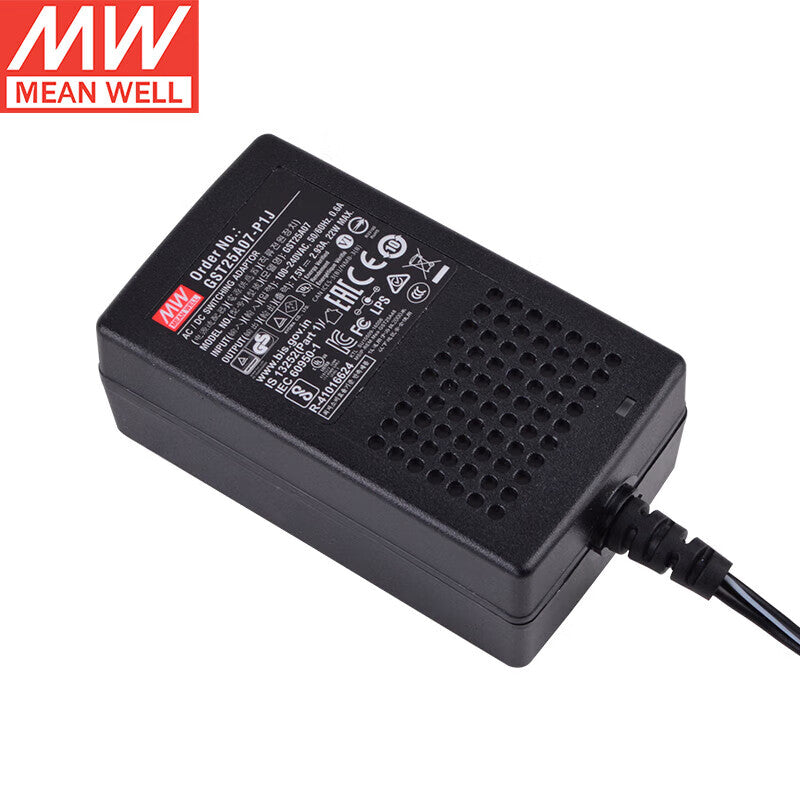

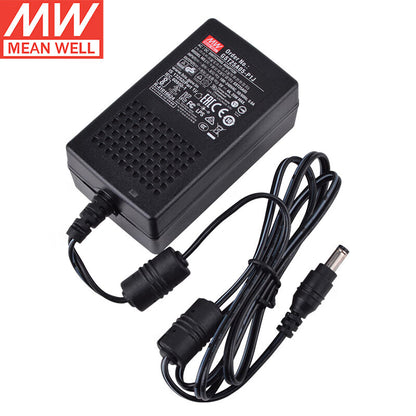

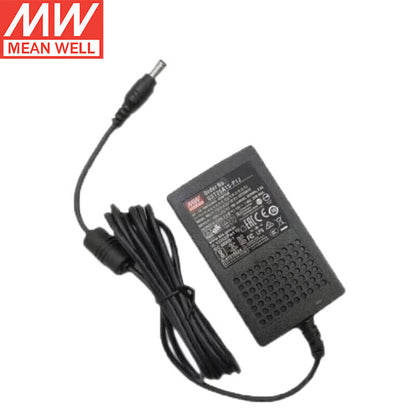

GST25A = 25W desktop series, Class I

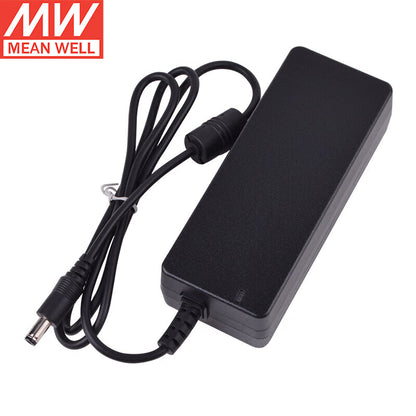

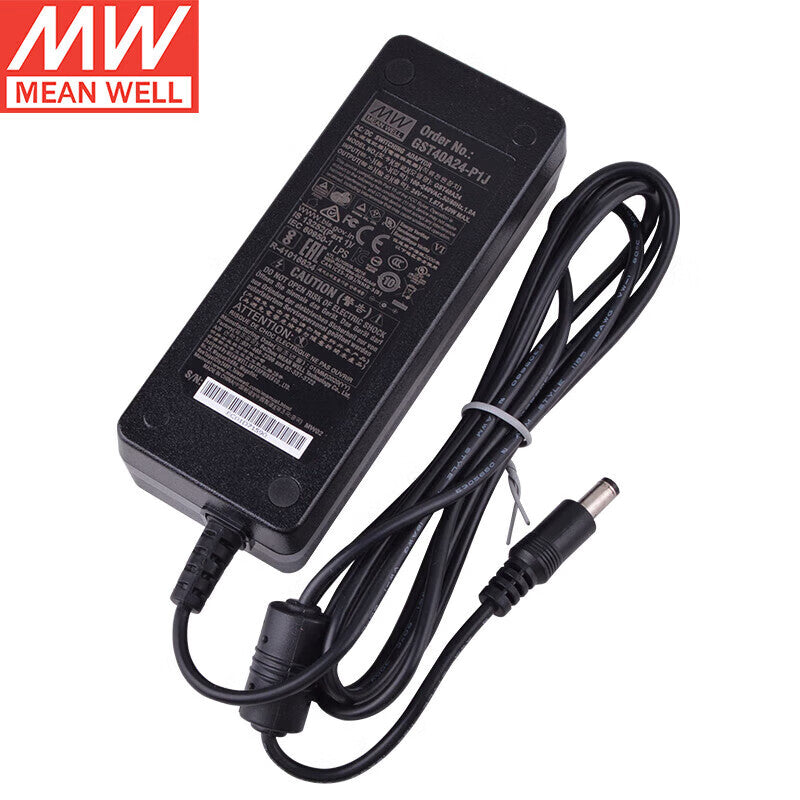

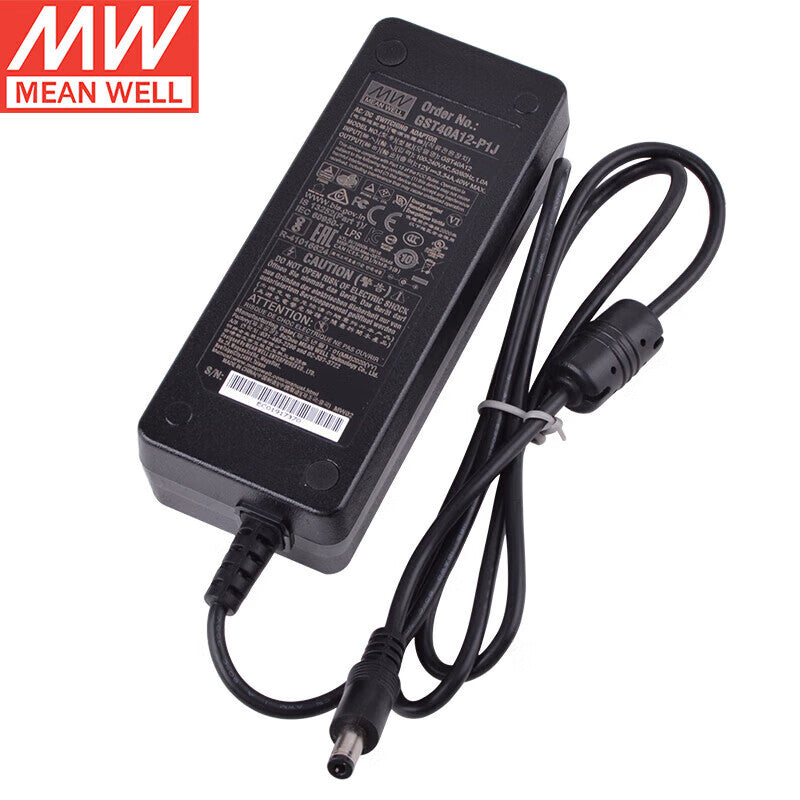

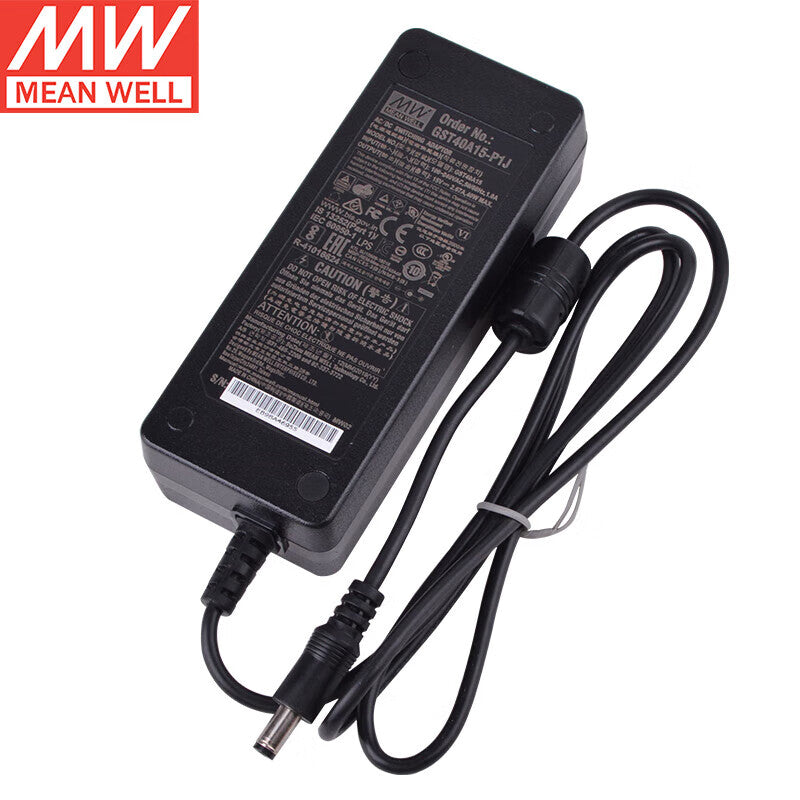

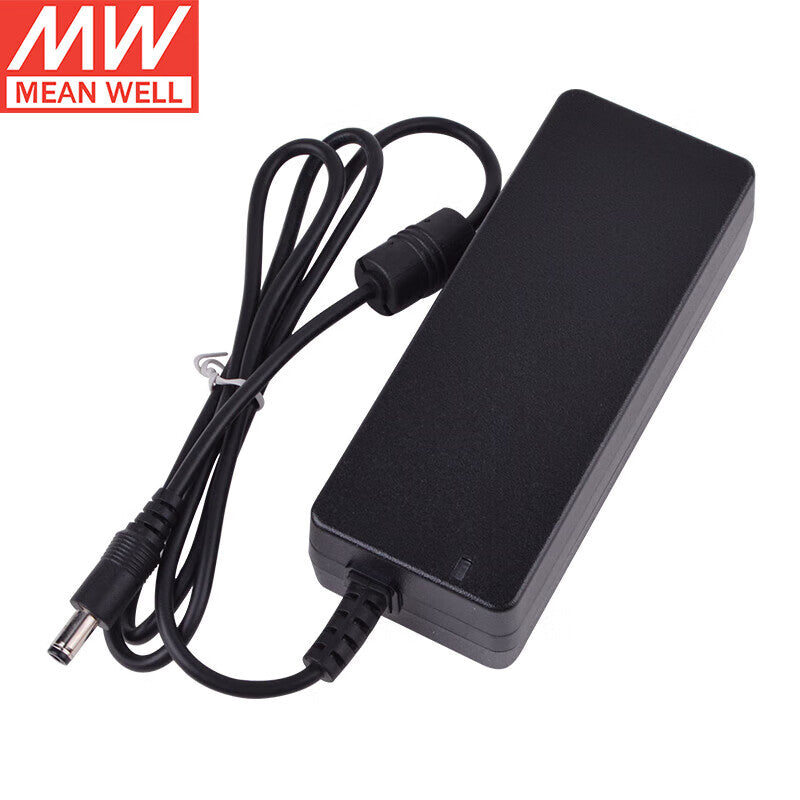

GST40A = 40W desktop series, Class I

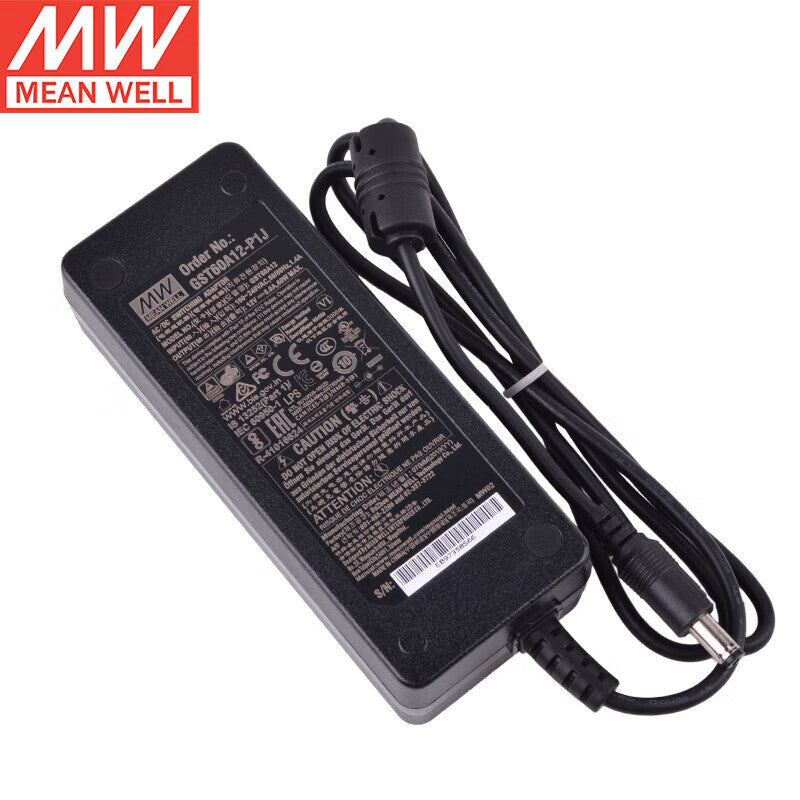

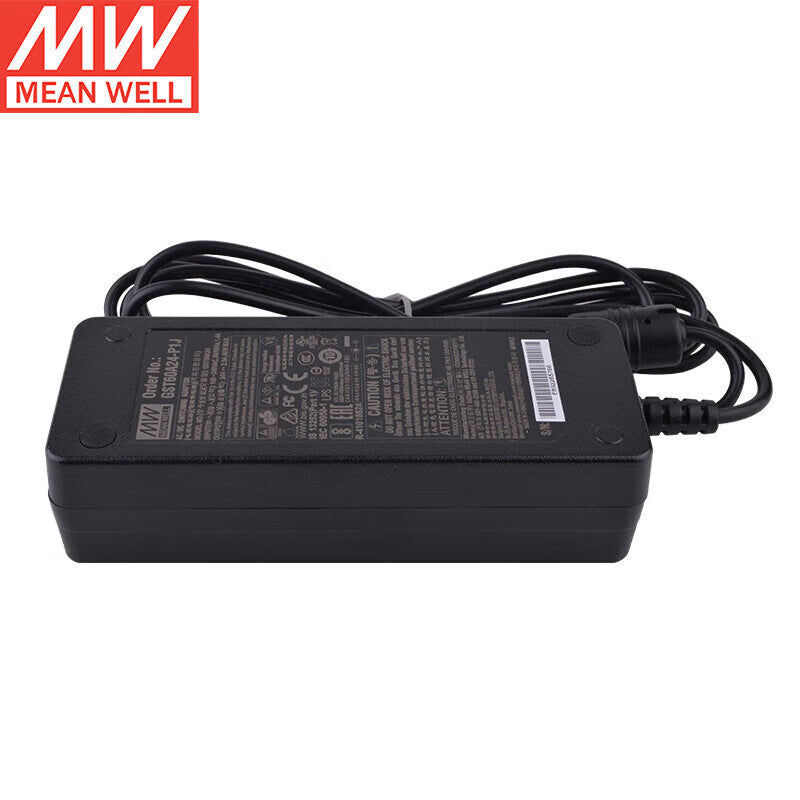

GST60A = 60W desktop series, Class I

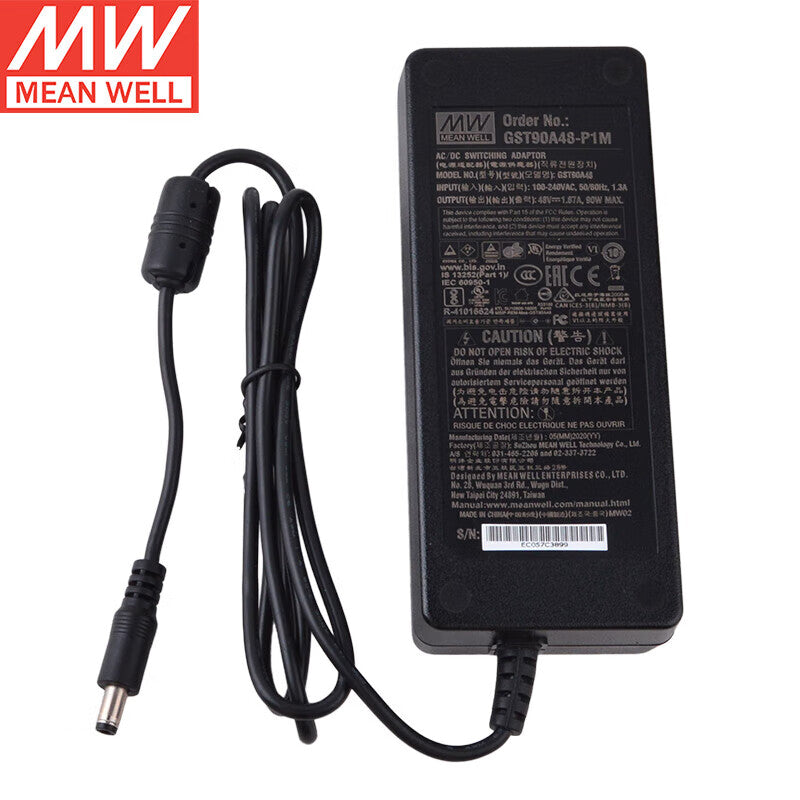

GST90A = 90W desktop series, Class I

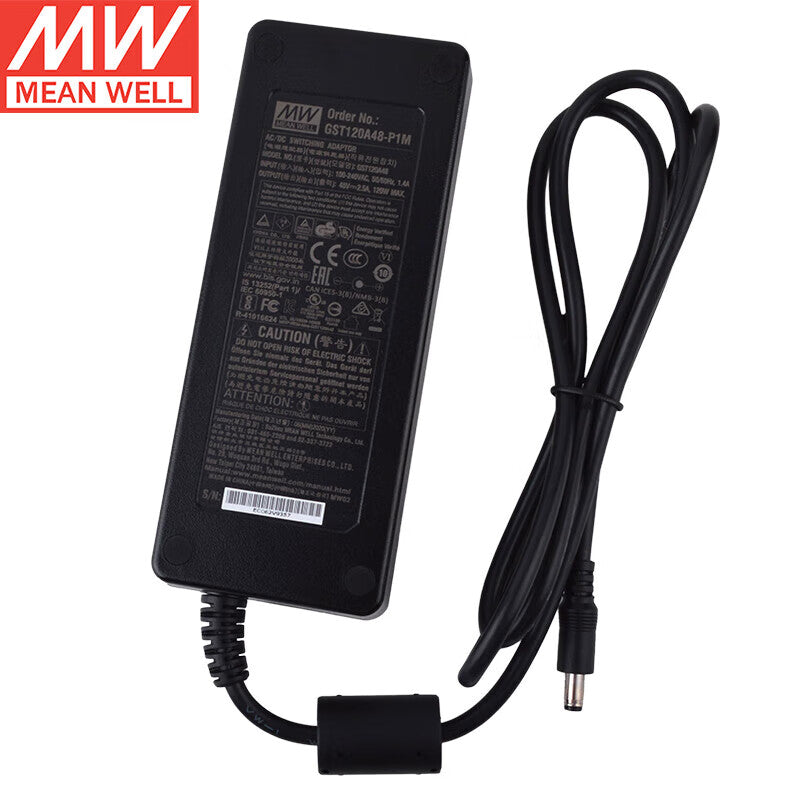

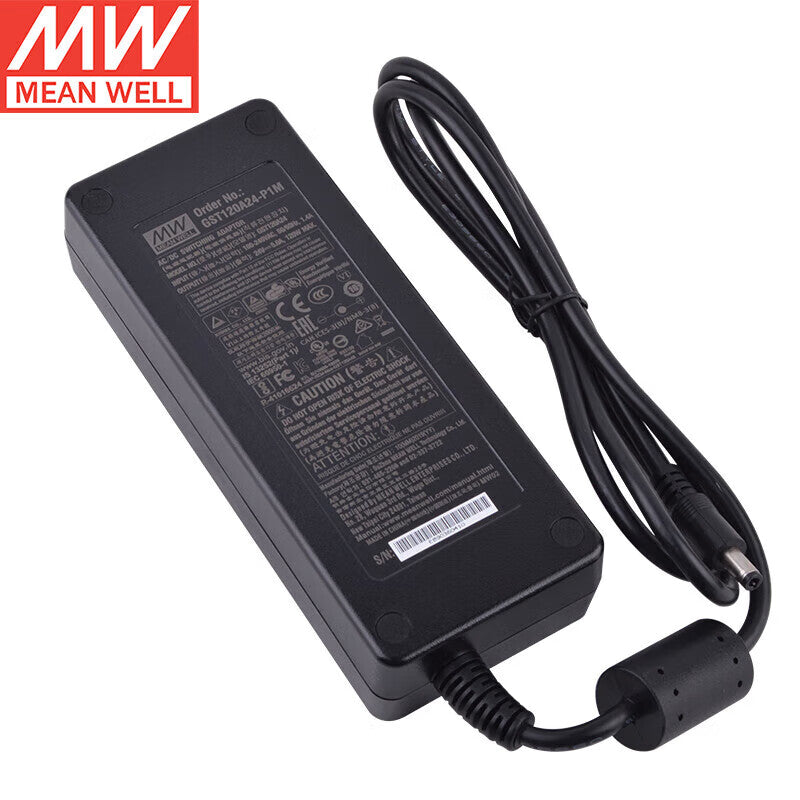

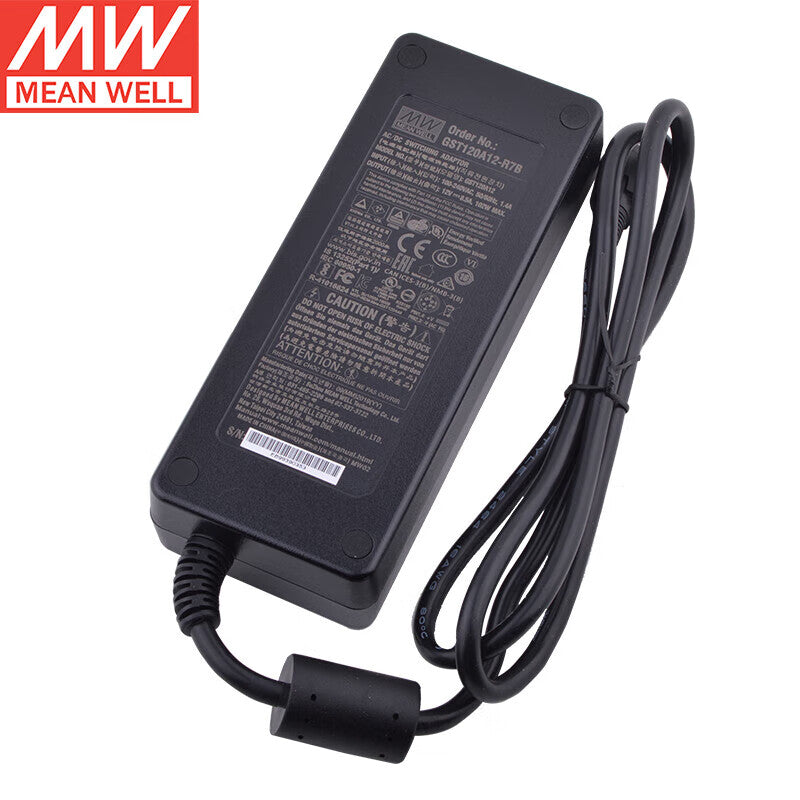

GST120A = 120W desktop series, Class I

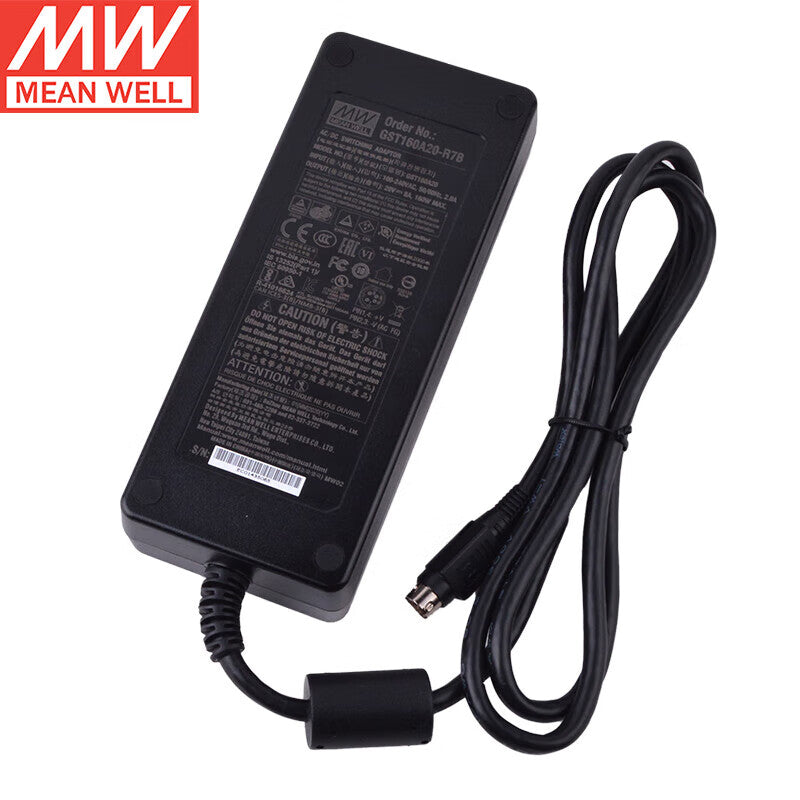

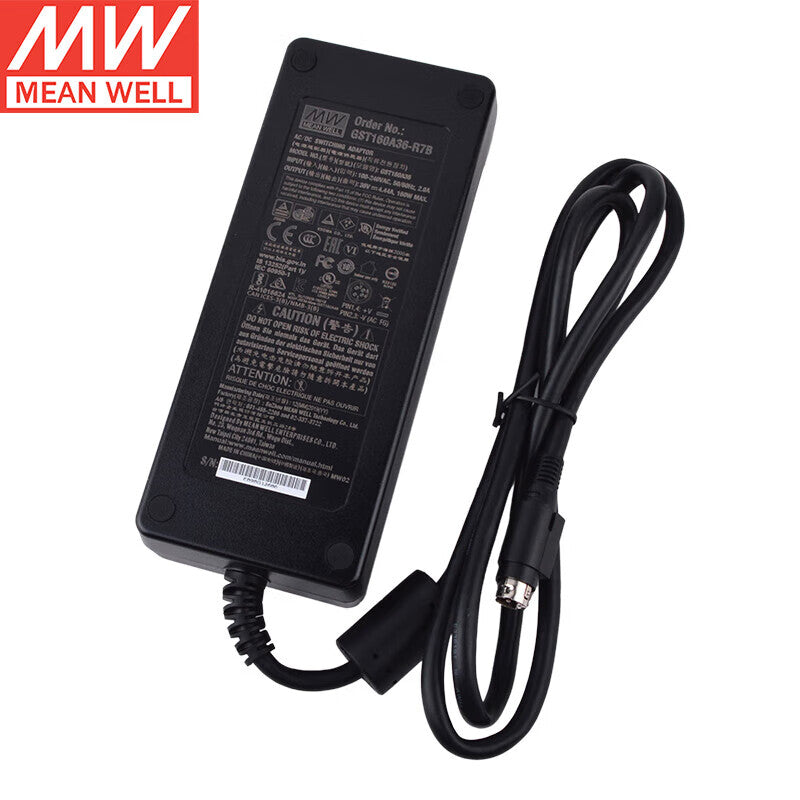

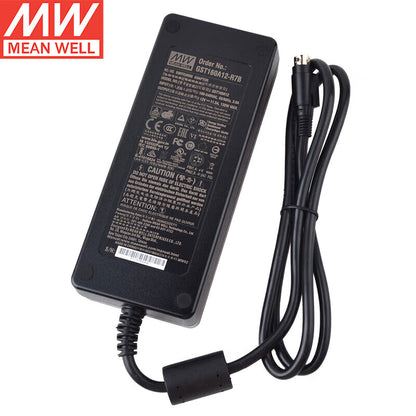

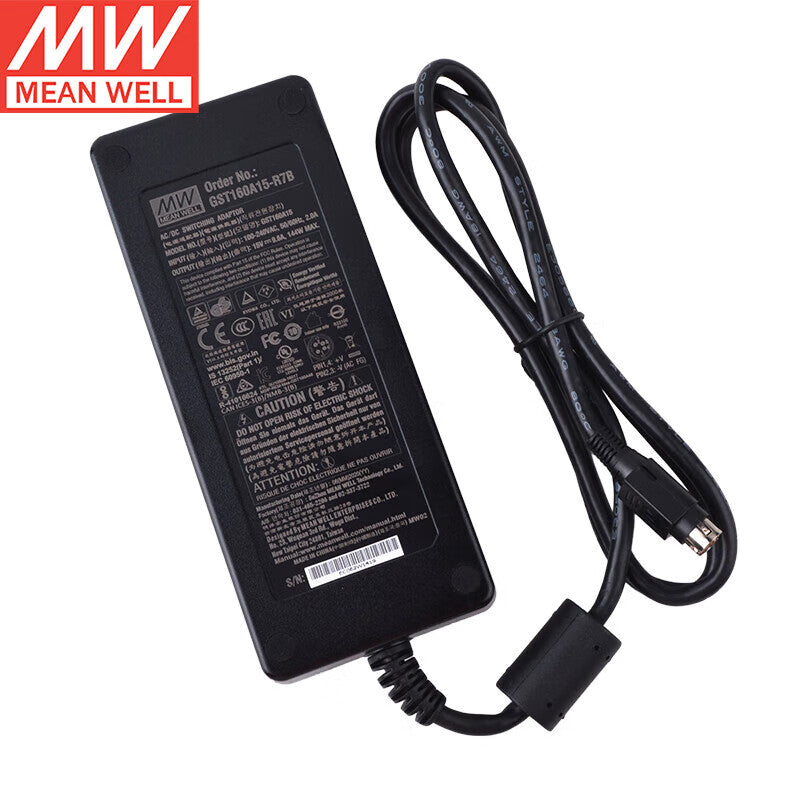

GST160A = 160W desktop series, Class I

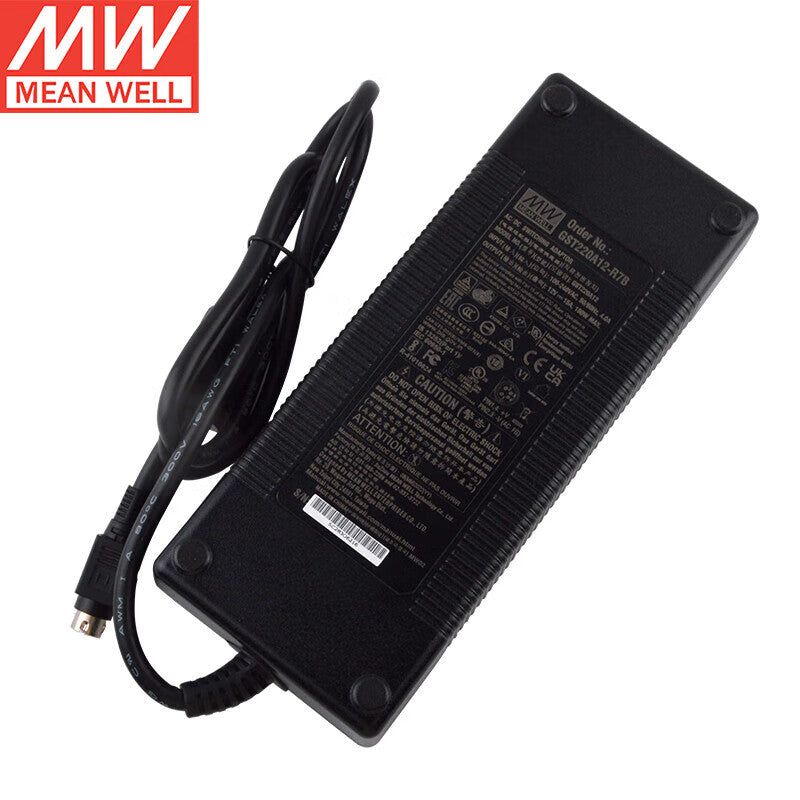

GST220A = 220W desktop series, Class I

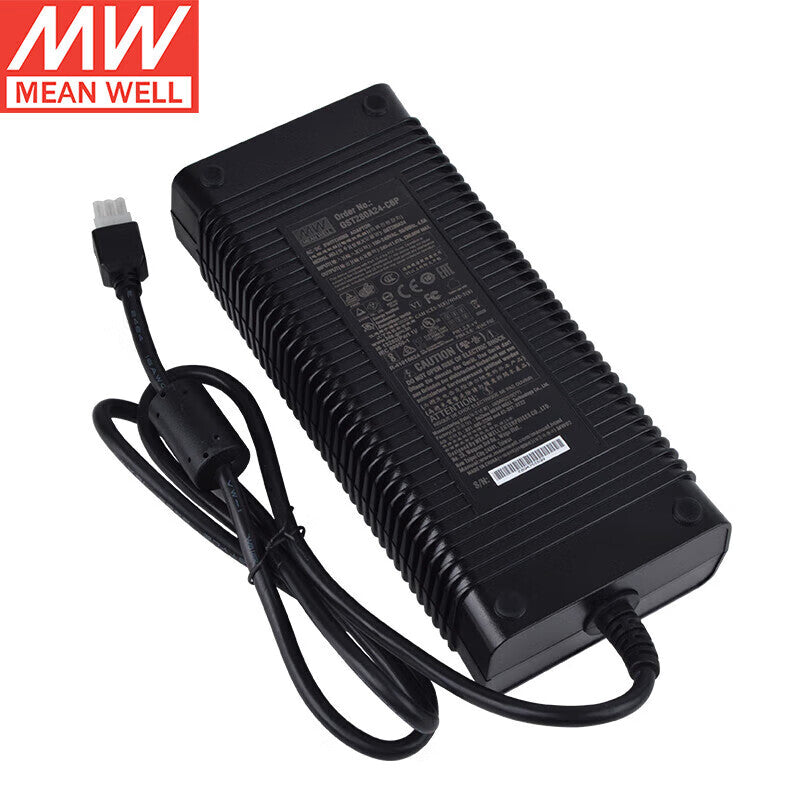

GST280A = 280W desktop series, Class I

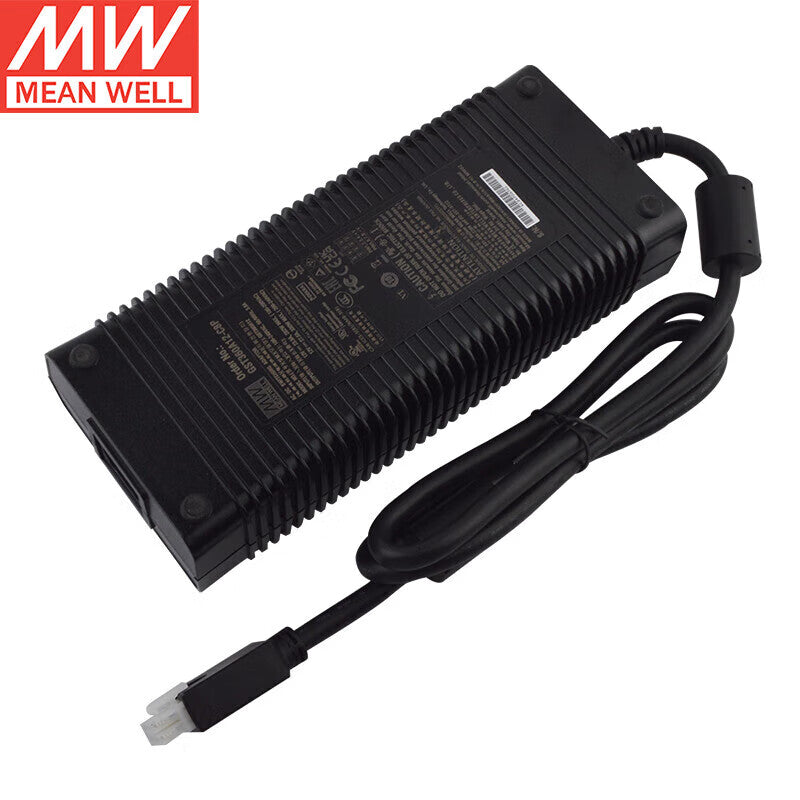

GST360A = 360W desktop series, Class I

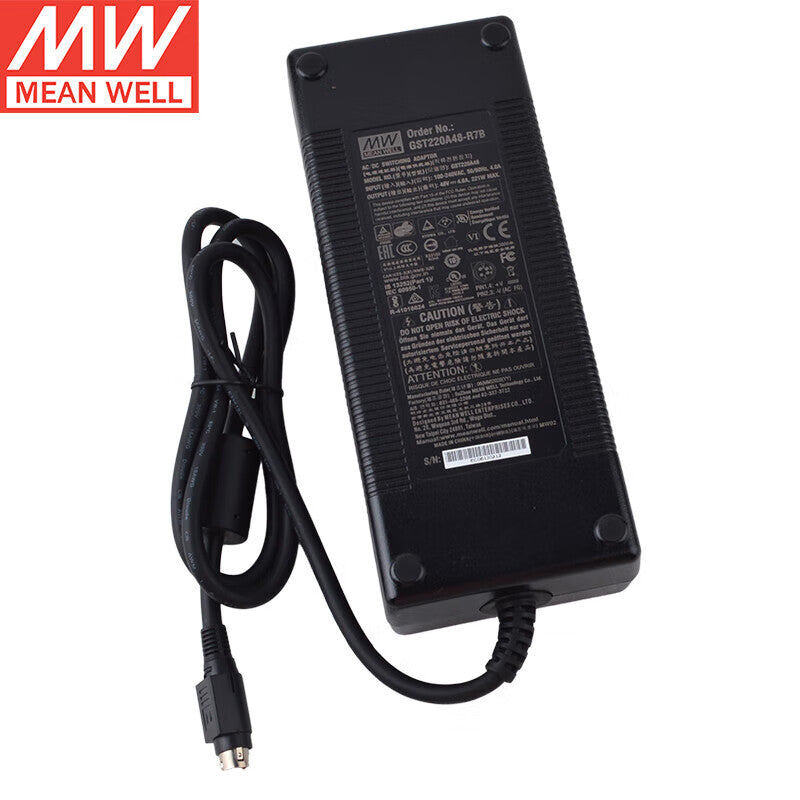

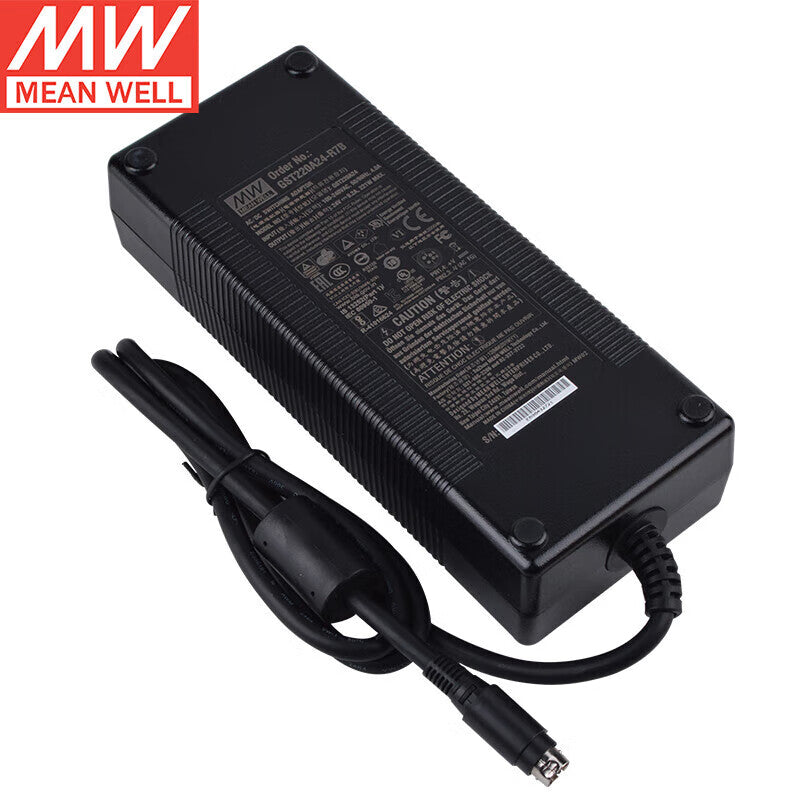

Example: GST220A24-R7B
-
GST220A = Series (220W, Class I desktop with IEC320-C14 inlet)
-
24 = Output voltage (24V)
-
R7B = DC connector type (4-pin power DIN with lock, 1m cable)
Common connector suffixes:
-

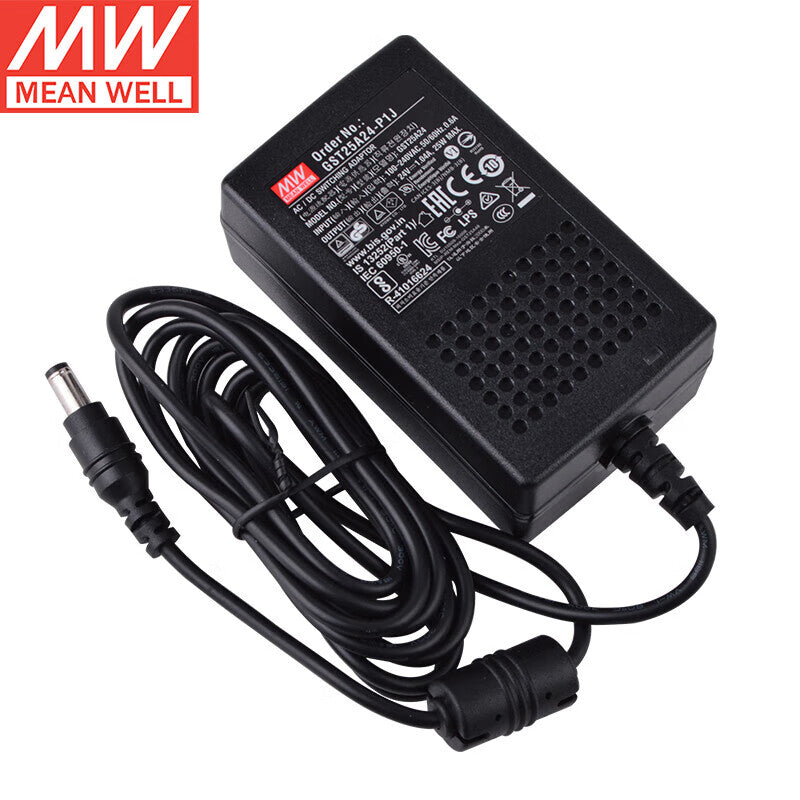

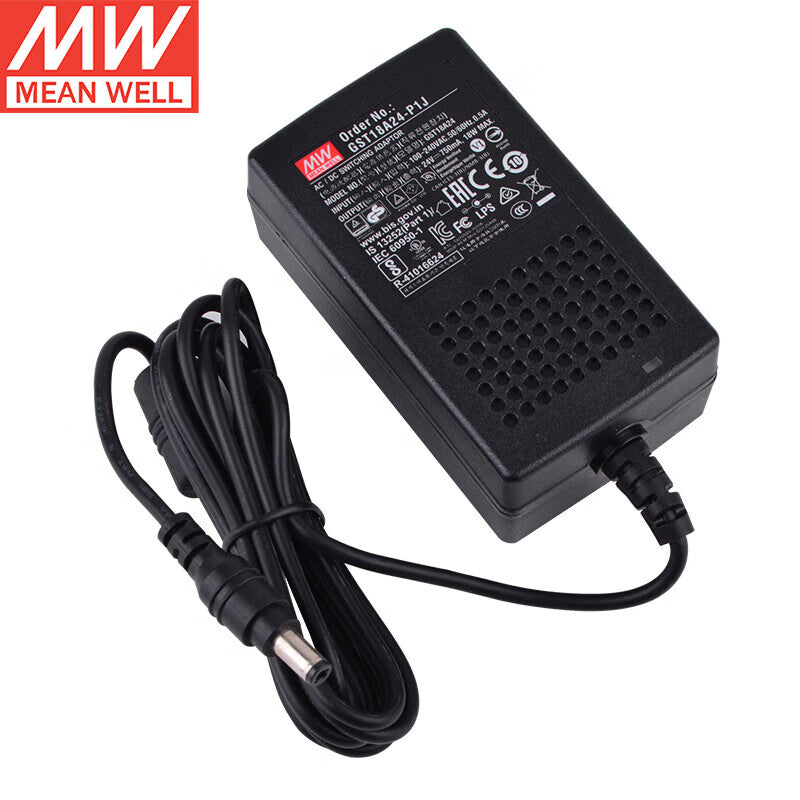

P1J = 2.1×5.5×11mm barrel plug, center positive (18W-60W)
-
P1M = 2.5×5.5×11mm barrel plug, center positive (90W)
-

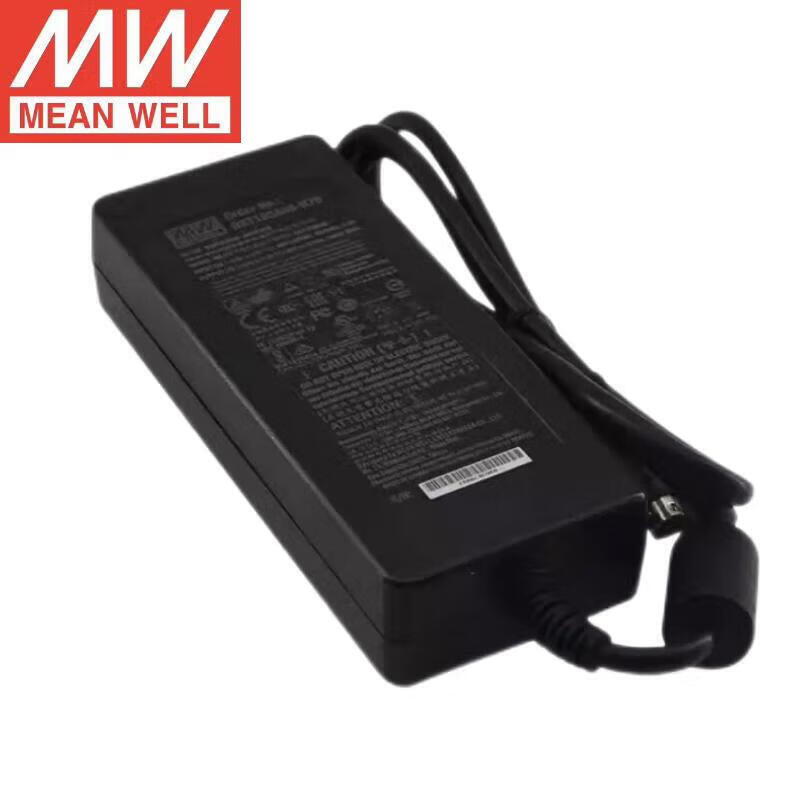

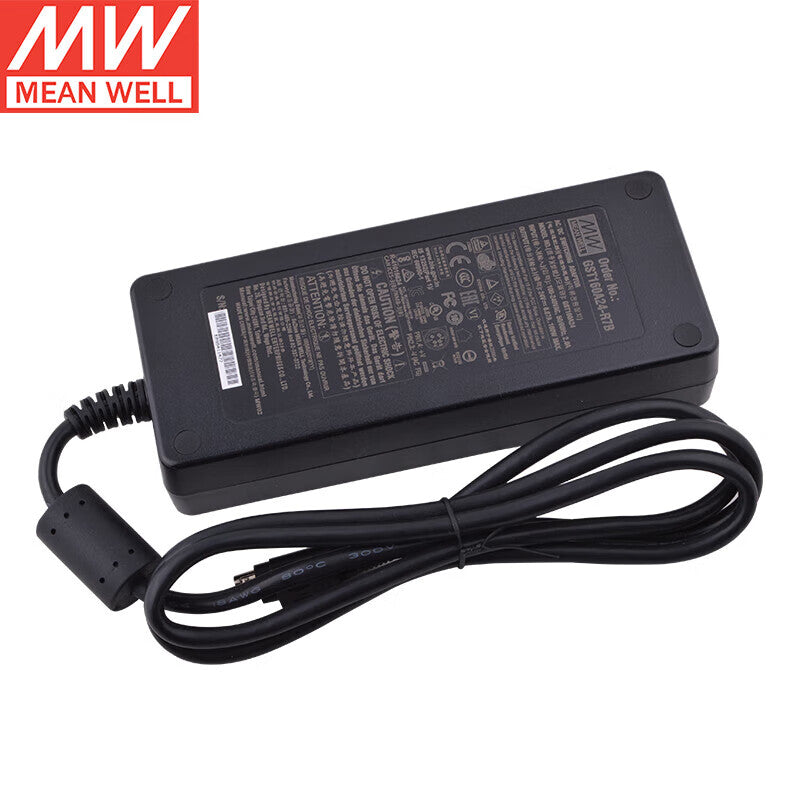

R7B = 4-pin DIN locking connector (120W-220W)
-

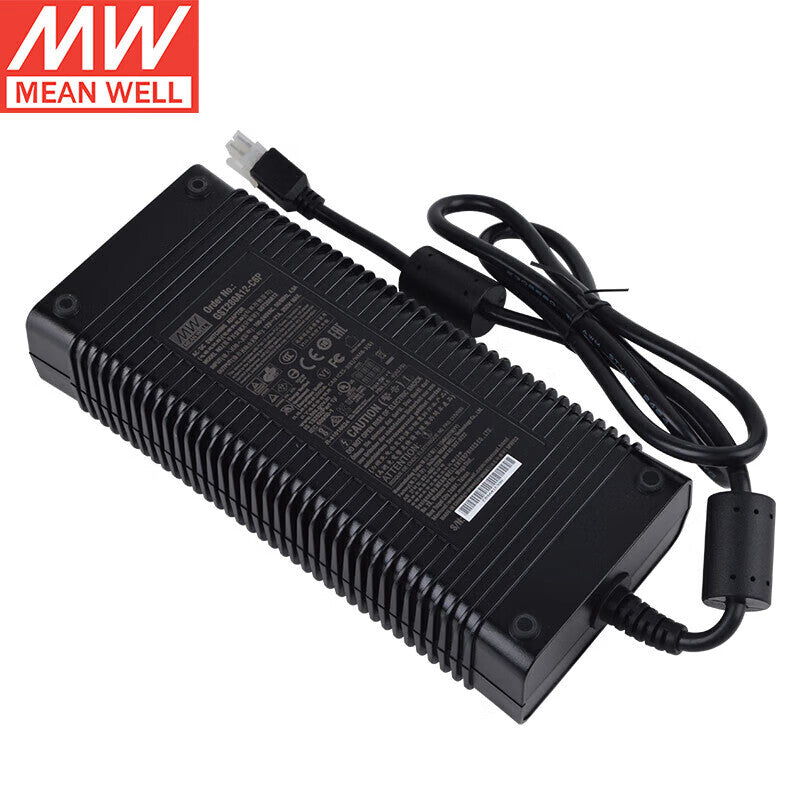

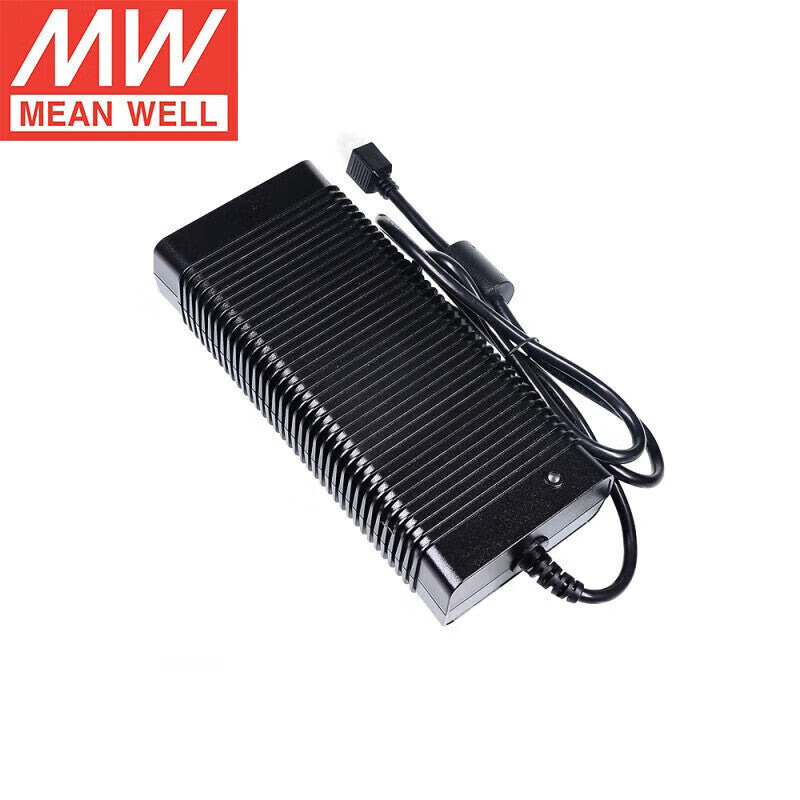

C6P = 6-pin locking connector (280W)
-
XP = 8-pin connector (360W for 12V)
-

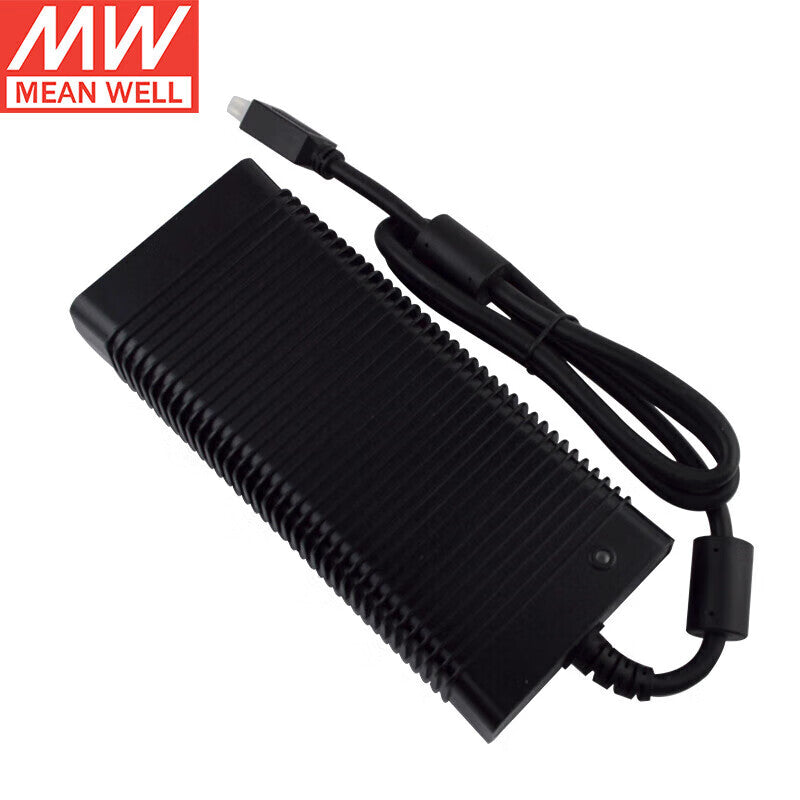

CP = 6-pin connector (360W for 24/55V)
