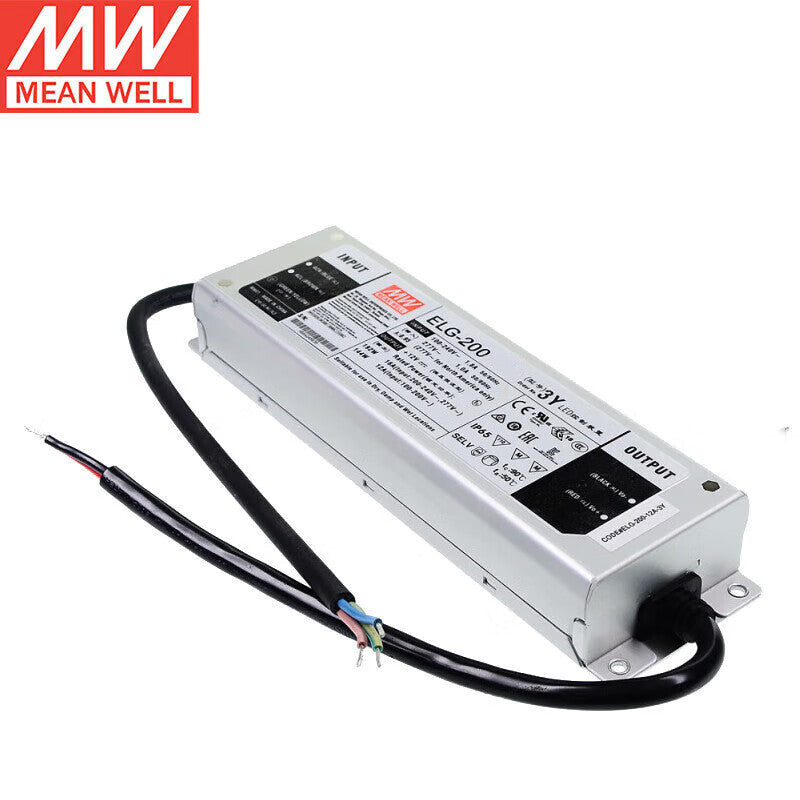

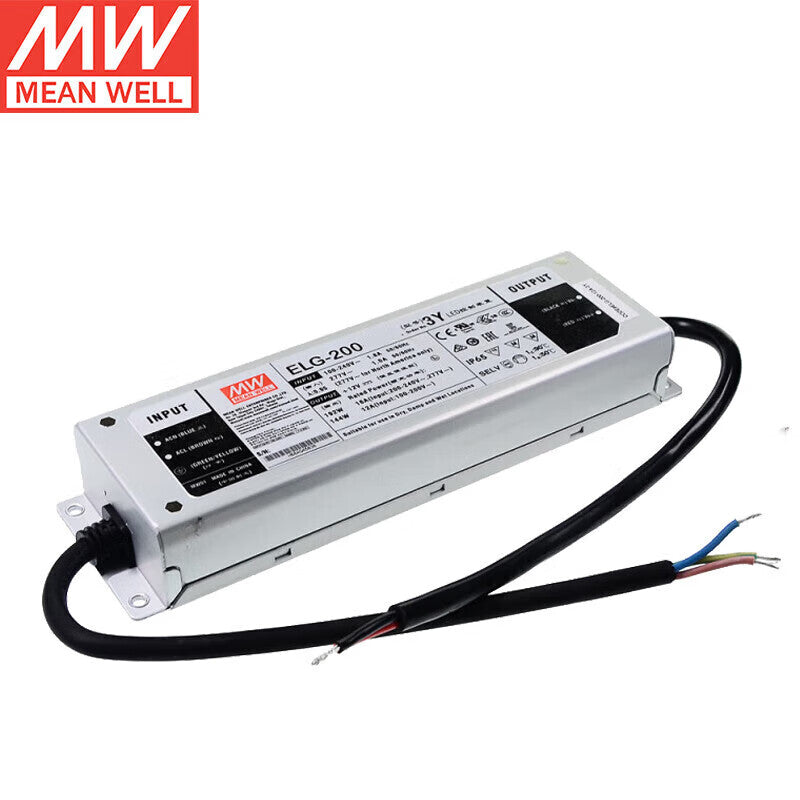

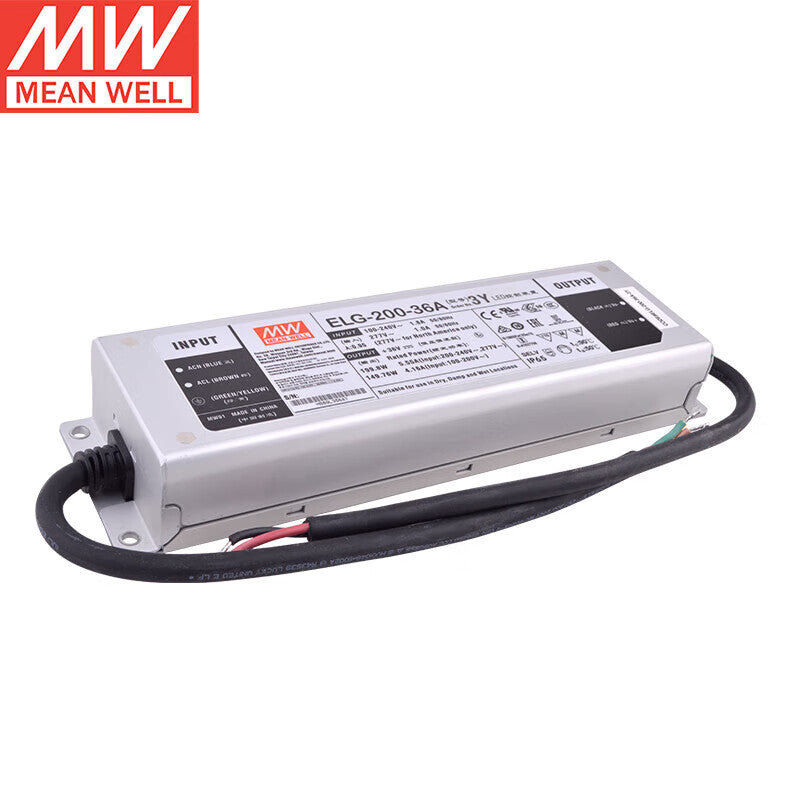

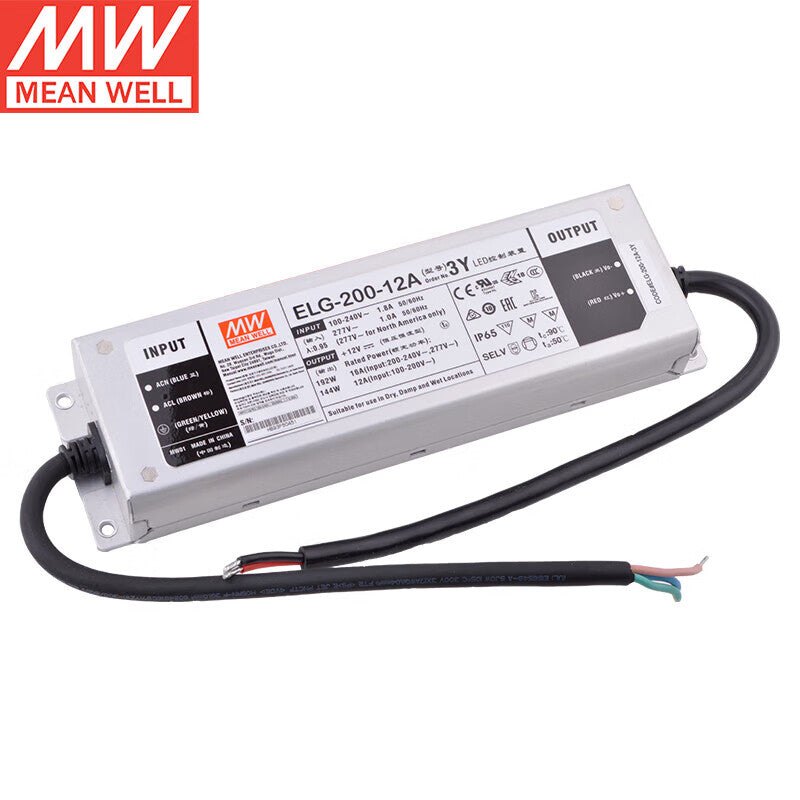

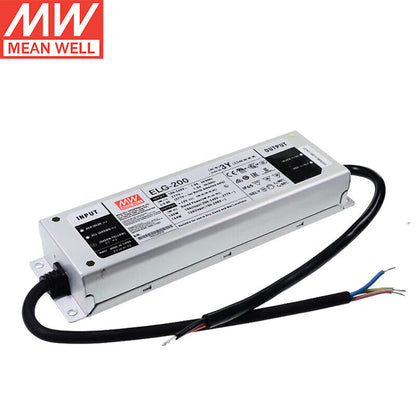

MEAN WELL ELG-200 Series 200W Constant Voltage + Constant Current LED Driver with IP67/IP65

Discover the MEAN WELL ELG-200 series—a 200W high-reliability AC/DC LED driver featuring dual-mode constant voltage (CV) and constant current (CC) output for maximum application flexibility . With universal AC input 100-305VAC and built-in active PFC function (PF>0.97), this driver delivers up to 93% efficiency with fanless design for silent operation . Key features include:

• Output voltage options: 12V, 24V, 36V, 42V, 48V, 54V models with wide constant current regions

• Dual power ratings: 144-150W at 100-180VAC input, 192-201.6W at 200-305VAC input

• IP67/IP65 metal housing for indoor or outdoor installations

• Multiple function options: Blank (fixed output), A-type (adjustable via potentiometer), B-type (3-in-1 dimming), AB-type (adjustable + dimming), DA-type (DALI control), Dx/D2-type (smart timer dimming)

• Protections: Short circuit / Over current / Over voltage / Over temperature

• Type "HL" certified for use in Class I, Division 2 hazardous locations

• Wide operating case temperature -40°C to +90°C

• No-load power consumption <0.5W

• 6kV surge immunity (IEC61000-4-5)

• 5-year warranty

Dimensions: 244 × 71 × 37.5 mm (L×W×H) . Safety approvals: UL8750, CSA, ENEC, CE, CCC, CB . Ideal for LED street lighting, architectural lighting, bay lighting, floodlighting, and outdoor industrial applications .
