MEAN WELL XLG Series 20W-320W Constant Power Mode LED Drivers with IP67 for Outdoor Lighting
模型：

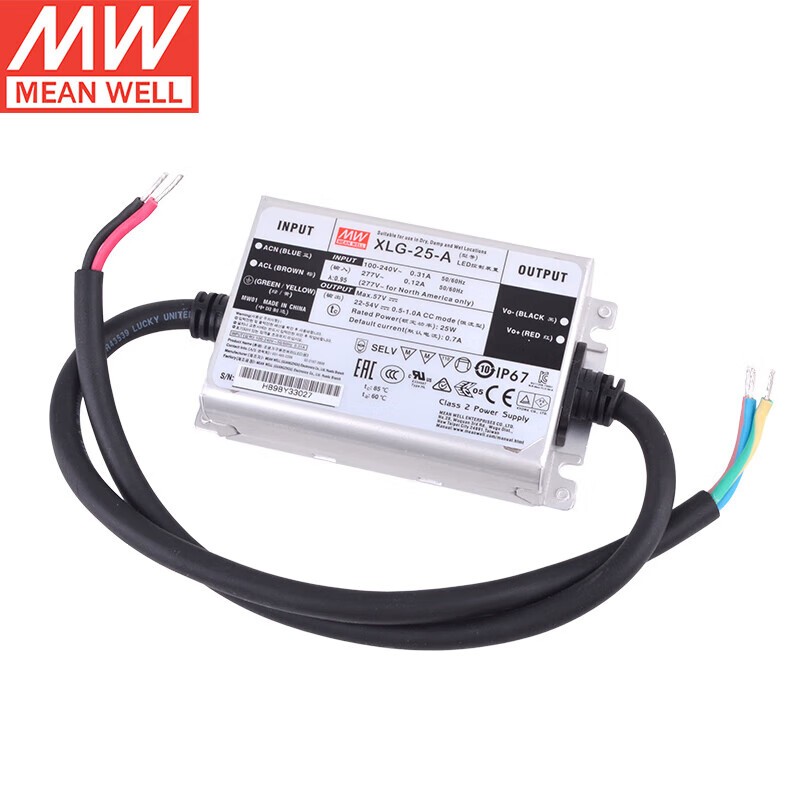

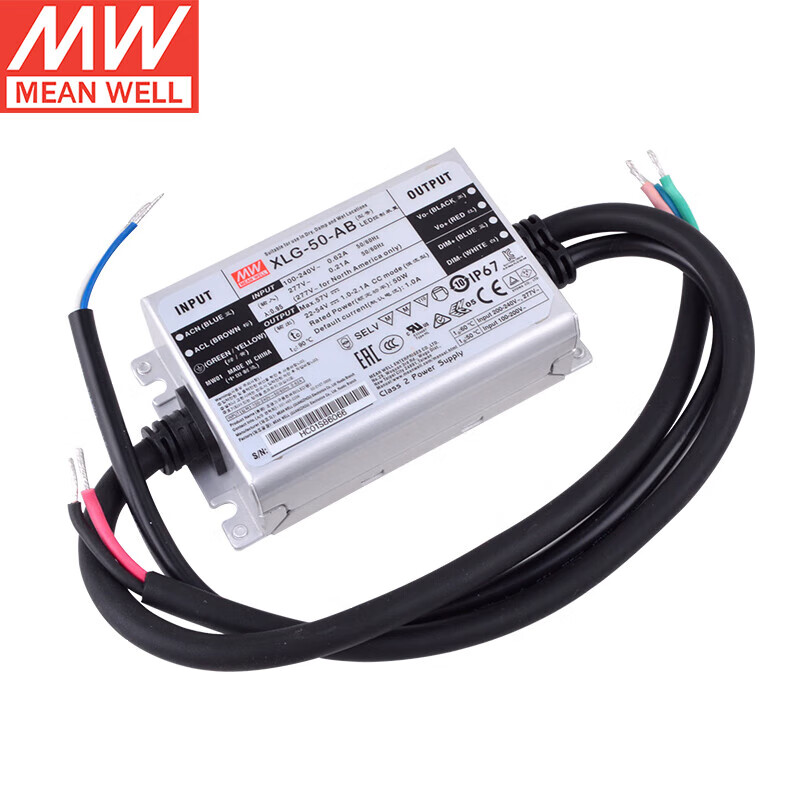

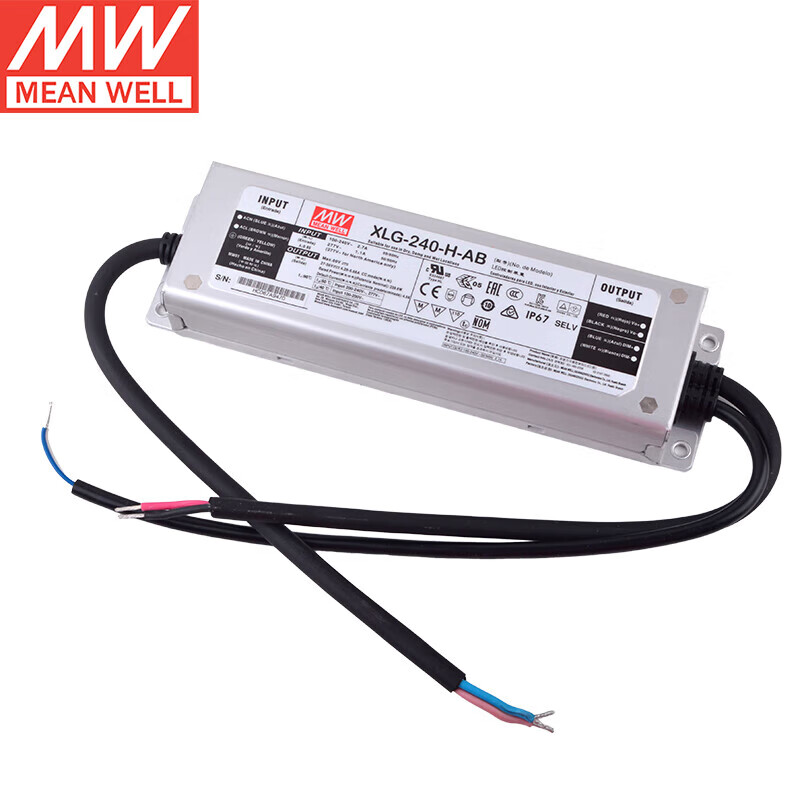

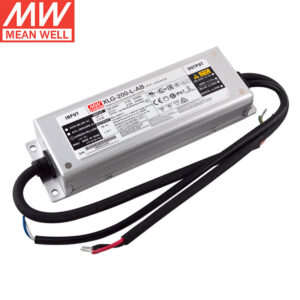

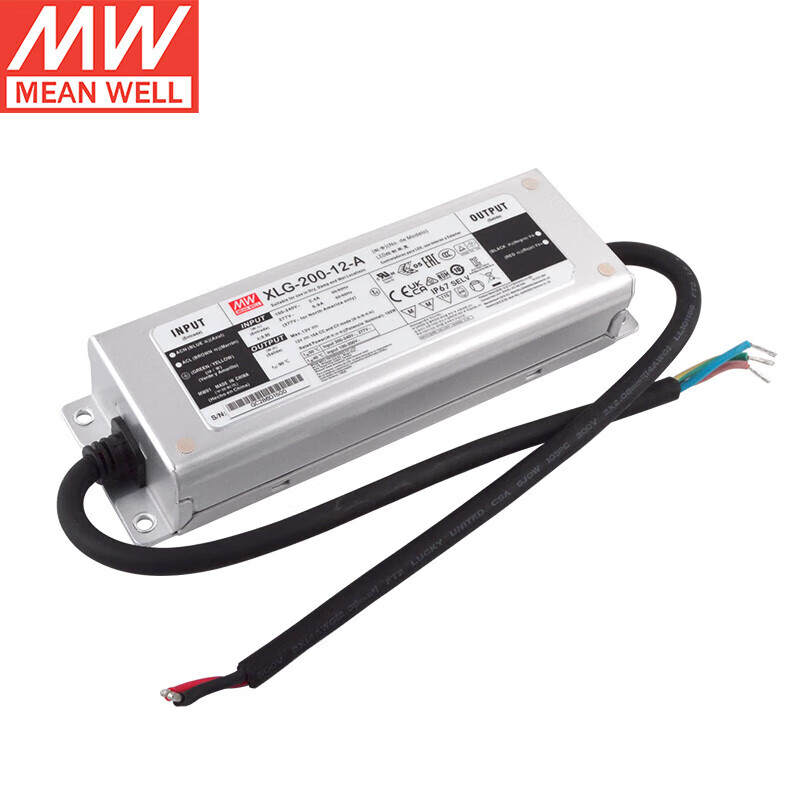

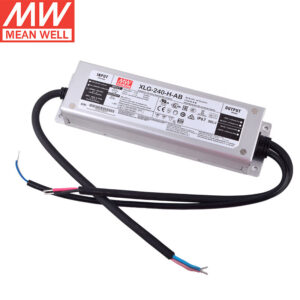

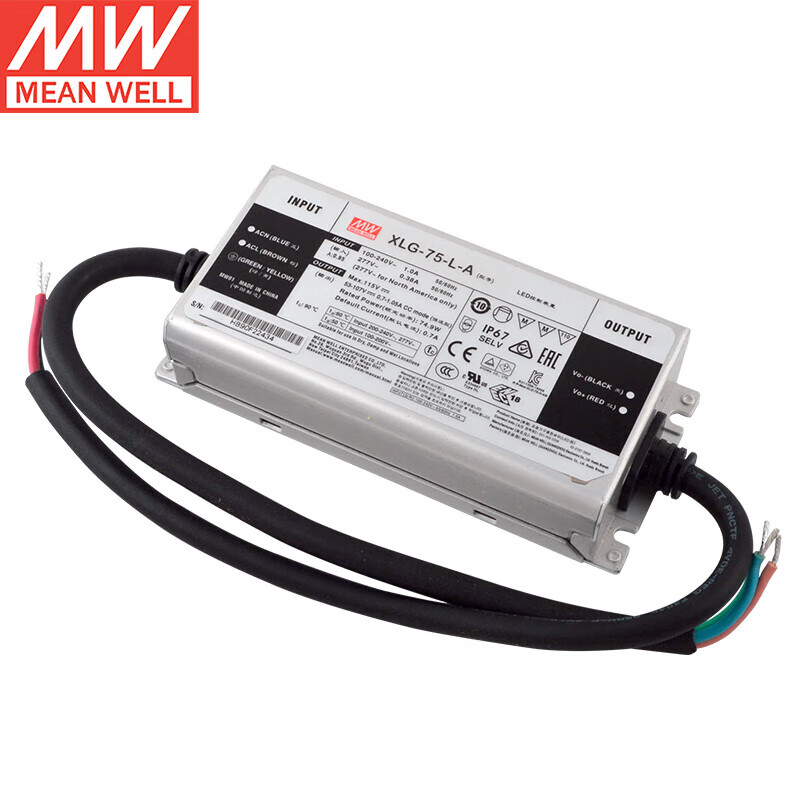

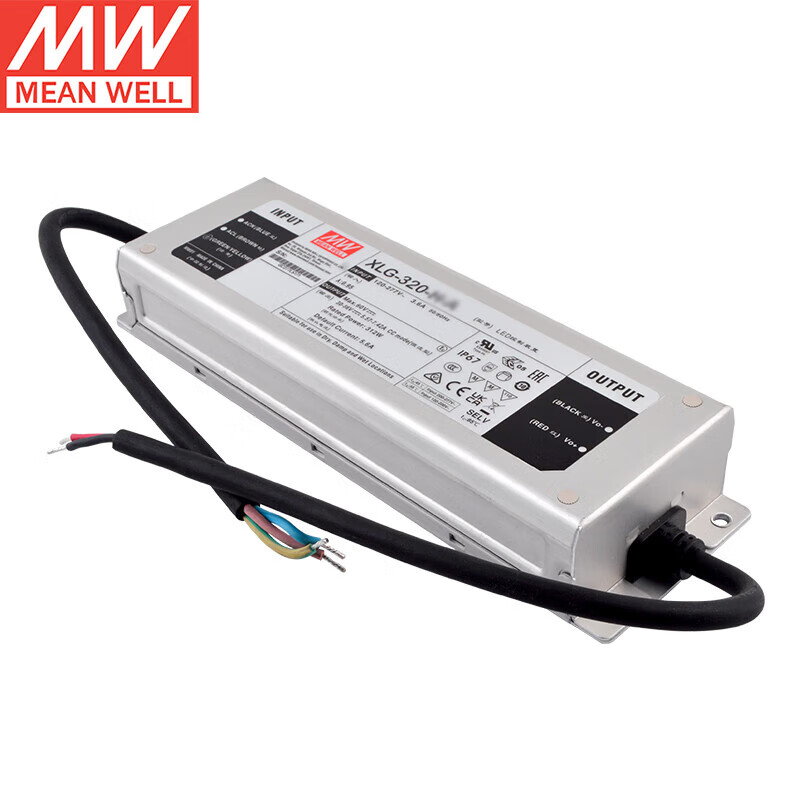

MEAN WELL XLG-20 / XLG-25 / XLG-50 / XLG-75 / XLG-100 / XLG-150 / XLG-200 / XLG-240 / XLG-320 | LED Driver
SKU：
776851212177-MEAN WELL XLG Series LED Drivers
產品類型 ：
AC/DC
MOQ：
1 件
售後保證
不送貨退費
安全付款
後勤支援
免運費
X 天交貨
準時保證
免費退貨
快速出貨
運費和交貨日期待議。立即與我們聯絡，瞭解更多詳情。.
安全付款
您在 c2psu.com 上的每筆付款都經過嚴格的 SSL 加密和 PCI DSS 資料保護協定保護。
輕鬆返回
對符合條件的購物進行免費本地瑕疵退貨
退款保障
如果您的訂單未寄送、遺失或到貨時出現產品問題，請申請退款
Discover the MEAN WELL XLG series—20W to 320W high-performance LED drivers featuring constant power mode design 和 compact size for outdoor and industrial lighting applications. With universal AC input 100-305VAC and built-in active PFC, these fanless drivers deliver up to 94.5% efficiency with rugged IP67 metal housings for indoor or outdoor installations . Key features include:
-
Constant power mode: Output current adjustable from 70-100% of full load, reducing inventory requirements and enabling flexible luminaire design
-
Complete wattage range: 20W, 25W, 50W, 75W, 100W, 150W, 200W, 240W, and 320W models available
-
Multiple output options: Various voltage/current combinations including 12V, 24V, 48V, and high-voltage constant current versions
-
Isolated dimming circuits: Output and dimming circuits fully isolated for user safety, complying with latest IEC61347/UL8750 regulations
-
DALI-2 and 3-in-1 dimming: DALI-2 certified versions (DA2-type) plus 3-in-1 dimming (0-10V, PWM, resistance) options
-
Optional input OVP: India (EESL) version with input over voltage protection withstands 440Vac for 48 hours
-
High surge immunity: Standard 6KV/4KV, optional 10KV/6KV for harsh environments
-
Protections: OVP/SCP/OCP/OTP with Type “HL” certification for hazardous locations
-
Wide operating temperature: -40°C to +90°C case temperature
-
5-year warranty with lifetime >50,000 hours
Compact dimensions vary by model (e.g., 180×63×35.5mm for 150W models) . Safety approvals: UL8750, ENEC, CE, CCC, CB, EAC, RCM, BIS, KC, PSE . Ideal for LED street lighting, architectural lighting, bay lighting, floodlighting, horticultural lighting, livestock lighting, and UV-A LED curing applications.
Model Specifications by Series :
| Series | Power Range | Output Options | Efficiency | Dimensions (L×W×H) | Key Features |
|---|---|---|---|---|---|
| XLG-20/25 | 20-25W | Various CC | Up to 91% | — | Entry-level constant power |
| XLG-75 | 75W | 12V/5A, 24V/3.15A, 48V/1.6A, plus CC versions | Up to 91% | 180×63×35.5mm | Compact size, IP67 |
| XLG-100 | 100W | Various | Up to 94.5% | — | High efficiency |
| XLG-150 | 150W | 12V/12.5A, 24V/6.25A, plus CC versions (700mA-12.5A) | Up to 93% | 180×63×35.5mm | DALI-2, 3-in-1 dimming |
| XLG-200 | 200W | Various CC including UV curing applications | — | — | UV-A LED curing applications |
| XLG-240 | 240W | 24V/10A (typical) | — | — | Horticulture applications |
| XLG-320 | 320W | High power for livestock lighting | — | — | Livestock/poultry lighting |
