MEAN WELL MDR Series 10W to 100W DIN Rail

{眼｝{數人正在觀看此產品

{火｝最近{時間範圍}內售出的{數量}項目

大量購買

警告！！！目的地關稅將由買家支付。所有產品價格超過 $50 均可享受免運費服務。如果您需要的驅動器超過 30 件，請隨時線上聯繫我們，（或電子郵件：[email protected]），我們將為您提供最佳的採購方案。

認證

9999 件庫存 (允許無庫存下單)

AC/DC 電源供應器, DIN 導軌

品牌：

認證

MEAN WELL MDR Series 10W to 100W DIN Rail Mount PSU Low No Load Loss <0.75W for Building Automation and Smart Home

模型：

Mean Well

SKU：

1601696898453

產品類型：

AC/DC

MOQ：

1 件

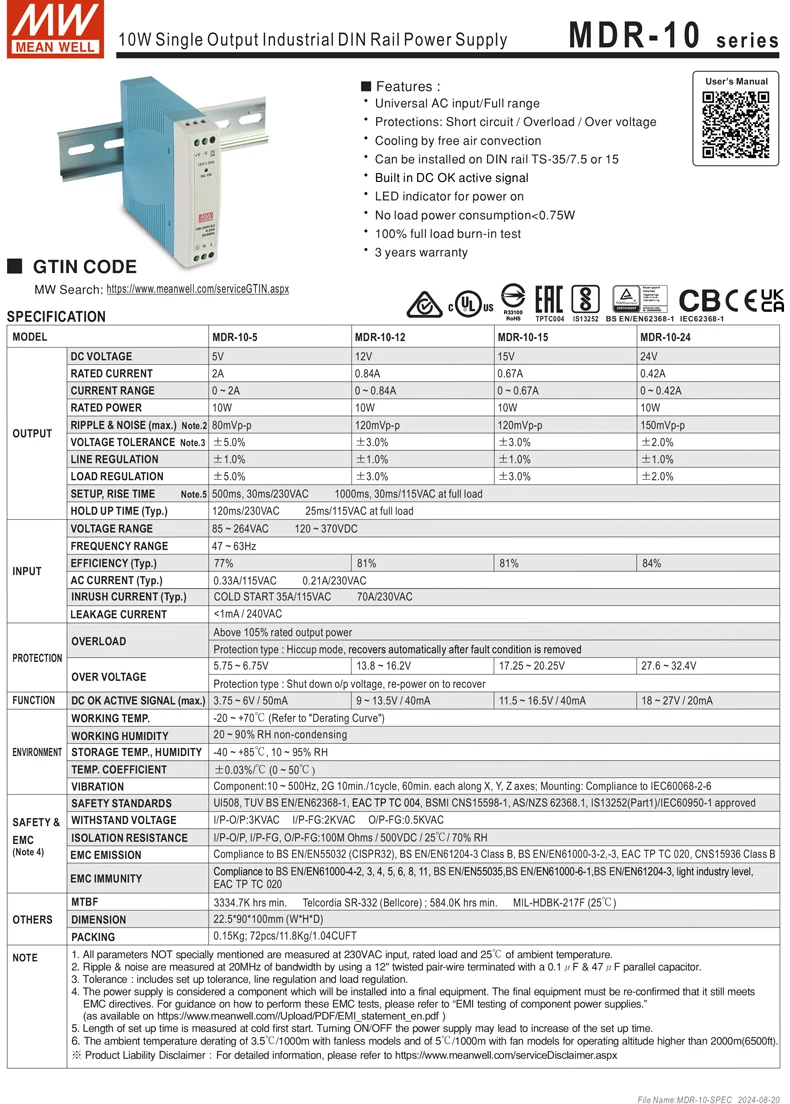

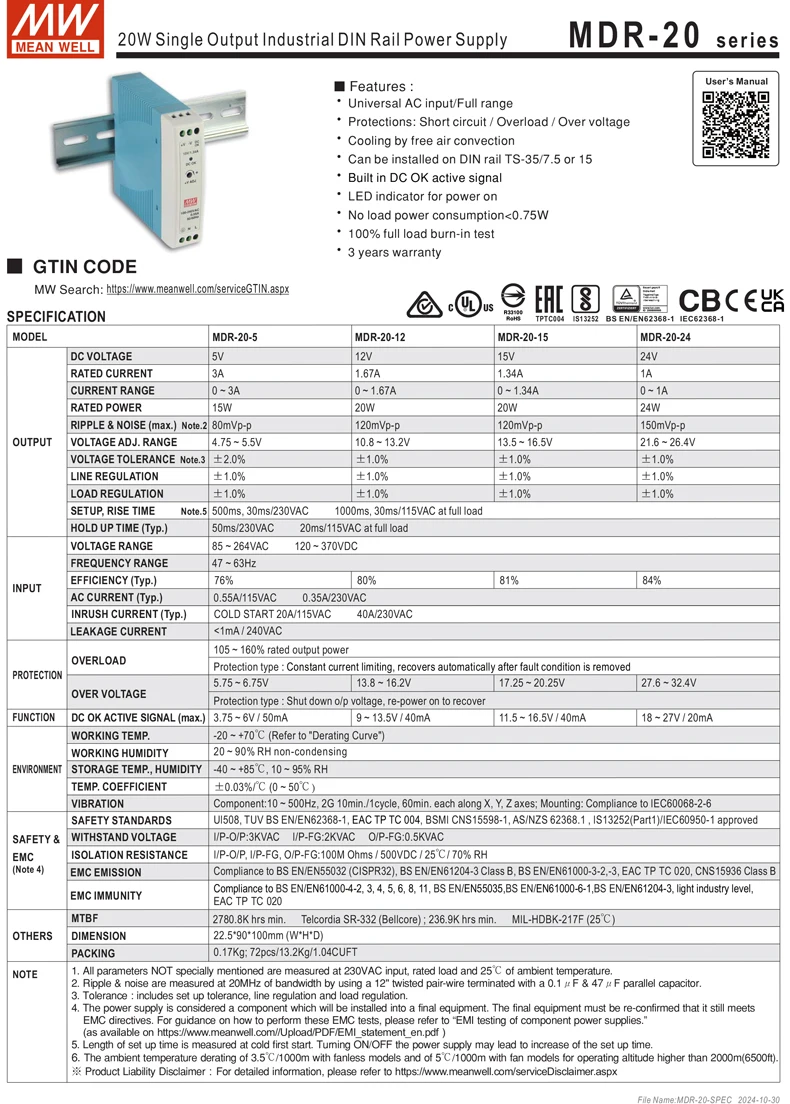

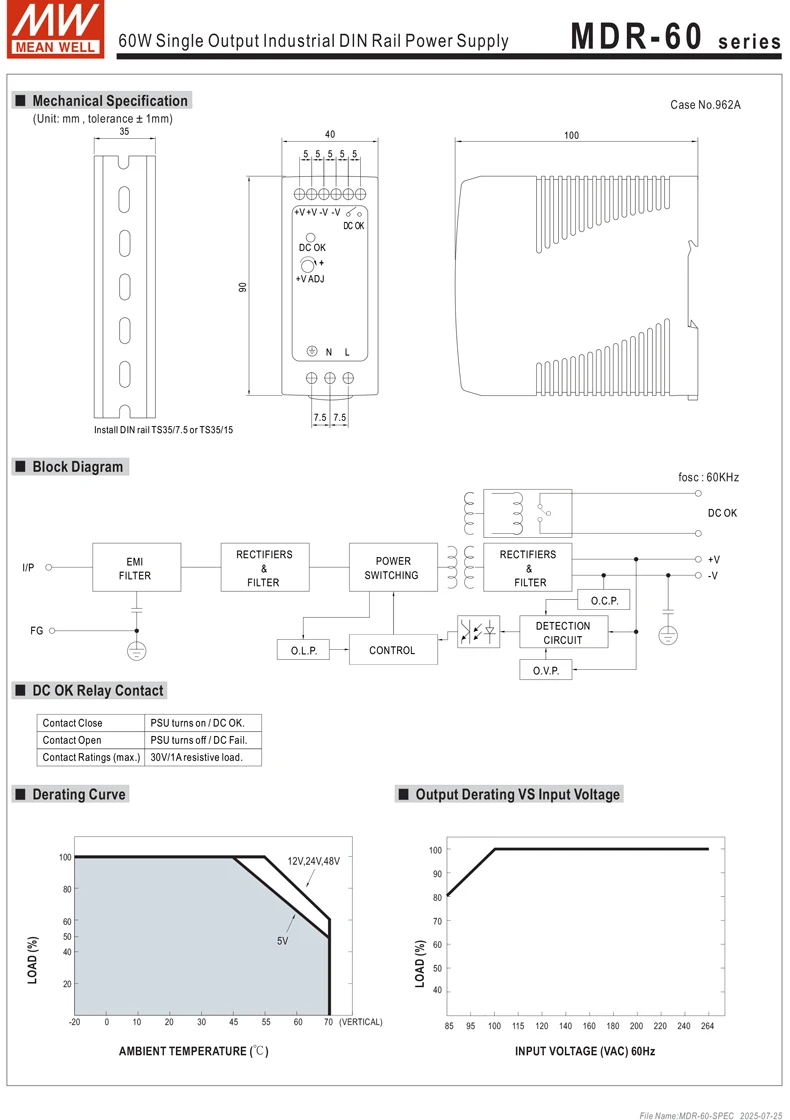

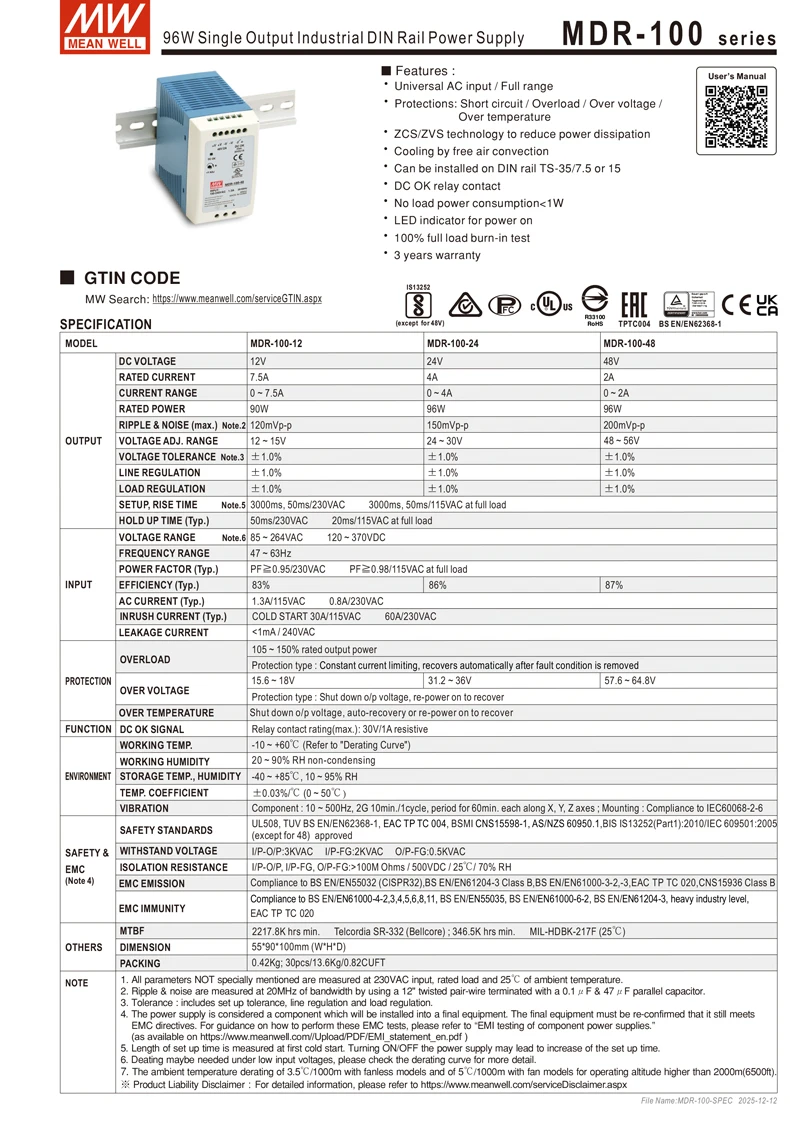

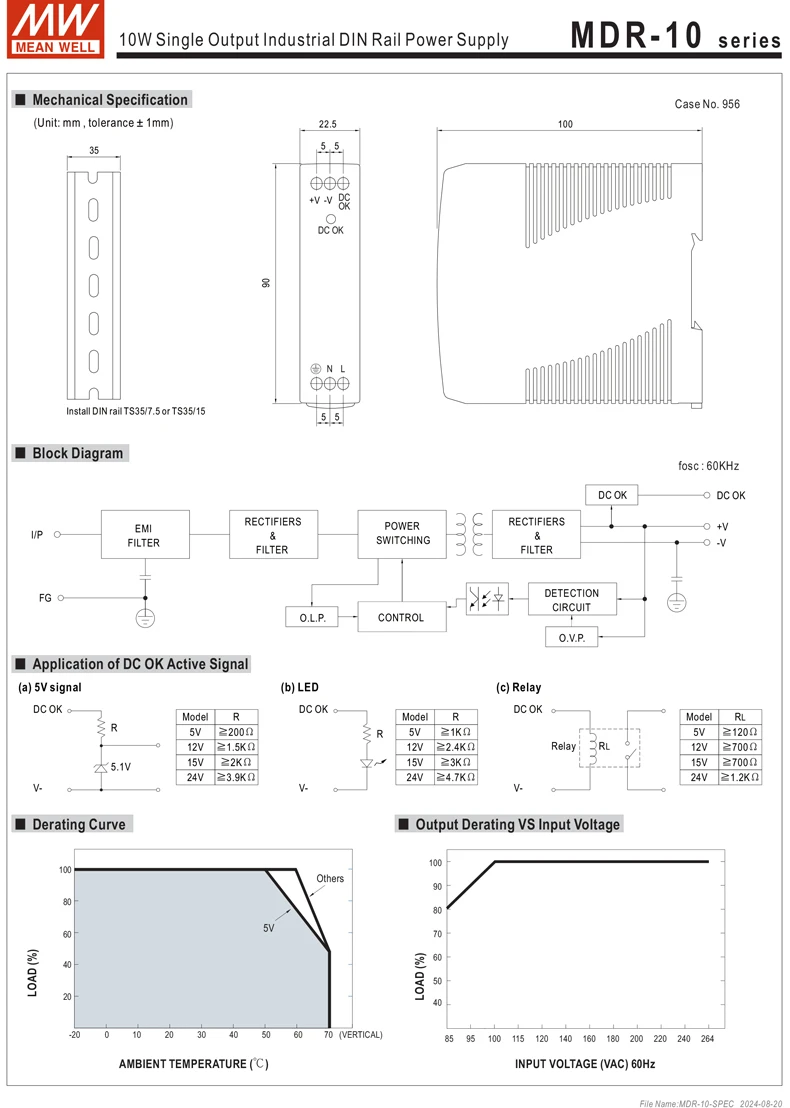

The Mean Well MDR Series is a family of ultra-compact, cost-effective DIN rail mounted power supplies specifically engineered for space-sensitive industrial and building automation applications. Covering a power range from 10W to 96W (MDR-10 / 20 / 40 / 60 / 100), this series delivers stable single-output voltages of 5V, 12V, 15V, 24V, and 48V DC to meet diverse low-to-medium power requirements .

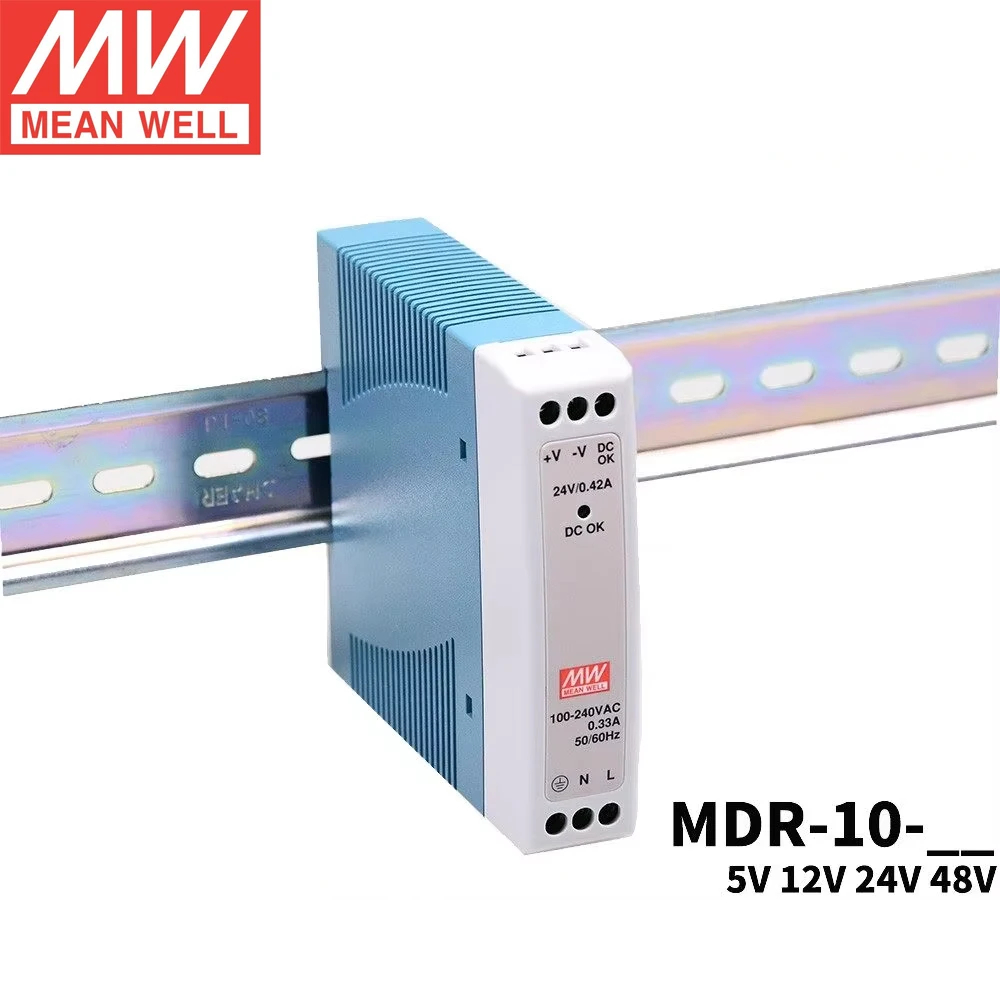

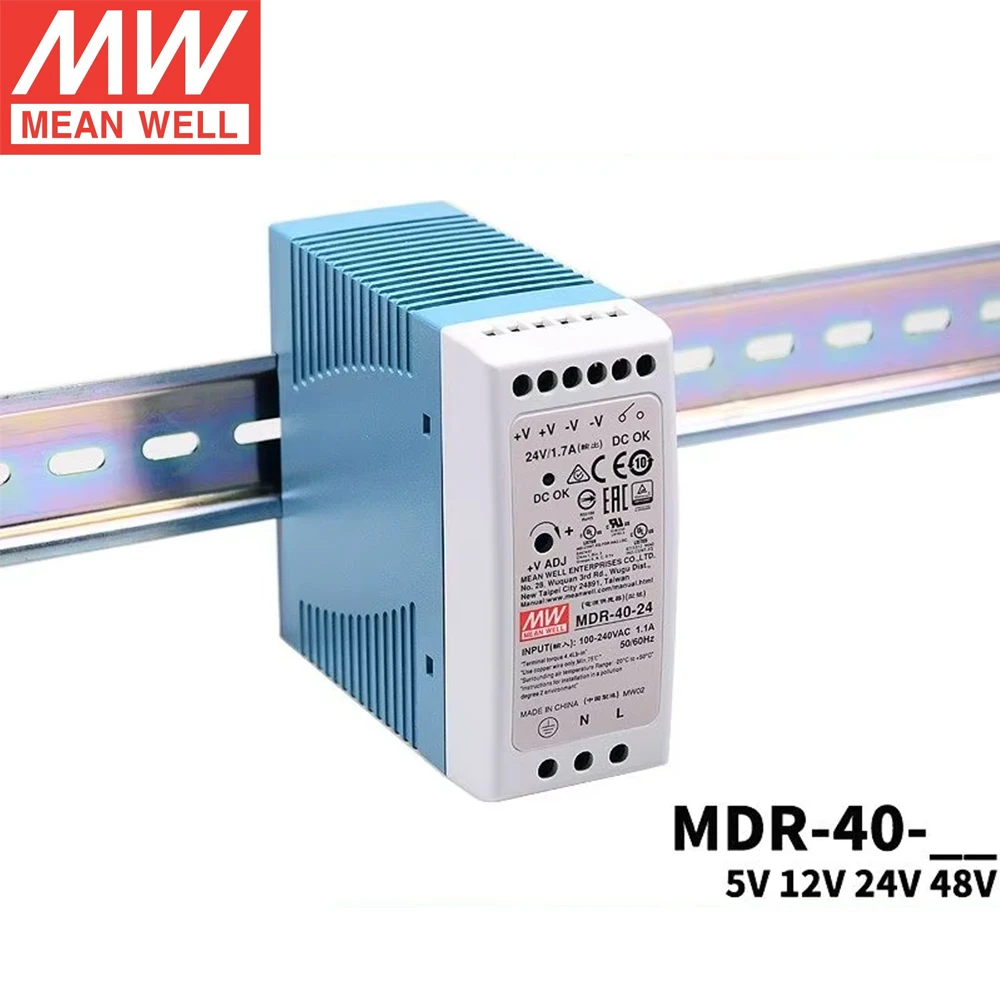

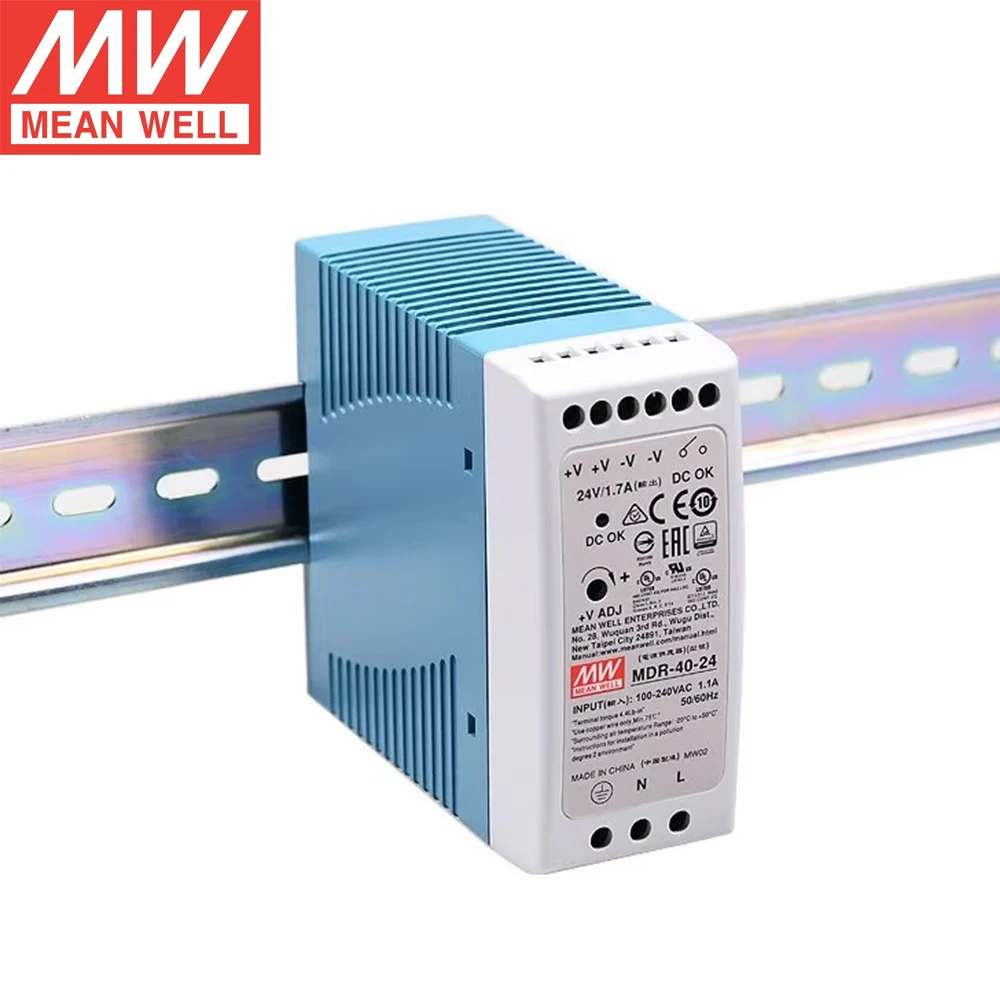

Designed for extreme space savings, the MDR Series features ultra-slim plastic housings with widths ranging from just 22.5mm (MDR-10) to 55mm (MDR-100) , allowing dense installation on standard TS-35/7.5 or TS-35/15 DIN rails . This miniature profile significantly optimizes control cabinet real estate.

價格範圍：$12.70 到 $33.50

功率 (W)

輸出電壓*

清除

計算運費

請在以下欄位填寫運送目的地的詳細資料，以便計算運費。.

計算

加入購物清單

快速出貨

運費和交貨日期待議。立即與我們聯絡，瞭解更多詳情。.

安全付款

您在 c2psu.com 上的每筆付款都經過嚴格的 SSL 加密和 PCI DSS 資料保護協定保護。

輕鬆返回

對符合條件的購物進行免費本地瑕疵退貨

退款保障

如果您的訂單未寄送、遺失或到貨時出現產品問題，請申請退款

Input Voltage : 100-240VAC
Output Current : 2.5A,3A,4A
Output Voltage : 5V,12V,15V,24V,48V
Model Number : MDR-60-24,MDR series 10~100w
Brand Name : Meanwell
Place of Origin : None
Application : Industrial Equipment, Industry
Output Frequency : 50/60 Hz
Type : AC-DC, Switching Power Supply

Wattage : 10W~96W Features : Plastic case, ultra slim 1∅，全範圍輸入 No load power consumption<0.75W~1W Assemble on industrial rail TS-35 / 7.5 or 15 內建主動式 PFC 功能 DC OK signal output MDR-10/20 DC OK relay contact MDR-40/60/100 Class I, Div 2 Hazardous Locations T4 MDR-40/60
