AC/DC 電源供應器, AC 直流變壓器

品牌：

認證

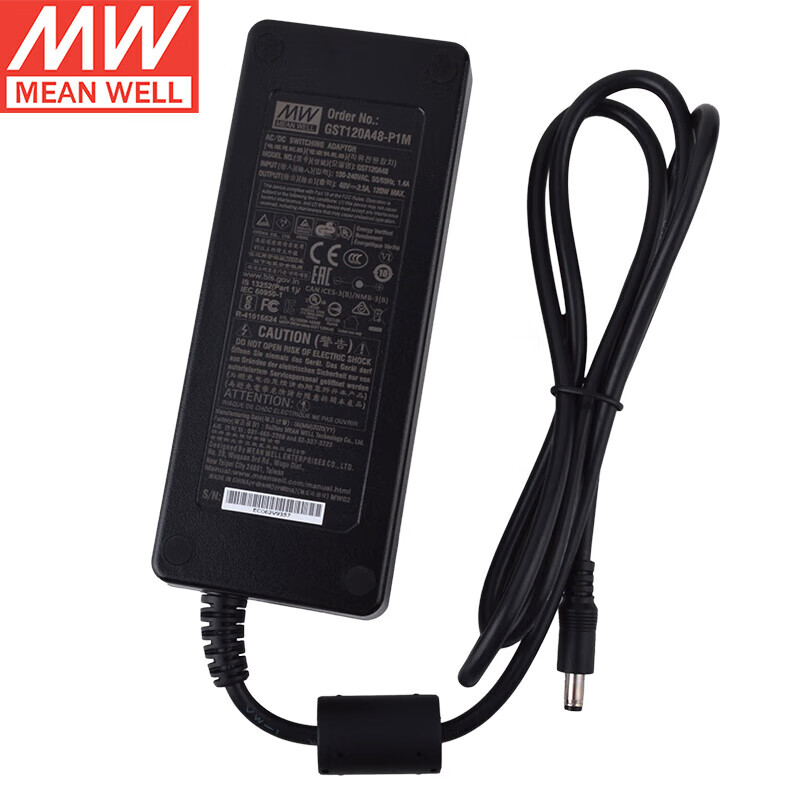

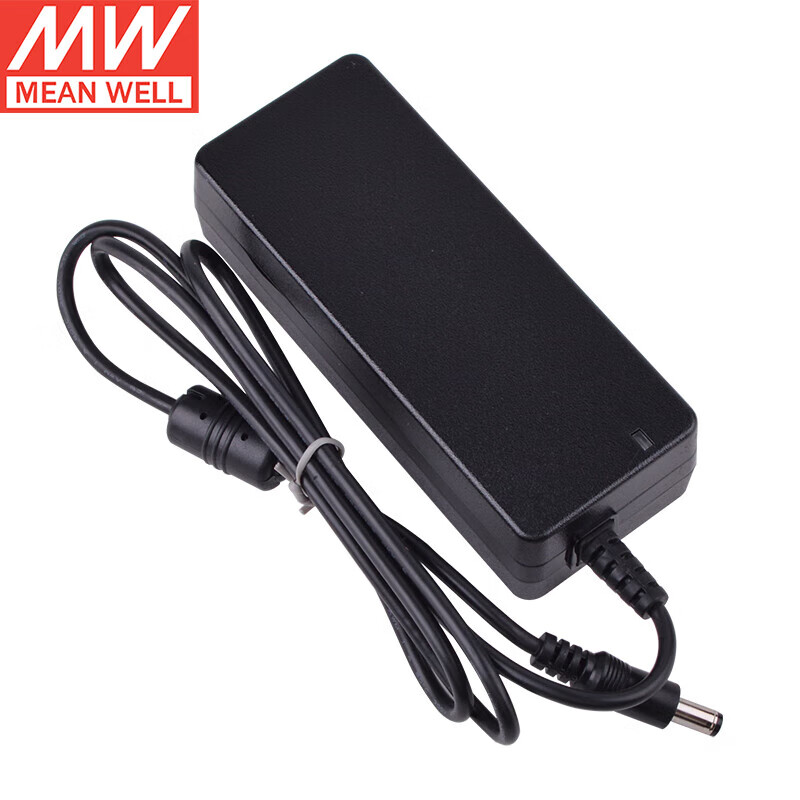

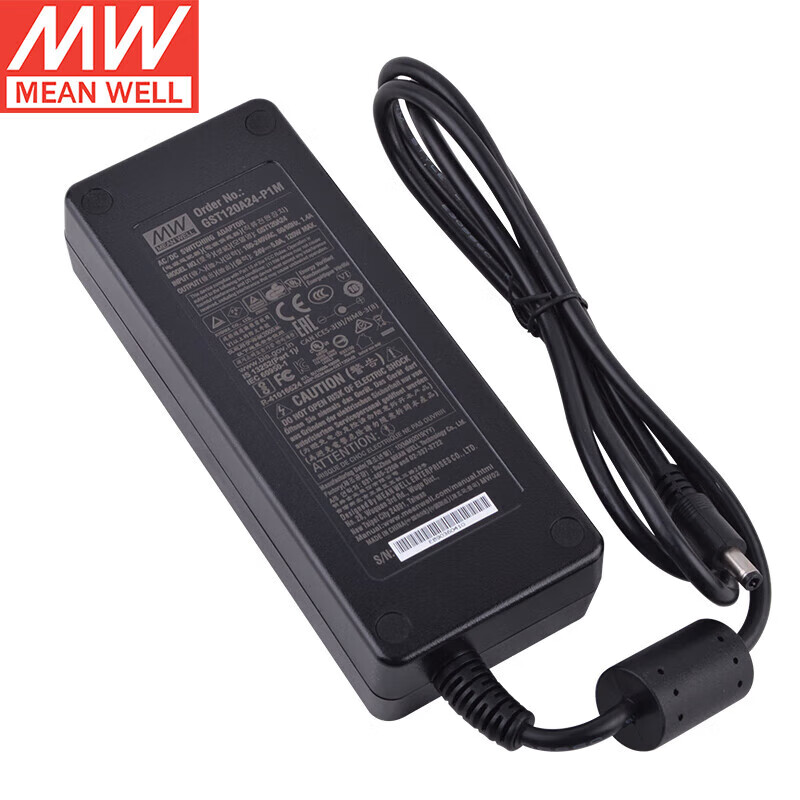

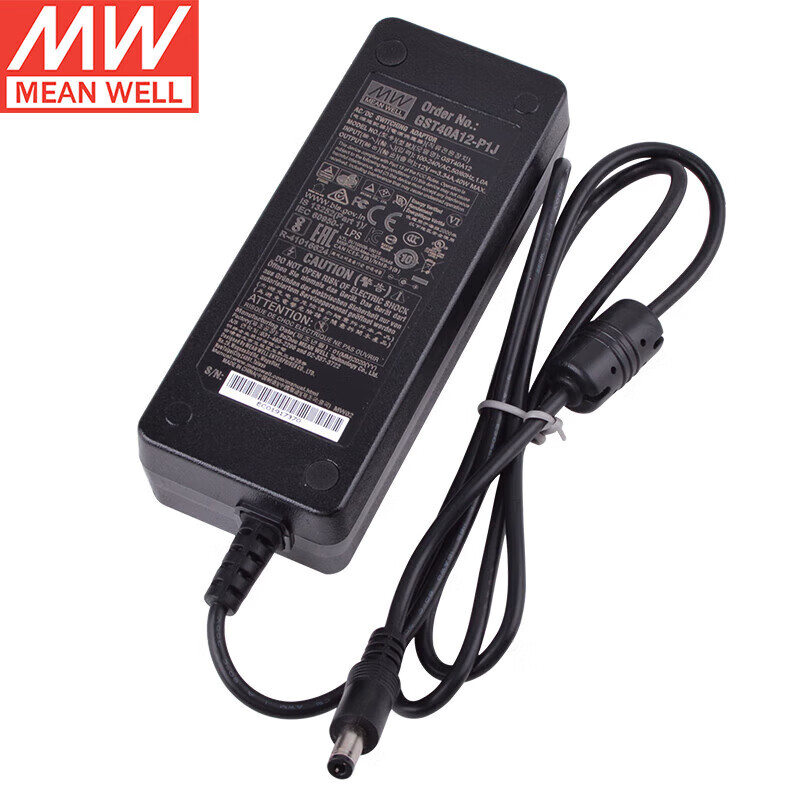

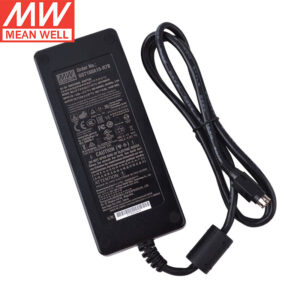

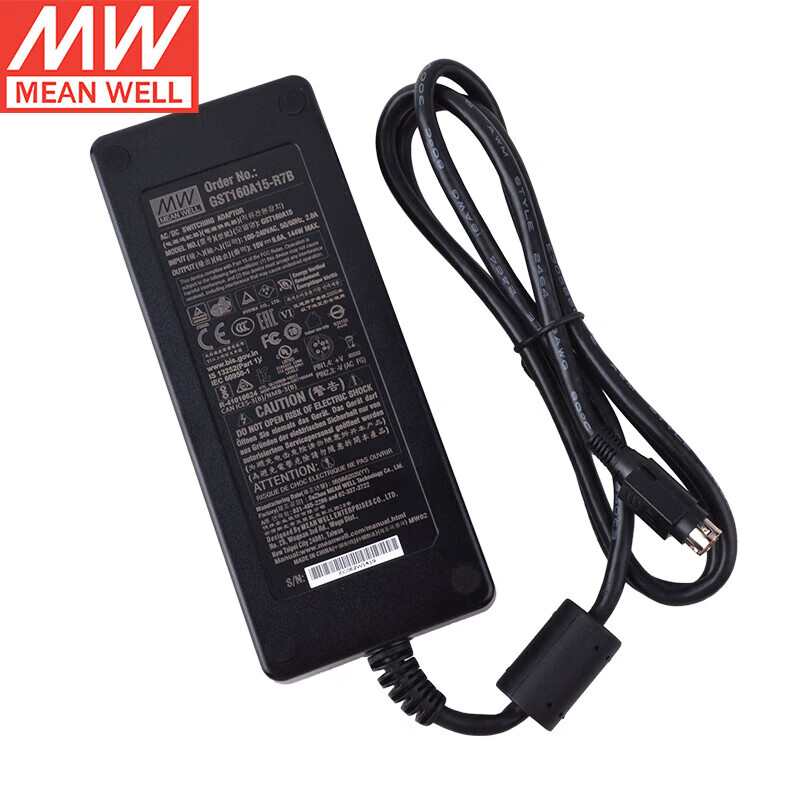

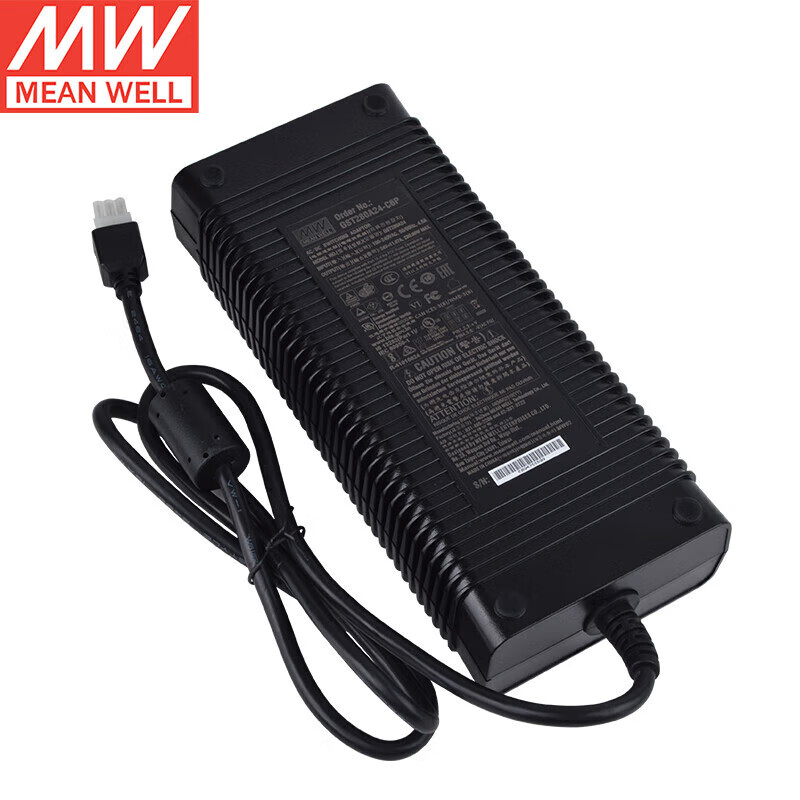

MEAN WELL GST18A / GST25A / GST40A / GST60A / GST90A / GST120A / GST160A / GST220A / GST280A / GST360A Series | 18W-360W ITE Desktop Power Supplies, Class I, Level VI

模型：

MEAN WELL GST "A" series 18W-360W Class I ITE Desktop Power Supplies

SKU：

776851212160- MEAN WELL GST "A" series—18W to 360W

產品類型：

AC/DC

MOQ：

1 件

MEAN WELL GST “A” series—18W to 360W high-reliability industrial-grade desktop power adapters featuring Class I construction with IEC320-C14 AC inlet and functional earth ground pin . Designed for IT equipment (ITE) and commercial applications, these adapters meet international safety certifications including UL, TUV, PSE, RCM, KC, CCC, and more . Energy efficiency Level VI with ultra-low no-load power consumption <0.075W to <0.5W, complying with EISA 2007/DoE, NRCan, EU ErP, and CoC Version 5. Universal AC input 85-264VAC with built-in active PFC function (selected models) and wide operating temperature -30°C to +70°C. Fanless convection-cooled design with fully enclosed 94V-0 flame retardant plastic case and protections: short circuit, overload, over voltage, over temperature . Available in popular output voltages including 12V and 24V models with output current up to 30A (12V) and 15A (24V) on 360W models. 3-year warranty . Ideal for telecommunications equipment, office facilities, industrial controls, consumer electronics, 3D printers, and POE applications.

價格範圍：$12.00 到 $67.20

選項

清除

計算運費

請在以下欄位填寫運送目的地的詳細資料，以便計算運費。.

計算

加入購物清單

快速出貨

運費和交貨日期待議。立即與我們聯絡，瞭解更多詳情。.

安全付款

您在 c2psu.com 上的每筆付款都經過嚴格的 SSL 加密和 PCI DSS 資料保護協定保護。

輕鬆返回

對符合條件的購物進行免費本地瑕疵退貨

退款保障

如果您的訂單未寄送、遺失或到貨時出現產品問題，請申請退款

Key GST “A” Series (Class I Desktop) Features Summary (18W-360W):

Feature	GST18A	GST25A	GST40A	GST60A	GST90A	GST120A	GST160A	GST220A	GST280A	GST360A
Power Rating	18W	25W	40W	60W	90W	120W	160W	220W	280W	360W
Input	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC	85-264VAC
AC Inlet	IEC320-C14 (Class I, with earth pin)	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14
12V Model	1.5A	2.08A	3.34A	5A	7.5A	10A	11.5A	15A	18.5A	30A
24V Model	0.75A	1.04A	1.67A	2.5A	3.75A	5A	6.67A	9.2A	11.67A	15A
Efficiency Level	Level VI	Level VI	Level VI	Level VI	Level VI	Level VI	Level VI	Level VI	Level VI	Level VI (up to 95%)
No-Load Consumption	<0.075W	<0.075W	<0.075W	<0.075W	<0.15W	<0.15W	<0.15W	<0.15W	<0.15W	<0.5W
Operating Temp	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C
Connector Type	P1J	P1J	P1J	P1J	P1M	R7B	R7B	R7B	C6P/C4P	XP/CP
保固	3 years	3 years	3 years	3 years	3 years	3 years	3 years	3 years	3 years	3 years

Model Number Breakdown:

GST18A = 18W desktop series, Class I (IEC320-C14 inlet, with earth pin) GST25A = 25W desktop series, Class I GST40A = 40W desktop series, Class I GST60A = 60W desktop series, Class I GST90A = 90W desktop series, Class I GST120A = 120W desktop series, Class I GST160A = 160W desktop series, Class I GST220A = 220W desktop series, Class I GST280A = 280W desktop series, Class I GST360A = 360W desktop series, Class I

Example: GST220A24-R7B
