MEAN WELL ELG-75 / ELG-200 / ELG-240 / ELG-300 Series 75W-300W Constant Voltage + Constant Current LED Drivers with IP67/IP65

Discover the MEAN WELL ELG series—75W to 300W high-reliability AC/DC LED drivers featuring dual-mode constant voltage (CV) and constant current (CC) output for maximum application flexibility across outdoor and industrial lighting projects . With universal AC input 100-305VAC and built-in active PFC function (PF>0.97), these fanless drivers deliver up to 93% efficiency with rugged metal housings rated IP67/IP65 for indoor or outdoor installations .

Complete Power Range:

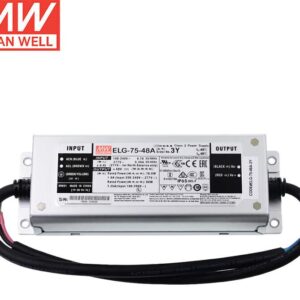

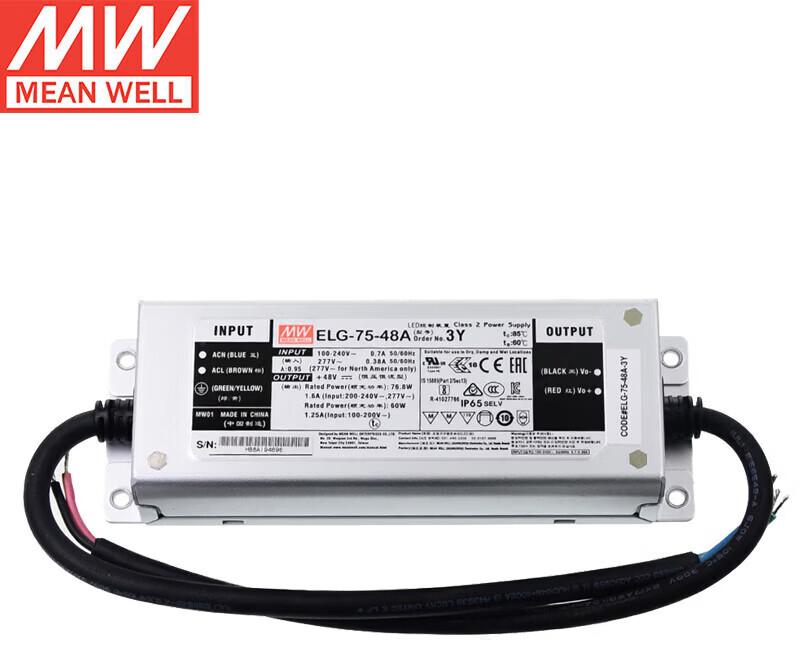

• ELG-75 Series: 75W models (12V/5A, 24V/3.15A, 36V/2.1A, 42V/1.8A, 48V/1.6A), up to 90% efficiency, 180×63×35.5mm dimensions

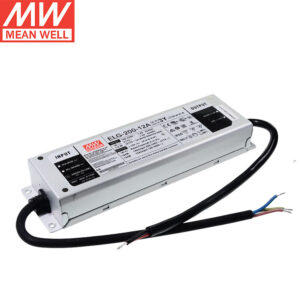

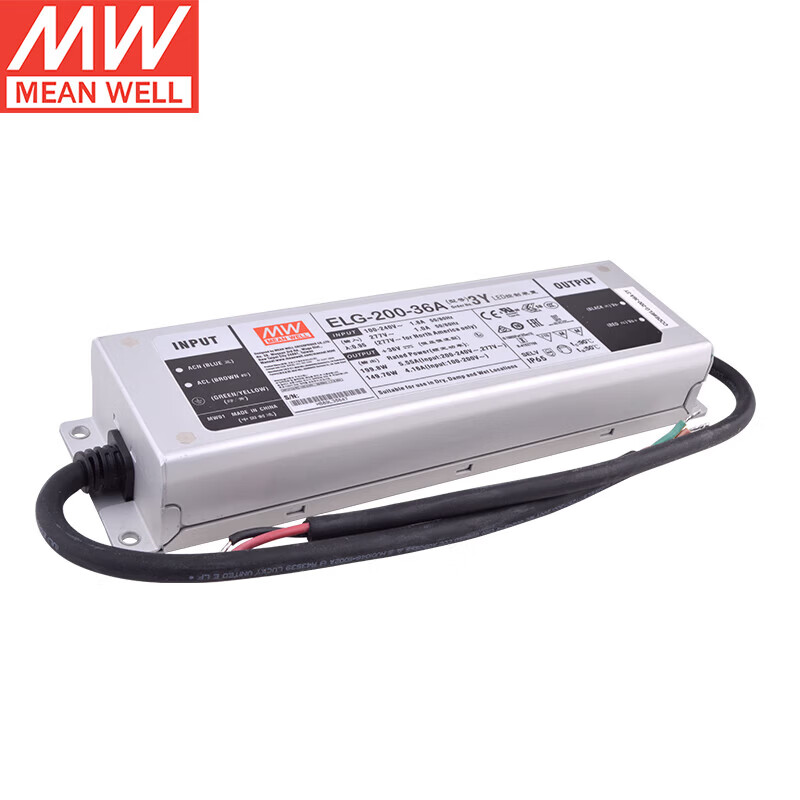

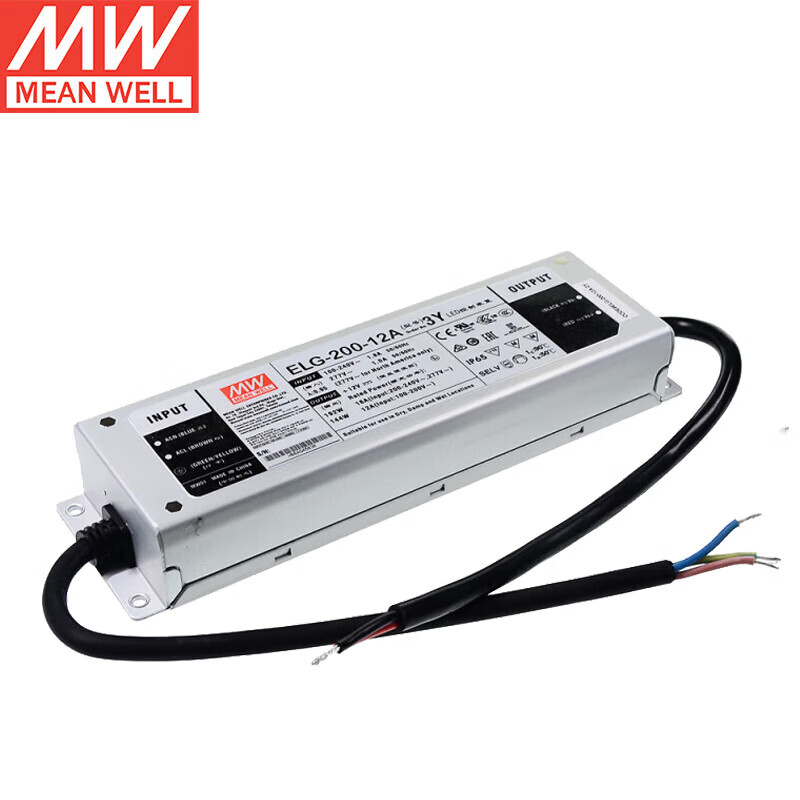

• ELG-200 Series: 200W models (12V/16A, 24V/8.4A, 36V/5.55A, 42V/4.76A, 48V/4.16A, 54V/3.72A), up to 93% efficiency, 244×71×37.5mm dimensions

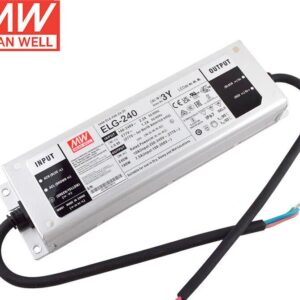

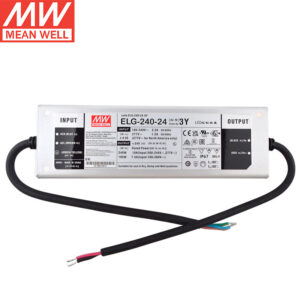

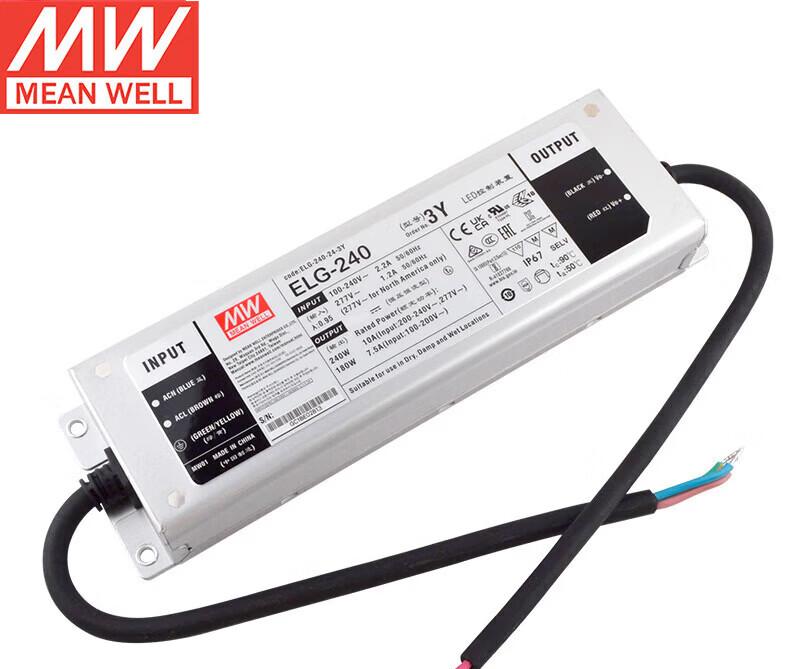

• ELG-240 Series: 240W models (24V/10A), up to 92% efficiency, 244×71×37.5mm dimensions

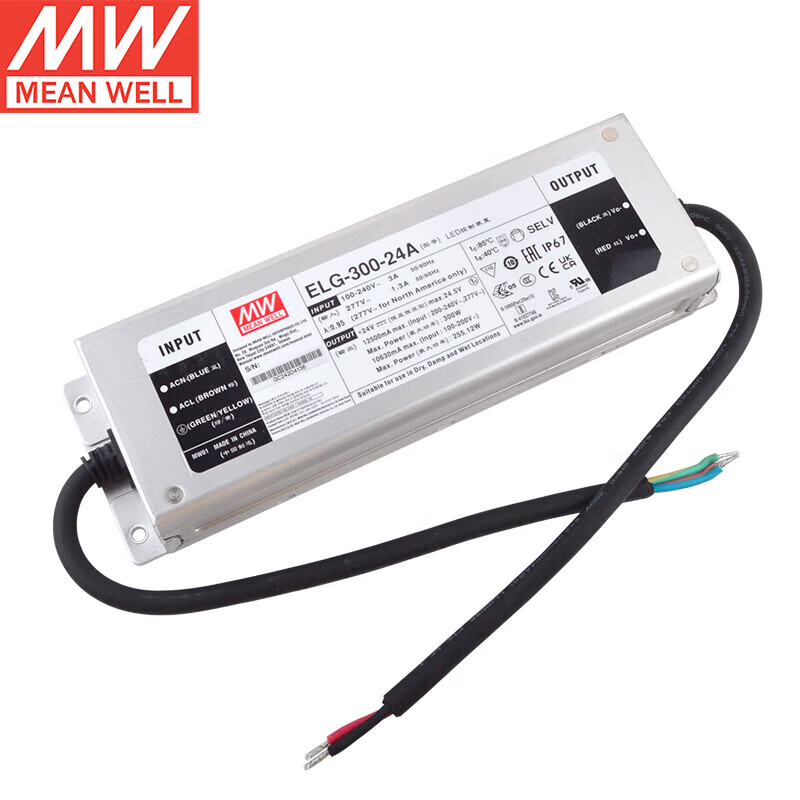

• ELG-300 Series: 300W models (24V/12.5A, etc.), constant current versions available

Series Comparison Table :

Common features across all series:

• Multiple function options: Blank (fixed output), A-type (adjustable via potentiometer), B-type (3-in-1 dimming), AB-type (adjustable + dimming), DA-type (DALI control), Dx/D2-type (smart timer dimming)

• Type “HL” certified for use in Class I, Division 2 hazardous locations

• Wide operating case temperature -40°C to +90°C (ELG-200/240) or -40°C to +85°C (ELG-75)

• No-load power consumption <0.5W, 5-year warranty

• 6kV surge immunity (IEC61000-4-5)

Ideal for LED street lighting, architectural lighting, bay lighting, floodlighting, and industrial applications .
