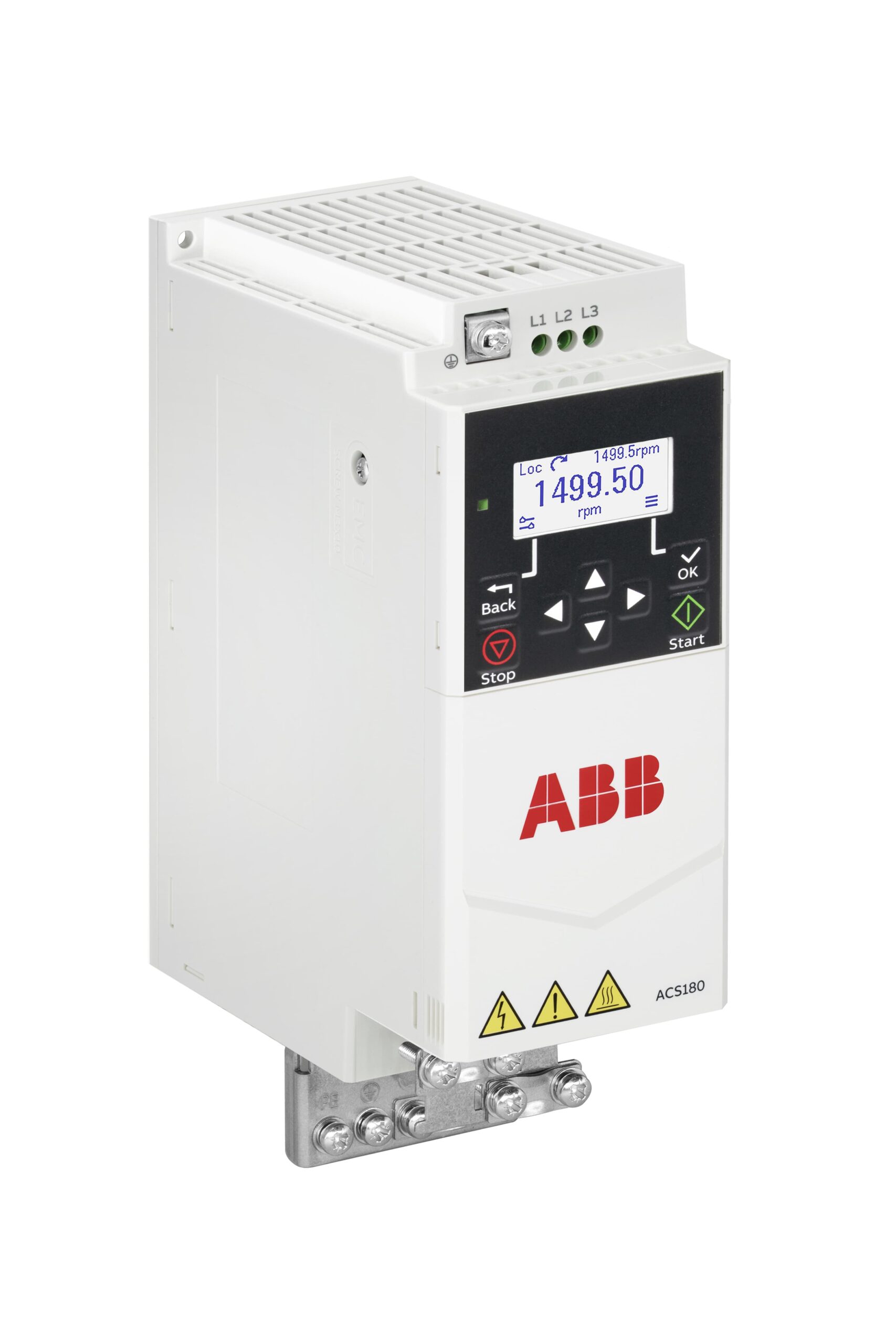

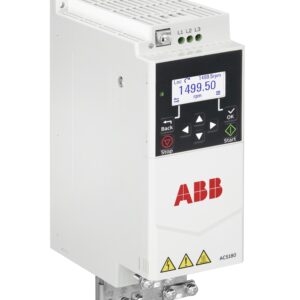

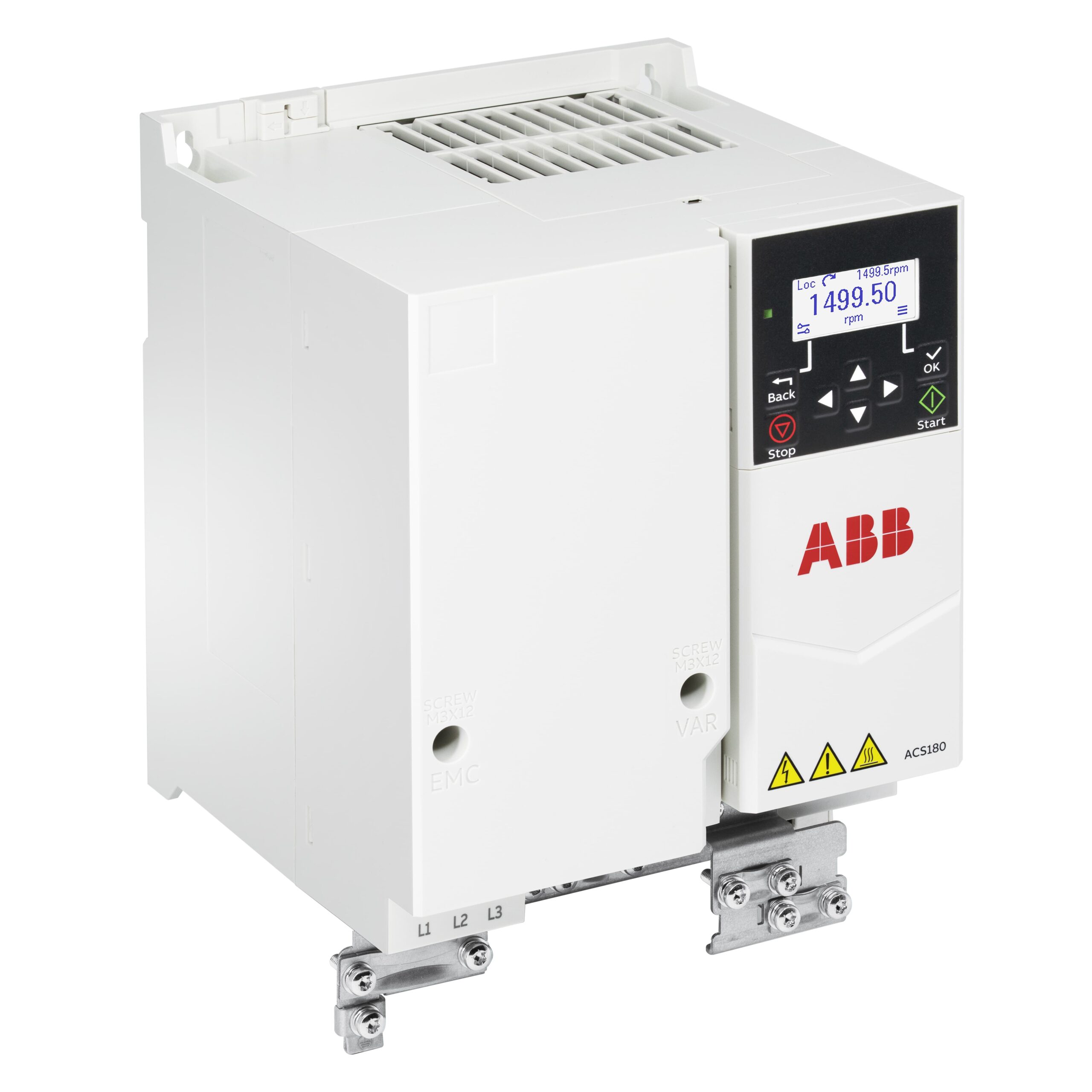

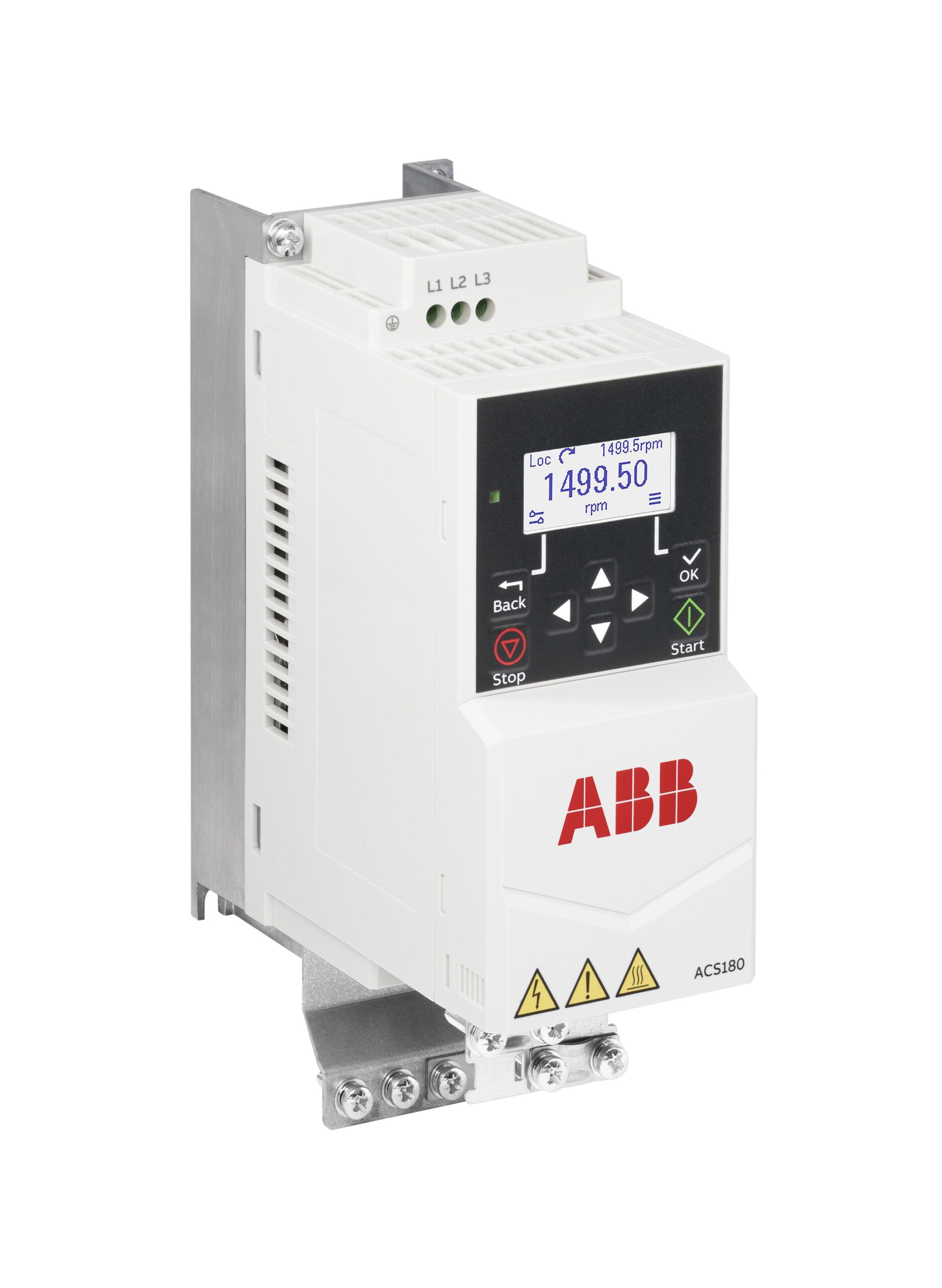

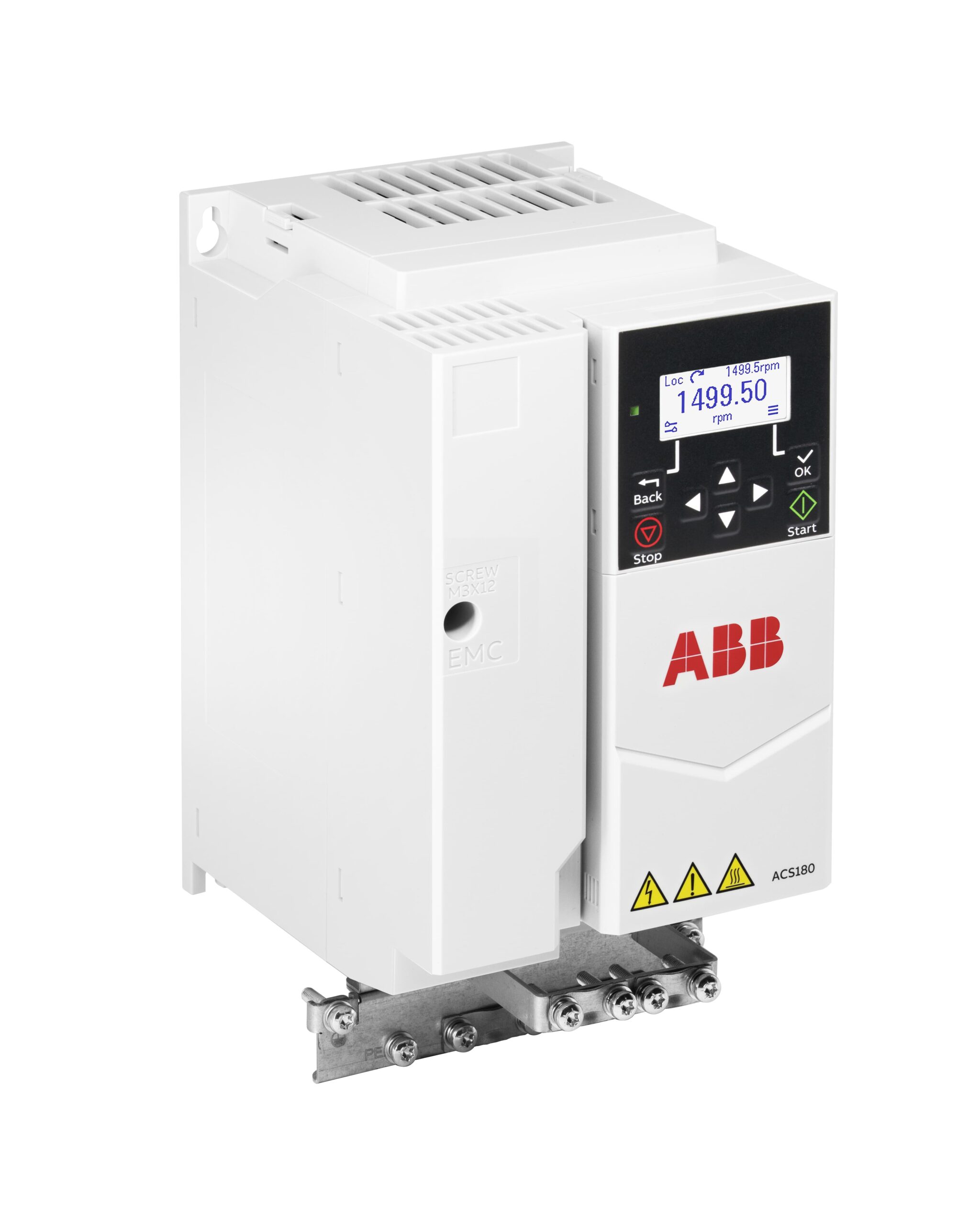

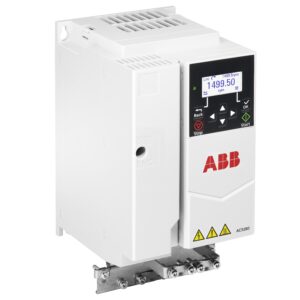

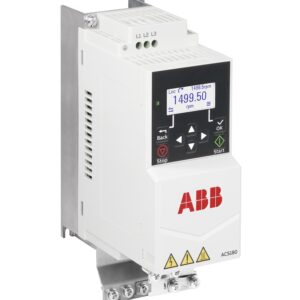

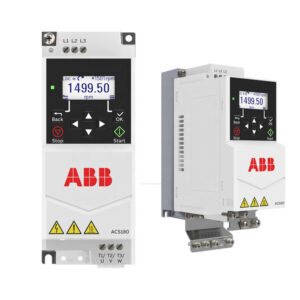

ABB ACS180 Series Machinery Drive Ultra-Compact & Reliable Frequency Converter for OEM Applications

Product Overview

的 ABB ACS180 Series Machinery Drive is a newly designed, ultra-compact frequency converter (variable speed drive) engineered specifically for machine builders and original equipment manufacturers (OEMs) seeking simplicity, reliability, and essential control in a single package . True to its “everything you need, nothing you don’t” philosophy, the ACS180 integrates all critical functions—including built-in EMC filters, Safe Torque Off (STO), and residual current protection—into a space-saving unit that delivers exceptional sensorless vector control performance at a competitive price point . Available in a wide power range from 0.25 kW to 22 kW and voltage support from 200V to 480V, this frequency converter is the ideal choice for simplifying machinery while ensuring dependable operation in diverse industrial environments .

Key Benefits & Features

1. Robust Reliability in Harsh Conditions

The ACS180 frequency converter is engineered to maximize uptime, even in challenging industrial settings .

• Coated Circuit Boards: Features coated circuit boards as standard, protecting electronics in dirty, dusty, or humid environments .

• Optimized Airflow Design: The innovative cooling concept minimizes airflow through electronic components, directing it over the IGBT heatsink and capacitors for extended lifespan and reliability .

• High-Temperature Operation: Rated for 50 °C (122 °F) ambient temperature without derating in Heavy Duty use, and can operate up to 60 °C with derating .

• Space-Saving Design: Its exceptionally compact footprint and support for side-by-side installation allow for effortless integration into space-constrained enclosures and control panels without derating .

2. Powerful & Flexible Motor Control

Despite its compact size, the ACS180 delivers robust performance across a wide variety of machinery applications .

• Wide Power and Voltage Range: Covers a broad spectrum of needs with power from 0.25 kW to 22 kW and voltage support from 200V to 480V in both single-phase and three-phase configurations .

• Versatile Motor Support: Seamlessly controls both induction (asynchronous) 和 permanent magnet synchronous motors, offering flexibility in motor selection and optimizing application performance .

• Excellent Speed and Torque Control: Utilizes sensorless vector control to provide precise torque and speed regulation across the entire range without requiring an encoder . It handles both heavy and light overload profiles within a single drive, with overload capacity up to 150% for 60 seconds.

• High Output Frequency: Delivers output frequencies up to 599 Hz, making it suitable for high-speed machinery applications .

3. Designed for Ease of Use & Fast Commissioning

The ACS180 minimizes engineering time and simplifies the workflow from ordering to operation .

• All-in-One Design: Essential features are built-in, simplifying ordering, reducing delivery lead times, and lowering startup costs .

• Intuitive User Experience: Features a user-friendly graphical control panel with icon-based menus and simple parameter structures, making commissioning and operation straightforward while reducing the need for multiple language versions.

• Quick Installation: Designed for wall mounting with easy-to-use screw terminals and support for DIN-rail mounting kits (for frames R0-R2) .

• Adaptive Programming (Mini-PLC): Includes powerful sequence programming functionality that allows for customization of drive logic to perfectly suit specific application requirements without external controllers .

4. Integrated Functionality for Efficiency & Safety

• Energy Efficient: A built-in energy optimization function automatically adjusts motor flux to reduce current consumption, save energy, and keep operations quiet .

• Standard Safety: Comes equipped with Safe Torque Off (STO) certified to SIL3/PLe as a standard feature, ensuring a safe working environment during maintenance and operations while eliminating the need for external safety relays .

• Built-in EMC Filter: Includes integrated EMC filters (available in C2, C3, or C4 categories) for noise reduction, saving cabinet space and eliminating the need for external filters in many installations .

• Built-in Brake Chopper: Integrated brake chopper in frames R2 through R4 for dynamic braking applications .

5. Seamless Connectivity & Digital Tools

• Standard Communication: Features a built-in Modbus RTU interface with RS-485 connectivity for effortless connection to industrial networks and PLCs.

• Remote Monitoring & Control: Optional Bluetooth control panel allows for wireless monitoring, adjustment, and optimization of drive parameters via mobile devices using the Drive Composer app .

• PC Connectivity: Compatible with ABB Drive Composer software for easy configuration, commissioning, and adaptive programming via USB-RJ45 cable .

Typical Applications

The ACS180 frequency converter is perfectly suited for a wide range of industries and machinery requiring essential speed control :

• Material Handling: Conveyors, sorters, palletizers

• Food & Beverage: Mixers, conveyors, packaging machines

• Textile Industry: Spinning, weaving, and finishing machines

• Pumps, Fans, and Compressors: For commercial and light industrial applications

• Packaging & Printing: Wrappers, labeling machines, printing presses

• Processing Machinery: Winders, mixers, extruders

Choose the ABB ACS180 Series Machinery Drive for a reliable, easy-to-use, and space-saving frequency converter that delivers the performance and quality you expect from ABB, optimized for the needs of modern machine builders and OEM applications.
