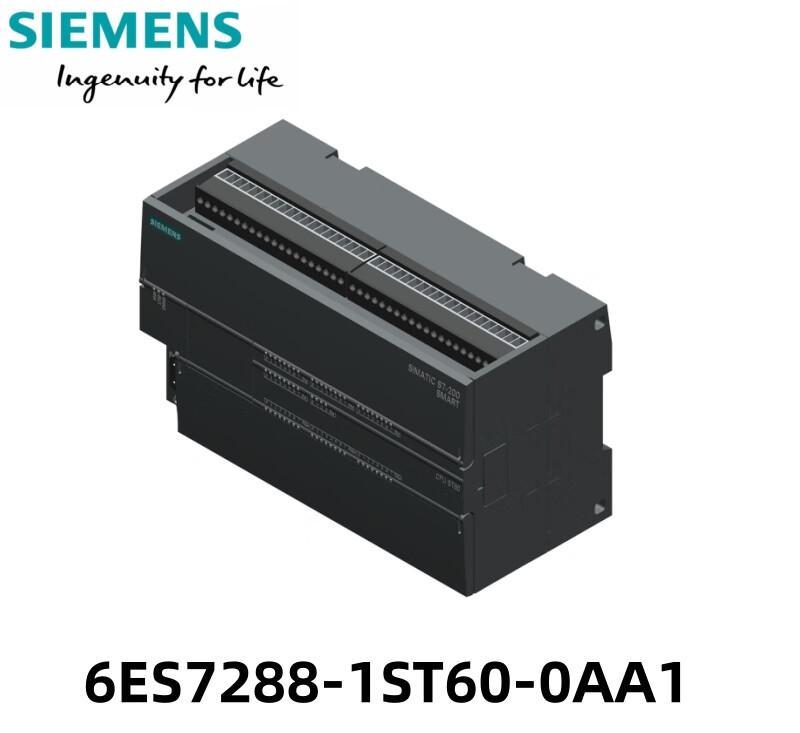

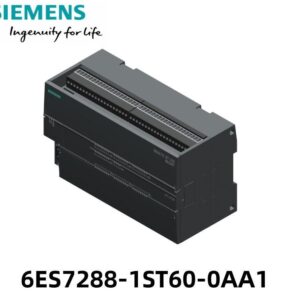

Siemens S7-200 SMART Series CPU Controller Compact Programmable Logic Controller for Small Automation Systems

Product Overview The Siemens SIMATIC S7-200 SMART CPU is a compact and cost-effective programmable logic controller (PLC) designed specifically for the small automation market. Combining a powerful CPU with an integrated Ethernet port and a flexible expansion system, the S7-200 SMART delivers excellent performance and value for controlling a wide range of machines and processes. Its intuitive programming software and robust design make it an ideal choice for OEMs and system integrators .

Key Features & Benefits

• Compact Integrated Design: Combines CPU, power supply, and I/O in a single compact unit, saving valuable cabinet space .

• Built-in Ethernet Port: Integrated RJ45 Ethernet interface supports programming, HMI communication, and Modbus TCP server/client, enabling easy networking .

• Powerful Processing: Bit operation execution times as fast as 0.15 µs, ensuring responsive control .

• Expandable I/O: Supports up to 6 expansion modules, adding digital/analog I/O and temperature measurement capabilities .

• Built-in High-Speed Counters: Supports up to 200 kHz for high-speed input signals, suitable for encoder feedback and pulse counting .

• Integrated PID Control: Built-in PID controllers with auto-tuning for process control applications .

• Pulse Outputs: Supports up to 2 axes of motion control with integrated pulse train outputs (PTO/PWM) up to 100 kHz .

• SD Card Slot: Supports program transfer, firmware updates, and data logging via standard SD card .

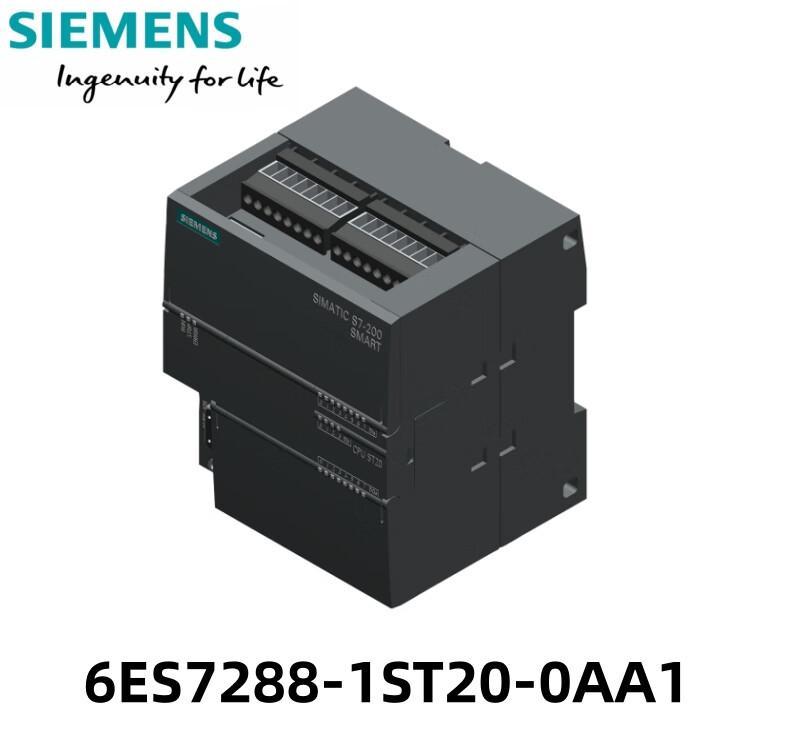

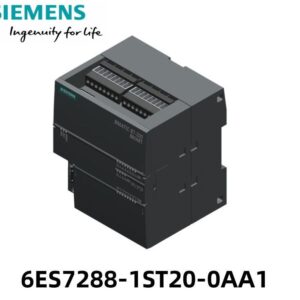

CPU Models Overview

Expansion Modules

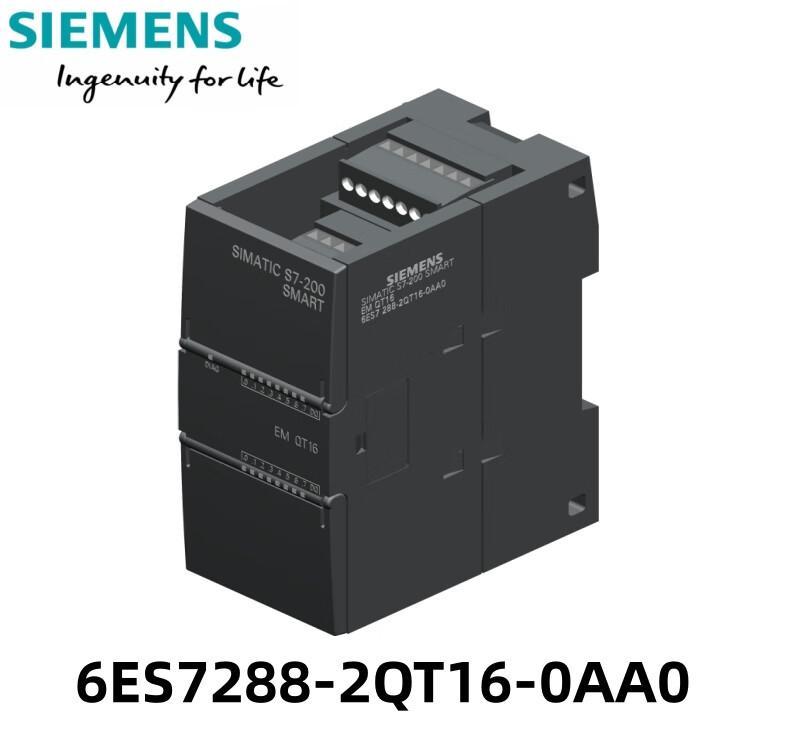

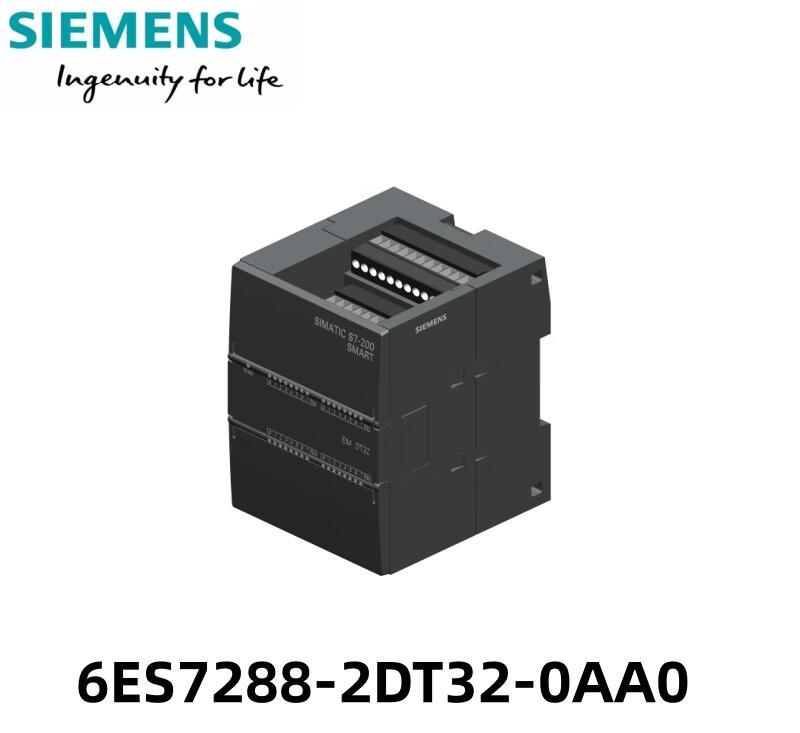

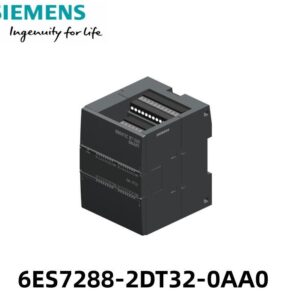

• Digital I/O Modules: EM DE08/DR08/DT08 (8-point), EM DE16/DR16/DT16 (16-point)

• Analog I/O Modules: EM AE04 (4AI), EM AQ02 (2AO), EM AM06 (4AI/2AO)

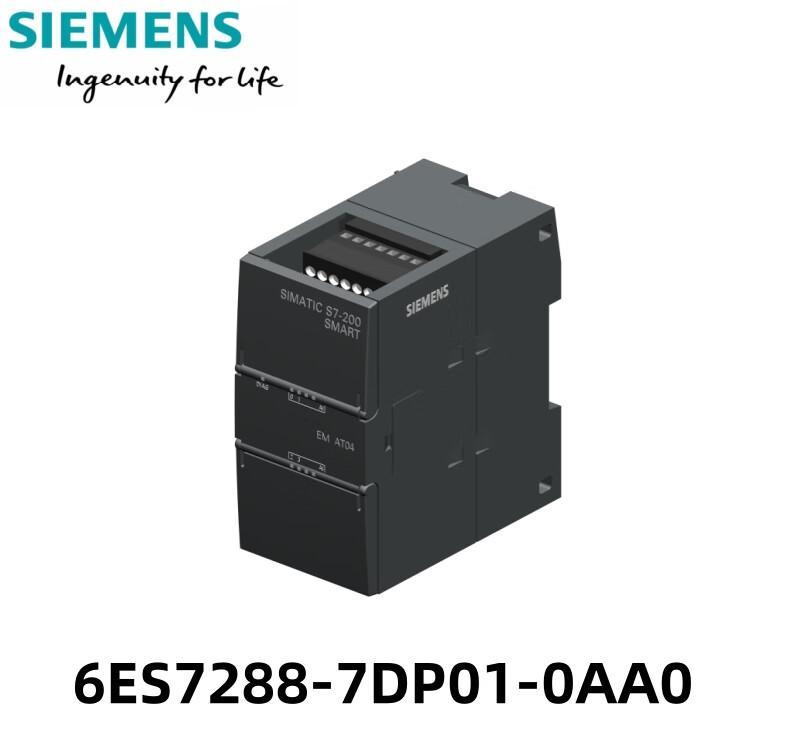

• Temperature Modules: EM AR02 (2RTD), EM AT04 (4TC)

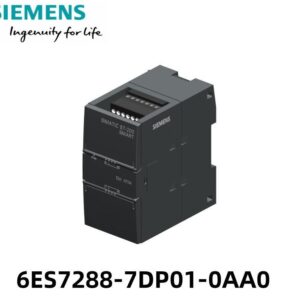

• Communication Modules: EM DP01 (PROFIBUS-DP slave)

Key Features & Benefits

• Built-in Ethernet Port: Integrated PROFINET interface supports programming, HMI communication, and Modbus TCP server/client, enabling easy networking

• High-Speed Processing: Basic instruction execution time as fast as 0.15 μs, ensuring responsive control

• High-Speed Counters: Up to 6 counters with maximum frequency of 200 kHz for precise position feedback

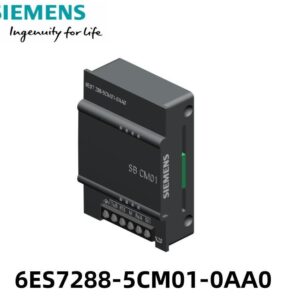

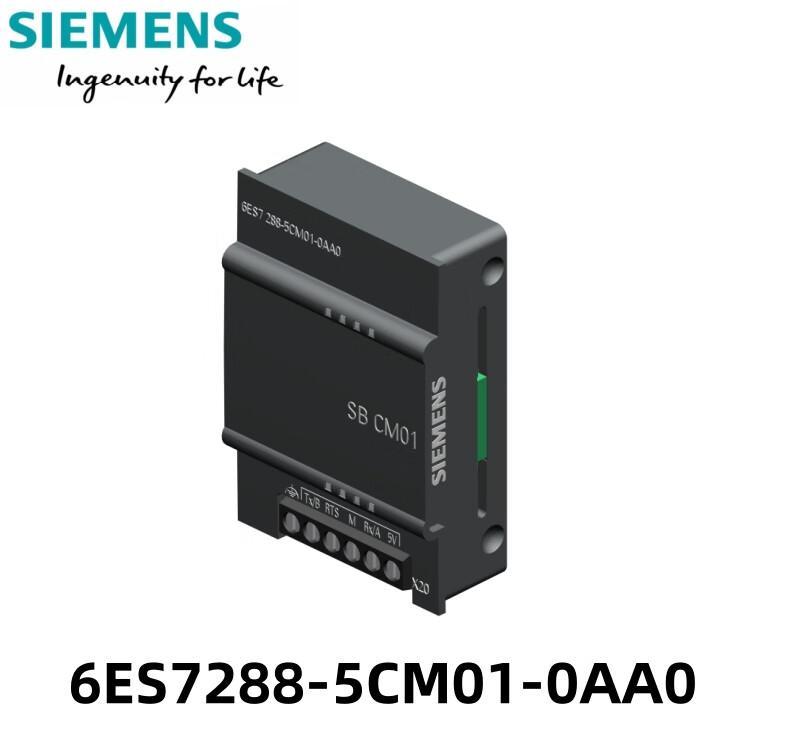

• Flexible Expansion: Standard CPUs support up to 6 expansion modules + 1 signal board

• Micro SD Card Slot: Program transfer, firmware update, and data logging using standard SD card

• Real-Time Clock: Standard CPUs include RTC with 7-day backup

• RS485 Interface: Integrated serial port supports Modbus RTU and USS protocols

Typical Applications

• Small machine control (packaging, labeling, printing)

• Motion control with stepper/servo drives (ST series)

• Pump and fan control systems

• Conveyor and material handling

• HVAC and building automation
