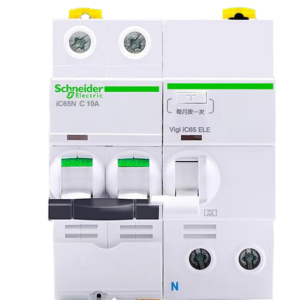

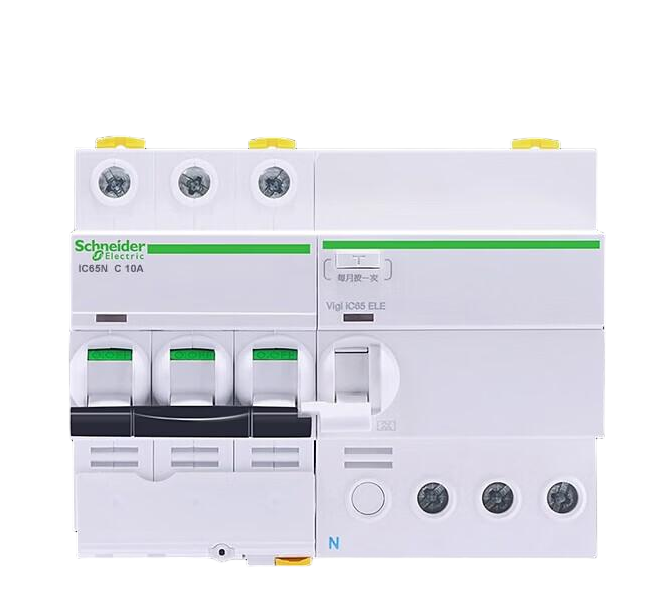

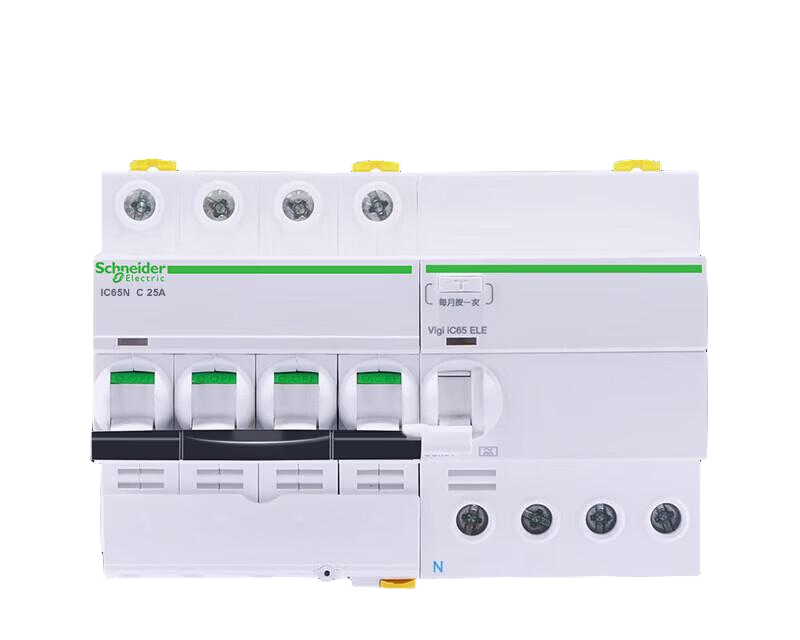

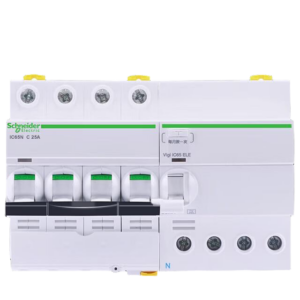

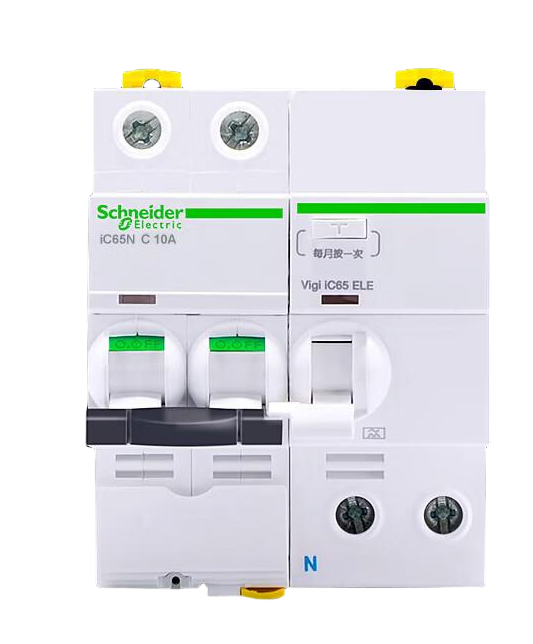

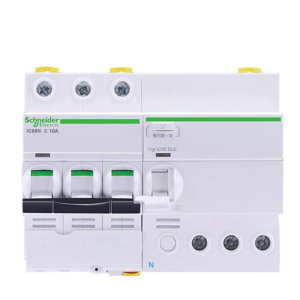

Schneider Acti 9 Series iC65N Vigi+ RCBO | High-Performance Leakage Protection Circuit Breaker for Industrial & Commercial Applications
model:
Schneider Electric A9 Series iC65N Vigi+
SKU:
776851212144-Schneider-Acti-9-Series
Product Type :
AC/DC
MOQ:
1 Piece
价格范围：$35.70 至 $93.00
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues
Product Overview
The Schneider Electric A9 Series iC65N Vigi+ is a premium, all-in-one Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO) from the renowned Acti 9 range. Combining the legendary iC65N miniature circuit breaker (MCB) with integrated Vigi+ residual current protection, this device provides comprehensive protection against overloads, short circuits, and earth leakage (residual current) faults in a single, compact unit . Designed for demanding industrial, commercial, and residential applications, the iC65N Vigi+ delivers a high breaking capacity of 6kA and advanced electronic leakage protection, ensuring maximum safety and reliability for critical electrical circuits .
Technical Specifications
| Parameter | Details |
|---|---|
| Product Series | Schneider Electric Acti 9 / A9 Series |
| Product Type | iC65N Vigi+ Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO) |
| Pole Configurations | 1P+N, 2P, 3P, 4P (2P most common) |
| Rated Currents (In) | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Rated Voltage (Ue) | 230V AC (1P+N/2P), 400V AC (3P/4P) 50 Hz |
| Tripping Characteristic | C Curve (5-10 In) |
| Rated Residual Current (IΔn) | 30 mA |
| Residual Current Type | A Type (electronic) – detects AC and pulsating DC currents |
| Residual Current Technology | ELE (Electronic) |
| Rated Short-Circuit Capacity (Icn) | 6 kA |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Width (2P model) | 36 mm (2 modules of 18mm) |
| Mounting | On 35 mm DIN rail |
| Connection Direction | Top or bottom feed |
| Terminal Capacity | Up to 35 mm² rigid (depending on model) |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Humidity Resistance | 95% at 55°C (Class 2 tropicalisation) |
| Standards & Certifications | IEC/EN 61009-1, GB/T 16917.1, CCC |
| Environmental Compliance | RoHS, REACH, Green Premium |
| Warranty | 18 months |
Typical Applications
The iC65N Vigi+ is perfectly suited for providing comprehensive protection in circuits across a variety of demanding settings:
-
Industrial Control Panels: Protection of PLC circuits, control transformers, and auxiliary supplies in factory automation systems
-
Commercial Buildings: Distribution board protection for lighting, HVAC, and socket outlet circuits in offices, retail stores, and hotels
-
Critical Residential Circuits: High-end residential applications requiring 6kA breaking capacity, particularly for kitchens, home theaters, and workshops
-
Renovation Projects: Upgrading existing electrical panels to meet modern safety standards with integrated RCBO protection
-
Electronic Load Circuits: Ideal for circuits with LED lighting, variable frequency drives, UPS systems, and other equipment generating pulsating DC leakage currents
-
Medical Facilities: Protection of circuits in clinics, laboratories, and medical offices where reliable earth leakage protection is essential
-
Temporary Installations: Construction sites, outdoor events, and temporary power distribution requiring robust, portable protection
