Mitsubishi MELSEC iQ-F Series FX5U PLC | High-Performance Compact CPU & Modular I/O System for Advanced Automation

model:

Mitsubishi Electric MELSEC iQ-F Series FX5U

SKU:

776851212145-Mitsubishi Electric MELSEC iQ-F Series FX5U

Product Type :

AC/DC

MOQ:

1 Piece

The Mitsubishi Electric MELSEC iQ-F Series FX5U is a flagship compact programmable logic controller (PLC) that represents the pinnacle of performance and integration in the MELSEC iQ-F platform . As the advanced successor to the renowned FX3U series, the FX5U delivers a revolutionary leap in processing speed—with basic instruction execution times of just 34ns—and system bus communication approximately 150 times faster than previous generations . This future-proof controller seamlessly integrates essential functions including high-speed positioning, analog I/O, Ethernet, and RS-485 communication directly into the CPU, eliminating the need for additional modules in many applications . Available with built-in I/O configurations from 32 to 80 points and expandable up to 512 total I/O points, the FX5U series, together with its comprehensive range of expansion I/O modules, provides the ideal solution for standalone machinery, robotic systems, and sophisticated production lines requiring high-speed control, precise motion, and seamless IoT connectivity .

价格范围：$310.00 至 $591.40

Option

Clear

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

Add to Wishlist

Fast shipping

Shipping fee and delivery date to be negotiated. Chat with US now for more details.

Secure payments

Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn’t ship, is missing, or arrives with product issues

Product Overview

FX5U CPU Module Technical Specifications

Parameter	Details
Product Series	Mitsubishi Electric MELSEC iQ-F Series
Family Name	FX5U Series Compact PLC
Power Supply Options	AC Powered: 100-240V AC (50/60Hz) DC Powered: 24V DC
Program Memory	64K steps (128KB) Flash ROM
Device/Label Memory	120 KB
Data Memory	5 MB (Standard ROM)
SD Card Support	SD/SDHC cards up to 4GB or 16GB
Basic Instruction Speed	34 ns (LD, MOV)
Local I/O Points	256 points maximum
Total I/O (Max)	512 points (including remote I/O)
Built-in Digital I/O	32-point models: 16 inputs / 16 outputs 64-point models: 32 inputs / 32 outputs 80-point models: 40 inputs / 40 outputs
Built-in Analog I/O	2 inputs (12-bit, 0-10V/0-20mA) 1 output (12-bit, 0-10V/0-20mA)
Positioning Output	4 axes independent, 200kHz max pulse output
High-Speed Counters	8 channels (200kHz max)
Ethernet Port	1 port, 10BASE-T/100BASE-TX
RS-485 Port	1 port (supports MODBUS RTU)
Programming Languages	Ladder (LD), Structured Text (ST), Function Block (FBD), SFC
Operating Temperature	0°C to +55°C
Protection Class	IP10
Mounting	DIN rail or direct panel mounting

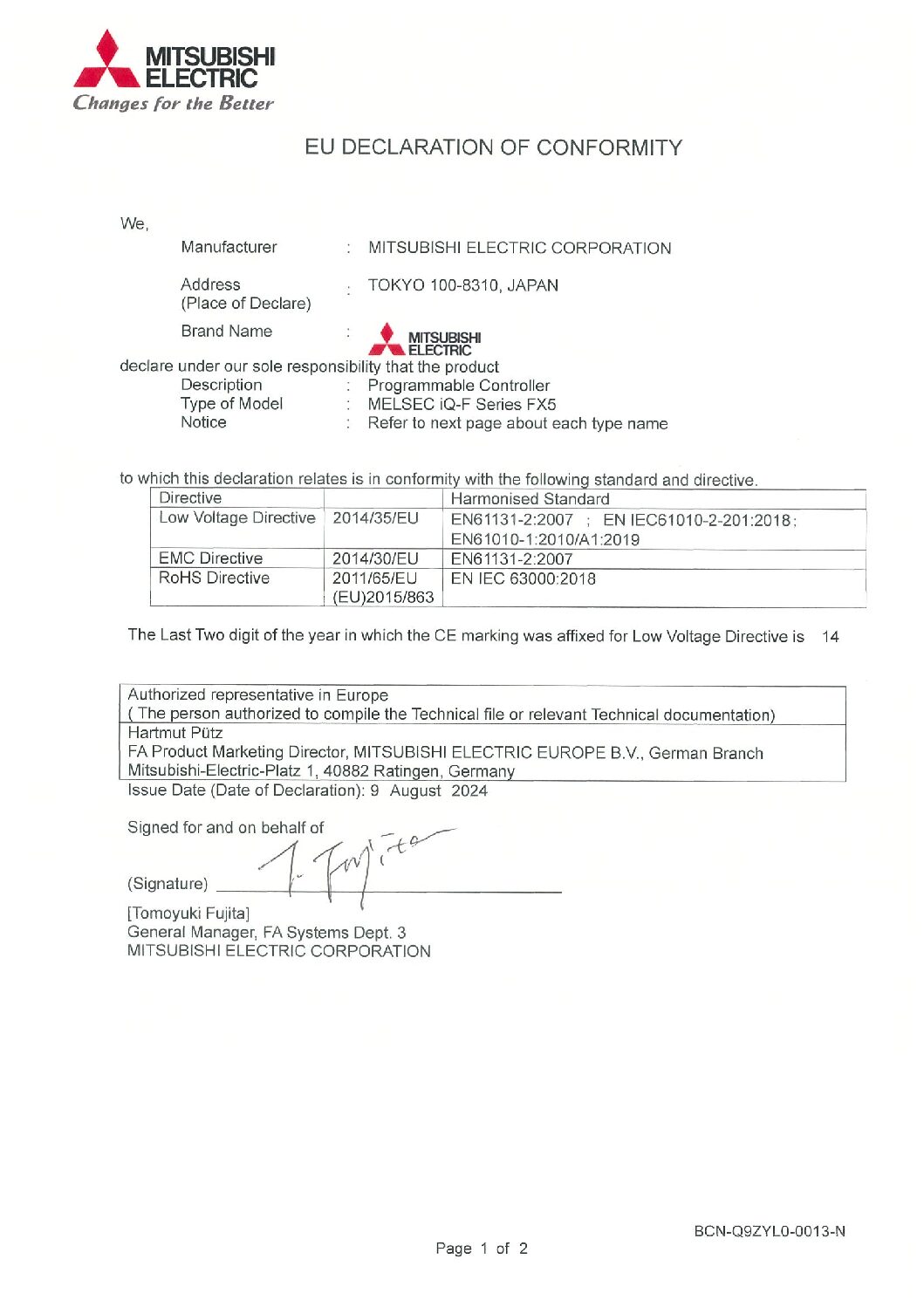

Certifications	CE, cULus, KC, EAC

FX5U CPU Module Model Number Selection Guide

The FX5U series uses a systematic model code to identify specific configurations.

Model Number	Power Supply	Inputs	Outputs	Output Type	Output Logic

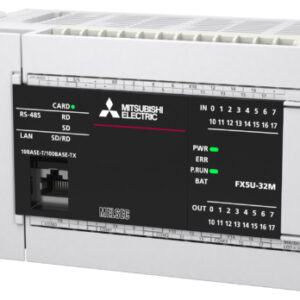

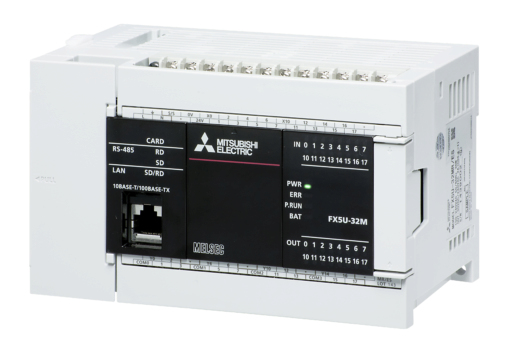

FX5U-32MR/ES	100-240V AC	16 (24V DC Sink/Source)	16	Relay	N/A
FX5U-32MT/ES	100-240V AC	16 (24V DC Sink/Source)	16	Transistor	Sink (NPN)
FX5U-32MT/ESS	100-240V AC	16 (24V DC Sink/Source)	16	Transistor	Source (PNP)

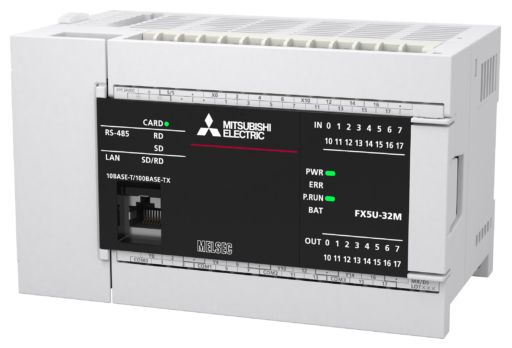

FX5U-32MT/DS	24V DC	16 (24V DC Sink/Source)	16	Transistor	Sink (NPN)
FX5U-32MT/DSS	24V DC	16 (24V DC Sink/Source)	16	Transistor	Source (PNP)

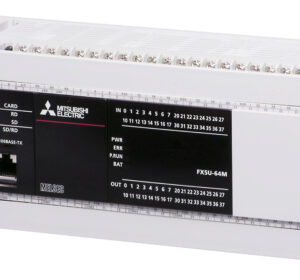

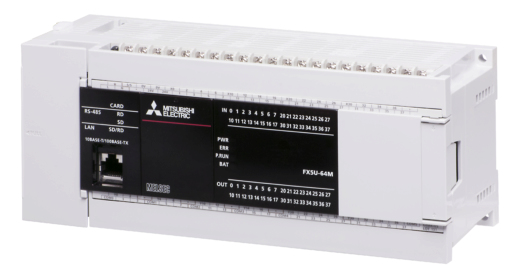

FX5U-64MR/ES	100-240V AC	32 (24V DC Sink/Source)	32	Relay	N/A
FX5U-64MT/ES	100-240V AC	32 (24V DC Sink/Source)	32	Transistor	Sink (NPN)
FX5U-64MT/ESS	100-240V AC	32 (24V DC Sink/Source)	32	Transistor	Source (PNP)

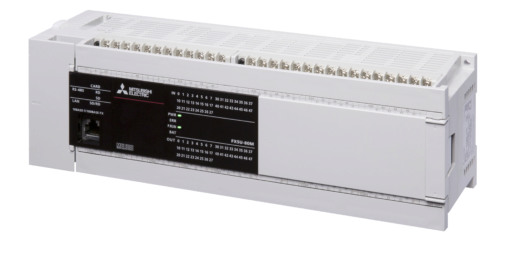

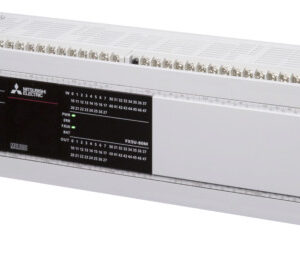

FX5U-80MR/ES	100-240V AC	40 (24V DC Sink/Source)	40	Relay	N/A
FX5U-80MT/ES	100-240V AC	40 (24V DC Sink/Source)	40	Transistor	Sink (NPN)
FX5U-80MT/ESS	100-240V AC	40 (24V DC Sink/Source)	40	Transistor	Source (PNP)

Model Code Decoder:

MR: Relay Output
MT: Transistor Output
ES: AC Power Supply (100-240V AC)
DS: DC Power Supply (24V DC)
ESS: AC Power, Source (PNP) Transistor Output
DSS: DC Power, Source (PNP) Transistor Output

The Mitsubishi FX5U PLC CPU and I/O modules represent the perfect convergence of compact design, high-speed performance, and advanced functionality in the world of programmable logic controllers. By integrating essential features—including Ethernet, RS-485, analog I/O, high-speed positioning, and data logging capabilities—directly into the CPU, Mitsubishi Electric has created a controller that reduces component count, simplifies system design, and accelerates time-to-market for machine builders .

With processing speeds 150 times faster than its predecessor and a comprehensive suite of built-in functions, the FX5U eliminates the need for multiple expansion modules in many applications, resulting in smaller control panels, lower costs, and improved reliability . The extensive range of I/O modules—from basic digital expansion to high-speed pulse I/O and specialized function modules—provides the flexibility to scale from simple standalone machines to complex production lines requiring synchronized multi-axis motion and IoT connectivity .
