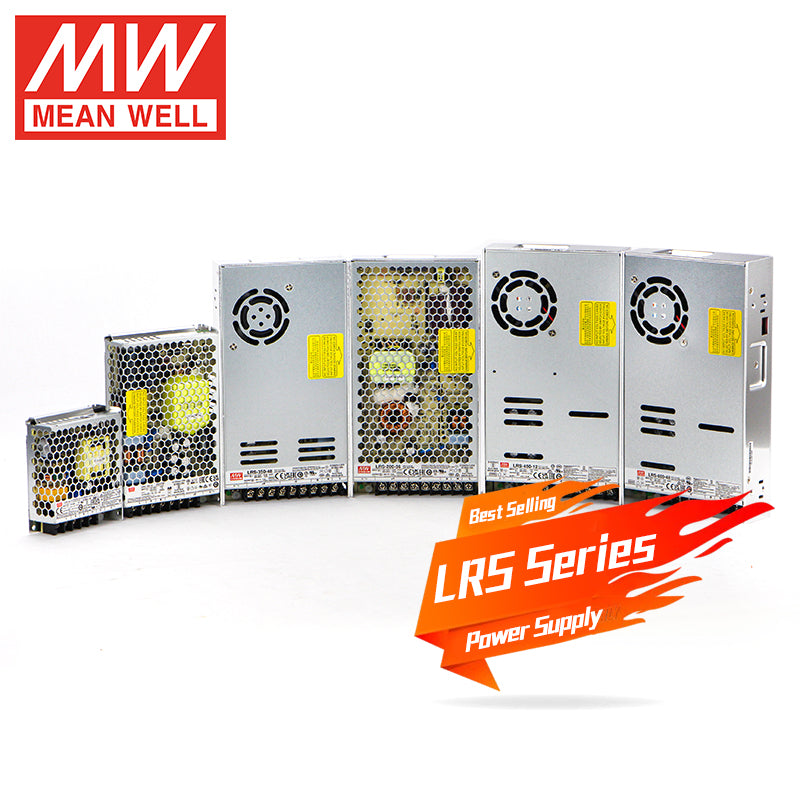

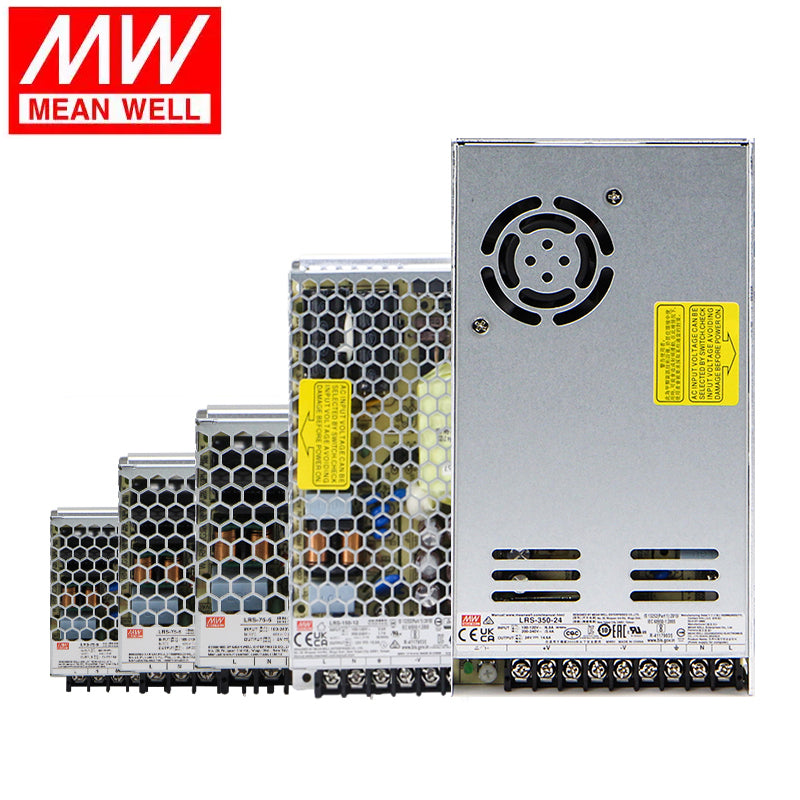

Mean Well LRS-200 200W Enclosed Single Output LED Switching Power Supply
元の価格は $36.00 でした。$24.30現在の価格は $24.30 です。元の価格は $36.00 でした。$24.30現在の価格は $24.30 です。 - 元の価格は $36.00 でした。$24.30現在の価格は $24.30 です。
CONTACT US
Tel : +0086 (595) 2725 6889
Email: [email protected]
BULK PURCHASES
Warning！！！The destination tariff will be charged by the buyer. All products can enjoy free shipping service if the price is over $50. If you require drivers more than 30pcs, please feel free to contact us online, (or email: [email protected]), we will provide the best purchasing plan
99999 in stock ( can be backordered )
Brand:
Certified
Meanwell GST220A12-R7B 220W Laptop Power Adapter 12V 15A Power Supply Adapter
model:
SKU:
60665195661_220W
Product Type :
AC/DC
MOQ:
1 Piece
$64.99
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues

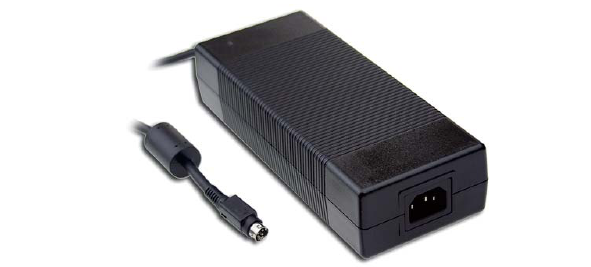

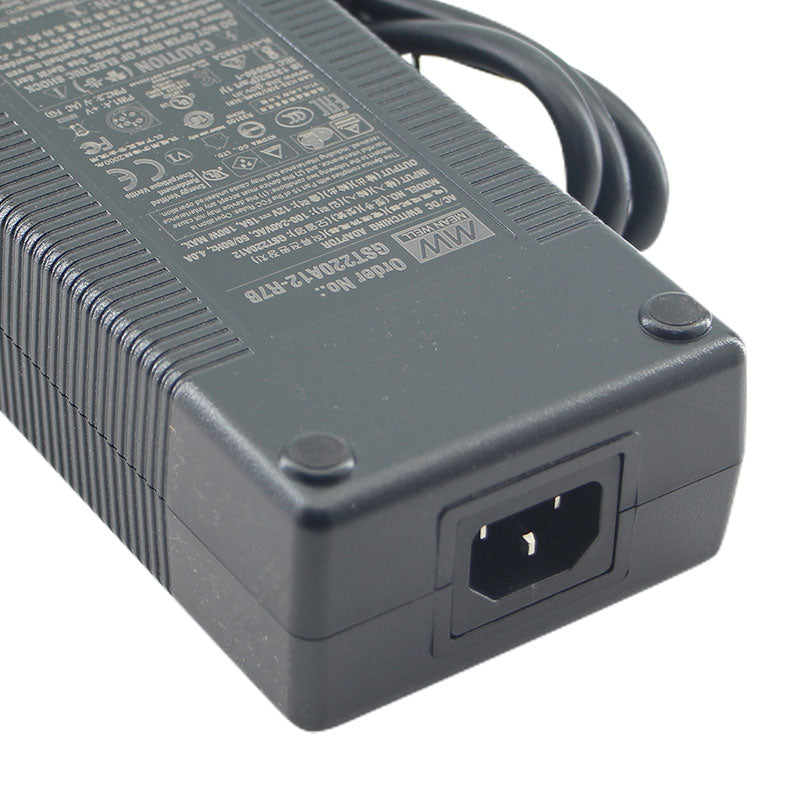

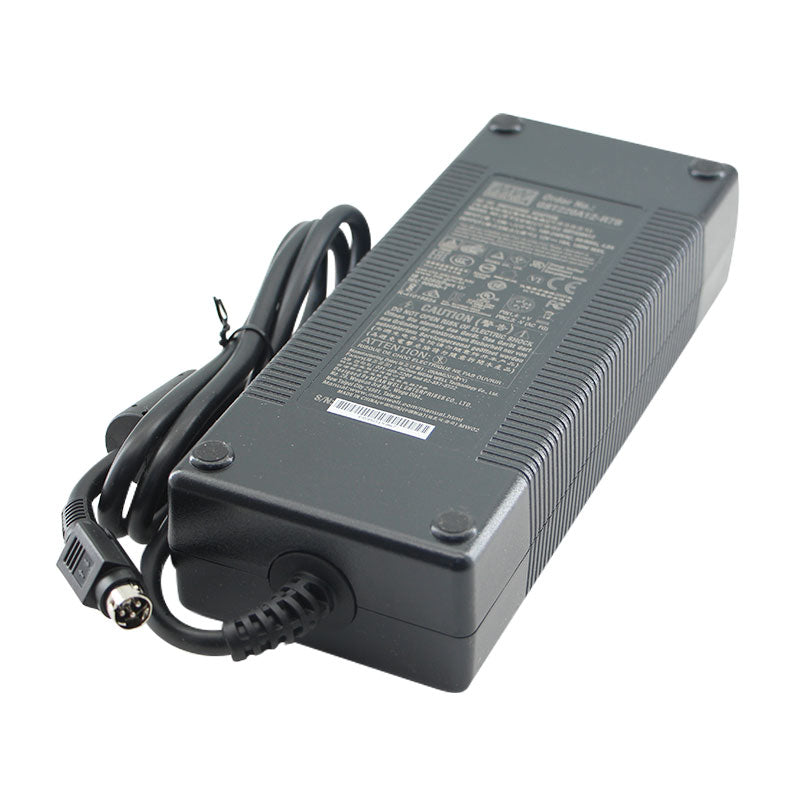

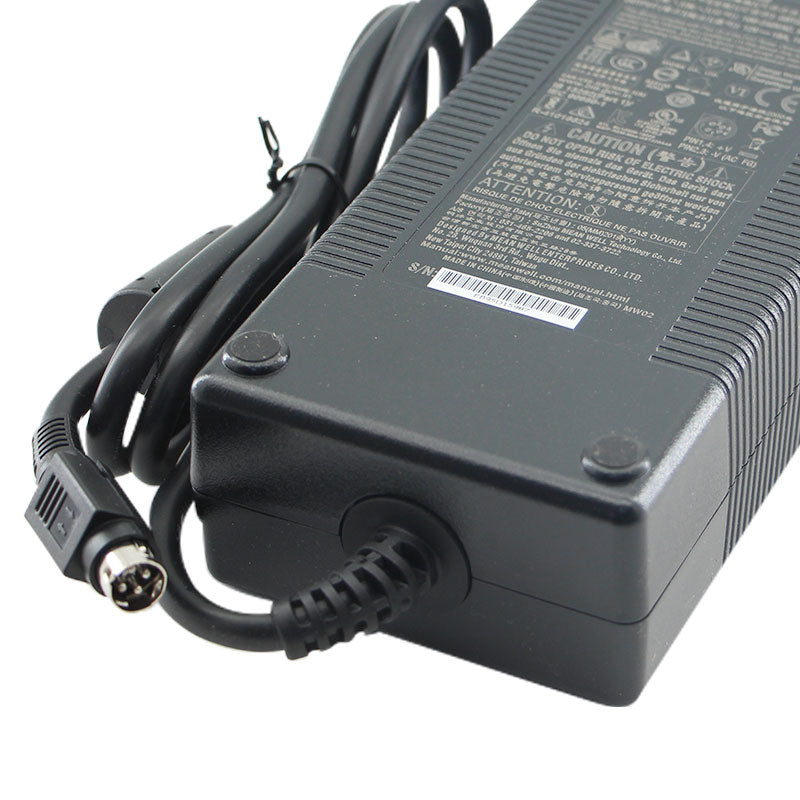

Meanwell GST220A12-R7B 220W Laptop Power Adapter 12V 15A Power Supply Adapter
Features:
- Meanwell Adapter 12V
- Universal AC input / Full range
- Built-in active PFC function
- No load power consumption<0.5W
- Energy efficiency Level V
- Comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP
- 3 pole AC inlet IEC320-C14
- Class I power (with earth pin)
- Protections: Short circuit / Over load / Over voltage / Over temperature
- Fully enclosed plastic case
- LED indicator for power on
- 2 years warranty

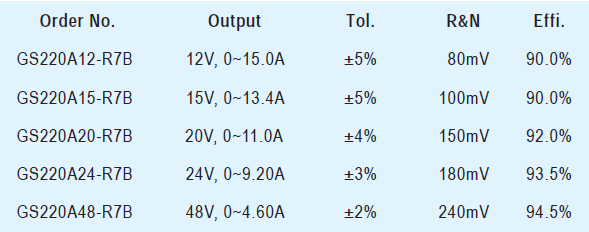

| Model No. | GS220A12-R7B | GS220A15-R7B | GS220A20-R7B | GS220A24-R7B | GS220A48-R7B | |
| OUTPUT | SAFETY MODEL NO. | GS220A12 | GS220A15 | GS220A20 | GS220A24 | GS220A48 |
| DC VOLTAGE | 12V | 15V | 20V | 24V | 48V | |
| RATED CURRENT | 15A | 13.4A | 11A | 9.2A | 4.6A | |
| CURRENT RANGE | 0 ~ 15A | 0 ~ 13.4A | 0 ~ 11A | 0 ~ 9.2A | 0 ~ 4.6A | |
| RATED POWER | 180W | 201W | 220W | 221W.. | 221W | |
| RIPPLE & NOISE | 80mVp-p | 100mVp-p | 150mVp-p | 180mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±2.0% | |
| SETUP, RISE TIME | 2000ms, 20ms / 230VAC 2000ms, 20ms / 115VAC at full load | |||||
| HOLD UP TIME | 20ms / 230VAC 20ms / 115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz. | |||||
| POWER FACTOR | PF>0.91 / 230VAC PF>0.98 / 115VAC at full load | |||||
| EFFICIENCY | 90% | 90% | 92% | 93.5% | 94.5% | |
| AC CURRENT | 4A / 115VAC 2A / 230VAC | |||||
| INRUSH CURRENT | 120A / 230VAC | |||||
| LEAKAGE CURRENT | 1.5mA / 240VAC | |||||
| PROTECTION | OVER LOAD | 105 ~ 135% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +60°C (Refer to “Derating Curve”) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ 85°C, 10 ~ 95% RH | |||||
| TEMP.COEFFICIENT | ±0.03% /°C (0 ~ 50°C) | |||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min.each along X, Y, Z axes | |||||
| SAFETY &EMC | SAFETY STANDARDS | U60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH | |||||
| EMC EMISSION | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254, GB17625.1 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | |||||
| OTHERS | MTBF | 191.3K hours min. MIL-HDBK-217F(25°C) | ||||
| DIMENSION | 210*85*46mm (Length*Width*Height) | |||||
| PACKING | 1.1Kg; 12pcs/14.2Kg/0.73CUFT | |||||
Mechanical Specification:
Meanwell GS220A12-R7B 220W Laptop Power Adapter 12V 15A Power Supply Adapter

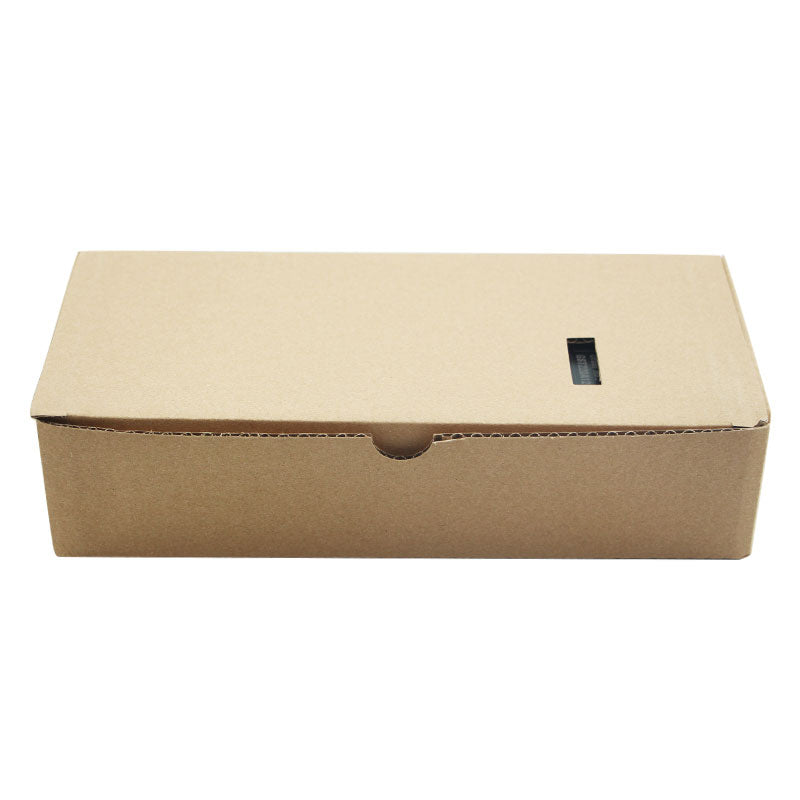

Packing:
Shipping:
Strict, professional production and test, large stock for fast shipping
What our Power Supply can do for you?
What Certification do we have?
SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS
1.What we sell is 100%Genuine Mean Well Power Supply;
2.Small quantity orders acceptable;
3.We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4.We havelarger stocksand this support us can make a very prompt shipping;
5.To assure you the maximum comfort and satisfaction, we accept pay viaT/T, Paypal, Western Union;
6.Price could be negotiated for more and large quantity;
7.Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
