MEAN WELL SHP-10K-55 / SHP-10K-115 / SHP-10K-230 / SHP-10K-380 10kW 3-Phase Digital Power Supply Technical Specifications
model:
MEAN WELL SHP-10K-55 / SHP-10K-115 / SHP-10K-230 / SHP-10K-380
SKU:
776851212169-MEAN WELL SHP-10K Series
Product Type :
AC/DC
MOQ:
1 Piece
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues

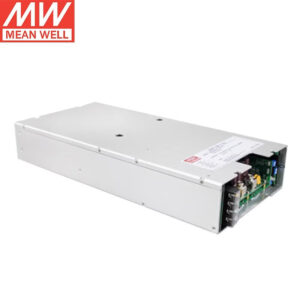

Complete technical specifications for the MEAN WELL SHP-10K series 10kW high-power digital AC/DC power supplies
Key Specifications:
-
Power Rating: 10kW (7.2kW for 55V model)
-
Input: 3-phase 3-wire 340-530VAC (47-63Hz), no neutral required
-
Efficiency: Up to 97%
-
Dimensions: 460 × 211 × 83.5 mm (forced-air), 460 × 216 × 83.5 mm (water-cooling) — <2U height, fits 19″ racks
-
Weight: 11.9kg (approximate)
-
Isolation: 3.75kV
Output Models:
| Model | Output Voltage | Output Current | Output Power | Efficiency |
|---|---|---|---|---|
| SHP-10K-55 | 55VDC (SELV) | 131A | 7,205W | 96% |
| SHP-10K-115 | 115VDC | 87A | 10,005W | 96% |
| SHP-10K-230 | 230VDC | 43.5A | 10,005W | — |
| SHP-10K-380 | 380VDC | 26.3A | 9,994W | — |
Control & Communication:
-
Programmable output voltage: 50-120% of rated
-
Programmable constant current: 20-100% of rated
-
Built-in CANBus interface (standard)
-
Optional PMBus, MODBus-RTU, RS-485 protocols
-
Active current sharing for parallel operation up to 4 units (40kW max)
Protections & Signals:
-
Short circuit / Overload (OLP) / Over voltage (OVP) / Over temperature (OTP) / Fan fail
-
Built-in alarm signals: DC-OK, over-temperature alarm, fan fail alarm, AC fail alarm
-
Remote ON-OFF control
Environmental:
-
Operating Temperature: -30°C to +70°C (full load up to +50°C, derating above)
-
Cooling: Forced-air (built-in fans) or water-cooling versions available
Safety Approvals:
-
ITE: EN/UL62368-1
-
CB, CE, cURus, TUV, EAC, UKCA
Warranty: 5 years
