MEAN WELL RSP-750 / RSP-1000 / RSP-1500 / RSP-2000 / RSP-2400 / RSP-3000 Series 750W-3000W Single Output Enclosed Power Supplies
model:
MEAN WELL RSP-750 / RSP-1000 / RSP-1500 / RSP-2000 / RSP-2400 / RSP-3000 Series
SKU:
776851212172-MEAN WELL RSP series 750W to 3000W
Product Type :
AC/DC
MOQ:
1 Piece
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues

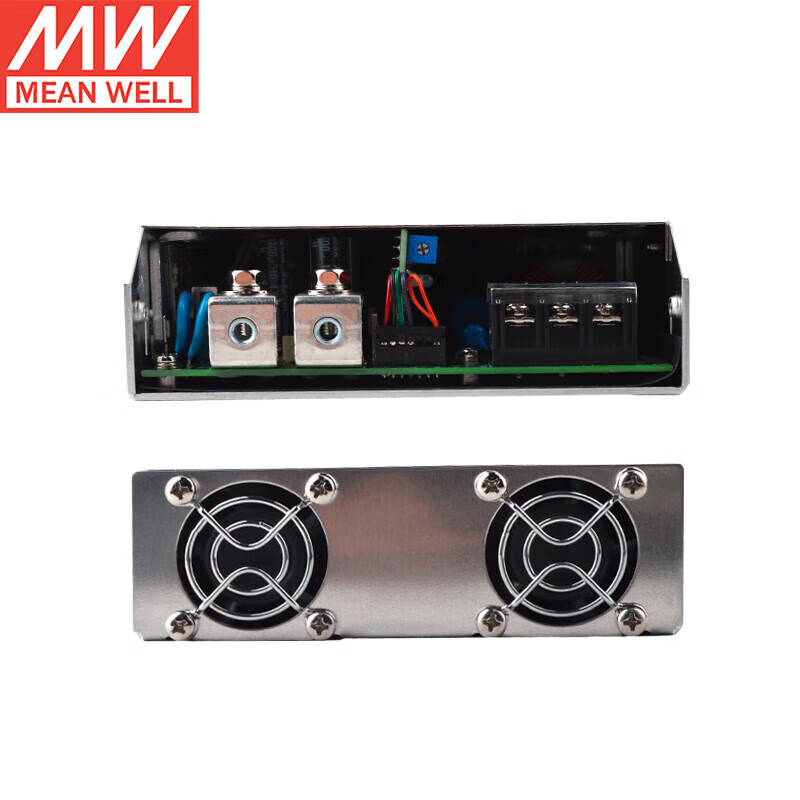

MEAN WELL RSP series—750W to 3000W high-reliability single output enclosed power supplies featuring 1U low profile designs (41mm height for most models) and active PFC function . This comprehensive family includes:
Model Specifications Table:
| Series | Model | Output Voltage | Output Current | Power | Efficiency | Dimensions (L×W×H) | Programmable Range | Current Sharing |
|---|---|---|---|---|---|---|---|---|

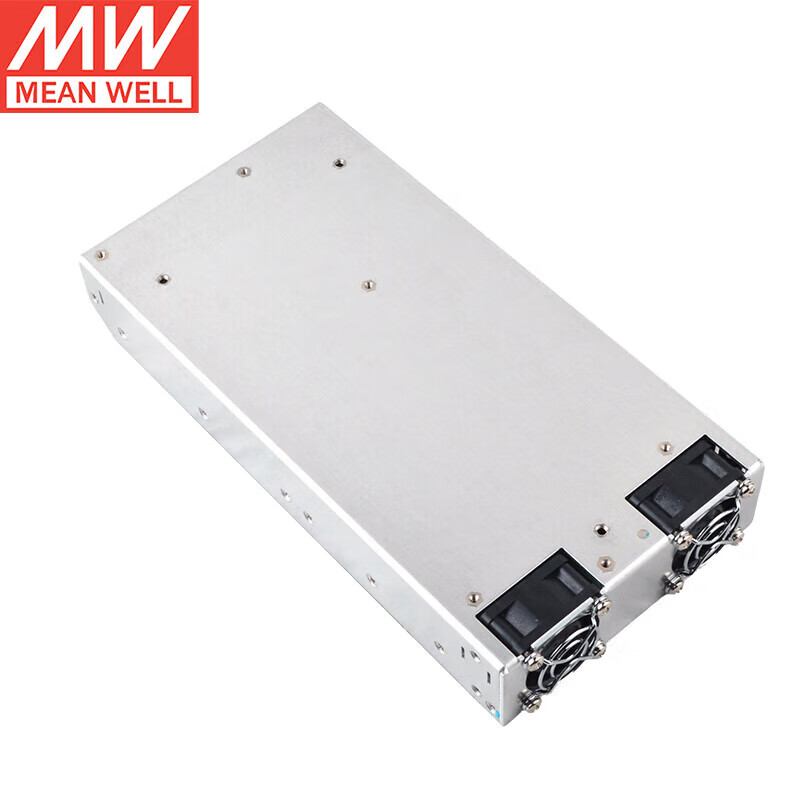

| RSP-750 | RSP-750-12 | 12V | 62.5A | 750W | 82-87% | 250×127×41mm | 40-110% | No |
| RSP-750-24 | 24V | 31.3A | 751W | 89-90.5% | 250×127×41mm | 40-110% | No | |
| RSP-750-48 | 48V | 15.7A | 754W | 92% | 250×127×41mm | 40-110% | No | |
| RSP-1000 | RSP-1000-24 | 24V | 40A | 1000W | 90% | 295×127×41mm | 40-110% | Up to 3 units |
| RSP-1500 | RSP-1500-12 | 12V | 125A | 1500W | 87% | 278×127×83.5mm | ±10% by pot / 20-110% ext | Up to 4 units |

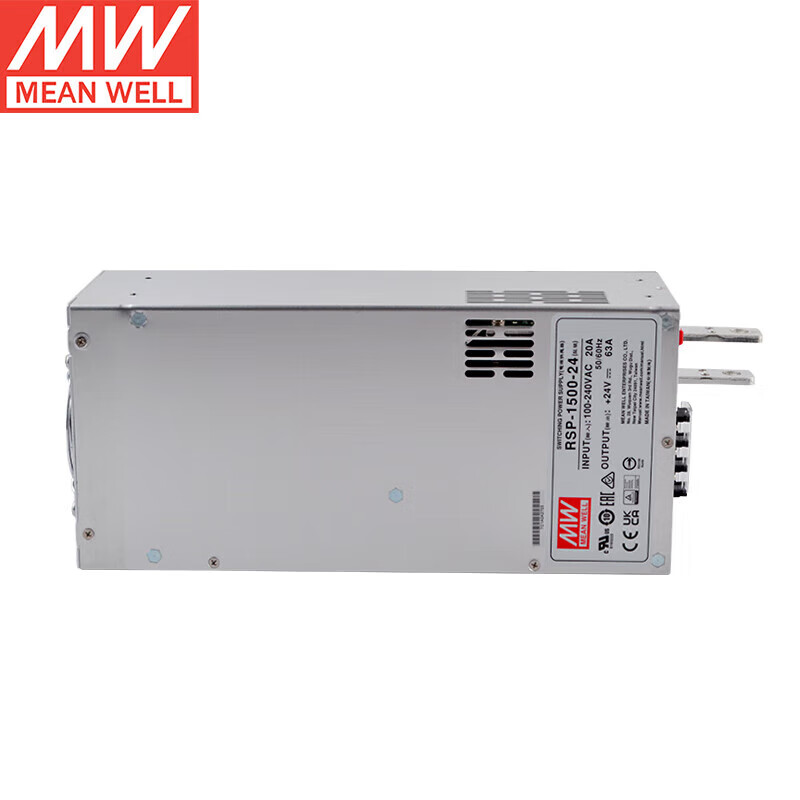

| RSP-1500-24 | 24V | 63A | 1512W | 90% | 278×127×83.5mm | ±10% by pot / 20-110% ext | Up to 4 units | |
| RSP-1500-48 | 48V | 32A | 1536W | 91% | 278×127×83.5mm | ±10% by pot / 20-110% ext | Up to 4 units | |
| RSP-2000 | RSP-2000-12 | 12V | 100A | 1200W | 88-92% | 295×127×41mm | Programmable | Up to 8000W (3+1) |
| RSP-2000-24 | 24V | 80A | 1920W | 90-92% | 295×127×41mm | Programmable | Up to 8000W (3+1) | |

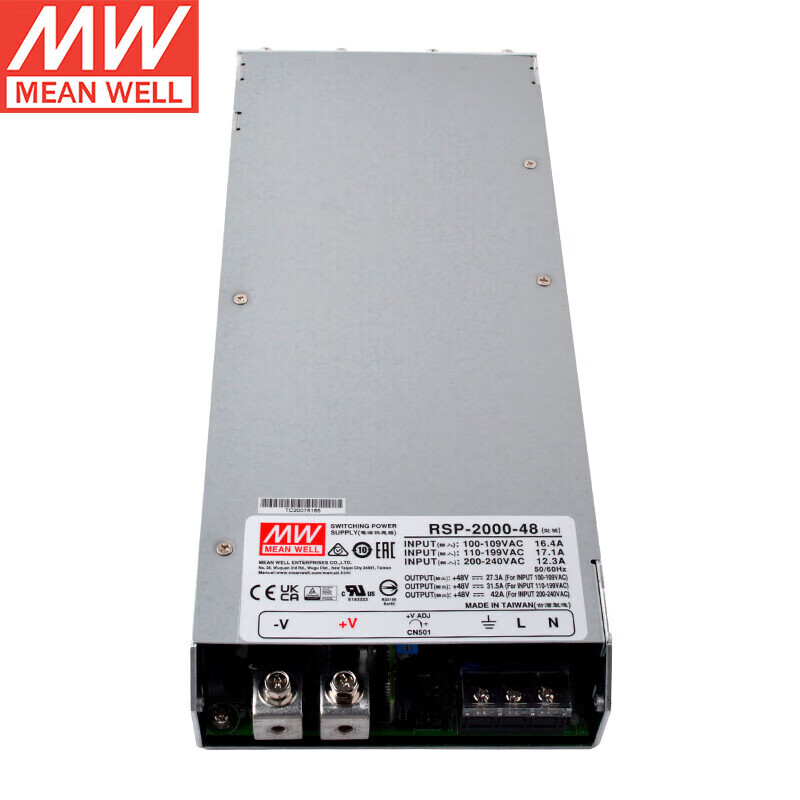

| RSP-2000-48 | 48V | 42A | 2016W | 91-92% | 295×127×41mm | Programmable | Up to 8000W (3+1) | |
| RSP-2400 | RSP-2400-12 | 12V | 166.7A | 2000W | 88% | 278×177.8×63.5mm | ±10% | Up to 3 units |
| RSP-2400-24 | 24V | 100A | 2400W | 90.5% | 278×177.8×63.5mm | ±10% | Up to 3 units | |
| RSP-2400-48 | 48V | 50A | 2400W | 91.5% | 278×177.8×63.5mm | ±10% | Up to 3 units | |
| RSP-3000 | RSP-3000-12 | 12V | 200A | 2400W | 87.5% | 278×177.8×63.5mm | 20-110% | Up to 9000W (2+1) |

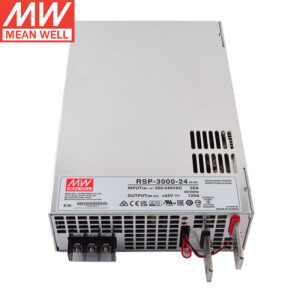

| RSP-3000-24 | 24V | 125A | 3000W | 90% | 278×177.8×63.5mm | 20-110% | Up to 9000W (2+1) | |
| RSP-3000-48 | 48V | 62.5A | 3000W | 91.5% | 278×177.8×63.5mm | 20-110% | Up to 9000W (2+1) |
EMC Compliance : EN55032 Class B (RSP-750), Class A (RSP-3000), EN61000-3-2, EN61000-4-2,3,4,5,6,8,11
Perfect for:
-
Factory automation and control apparatus
-
Test and measurement instruments
-
Laser related machines and burn-in facilities
-
RF applications and digital broadcasting
-
Telecom/datacom systems and moving signs
-
LCD panel burn-in and IC testing equipment
