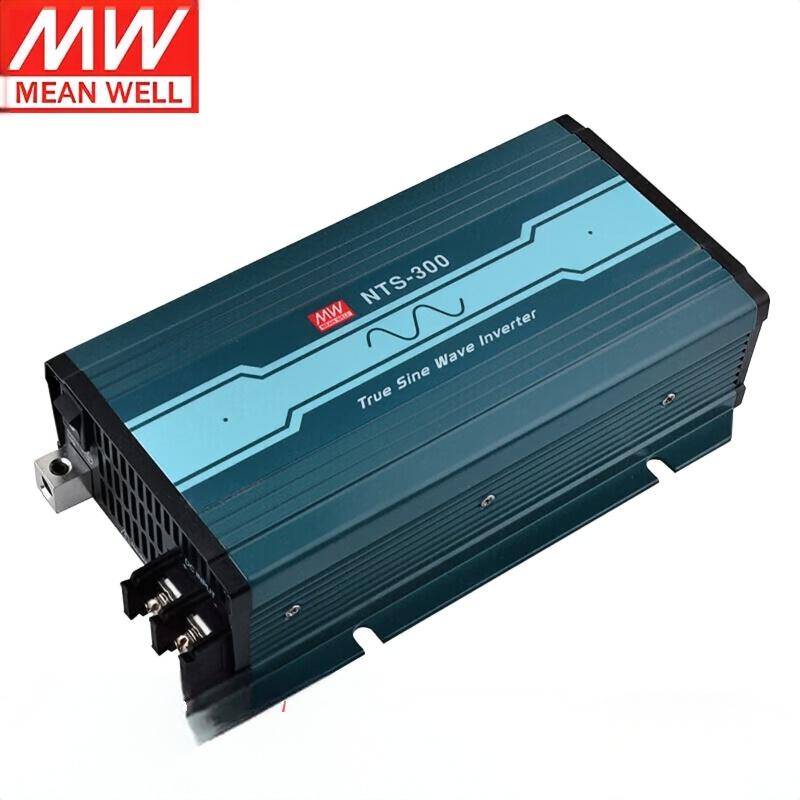

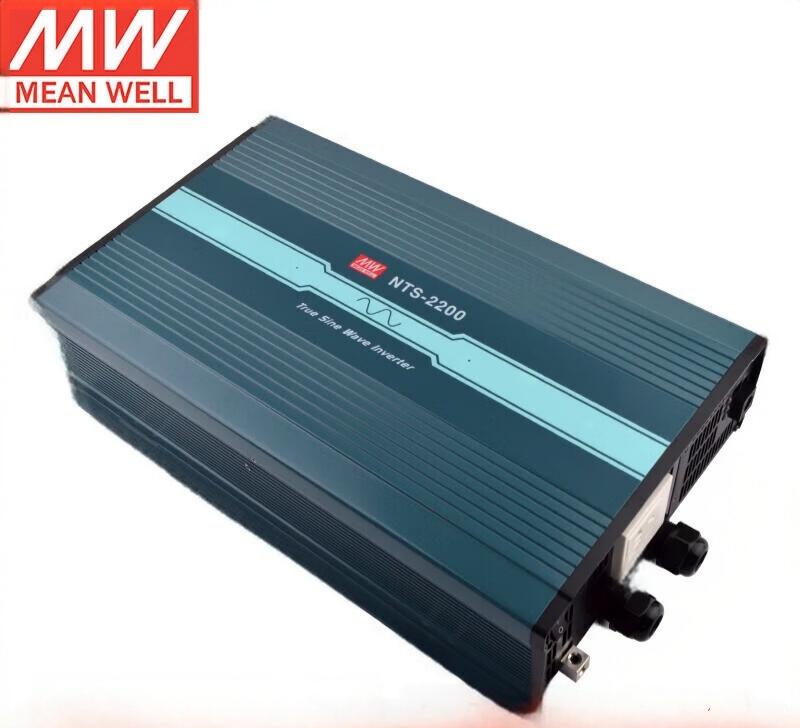

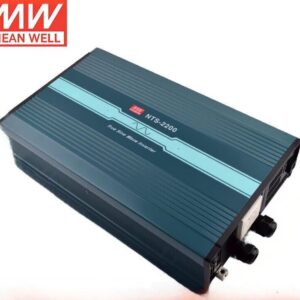

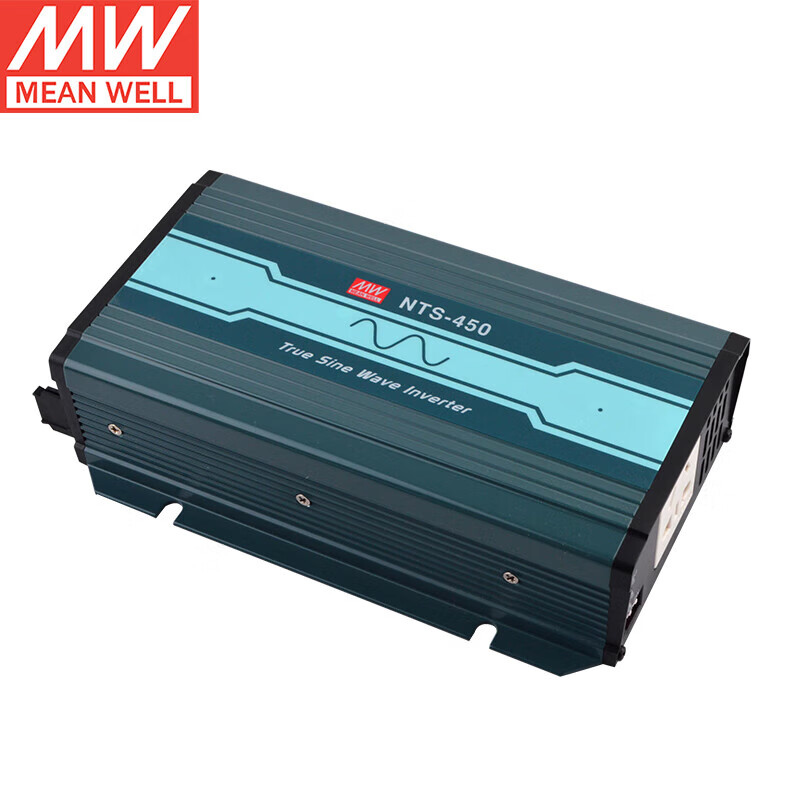

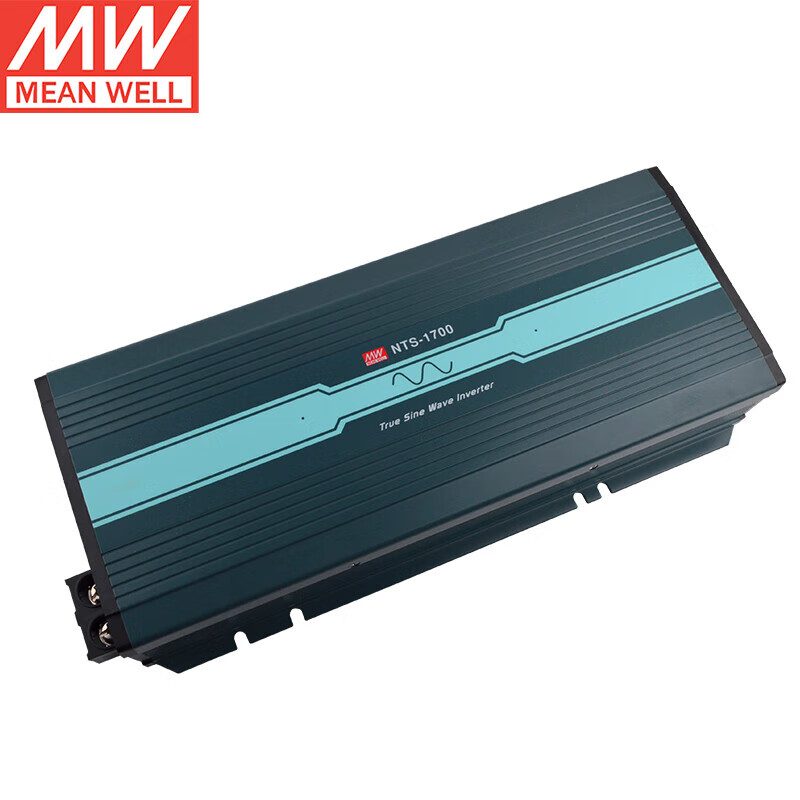

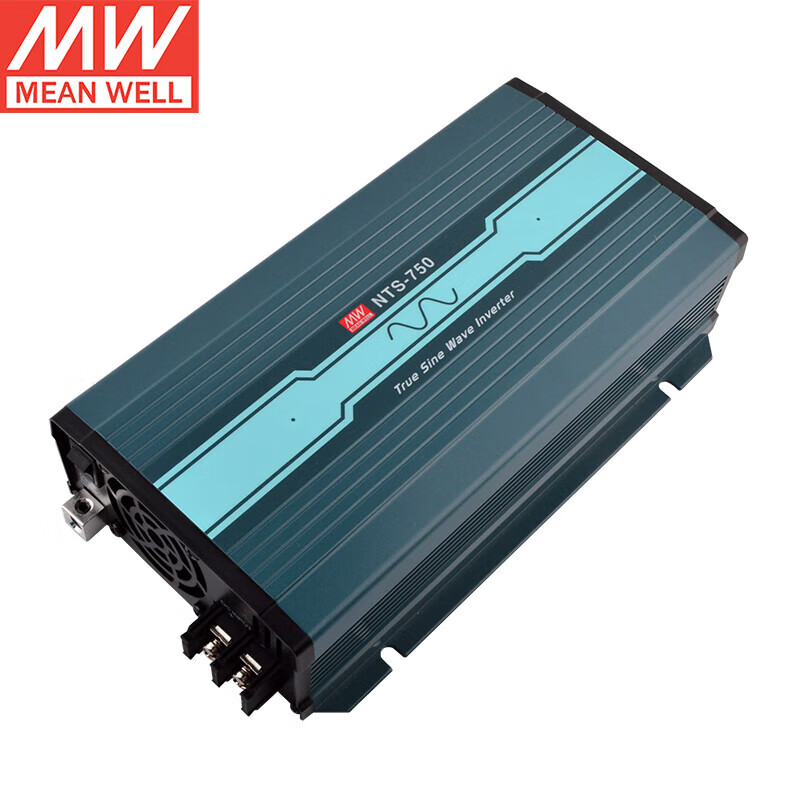

MEAN WELL NTS Series 300W-3200W True Sine Wave DC-AC Power Inverters NTS-300 / NTS-450 / NTS-750 / NTS-1200 / NTS-1700 / NTS-2200 / NTS-3200

model:

MEAN WELL NTS Series 300W-3200W

SKU:

776851212155-MEAN WELL NTS Series 300W-3200W

Product Type :

DC/AC

MOQ:

1 Piece

MEAN WELL NTS Series technical specifications. High-reliability true sine wave DC-AC power inverters available in 300W, 450W, 750W, 1200W, 1700W, 2200W, and 3200W models with 12V, 24V, and 48V DC input options

ไปทๆ ผ่Œƒๅ›ด๏ผš$83.00 ่‡ณ $574.40

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Fast shipping

FEDEXUPSUSPS

Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues


Key NTS Series Family Features Summary (300W-3200W):

Feature NTS-300 NTS-450 NTS-750/1200/1700 NTS-2200/3200
Rated Power 300W 450W 750W-1700W 2200W-3200W
Surge/Peak Power 600W peak 900W peak Up to 3400W surge (NTS-1700) Up to 6400W surge (NTS-3200)
Cooling Method Fanless, convection Temperature-controlled fan Temperature-controlled fan Temperature-controlled fan
Waveform True sine wave, THD <3% True sine wave, THD <3% True sine wave, THD <3% True sine wave, THD <3%

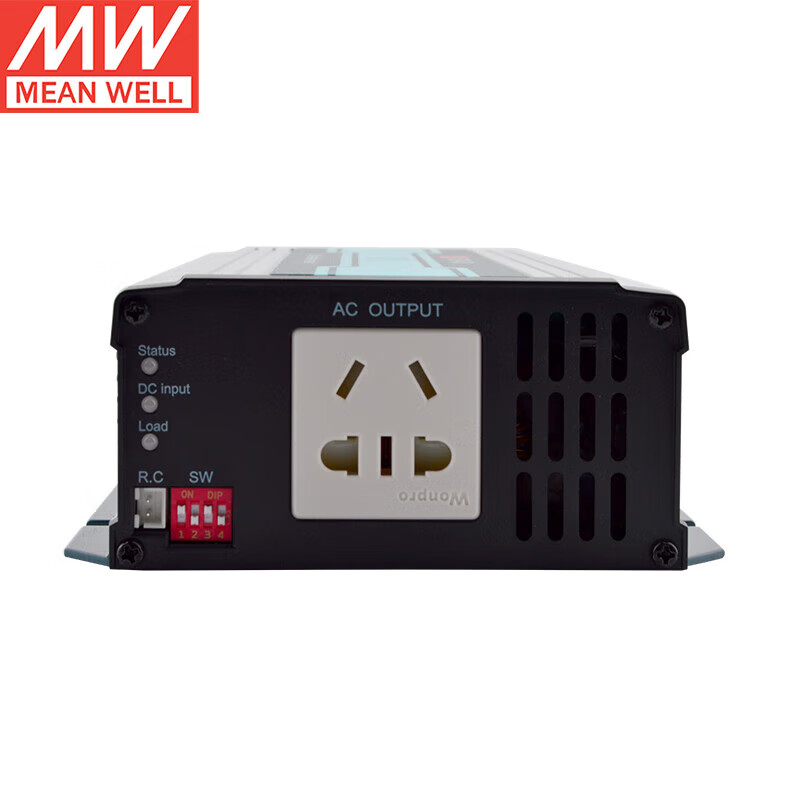

AC Output Adjustment DIP switch selectable (100-120V or 200-240V) DIP switch selectable DIP switch selectable DIP switch selectable
Frequency 50/60Hz selectable 50/60Hz selectable 50/60Hz selectable 50/60Hz selectable
Efficiency Up to 92% Up to 93% Up to 93% Up to 93%
No-Load Consumption <1.5W <1.5W <1.7W <1.7W
Remote Control Built-in remote ON/OFF Built-in remote ON/OFF Built-in remote ON/OFF Built-in remote ON/OFF
Communication RS-232 (select models) RS-232 standard
Operating Temperature -25ยฐC to +65ยฐC -25ยฐC to +70ยฐC -25ยฐC to +70ยฐC -25ยฐC to +70ยฐC
Battery Compatibility Lead-acid & li-ion Lead-acid & li-ion Lead-acid & li-ion Lead-acid & li-ion
Protections Reverse polarity, low voltage disconnect, short circuit, overload, over temp Reverse polarity, low voltage disconnect, short circuit, overload, over temp Reverse polarity, low voltage disconnect, short circuit, overload, over temp Reverse polarity, low voltage disconnect, short circuit, overload, over temp
Conformal Coating Yes Yes Yes Yes
Warranty 3 years 3 years 3 years 3 years
