MEAN WELL LOP-300-12 / LOP-300-24 / LOP-300-48 | 300W Open Frame Power Supply Technical Specifications
model:

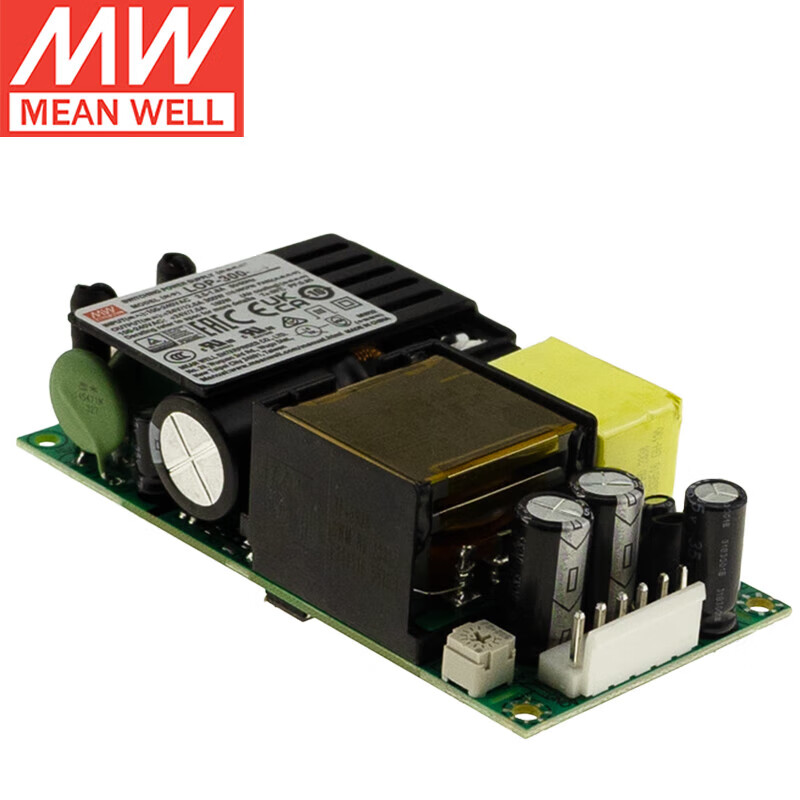

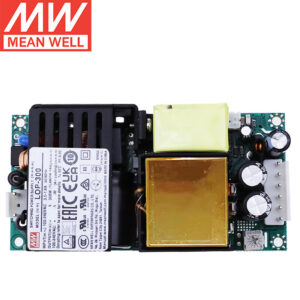

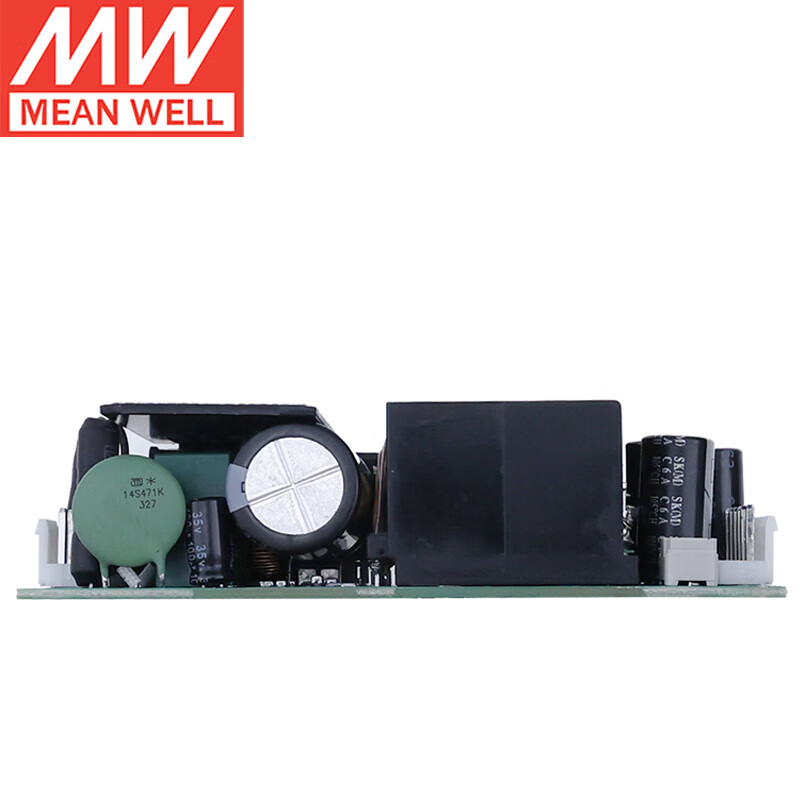

MEAN WELL LOP-300-12 / LOP-300-24 / LOP-300-48 | 300W Open Frame Power Supply
SKU:
776851212165-MEAN WELL LOP-300 Series Open Frame Power Supply
Product Type :
AC/DC
MOQ:
1 Piece
原价为：$40.00。$30.10当前价格为：$30.10。
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues
Key Specifications :
-
Dimensions: 101.6 × 50.8 × 25.4 mm (4″×2″×1″) — MEAN WELL Patent No. ZL 202223277512.1
-
Power Density: 37.5W/in³
-
Input: 80-264VAC (47-63Hz) or 113-370VDC with active PFC (PF>0.95/230VAC, >0.98/115VAC at full load)
-
Efficiency: Up to 94% (36V, 48V, 54V models)
-
No-load consumption: <0.5W
-
Leakage Current: Earth <500µA, Touch <70µA @264VAC
-
MTBF: >384,400 hours (MIL-HDBK-217F)
Output Specifications by Model :
| Model | Output Voltage | Current (10.98CFM) | Current (Convection) | Peak Current (3s) | Ripple & Noise |
|---|---|---|---|---|---|
| LOP-300-12 | 12V (11.4-12.6V) | 25A | 15A | 37.5A | 120mVp-p |
| LOP-300-15 | 15V (14.3-15.8V) | 20A | 12A | 30A | 150mVp-p |
| LOP-300-18 | 18V (17.1-18.9V) | 16.7A | 10A | 25A | 180mVp-p |
| LOP-300-24 | 24V (22.8-25.2V) | 12.5A | 7.5A | 18.8A | 200mVp-p |
| LOP-300-27 | 27V (25.6-28.4V) | 11.1A | 6.7A | 16.7A | 200mVp-p |
| LOP-300-30 | 30V (28.5-31.5V) | 10A | 6A | 15A | 250mVp-p |
| LOP-300-36 | 36V (34.2-37.8V) | 8.3A | 5A | 12.5A | 250mVp-p |
| LOP-300-48 | 48V (45.6-50.4V) | 6.3A | 3.8A | 9.4A | 250mVp-p |
| LOP-300-54 | 54V (52-58V) | 5.6A | 3.4A | 8.3A | 250mVp-p |
Safety Approvals :
-
ITE: UL62368-1, TUV EN62368-1, CCC GB4943.1
-
Medical: ANSI/AAMI ES60601-1 (3.2 Version), IEC60601-1 (2xMOPP, BF suitable)
-
Household: IEC60335-1, EN60335-1
-
Industrial: IEC61558-1/-2-16, AS/NZS 61558-1/-2-16
-
CB, CE, EAC, RCM, UKCA
