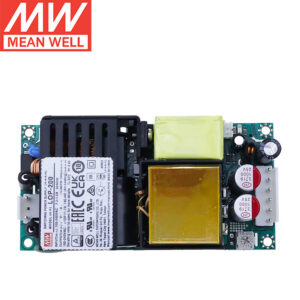

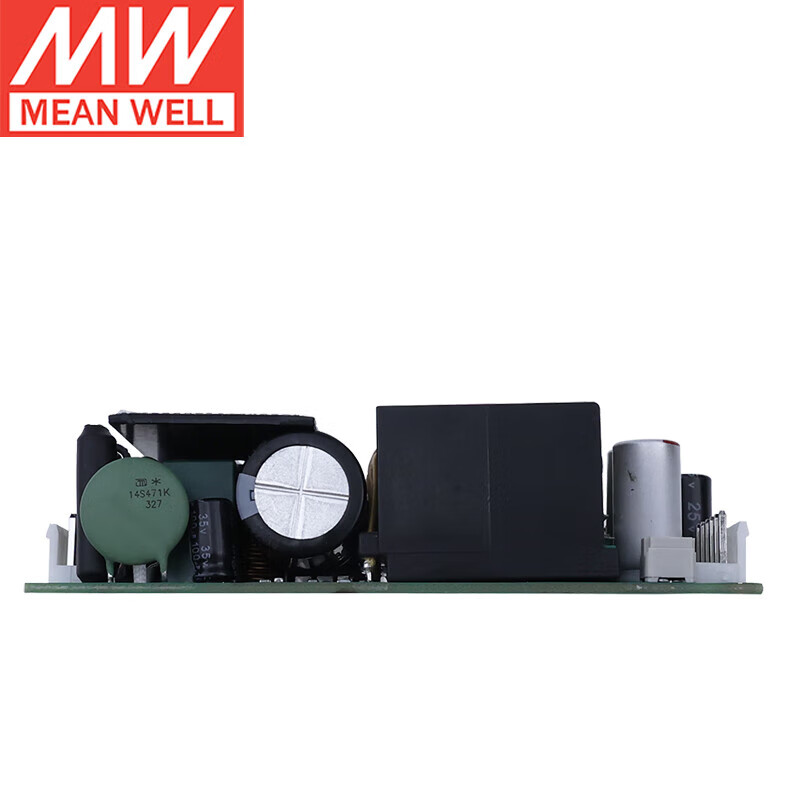

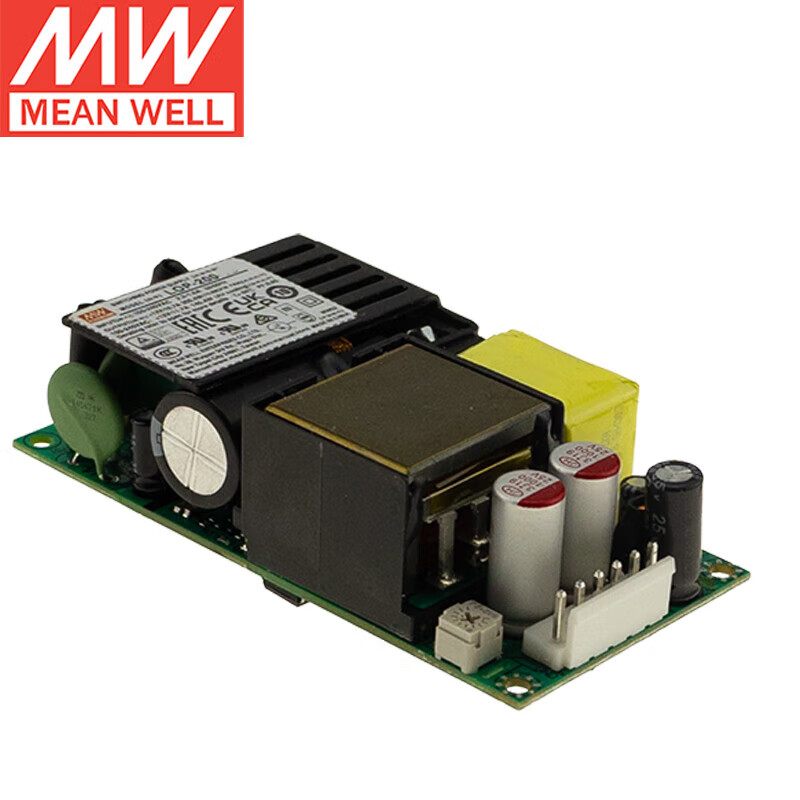

MEAN WELL LOP-200 Series Open Frame Power Supply for Medical, Industrial & ITE Applications
model:
MEAN WELL LOP-200-12 / LOP-200-24 / LOP-200-48 200W Open Frame Power Supply
SKU:
776851212164-MEAN WELL LOP-200 Series Open Frame Power Supply
Product Type :
AC/DC
MOQ:
1 Piece
原价为：$38.00。$27.80当前价格为：$27.80。
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues
Key Specifications :
-
Dimensions: 101.6 × 50.8 × 25.4 mm (4″×2″×1″)
-
Input: 80-264VAC (47-63Hz) or 113-370VDC with active PFC (PF>0.95/230VAC, >0.98/115VAC)
-
Efficiency: Up to 94% (24V-54V models)
-
No-load consumption: <0.5W
Output Models :
| Model | Output Voltage | Current (Forced Air) | Current (Convection) | Peak Current (3s) |
|---|---|---|---|---|
| LOP-200-12 | 12V (11.4-12.6V adj.) | 16.7A | 11.7A | 25A |
| LOP-200-24 | 24V (22.8-25.2V adj.) | 8.4A | 5.9A | 12.5A |
| LOP-200-48 | 48V (45.6-50.4V adj.) | 4.2A | 3.0A | 6.3A |
| LOP-200-54 | 54V (52-58V adj.) | 3.8A | 2.7A | 5.6A |
Protections : Short circuit (hiccup, auto-recovery), Overload (105-130%), Over voltage (110-140%), Over temperature
Environmental :
-
Operating Temperature: -40°C to +80°C (derating above +40°C)
-
Leakage Current: Earth <500µA, Touch <70µA @264VAC
-
MTBF: >500,000 hours
Safety Approvals : UL62368-1, CSA22.2, TUV EN62368-1, IEC60601-1 (2xMOPP, BF suitable), IEC60335-1, IEC61558-1/-2-16, CB, CE, EAC, RCM
