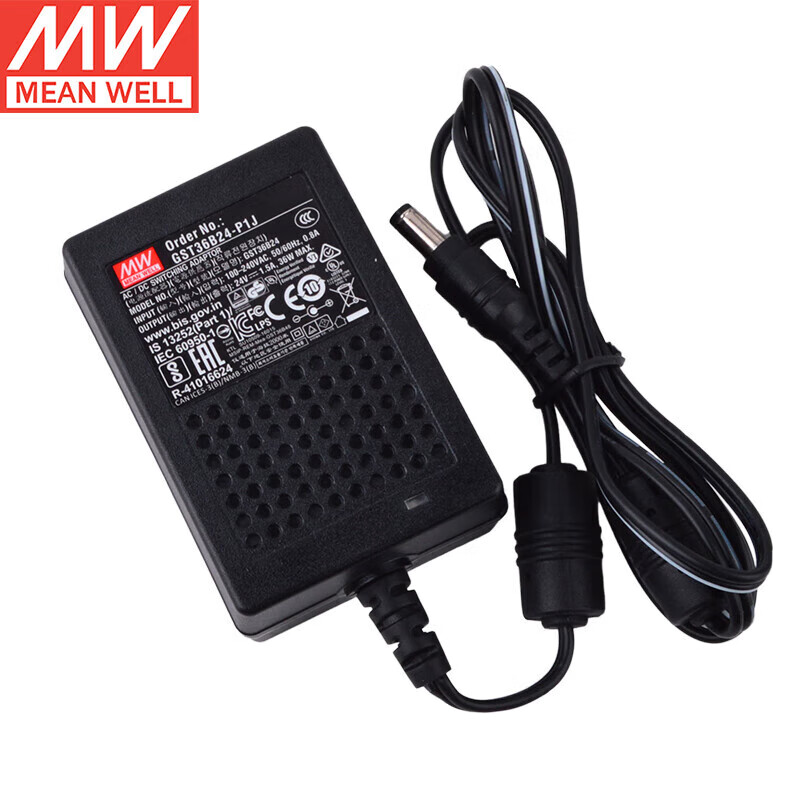

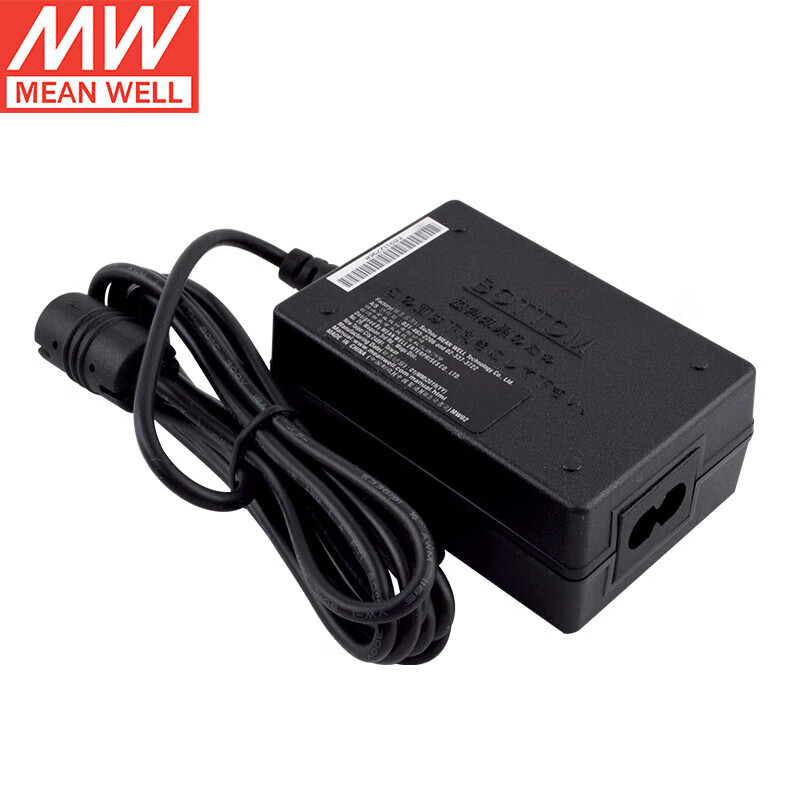

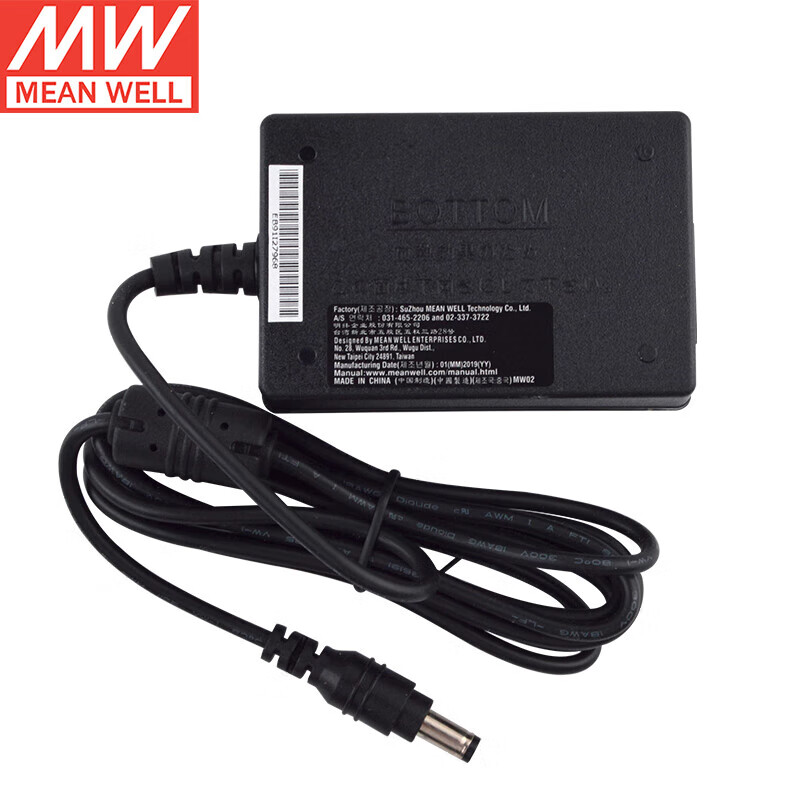

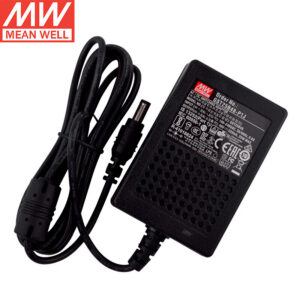

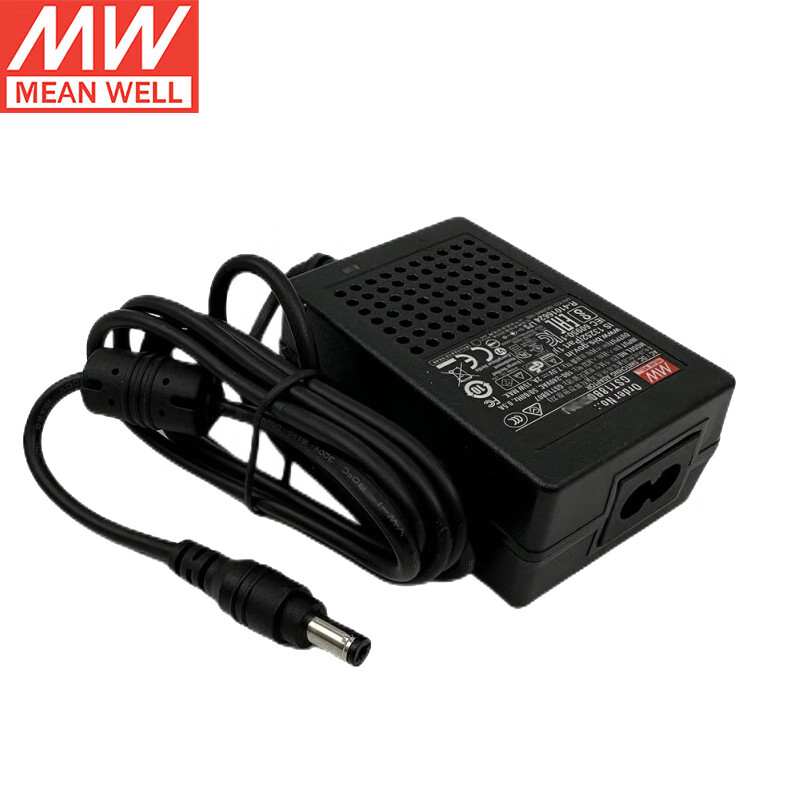

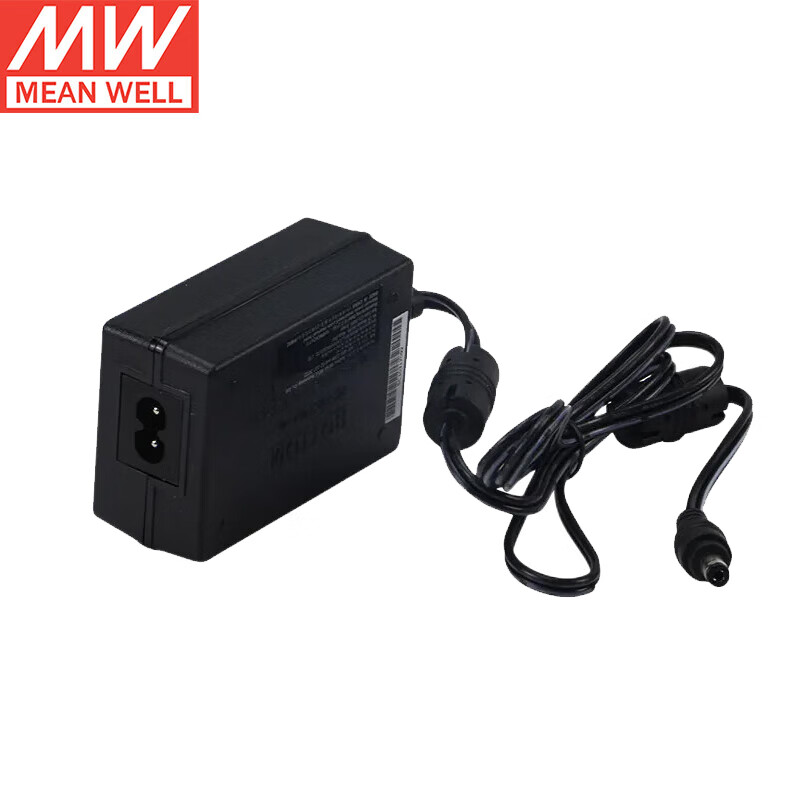

MEAN WELL GST18B / GST25B / GST36B Series | 18W-36W ITE Desktop Power Adapters, Class II, Level VI MEAN WELL GST18B / GST25B / GST36B Series 18W-36W ITE Desktop Power Adapters, Class II, Level VI
model:
MEAN WELL GST18B / GST25B / GST36B Series 18W-36W ITE Class II Desktop Power Adapters,
SKU:
776851212161-MEAN WELL GST18B / GST25B / GST36B Series
Product Type :
AC/DC
MOQ:
1 Piece
ไปทๆ ผ่ๅด๏ผ$11.80 ่ณ $12.90
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shippingย
X Days Delivery
On Time Guaranteeย
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues
Key GST “B” Series (Class II Desktop) Features Summary (18W-36W):
| Feature | GST18B Series | GST25B Series | GST36B Series |
|---|---|---|---|
| Power Rating | 18W | 25W | 21.5W-36W (depending on voltage) |
| Input | 85-264VAC, 47-63Hz | 85-264VAC, 47-63Hz | 85-264VAC, 47-63Hz |
| AC Inlet Type | IEC320-C8 (2-pole, Class II, no ground) | IEC320-C8 | IEC320-C8 |
| Output Voltages | 5V/7.5V/9V/12V/15V/18V/24V/28V/48V | 5V/7.5V/9V/12V/15V/18V/24V/28V/48V | 5V/9V/12V/24V/48V |
| 12V Model | 1.5A / 18W | 2.08A / 25W | 3A / 36W |
| 24V Model | 0.75A / 18W | 1.04A / 25W | 1.5A / 36W |
| 48V Model | 0.375A / 18W | 0.52A / 25W | 0.75A / 36W |
| Output Connector | P1J (2.1ร5.5ร11mm, center positive) | P1J (2.1ร5.5ร11mm, center positive) | P1J (2.1ร5.5ร11mm, center positive) |
| Cable Length | 1.8m (70.9″) | 1.8m (70.9″) | 1.8m |
| Safety Standards | UL60950-1, CSA22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 | UL60950-1, CSA22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1, BIS IS13252, AS/NZS 60950.1, KC K60950-1, EAC | UL60950-1, CSA22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1, AS/NZS 60950.1 |
| Efficiency Level | Level VI (up to 81.5-89%) | Level VI (up to 89%) | Level VI |
| No-Load Consumption | <0.075W | <0.075W | <0.075W |
| Operating Temperature | -30ยฐC to +70ยฐC | -30ยฐC to +70ยฐC | -30ยฐC to +70ยฐC |
| Protections | SCP/OLP/OVP | SCP/OLP/OVP | SCP/OLP/OVP |
| Overload Protection | 110-150% rated output power | 110-150% rated output power | 110-150% rated output power |
| OVP Type | Clamp by zener diode | Clamp by zener diode | Clamp by zener diode |
| Dimensions (LรWรH) | 79 ร 54 ร 33 mm | 79 ร 54 ร 33 mm | 79 ร 54 ร 33 mm |
| Warranty | 3 years | 3 years | 3 years |
Model Number Breakdown:
GST18Bย = 18W desktop series, Class II (IEC320-C8 inlet, no ground pin) GST25Bย = 25W desktop series, Class II GST36Bย = 36W desktop series, Class II
Example: GST25B24-P1J
-
GST25Bย = Series (25W, Class II desktop with IEC320-C8 inlet)
-
24ย = Output voltage (24V)
-
P1Jย = Standard DC plug type (2.1ร5.5ร11mm, center positive, tuning fork type)
Available plug type suffixes:
-
P1Jย = 2.1ร5.5ร11mm barrel plug, center positive (standard for all models)
-
Other options available by customer request
