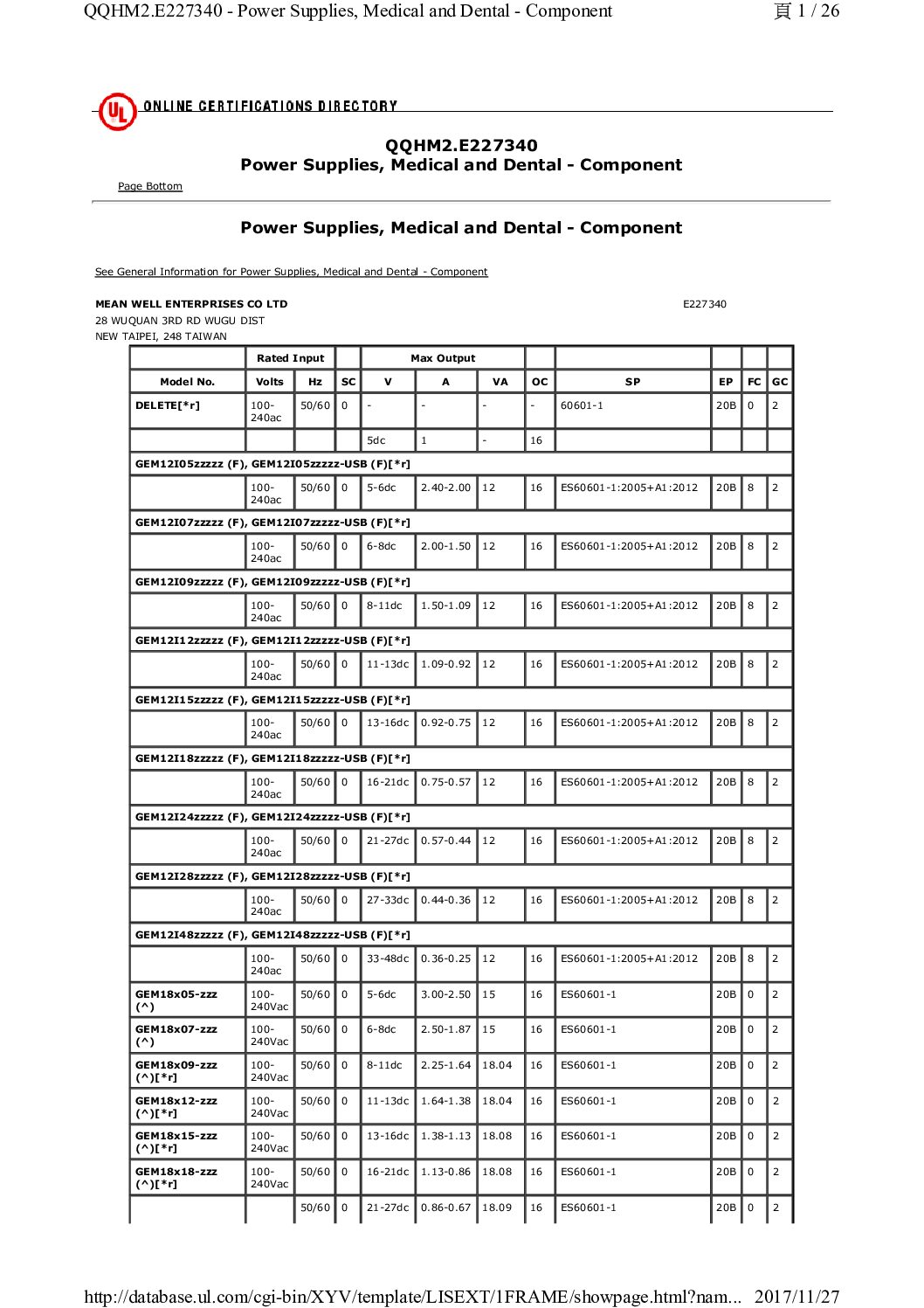

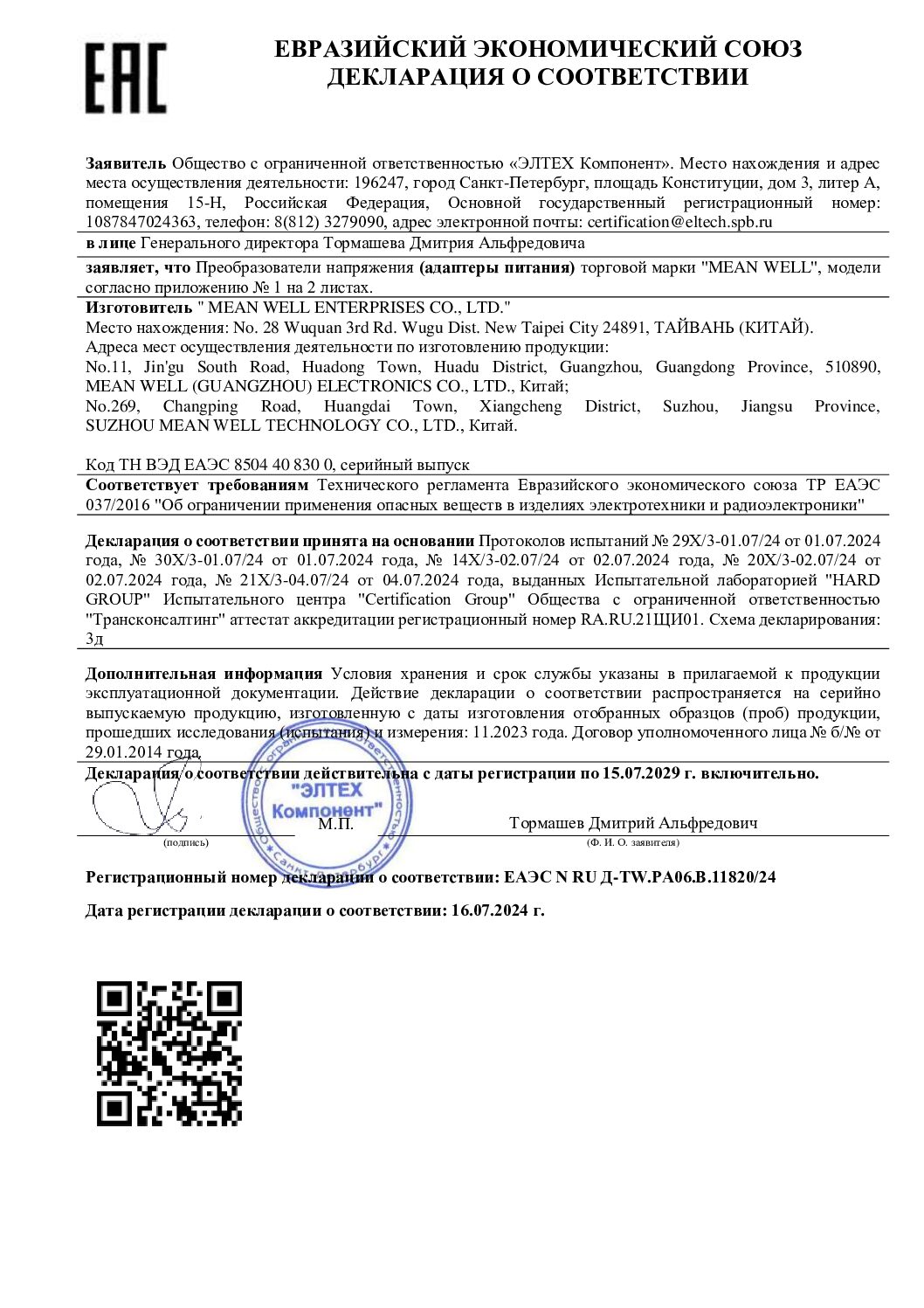

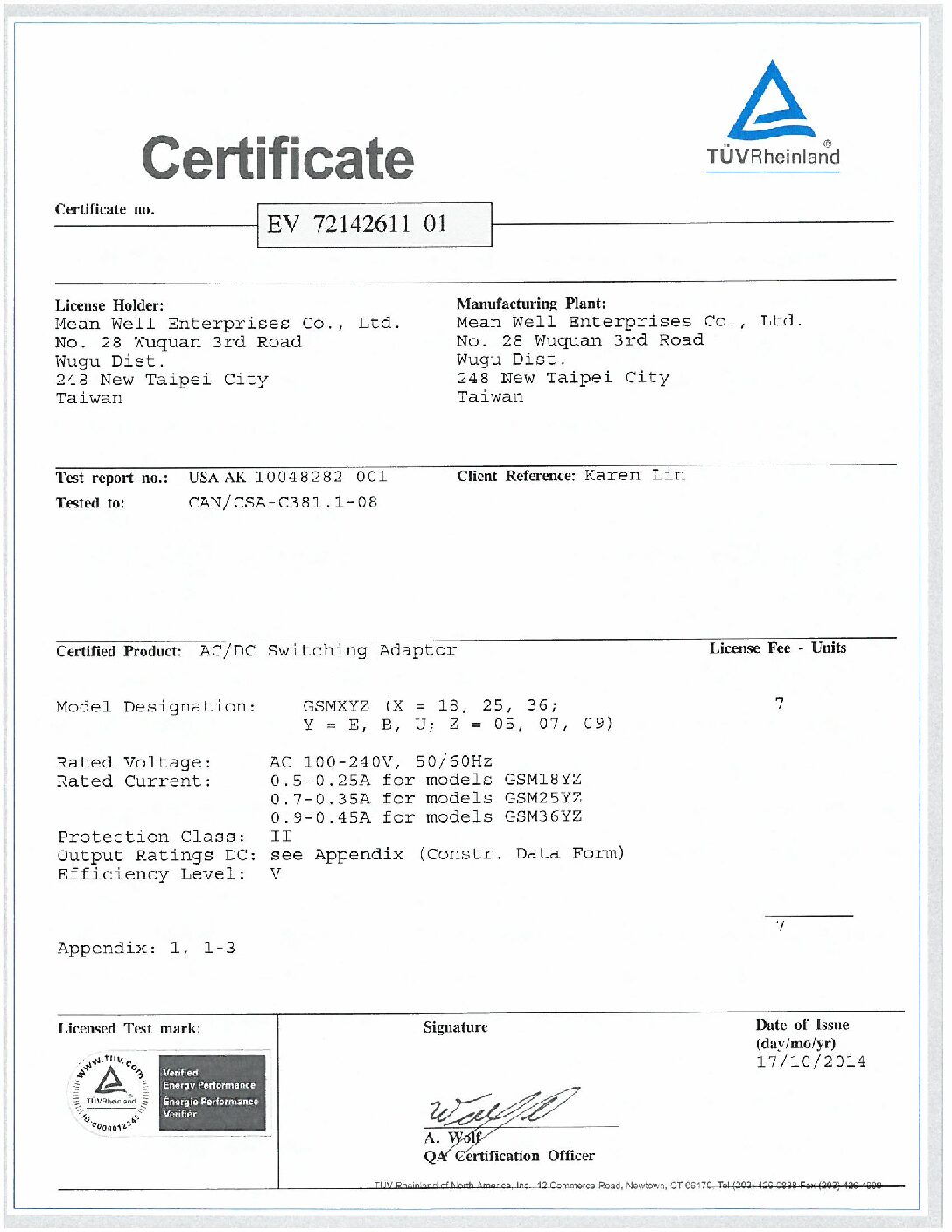

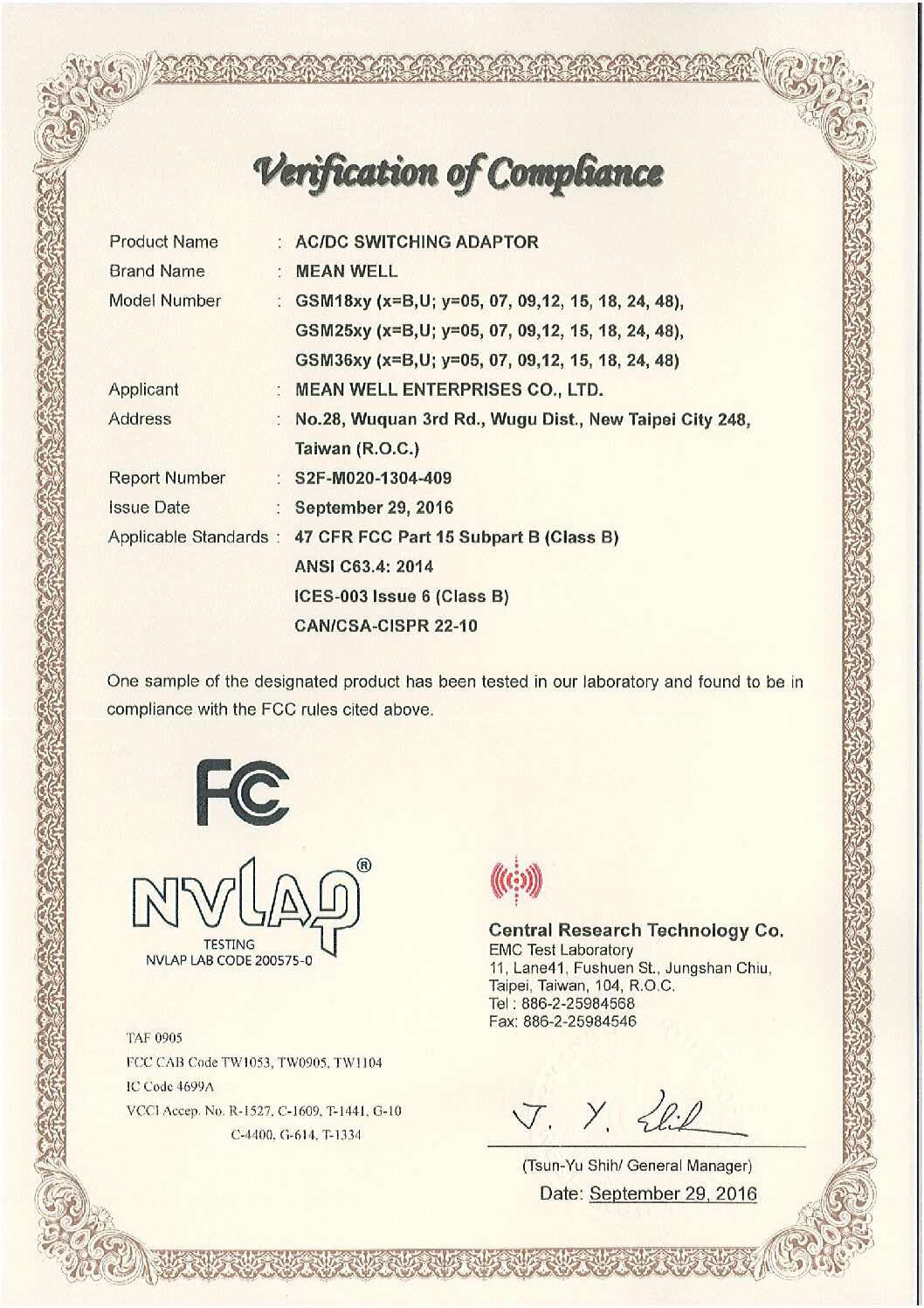

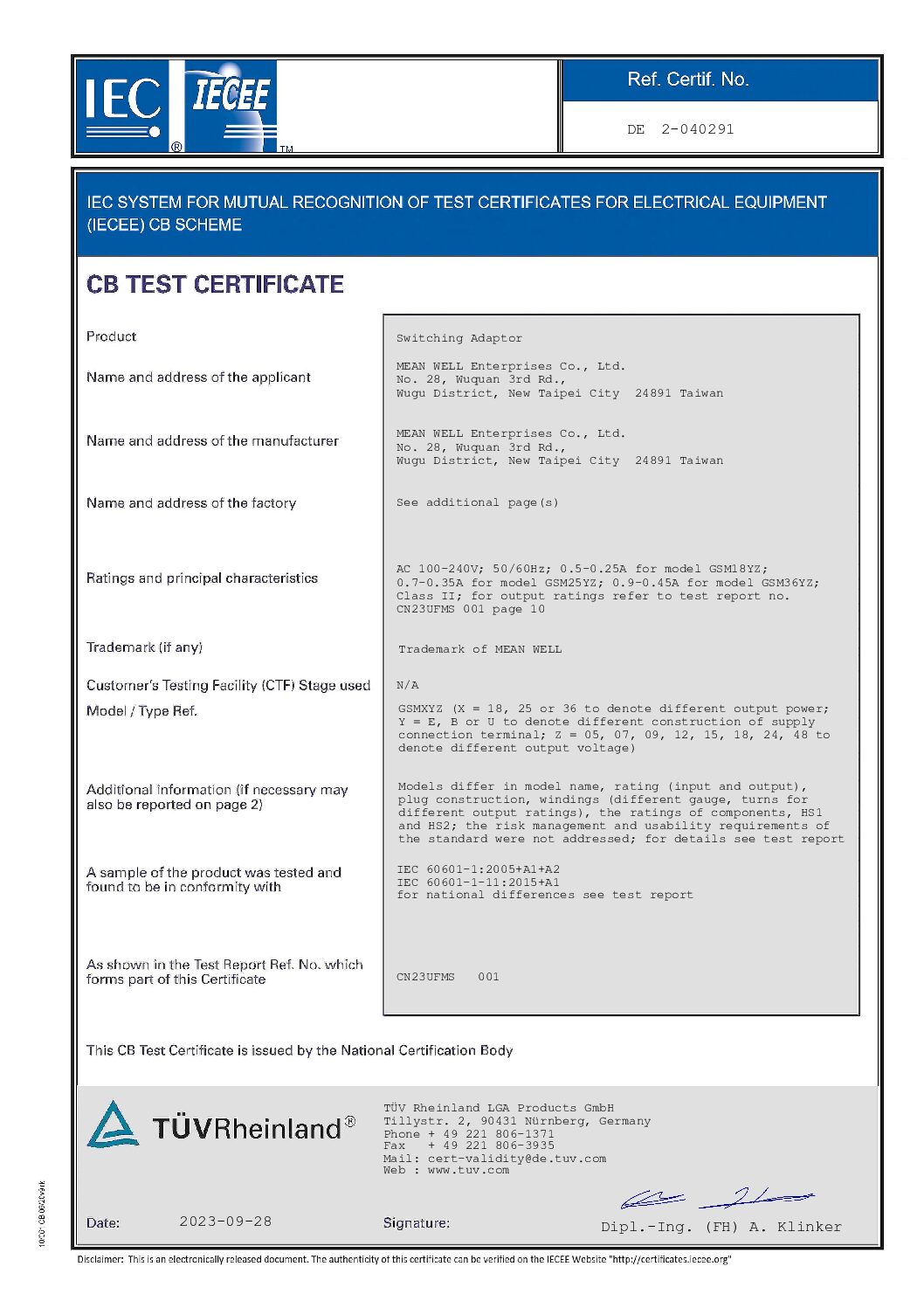

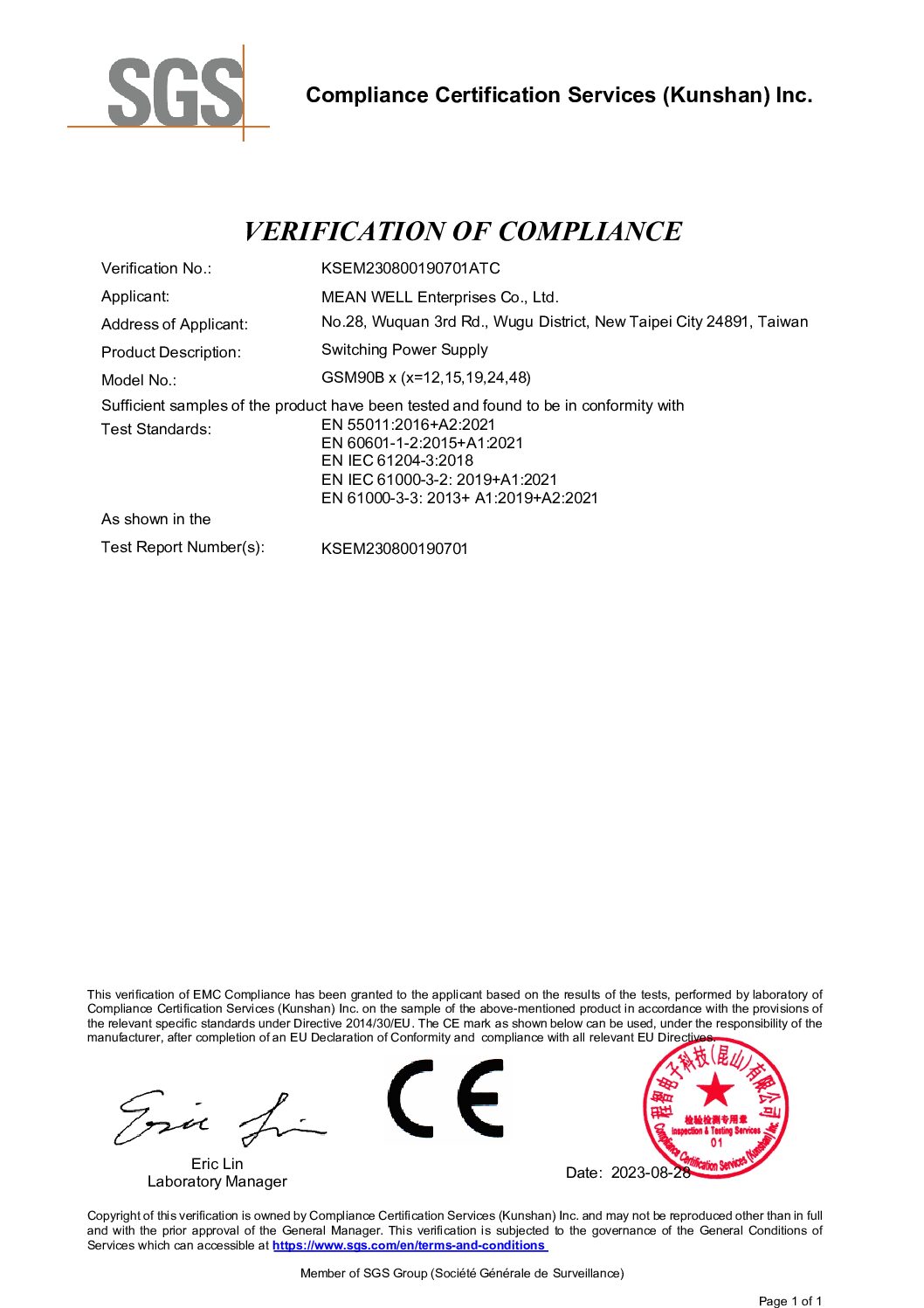

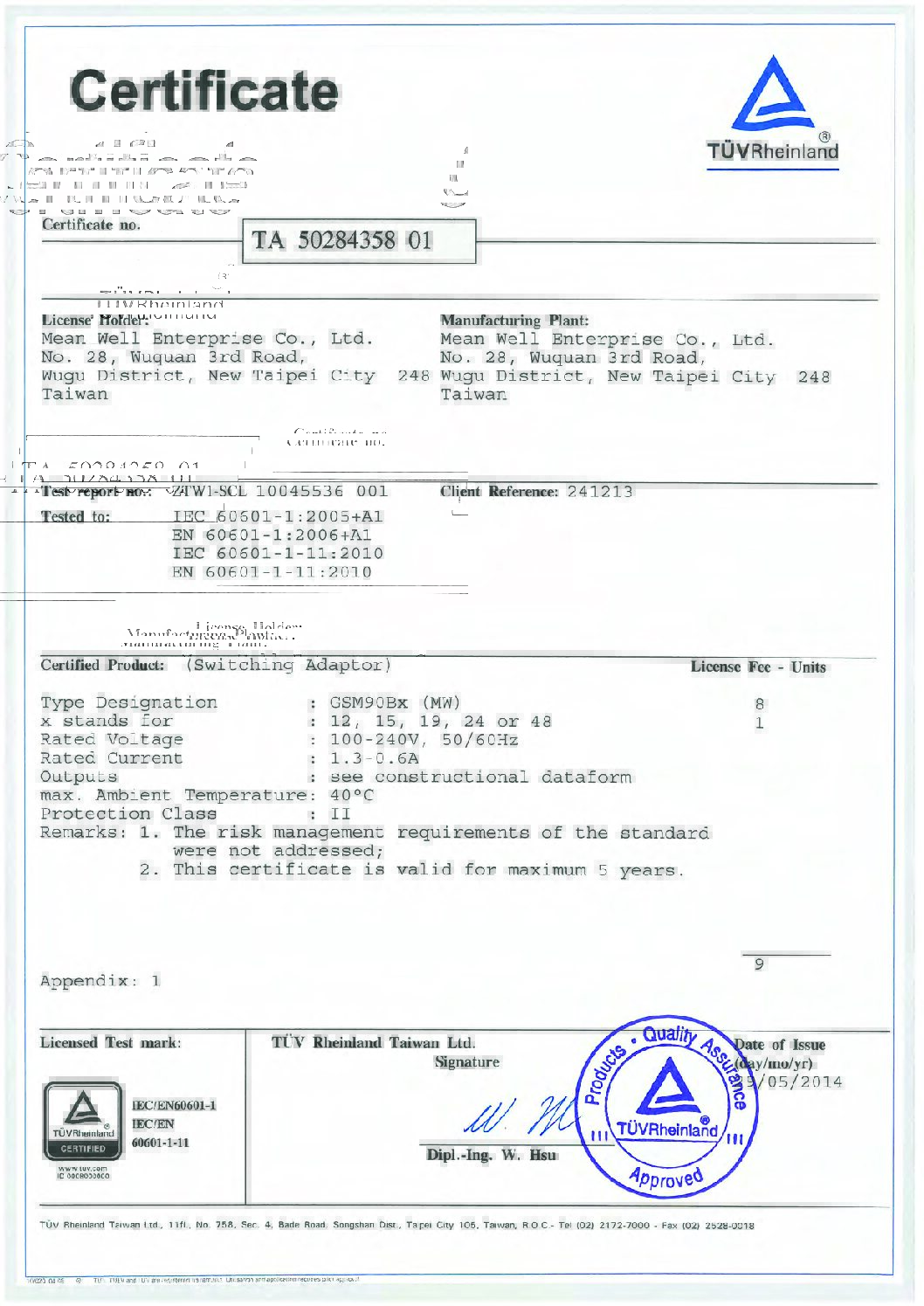

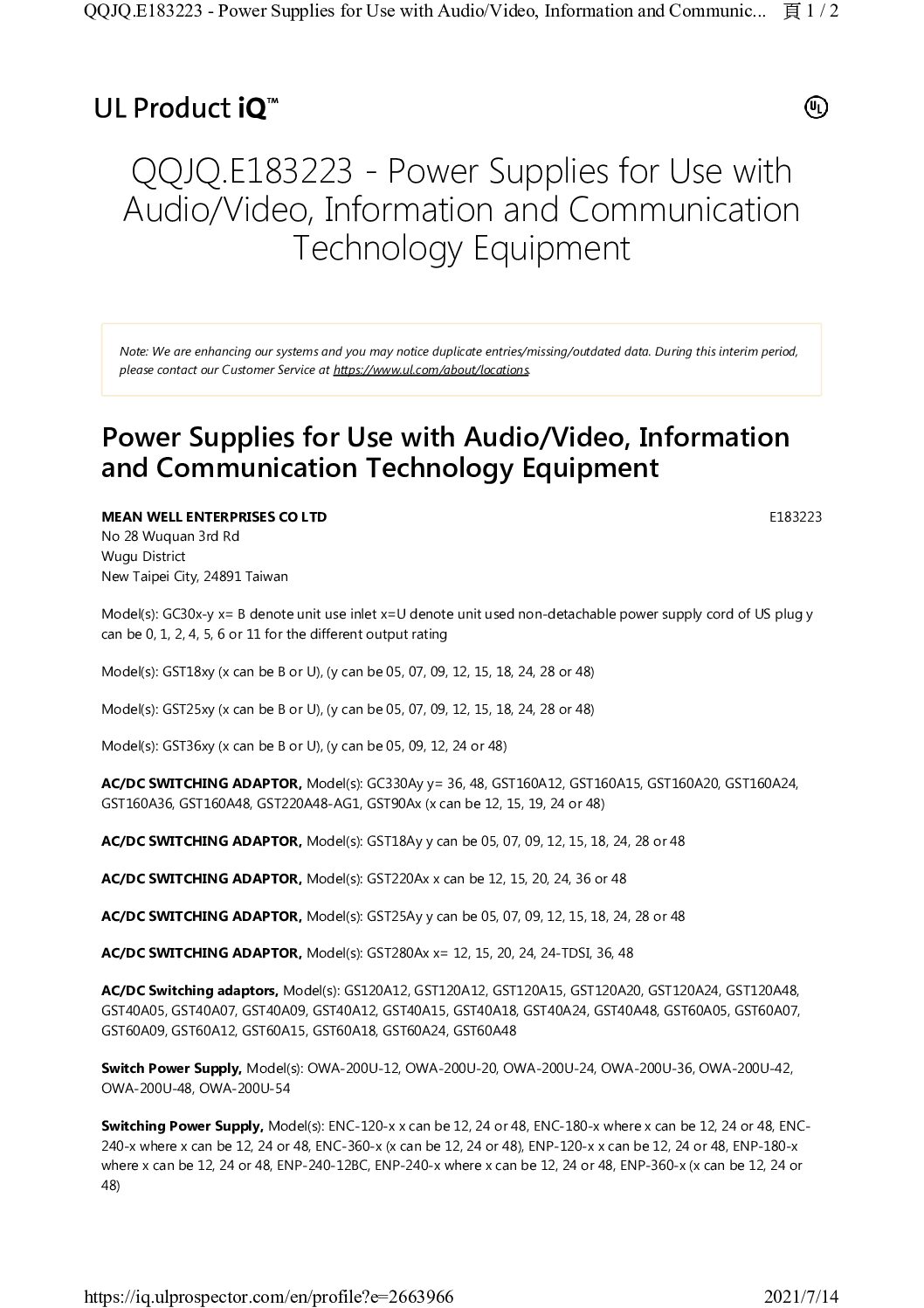

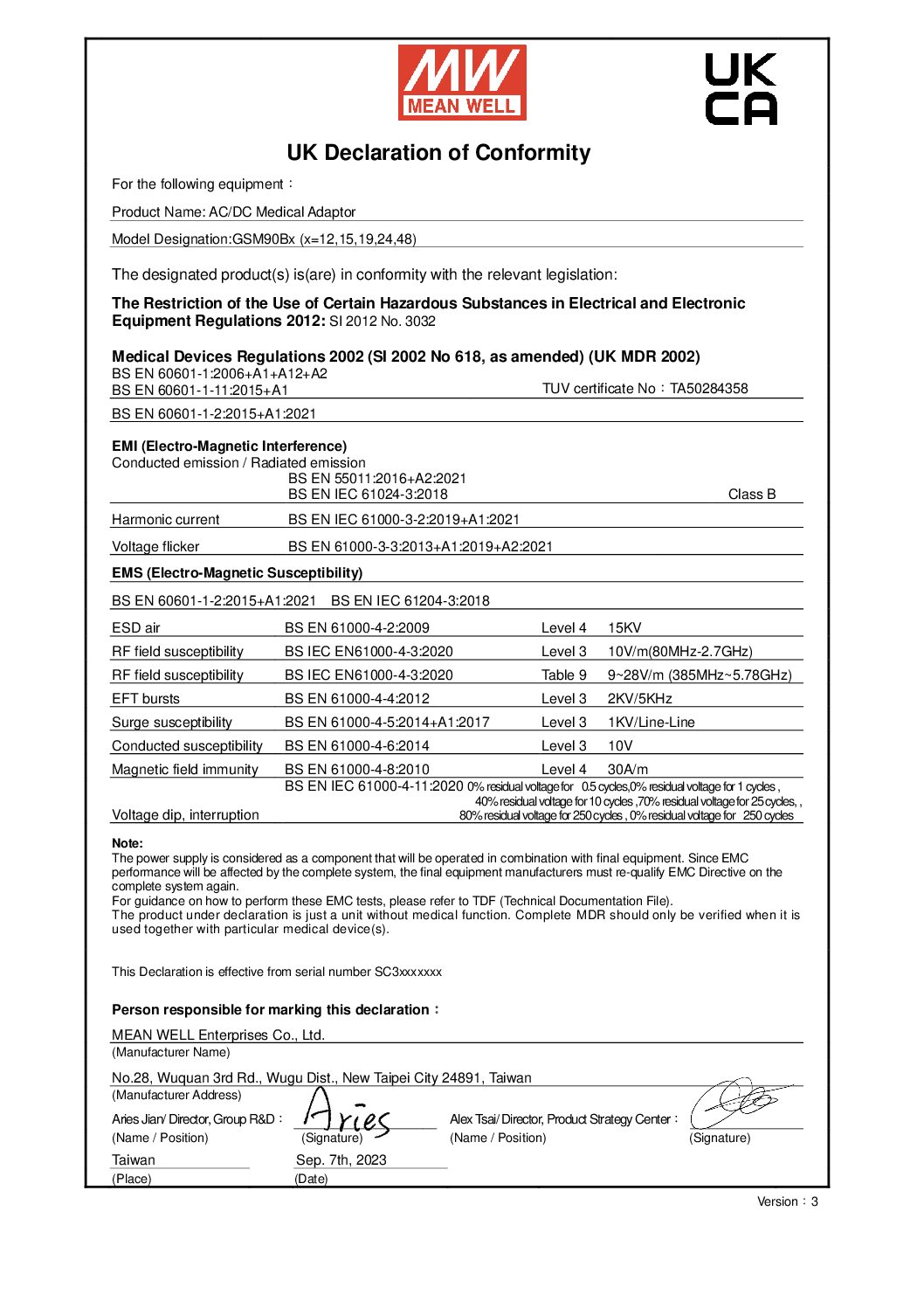

Certifications

10000 in stock ( can be backordered )

AC/DC Power Supplies, AC DC Adapter

Brand:

Certified

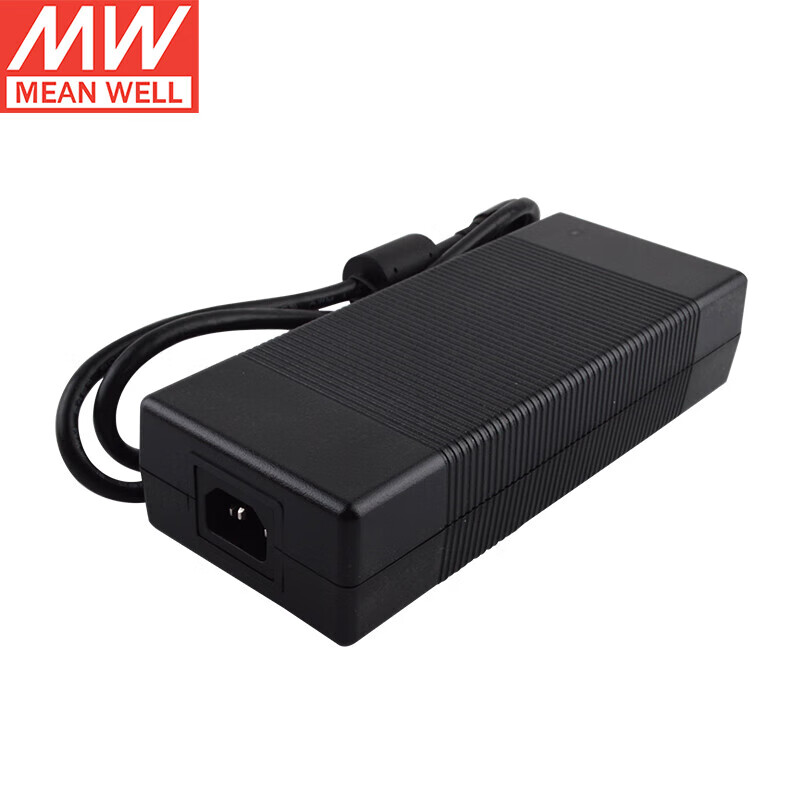

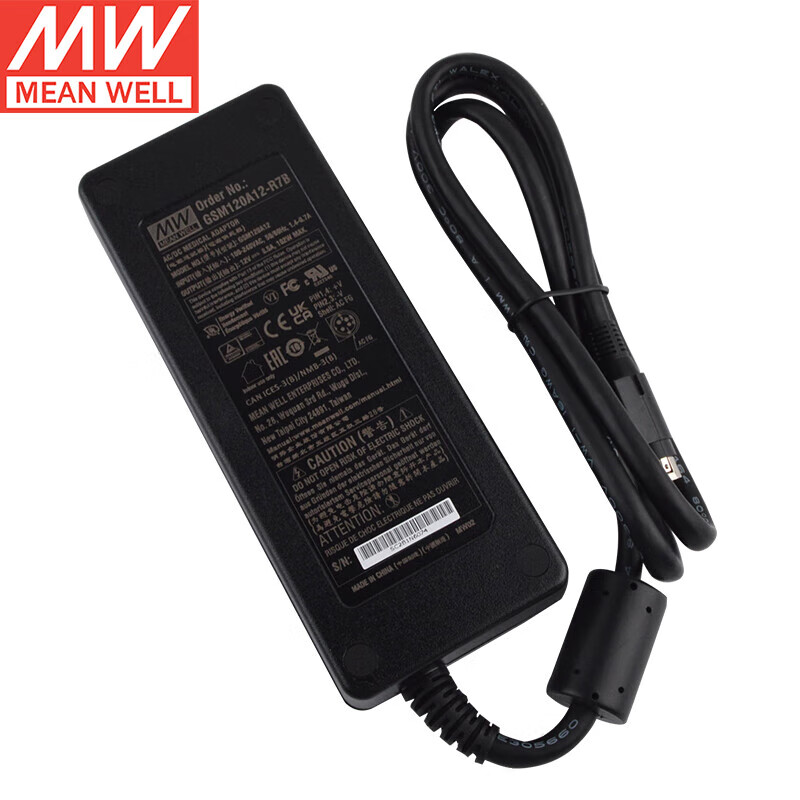

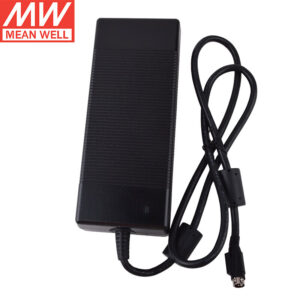

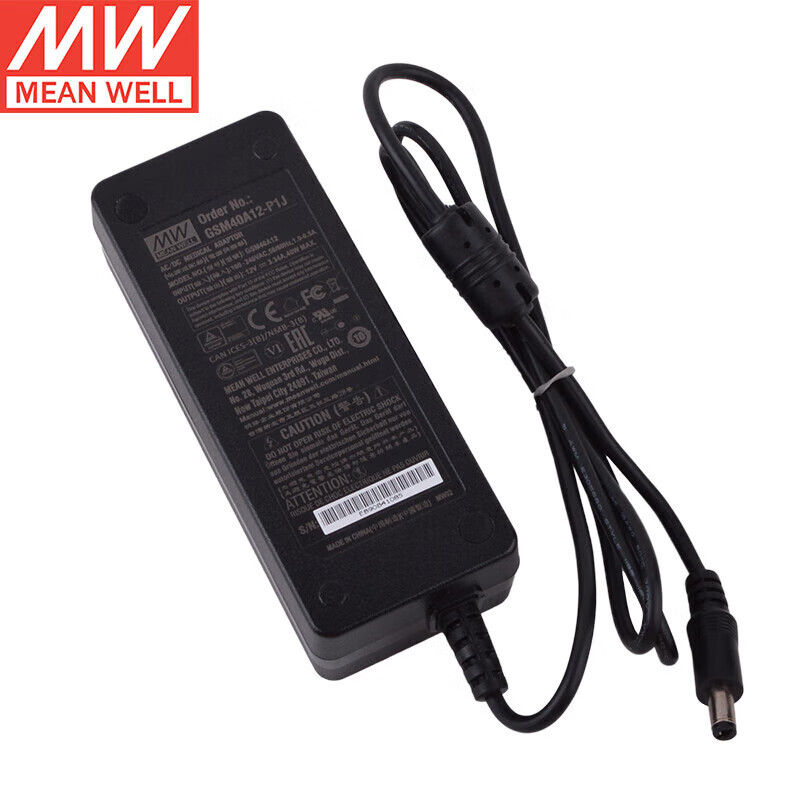

MEAN WELL GSM40A / GSM60A / GSM90A / GSM120A / GSM160A / GSM220A Series Class I 40W-220W Medical Desktop Power Adapters, Level VI

model:

MEAN WELL GSM60/90/120/160/220 Series Desktop Medical Power Supplies Class I

SKU:

776851212157-MEAN WELL GSM Series Desktop Medical Power Supplies Class I

Product Type :

AC/DC

MOQ:

1 Piece

MEAN WELL GSM desktop series—40W to 220W high-reliability medical-grade AC-DC power adapters featuring Class I construction with IEC320-C14 AC inlet and earth ground pin . Certified to ANSI/AAMI ES60601-1 (2xMOPP) with ultra-low leakage current <100μA, suitable for BF patient contact medical devices with appropriate system consideration . Energy efficiency Level VI with no-load power consumption <0.15W, complying with EISA 2007/DoE, NRCan, and EU ErP . Available in popular output voltages including 12V and 24V models with output current up to 15A (12V) and 9.2A (24V) on 220W models . Fanless design with wide operating temperature -30°C to +70°C . Fully enclosed UL94V-0 flame retardant plastic case with protections: short circuit, overload, over voltage, over temperature . 3-year warranty . Ideal for mobile clinical workstations, patient monitoring systems, portable hemodialysis machines, and home healthcare equipment .

价格范围：$18.00 至 $58.00

Option

Clear

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

Add to Wishlist

Fast shipping

Shipping fee and delivery date to be negotiated. Chat with US now for more details.

Secure payments

Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn’t ship, is missing, or arrives with product issues

Discover the MEAN WELL GSM desktop series—40W to 220W high-reliability medical-grade AC-DC power adapters featuring Class I construction with IEC320-C14 AC inlet and earth ground pin . Certified to ANSI/AAMI ES60601-1 (2xMOPP) with ultra-low leakage current <100μA, suitable for BF patient contact medical devices with appropriate system consideration . Energy efficiency Level VI with no-load power consumption <0.15W, complying with EISA 2007/DoE, NRCan, and EU ErP . Available in popular output voltages including 12V and 24V models with output current up to 15A (12V) and 9.2A (24V) on 220W models . Fanless design with wide operating temperature -30°C to +70°C . Fully enclosed UL94V-0 flame retardant plastic case with protections: short circuit, overload, over voltage, over temperature . 3-year warranty . Ideal for mobile clinical workstations, patient monitoring systems, portable hemodialysis machines, and home healthcare equipment .

Key GSM Desktop Series (Class I) Features Summary (40W-220W):

Feature	GSM40A	GSM60A	GSM90A	GSM120A	GSM160A	GSM220A
Power Rating	40W	60W	90W	120W	160W	220W
Input	80-264VAC, 47-63Hz with PFC	80-264VAC with PFC	80-264VAC with PFC	80-264VAC with PFC	80-264VAC with PFC	80-264VAC with PFC
AC Inlet Type	IEC320-C14 (Class I, with earth pin)	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14	IEC320-C14 -1 -10
12V Models	3.34A	5A	7.5A	10A	11.5A	15A -2 -10
24V Models	1.67A	2.5A	3.75A	5A	6.67A	9.2A -2 -10
Medical Safety	2×MOPP, ANSI/AAMI ES60601-1	2×MOPP	2×MOPP	2×MOPP	2×MOPP	2×MOPP -1 -10
Leakage Current	<100μA	<100μA	<100μA	<100μA	<90μA	<100μA -10
Efficiency Level	Level VI	Level VI	Level VI	Level VI	Level VI (up to 94%)	Level VI (up to 94.5%) -10
No-Load Consumption	<0.15W	<0.15W	<0.15W	<0.15W	<0.15W	<0.15W -10
Operating Temperature	-30°C to +60°C	-30°C to +60°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C	-30°C to +70°C -9 -10
Standard DC Connector	P1J (2.1×5.5mm)	P1J	P1J or R7B	R7B (4-pin DIN lock)	R7B	R7B -10
Dimensions (L×W×H)	127×76×33mm	127×76×33mm	154.5×66×33mm	175×72×35mm	175×72×35mm	210×85×46mm -10
Warranty	3 years	3 years	3 years	3 years	3 years	3 years

Model Number Breakdown:

GSM40A = 40W desktop series, Class I (IEC320-C14 inlet) GSM60A = 60W desktop series, Class I GSM90A = 90W desktop series, Class I GSM120A = 120W desktop series, Class I GSM160A = 160W desktop series, Class I GSM220A = 220W desktop series, Class I

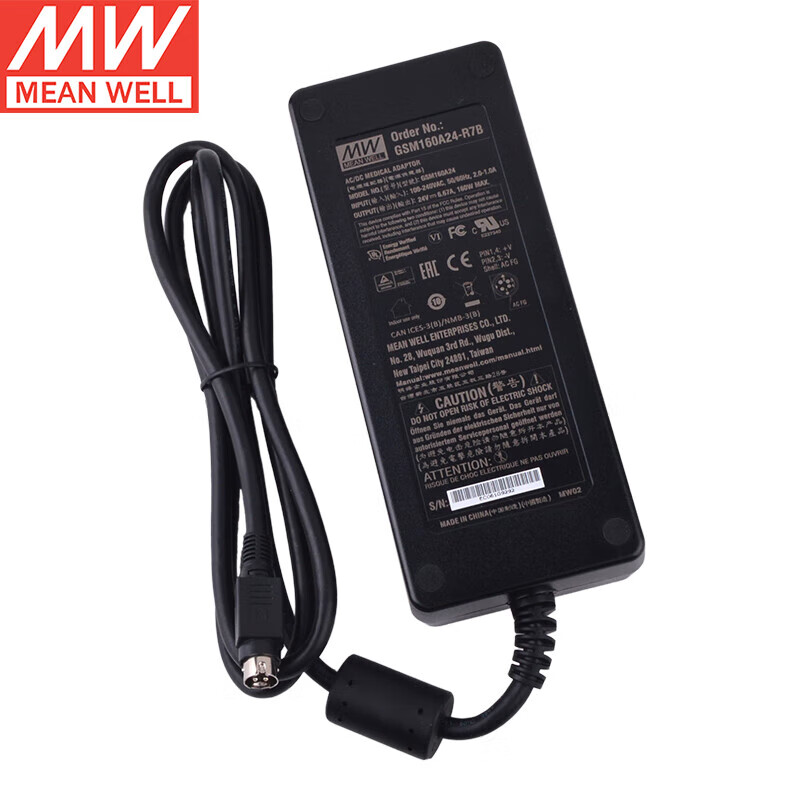

Example: GSM160A24-R7B
