AC/DC Power Supplies, AC DC Adapter

Brand:

Certified

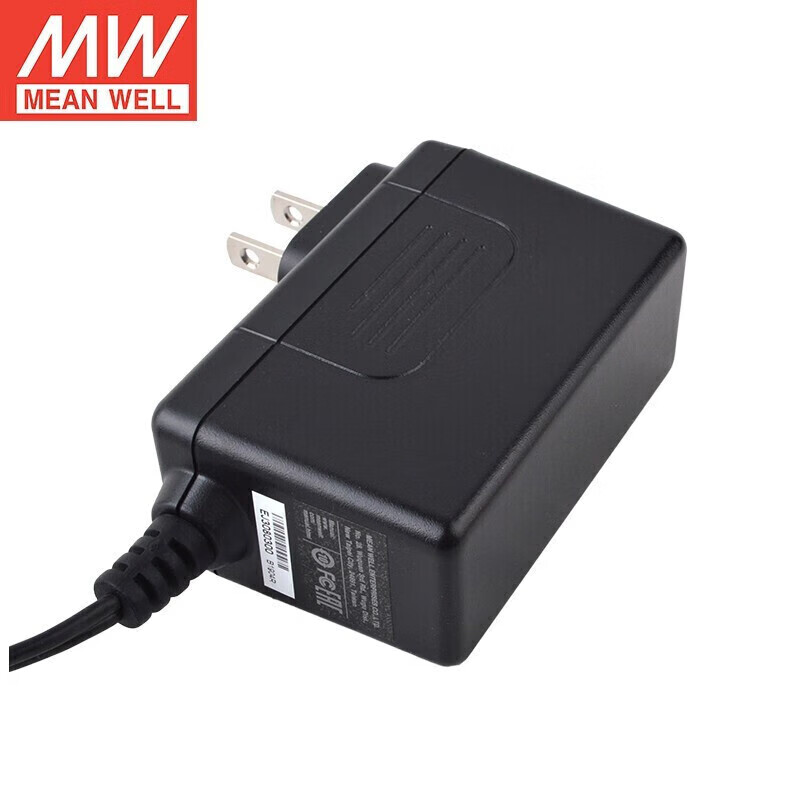

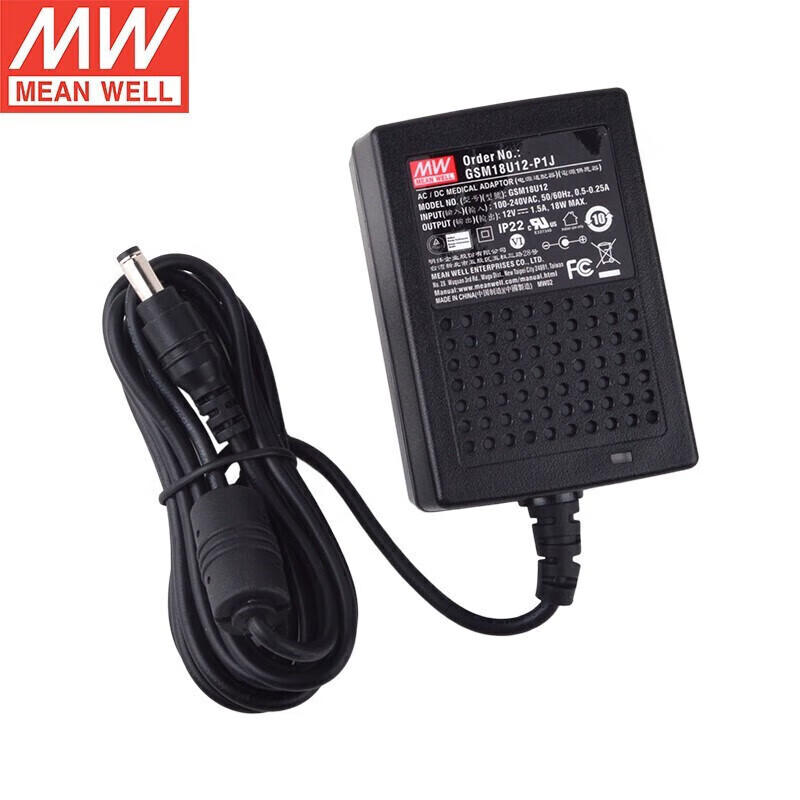

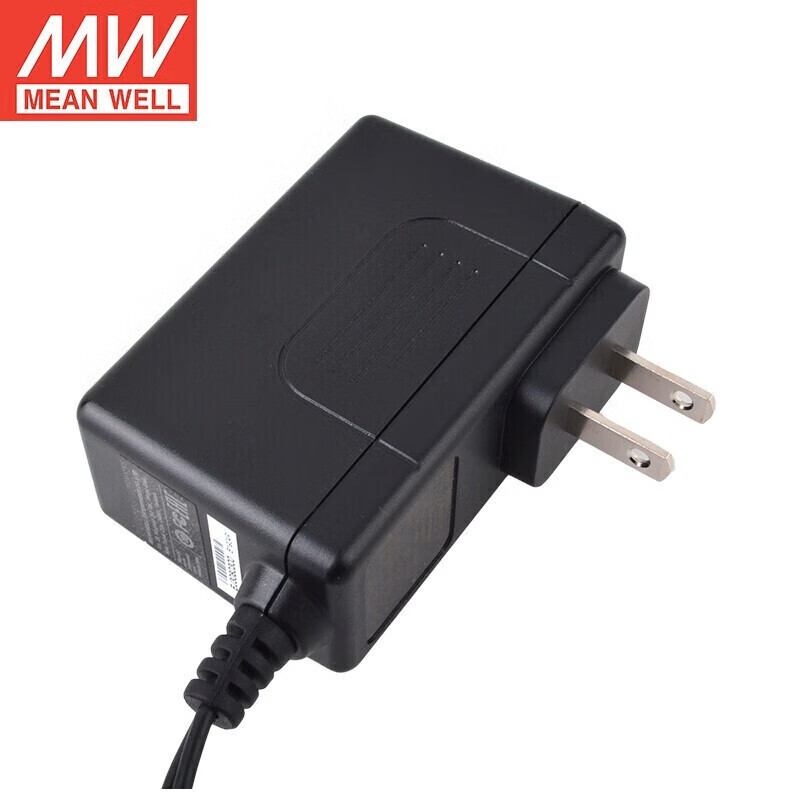

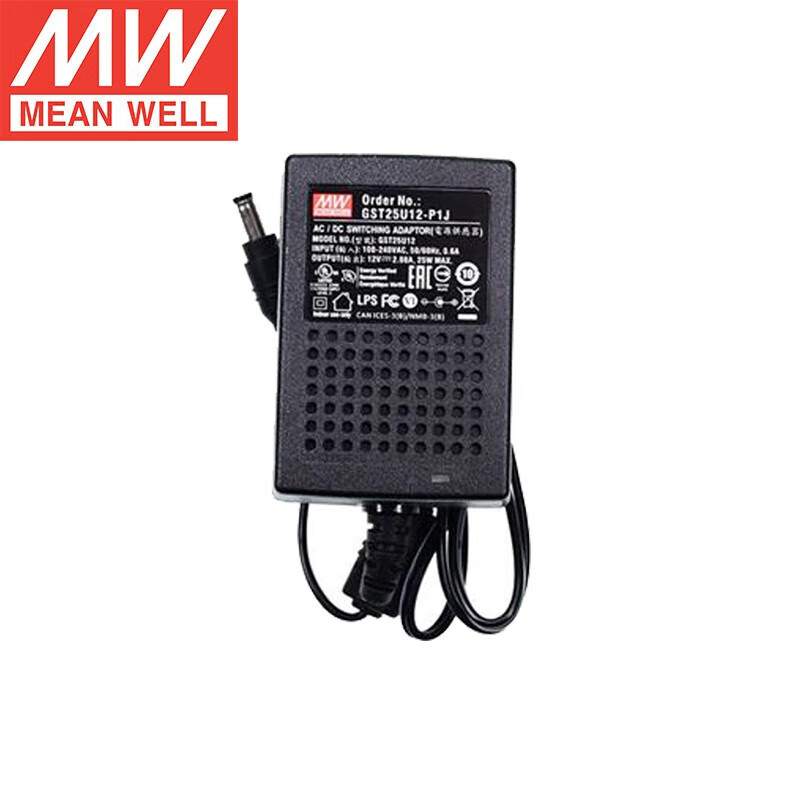

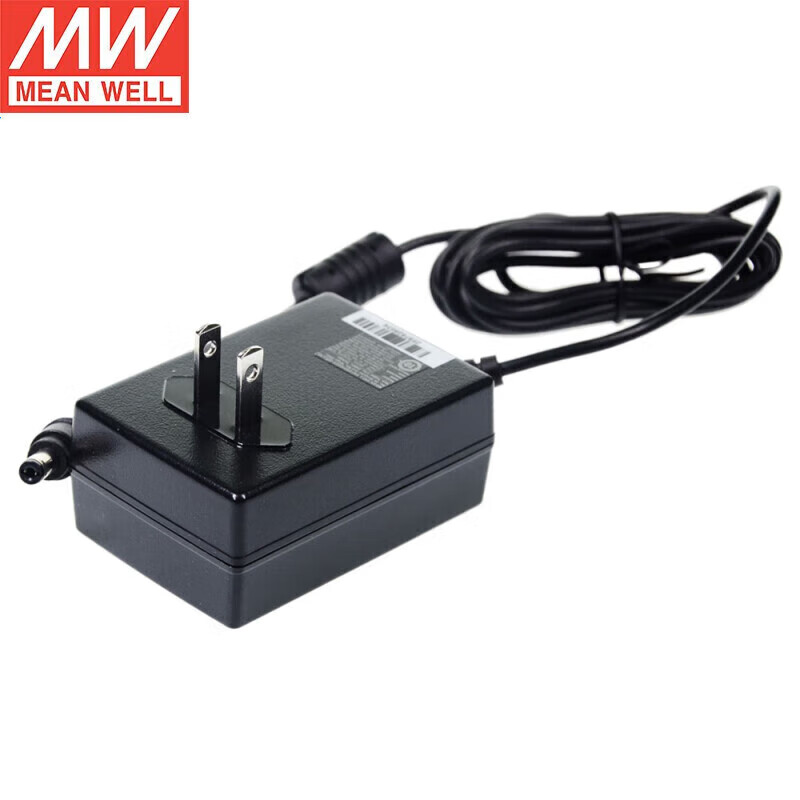

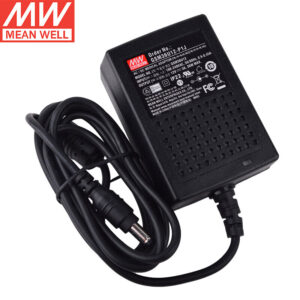

MEAN WELL GSM18U / GSM25U / GSM36U Series 18W-60W 12V 24V Medical Wall-Mounted Power Adapters with USA 2-Pin Plug, Level VI

model:

MEAN WELL GSM18U / GSM25U / GSM36U Series 18W-60W 12V 24V

SKU:

776851212156-MEAN WELL GSM18U / GSM25U / GSM36U Series

Product Type :

AC/DC

MOQ:

1 Piece

MEAN WELL GSM18U (18W), GSM25U (25W), and GSM36U (36W) series—high-reliability medical-grade wall-mounted power adapters featuring a USA 2-pin (NEMA 1-15P) AC plug (Class II, no FG) . Designed for medical applications, these adapters meet international medical safety standards (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11, with ultra-low leakage current (<50μA) suitable for BF application with appropriate system consideration . Energy efficiency Level VI (except 5-9V models for Level V) with no-load power consumption <0.1W, complying with EISA 2007/DoE, NRCan, and EU ErP . Universal AC input 80-264VAC, output voltages from 5V to 48V with various DC plug options (standard P1J: 2.1×5.5×11mm, center positive) . Protections include short circuit, overload, and over voltage. Wide operating temperature -25°C to +60°C with 3-year warranty . Ideal for blood glucose meters, blood pressure monitors, nebulizers, inhalers, and other portable medical devices .

价格范围：$14.00 至 $27.00

Option

Clear

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

Add to Wishlist

Fast shipping

Shipping fee and delivery date to be negotiated. Chat with US now for more details.

Secure payments

Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn’t ship, is missing, or arrives with product issues

Power your portable medical devices with confidence using the MEAN WELL GSM18U, GSM25U, and GSM36U series—medical-grade wall-mounted power adapters engineered for patient safety and reliability. Featuring a USA 2-pin (NEMA 1-15P) fixed blade plug, these Class II power units provide double insulation without earth pin . Certified to ANSI/AAMI ES60601-1 and ES60601-1-11 (2×MOPP) with ultra-low touch current <50μA at 264VAC, making them suitable for medical electrical equipment in direct contact with patients . Energy efficiency Level VI ensures low power consumption (<0.1W no-load) and compliance with global energy regulations . Available in 18W, 25W, and 36W models with output voltages: 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, and 48V . Fully enclosed 94V-0 flame retardant plastic case with double insulation for electrical shock prevention . Applications include blood glucose meters, blood pressure meters, nebulizers, inhalers, and sleep apnea devices .

Key GSM18U/25U/36U Series Features Summary:

Feature	GSM18U Series	GSM25U Series	GSM36U Series
Power Rating	18W	25W	36W
Input	80-264VAC, 47-63Hz	80-264VAC, 47-63Hz	80-264VAC, 47-63Hz
Input Plug	USA 2-pin (NEMA 1-15P), Class II (no FG)	USA 2-pin (NEMA 1-15P), Class II (no FG)	USA 2-pin (NEMA 1-15P), Class II (no FG)
Output Voltages	5V/7.5V/9V/12V/15V/18V/24V/48V	5V/7.5V/9V/12V/15V/18V/24V/48V	5V/7.5V/9V/12V/15V/18V/24V/48V
Output Connector	P1J (2.1×5.5×11mm, center +) standard	P1J (2.1×5.5×11mm, center +) standard	P1J (2.1×5.5×11mm, center +) standard
Cable Length	1.8m (70.9″)	1.8m (70.9″)	1.8m (70.9″)
Medical Safety	2×MOPP, ANSI/AAMI ES60601-1/-1-11	2×MOPP, ANSI/AAMI ES60601-1/-1-11	2×MOPP, ANSI/AAMI ES60601-1/-1-11
Leakage Current	<50μA at 264VAC	<50μA at 264VAC	<50μA at 264VAC
Efficiency Level	Level VI (except 5-9V: Level V)	Level VI (except 5-9V: Level V)	Level VI (except 5-9V: Level V)
No-Load Consumption	<0.1W	<0.1W	<0.1W
Operating Temperature	-25°C to +60°C	-25°C to +60°C	-25°C to +60°C
Protections	SCP/OLP/OVP	SCP/OLP/OVP	SCP/OLP/OVP
Dimensions (L×W×H)	79 × 54 × 33 mm	79 × 54 × 33 mm	79 × 54 × 33 mm
Safety Approvals	UL, CUL, TUV, CB, FCC, EAC	UL, CUL, TUV, CB, FCC, EAC	UL, CUL, TUV, CB, FCC, EAC
Warranty	3 years	3 years	3 years
