10000 in stock ( can be backordered )
Brand:
Certified

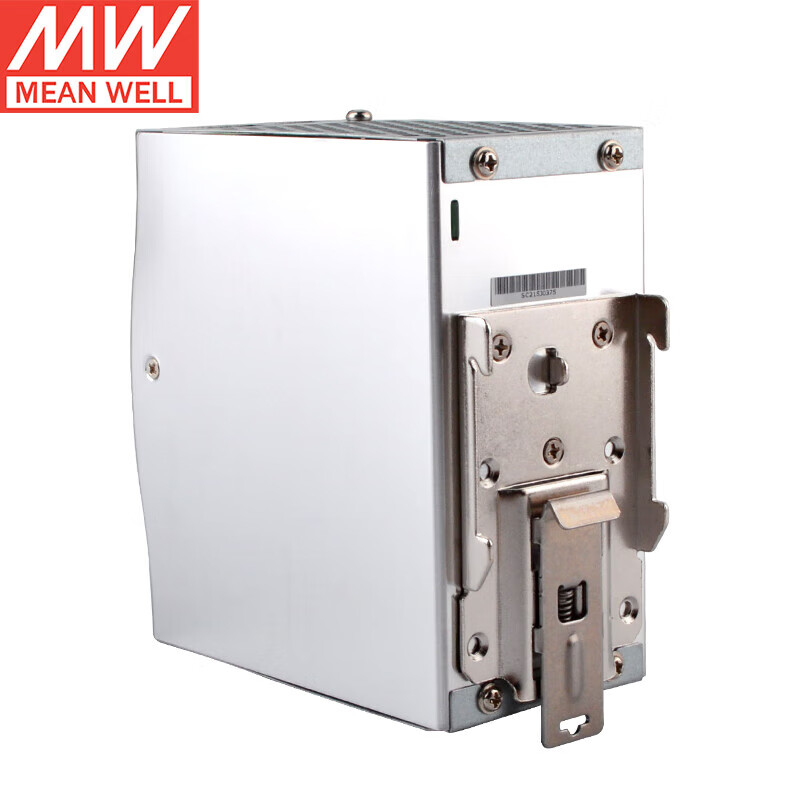

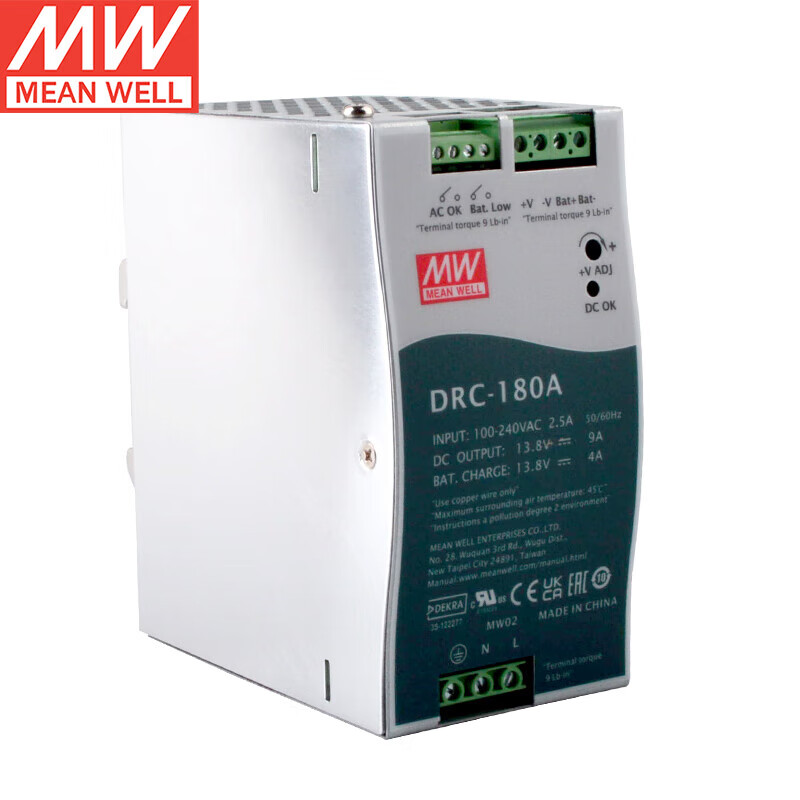

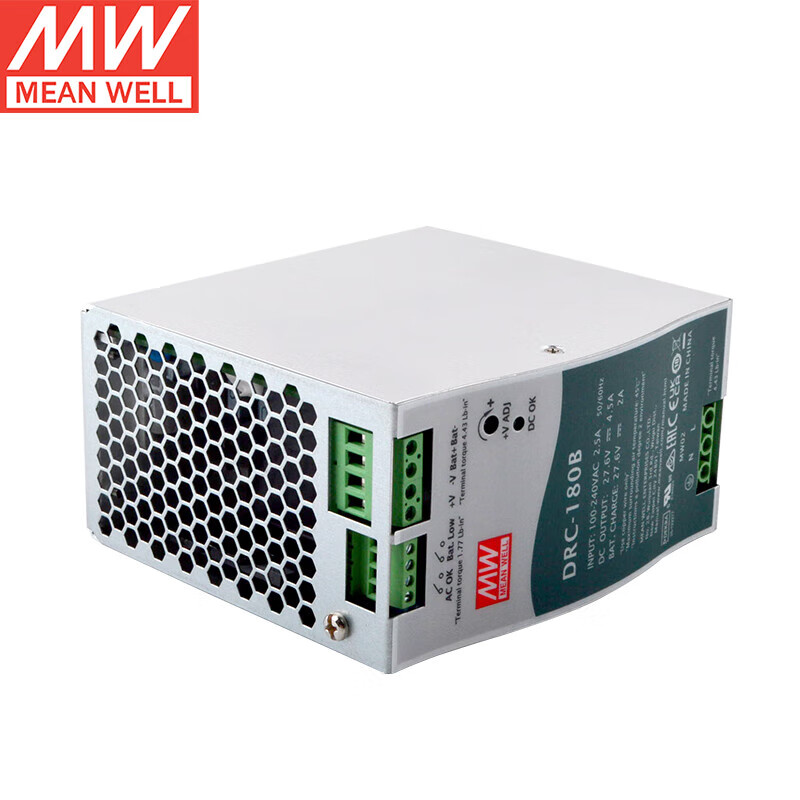

MEAN WELL DRC Series 40W-180W AC/DC DIN Rail Security Power Supplies with Integrated Battery Charger & UPS Function
model:
MEANWELL DRC Series AC/DC Security & Specific
SKU:
776851212162-MEANWELL DRC Series AC/DC Security & Specific-
Product Type :
AC/DC
MOQ:
1 Piece
价格范围：$24.40 至 $62.90
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
After Sales Assurance
Refund for No Delivery
Secure Payment
Logistics Support
Free Shipping
X Days Delivery
On Time Guarantee
Free Return
Fast shipping
Shipping fee and delivery date to be negotiated. Chat with US now for more details.
Secure payments
Every payment you make on c2psu.com is secured with strict SSL encryption and PCI DSS data protection protocols
Easy Return
Make free local returns for defects on qualifying purchases
Money-back protection
Claim a refund if your order doesn’t ship, is missing, or arrives with product issues
MEAN WELL DRC series technical specifications. High-reliability AC/DC DIN rail power supplies with integrated battery charger and UPS function. Universal AC input 90-264VAC (127-370VDC). Available in 40W, 60W, 100W, and 180W models with output voltages of 13.8V and 27.6V .
Output specifications:
| Model | Output Voltage | Rated Current | Rated Power | Efficiency |
|---|---|---|---|---|
| DRC-40A | 13.8V | 2.9A | 40W | 86% |
| DRC-40B | 27.6V | 1.45A | 40W | 86% |
| DRC-60A | 13.8V | 4.3A | 59.3W | 88% |
| DRC-60B | 27.6V | 2.15A | 59.3W | 88% |
| DRC-100A | 13.8V | 7A | 96.6W | — |
| DRC-180A | 27.6V | 4.5A | 179.4W | — |
Key DRC Series Features Summary (40W-180W):
| Feature | DRC-40 Series | DRC-60 Series | DRC-100 Series | DRC-180 Series |
|---|---|---|---|---|
| Power Rating | 40W | 60W | 96.6W-100W | 180W |
| Input Voltage | 90-264VAC / 127-370VDC | 90-264VAC / 127-370VDC | 90-264VAC / 127-370VDC | 90-264VAC with PFC |
| Output Voltages | 13.8V / 27.6V | 13.8V / 27.6V | 13.8V (dual channel) | 27.6V |
| 12V Battery Model | DRC-40A: 2.9A | DRC-60A: 4.3A | DRC-100A: 7A | — |
| 24V Battery Model | DRC-40B: 1.45A | DRC-60B: 2.15A | — | DRC-180A: 4.5A |
| Battery Charger | Integrated UPS function | Integrated UPS function | Integrated UPS function | Integrated UPS function |
| Alarm Signals | AC OK & Battery Low (TTL open collector) | AC OK & Battery Low (relay contact) | AC OK & Battery Low | AC OK & Battery Low (relay) |
| Protections | SCP/OLP/OVP/Battery Low/Battery Reverse Polarity | SCP/OLP/OVP/Battery Low/Battery Reverse Polarity | SCP/OLP/OVP/Battery Low | SCP/OLP/OVP/OTP/Battery Low |
| Operating Temp | -30°C to +70°C | -30°C to +70°C | — | -20°C to +70°C |
| Mounting | DIN Rail TS-35/7.5 or 15 | DIN Rail TS-35/7.5 or 15 | DIN Rail | DIN Rail TS-35/7.5 or 15 |
| Dimensions (W×H×D) | 40 × 90 × 100 mm | 40 × 90 × 100 mm | — | 55.5 × 125.2 × 129.5 mm |
| Warranty | 3 years | 3 years | — | 3 years |
Model Number Breakdown:

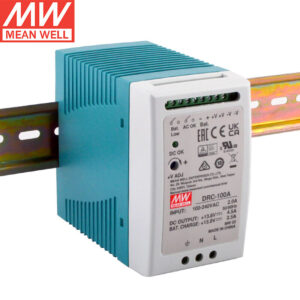

DRC-40A = 40W series, 13.8V output (for 12V battery systems) DRC-40B = 40W series, 27.6V output (for 24V battery systems) DRC-60A = 60W series, 13.8V output (for 12V battery systems) DRC-60B = 60W series, 27.6V output (for 24V battery systems) DRC-100A = 100W series, 13.8V output (dual channel, 4.5A + 2.5A) DRC-180A = 180W series, 27.6V output (for 24V battery systems)

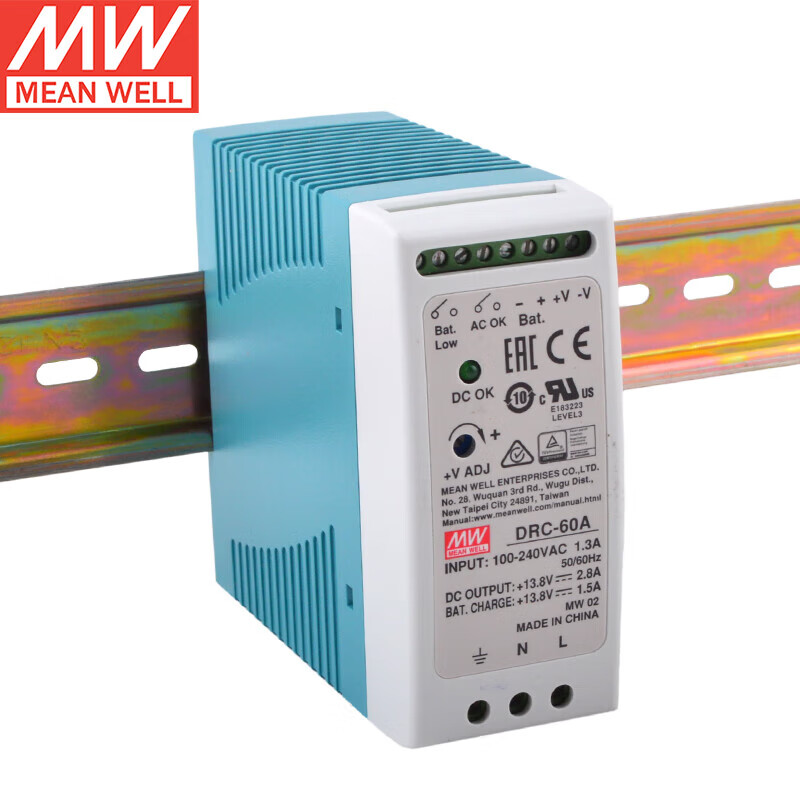

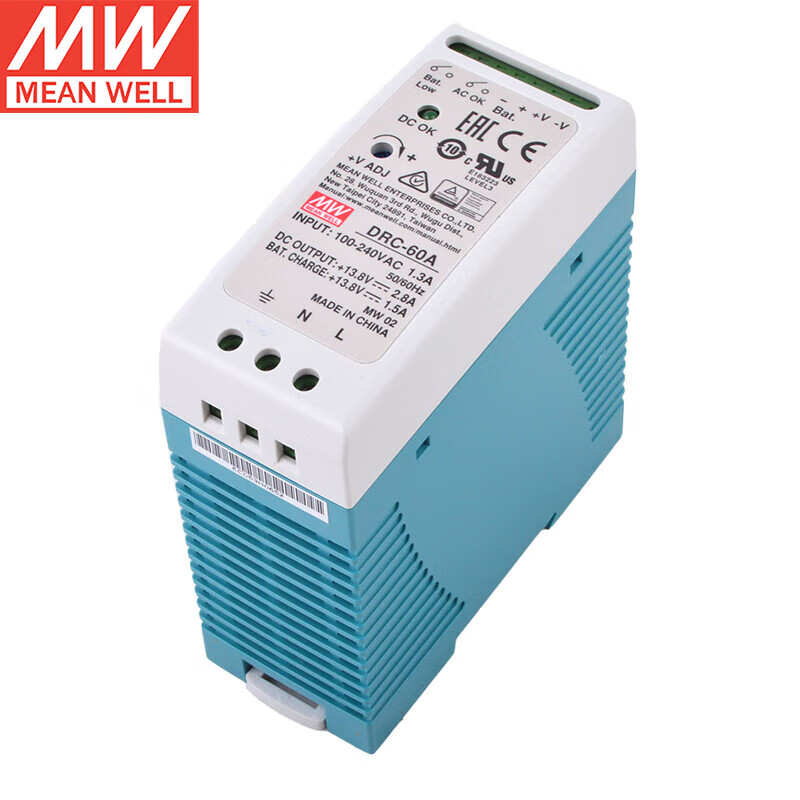

Example: DRC-60A
-
DRC = Series name (DIN Rail Charger/Security series)
-
60 = Wattage (60W)
-
A = Output voltage code (13.8V for 12V battery systems)
