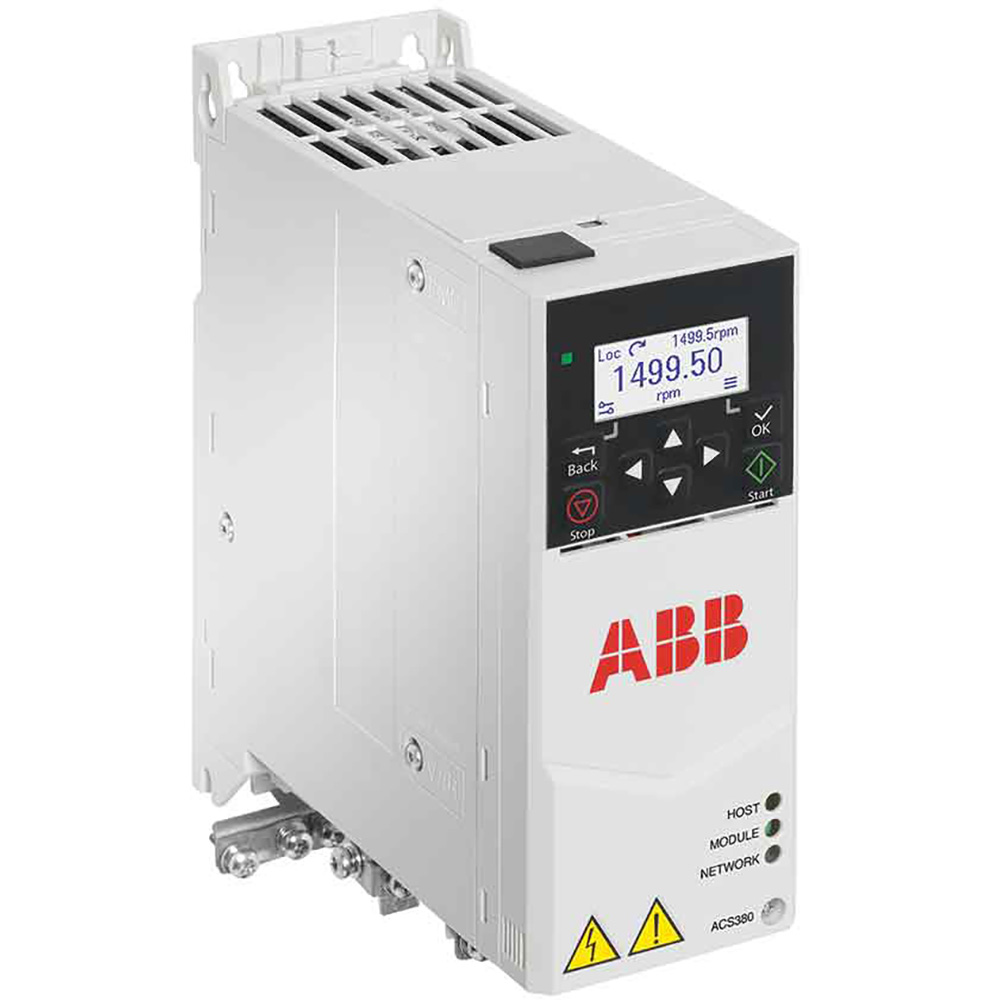

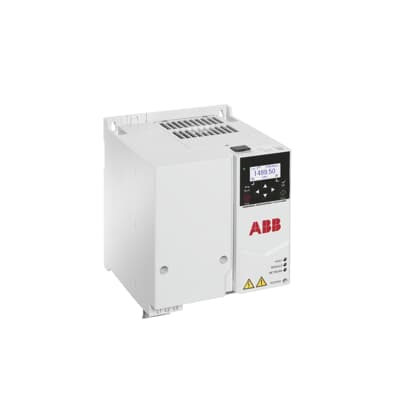

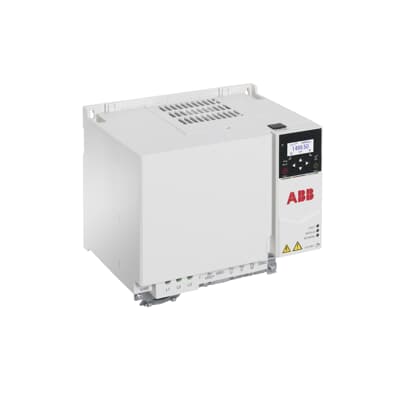

ABBs ACS380 Series Machinery Drive 0.37-45 kW Precision Inverter High-Performance Vector Control Drive for Demanding Machinery Applications

Product Overview

The ABB ACS380 Series Machinery Drive is a reliable, high-performance vector control frequency converter engineered to deliver exceptional motor control across a wide range of industrial machinery applications . As a key member of ABB’s all-compatible drives portfolio, the ACS380 shares a common architecture, user interface, and programming tools with the ACS580 and ACS880 platforms, ensuring consistency and ease of use across your automation systems . Designed for durability and precision, the ACS380 is the ideal solution for applications requiring superior speed and torque control, including packaging systems, conveyors, extrusion lines, and multi-axis machinery .

The series now includes the next-generation ACS380-E, which builds upon this foundation with advanced connectivity, integrated cybersecurity, and future-proof features to help machine builders meet evolving regulatory requirements .

Key Benefits & Features

1. Superior Motor Control Performance

The ACS380 delivers outstanding motor control, particularly in demanding applications requiring precise low-speed operation and high torque .

• Advanced Motor Control: Utilizes sensorless vector control for high-precision speed and torque regulation, alongside scalar control for simple, stable speed control applications .

• Versatile Motor Support: Seamlessly controls a wide variety of motor types, including induction (asynchronous) motors, permanent magnet synchronous motors (PMSM), and synchronous reluctance motors (SynRM) .

• High Output Frequency: Suitable for high-speed machinery applications with broad frequency range capabilities.

• Integrated Lifting Software: Standard feature with built-in lifting software for hoisting and elevating applications .

2. Built for Reliability in Harsh Environments

Engineered to maximize uptime, the ACS380 thrives in challenging industrial conditions .

• Extended Temperature Range: Rated for -10°C to +50°C without derating, and capable of operation up to +60°C with derating .

• Enhanced Circuit Board Coating: Standard conformal coating protects against humidity, dust, and corrosive environments .

• Innovative Thermal Design: Features a separate cooling duct that isolates the cooling airflow from electronic components, reducing dust accumulation and improving reliability.

• High-Altitude Operation: Operates up to 1000 meters without derating, and up to 4000 meters with derating .

• Robust Construction: Reinforced plastic housing with lockable mounting options provides enhanced vibration resistance.

3. Powerful Programmability & Flexibility

The ACS380 offers extensive customization capabilities to meet specific application requirements.

• Graphical Programming: Powerful adaptive programming function allows users to implement distributed process control and reduce controller workload without external hardware .

• Pre-configured Variants: Available in both standard and pre-configured versions tailored to specific applications, control types (I/O, Modbus, fieldbus), and option requirements .

• Comprehensive Fieldbus Support: Supports all major communication protocols, including Profinet IO, Profibus DP, Ethernet/IP, Modbus RTU, Modbus TCP, EtherCAT, Powerlink, and CANopen .

• Light/Heavy Duty Selection: Users can select between light-duty and heavy-duty ratings based on application requirements .

4. Exceptional Ease of Use

Designed with the user in mind, the ACS380 simplifies commissioning, operation, and maintenance.

• Intuitive Graphical Panel: Features a graphical control panel with built-in menu instructions, making setup quick and accessible. Panel menus can be customized to hide unnecessary functions .

• Multiple Commissioning Options: Can be configured via integrated panel, external panels (ACS-BP-S/ACS-AP-S/ACS-AP-W), PC programming cable, or the CCA-01 cold configuration tool which enables parameter setting and software download without applying power .

• Unified Platform: Shares the same control panels, communication modules, parameter structure, and user interface as ACS580 and ACS880 platforms, reducing the learning curve .

• Automatic Option Module Recognition: Automatically detects installed communication options for plug-and-play convenience .

5. Integrated Safety & Protection

• Safe Torque Off (STO): Integrated STO function certified to SIL3 as standard, ensuring safe working environments during maintenance and operations .

• Comprehensive Input Protection: Analog inputs feature overvoltage protection against incorrect wiring connections, preventing costly damage .

• Rich Diagnostic Information: Comprehensive real-time monitoring and diagnostic data keep operators informed of drive status .

Technical Specifications

Frame Size Dimensions (Approximate)

Typical Applications

The ACS380 series is ideally suited for a wide range of industrial machinery applications :

• Packaging Machinery: Wrappers, labeling machines, form-fill-seal equipment

• Material Handling: Conveyors, sorters, palletizers

• Processing Equipment: Extrusion lines, mixers, winders

• Textile Industry: Spinning, weaving, and finishing machines

• Multi-Axis Machinery: Coordinated motion control applications

• Lifting & Hoisting: Cranes, hoists, and elevators (with integrated lifting software)

Why Choose the ABB ACS380 Series?

The ABB ACS380 series represents the perfect balance of performance, reliability, and ease of use for demanding machinery applications. Whether you select the proven standard ACS380 for its exceptional motor control and rugged design, or the next-generation ACS380-E for its advanced connectivity and cybersecurity features, you are investing in a drive solution backed by ABB’s global leadership in drives technology. As part of the all-compatible drives portfolio, the ACS380 ensures consistency across your automation systems, reducing engineering time and simplifying maintenance .

Choose the ABB ACS380 Series for a high-performance, future-ready drive solution that delivers the precision and reliability your machinery demands.
