Bekalan Kuasa AC/DC, Keselamatan & Khusus

Jenama:

Diperakui

MEAN WELL AD / ADD / ADS Series | Dual & Triple Output AC/DC Security Power Supplies for Access Control & CCTV Systems

model:

MEANWELL AD/ADD/ADS Series Dual Triple AC DC Security & Specific

SKU:

776851212164-MEANWELL AD/ADD/ADS Series Dual Triple AC DC Security & Specific

Jenis Produk:

AC/DC

MOQ:

1 Keping

MEAN WELL AD, ADD, and ADS series—specialized AC/DC power supplies with dual and triple outputs designed specifically for security, access control, and CCTV applications . These compact enclosed power supplies provide 2 or 3 independent output channels from a single unit, simplifying installation and reducing costs for multi-voltage security systems . Universal AC input 85-264VAC with high efficiency up to 88% and no-load power consumption <0.75W .

Available models include:

Julat harga: $26.50 hingga $54.30

Output*

Dual
Triple

Pilihan

Jelas

Kira harga penghantaran

Sila isikan ruangan di bawah dengan butiran destinasi penghantaran untuk mengira kos penghantaran.

Kira

Tambah ke Senarai Keinginan

Penghantaran pantas

Caj penghantaran dan tarikh penghantaran akan dirundingkan. Bercakap dengan kami sekarang untuk maklumat lanjut.

Pembayaran selamat

Setiap pembayaran yang anda buat di c2psu.com dijamin dengan penyulitan SSL yang ketat dan protokol perlindungan data PCI DSS.

Pulangan Mudah

Buat pemulangan tempatan percuma untuk kecacatan pada pembelian yang layak

Perlindungan wang dikembalikan

Tuntut bayaran balik jika pesanan anda tidak dihantar, hilang atau tiba dengan masalah produk

Discover the MEAN WELL AD, ADD, and ADS series—specialized AC/DC power supplies with dual and triple outputs designed specifically for security, access control, and CCTV applications . These compact enclosed power supplies provide 2 or 3 independent output channels from a single unit, simplifying installation and reducing costs for multi-voltage security systems . Universal AC input 85-264VAC with high efficiency up to 88% and no-load power consumption <0.75W .

Available models include:

AD series: 35W-155W, dual outputs (12V/24V combinations) with battery charging function
ADD series: 35W-75W, dual outputs for door access control systems
ADS series: 40W-60W, triple outputs for security systems requiring multiple voltages Key features include battery reverse polarity protection, temperature compensation (via external NTC), and comprehensive protections (short circuit/overload/over voltage) . Operating temperature -20°C to +60°C with free air convection cooling. 3-year warranty. Ideal for access control panels, CCTV cameras, fire alarm systems, and central monitoring stations .

Model Number Breakdown:

AD Series (Dual Output with Battery Charger):

Model	Output 1	Output 2	Total Power

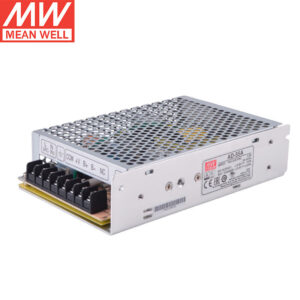

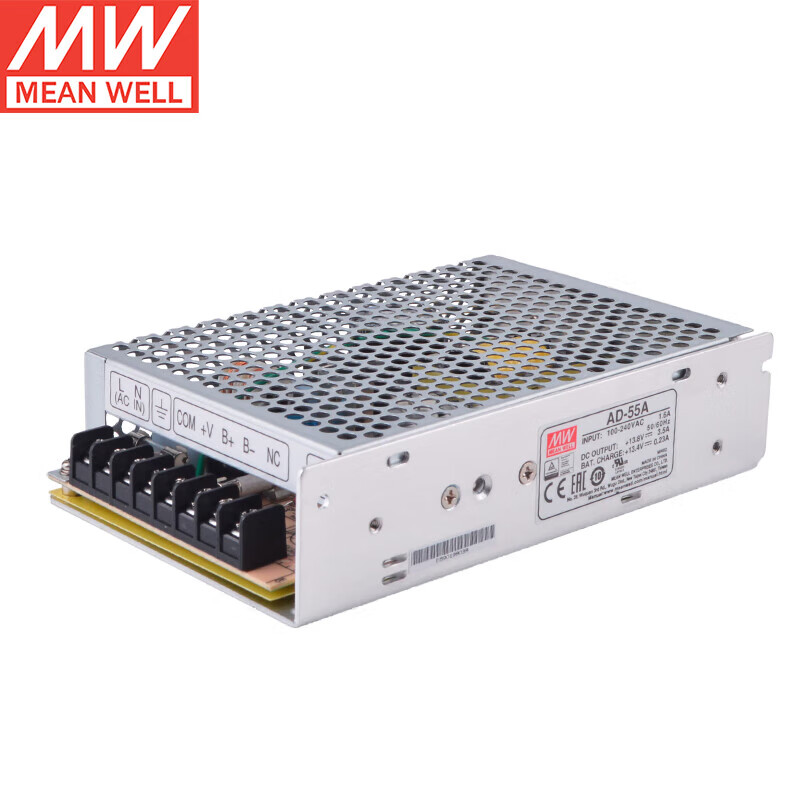

AD-55	13.8V / 2.5A (35W)	27.6V / 0.5A (14W)	55W
AD-155	13.8V / 6.5A (90W)	27.6V / 1.5A (41W)	155W

Universal AC input 85-264VAC
Battery charging function on main output
Protections: SCP/OLP/OVP/battery reverse polarity
Dimensions: 129×98×38mm (AD-55), 199×110×50mm (AD-155)

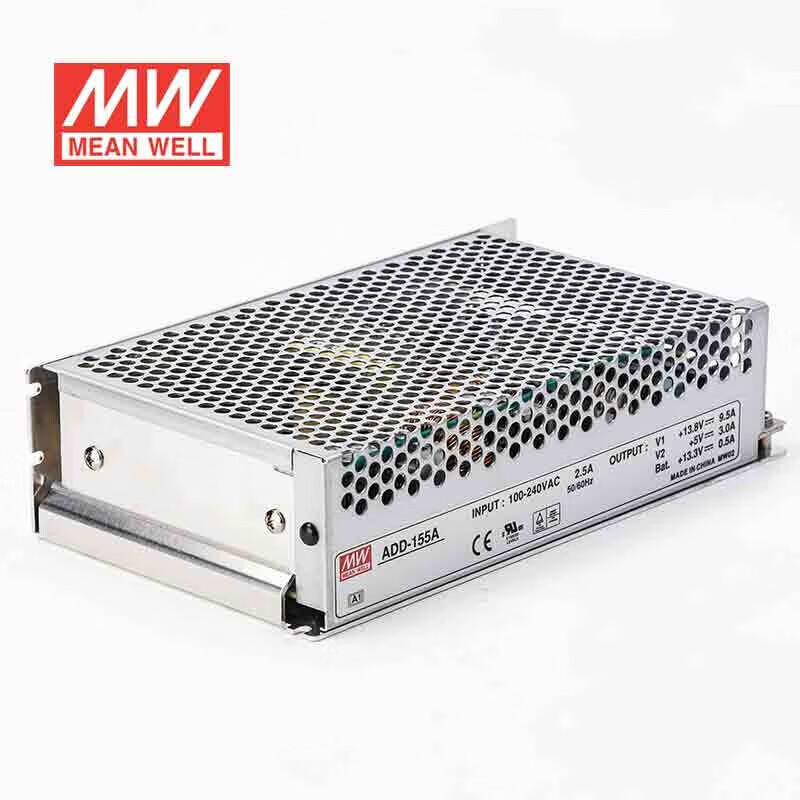

ADD Series (Dual Output for Access Control):

Model	Output 1	Output 2	Total Power
ADD-35	13.8V / 1.2A (16.6W)	13.8V / 1.2A (16.6W)	35W

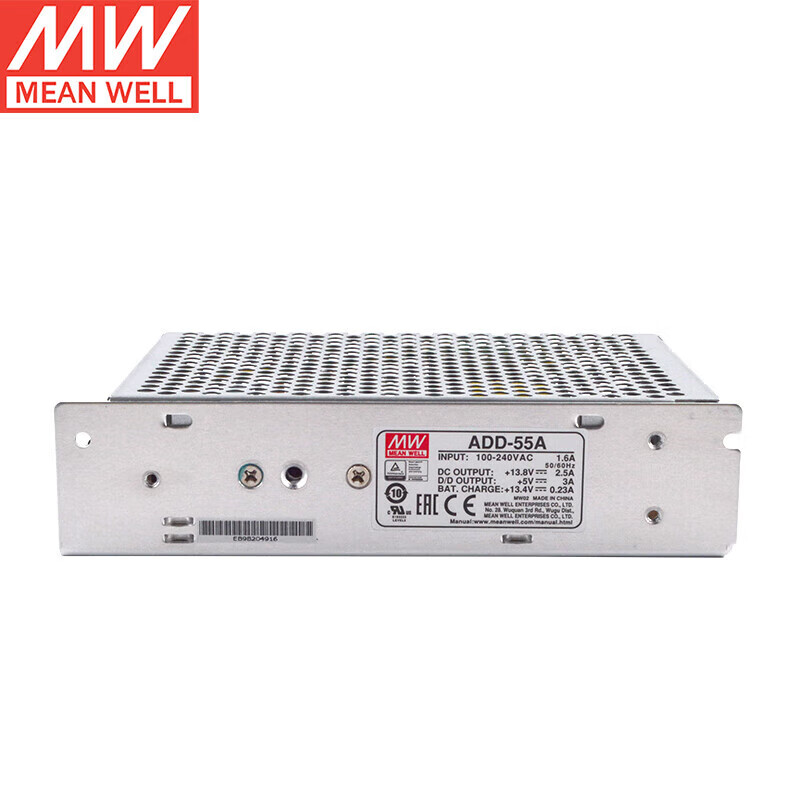

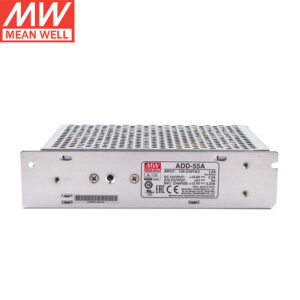

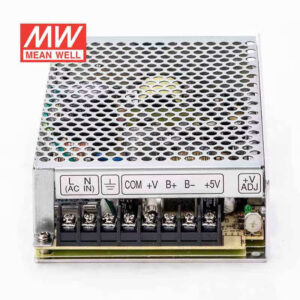

ADD-55	13.8V / 2.5A (34.5W)	13.8V / 1.5A (20.7W)	55W
ADD-75	13.8V / 3.6A (49.7W)	13.8V / 2.1A (29W)	75W

Universal AC input 85-264VAC
Protections: SCP/OLP/OVP
Dimensions: 99×97×36mm (ADD-35), 129×98×38mm (ADD-55), 159×97×38mm (ADD-75)

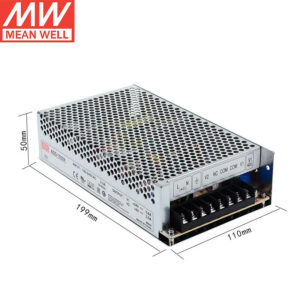

ADS Series (Triple Output):

Model	Output 1	Output 2	Output 3	Total Power

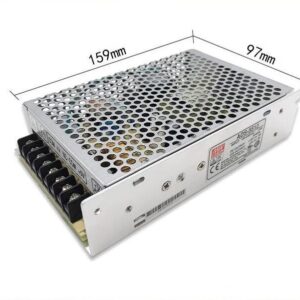

ADS-40	13.8V / 1.7A (23.5W)	5V / 0.5A (2.5W)	13.8V / 0.5A (6.9W)	40W
ADS-60	13.8V / 3.2A (44.2W)	5V / 0.5A (2.5W)	13.8V / 0.5A (6.9W)	60W

Universal AC input 85-264VAC
Protections: SCP/OLP/OVP

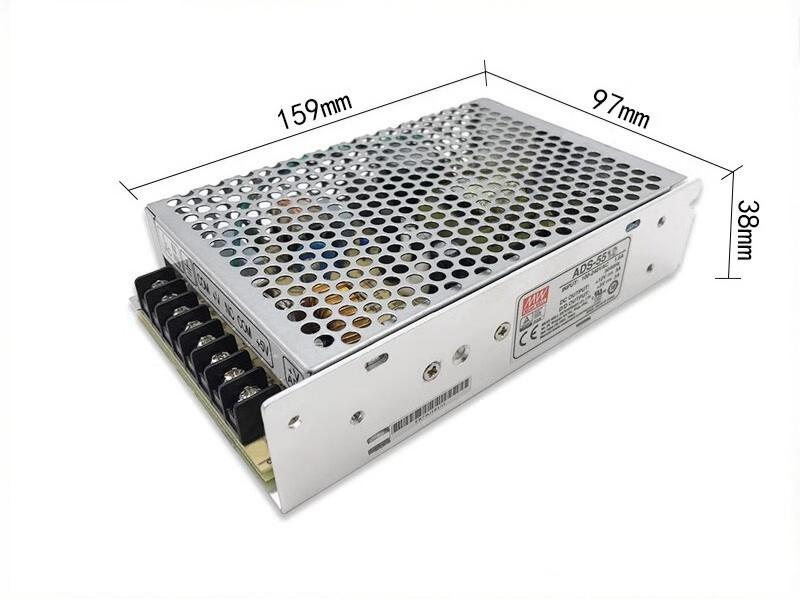

Dimensions: 129×98×38mm (ADS-40), 159×97×38mm (ADS-60)

All series feature operating temperature -20°C to +60°C, efficiency up to 88%, no-load consumption <0.75W, and 3-year warranty . Safety approvals: UL/CUL/CB/CE/EAC .
