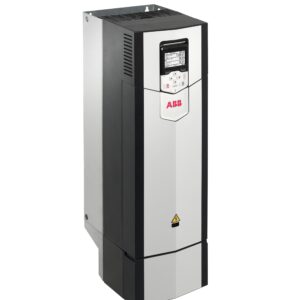

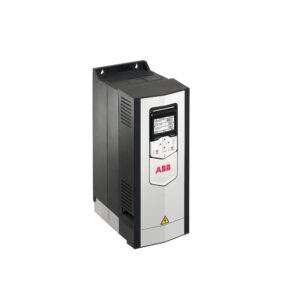

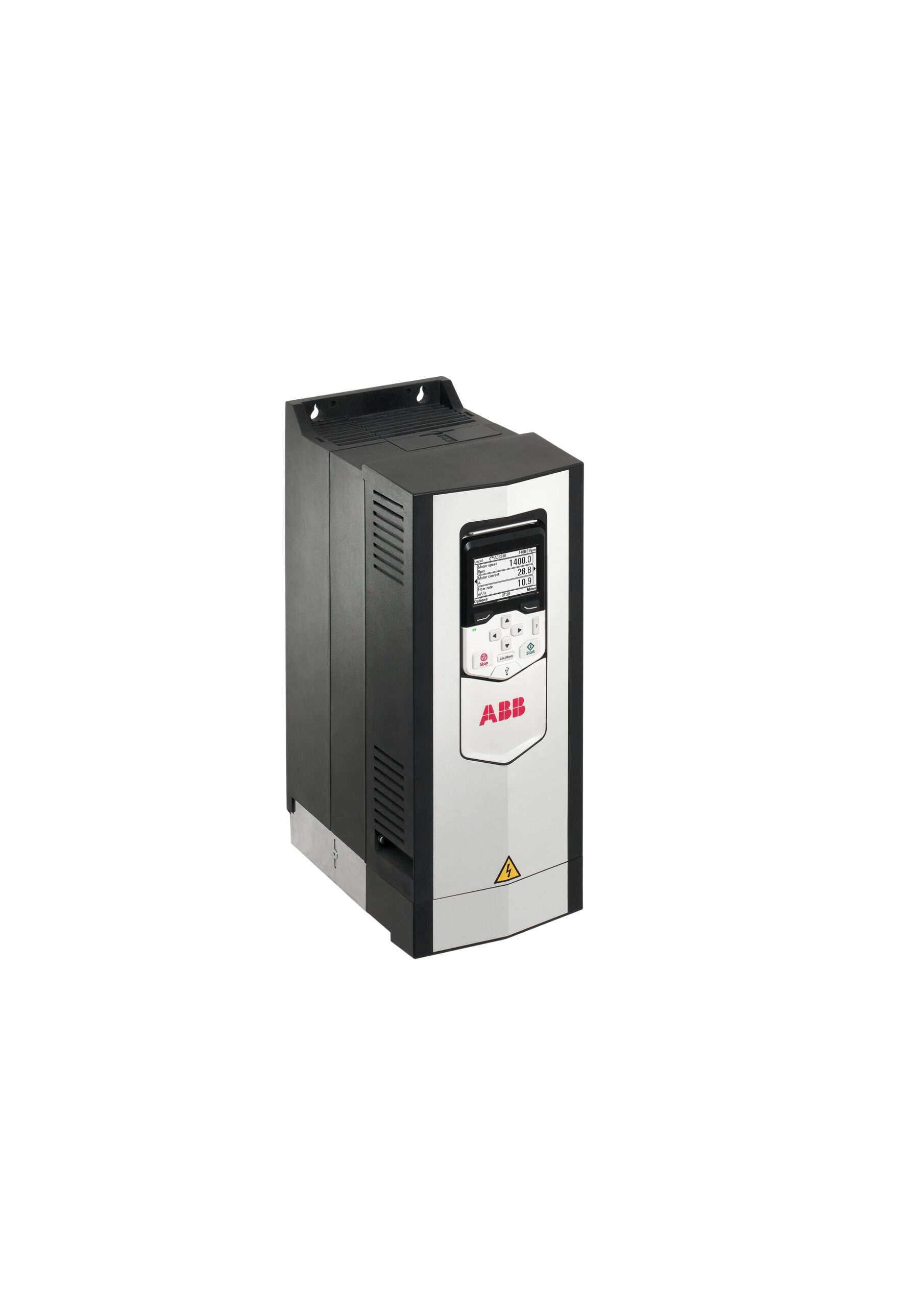

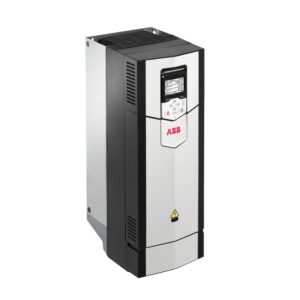

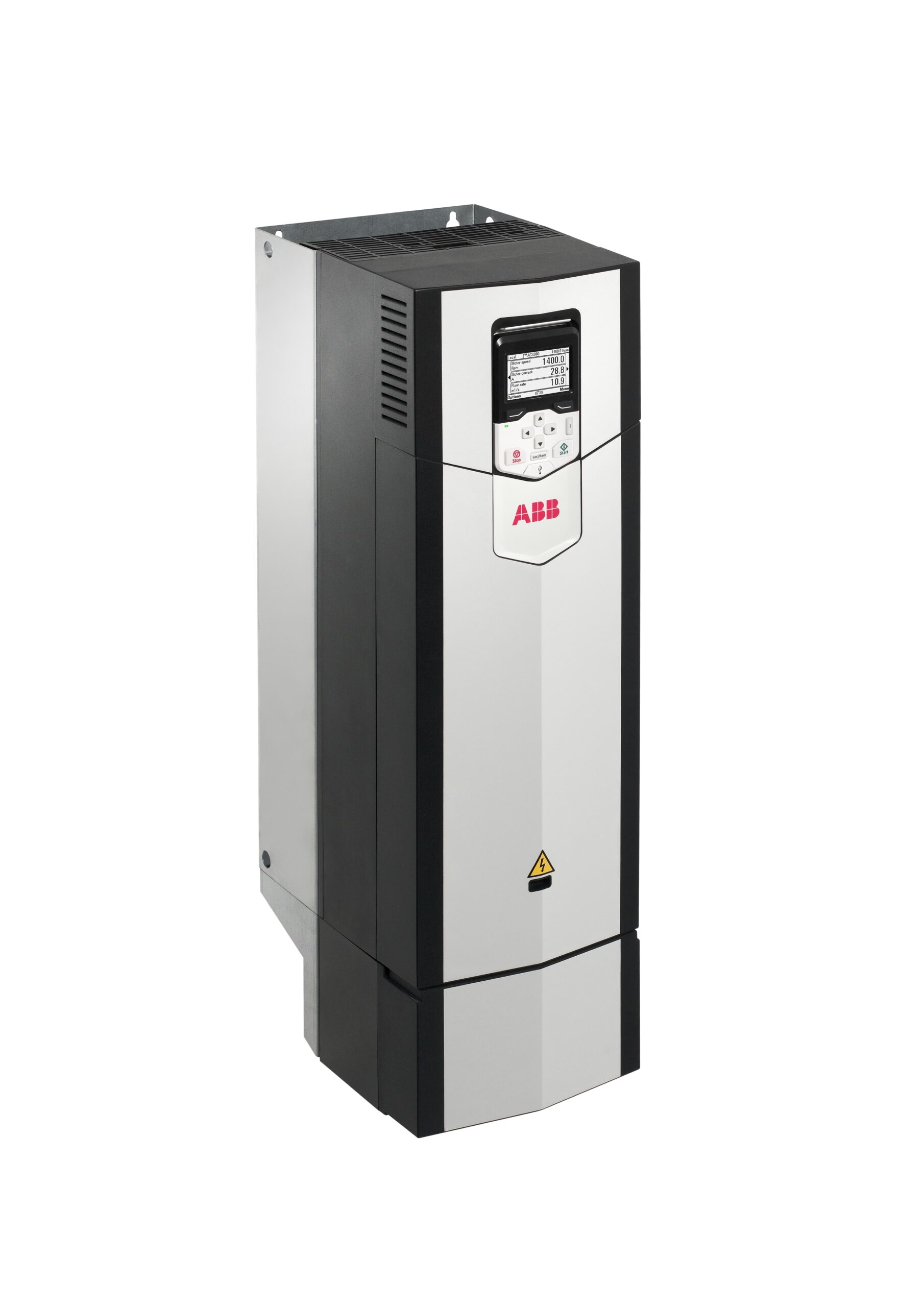

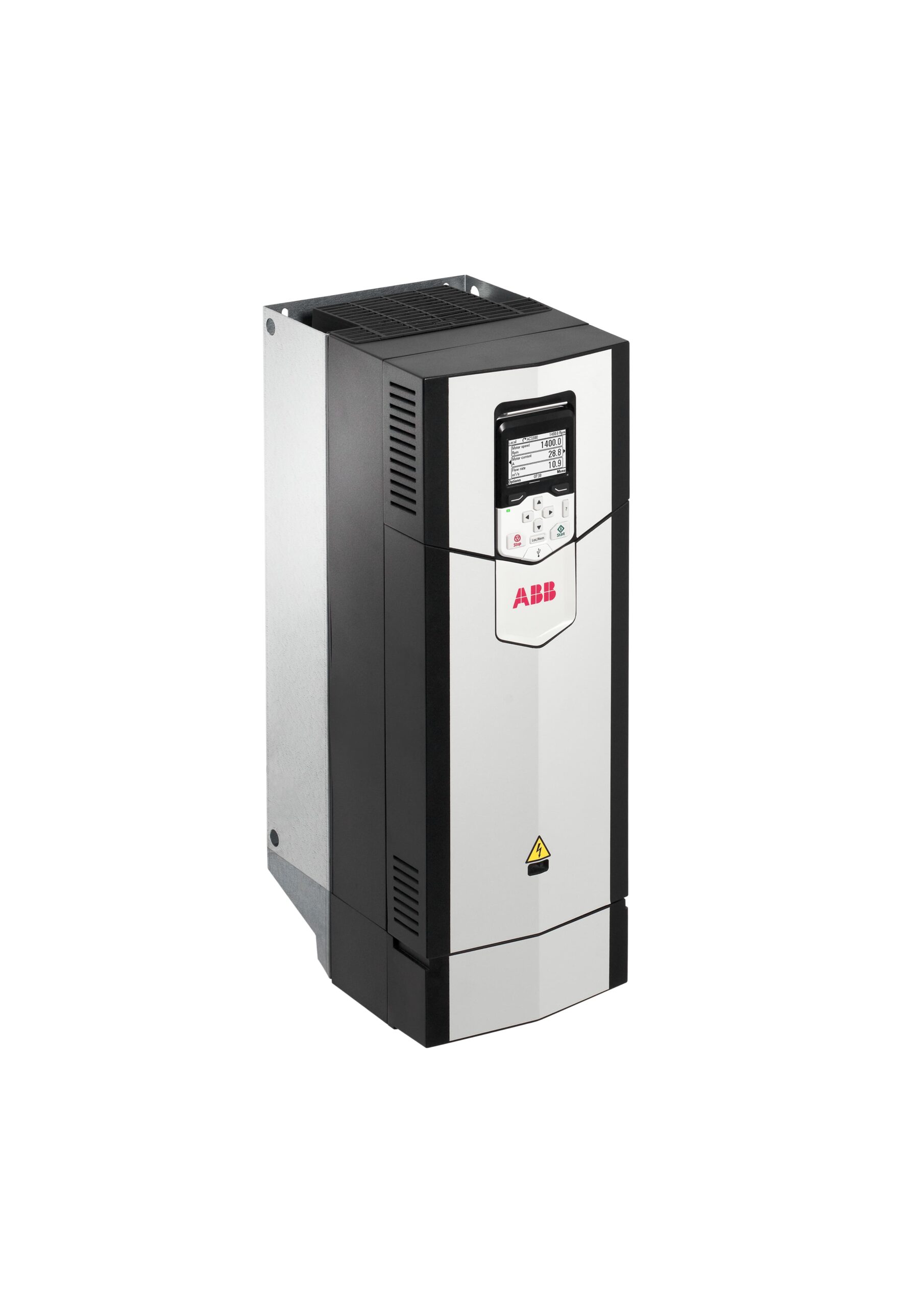

ABB ACS880-01 Series Wall-mounted Variable Frequency Converter Inverter PLC Programmable Controller Machinery Drive Industrial Single Drives 0.75KW-45KW

모델입니다:

ABB ACS880-01 Series

SKU:

776851212141-ABB-ACS880-01-Series

제품 유형 :

AC/DC

MOQ:

1개

그리고 ABB ACS880-01 Series is a state-of-the-art, wall-mounted variable frequency converter designed to deliver unparalleled performance, flexibility, and reliability for the most demanding industrial applications . Built on ABB’s revolutionary all-compatible drives architecture, this single drive module offers unprecedented levels of compatibility, allowing it to seamlessly integrate into virtually any process, automation system, or industry requirement . With a compact, space-saving design and all essential features built-in, the ACS880-01 simplifies installation while providing premium motor control using ABB’s legendary Direct Torque Control (DTC) technology .

Available in a comprehensive power range from 0.55 kW to 250 kW and voltages from 230V up to 690V, the ACS880-01 is engineered to tackle the toughest applications across industries including oil and gas, mining, metals, chemicals, cement, power generation, marine, water treatment, and automotive .

가격 범위: $642.90~$2,028.60

옵션

클리어

배송비 계산

배송비를 계산하려면 아래 필드에 배송지 세부 정보를 입력하세요.

계산

위시리스트에 추가

빠른 배송

배송비 및 배송일은 협의 중입니다. 자세한 내용은 지금 채팅으로 문의하세요.

안전한 결제

c2psu.com에서 이루어지는 모든 결제는 엄격한 SSL 암호화 및 PCI DSS 데이터 보호 프로토콜로 안전하게 보호됩니다.

간편한 반품

적격 구매에 대한 결함에 대해 현지에서 무료 반품하기

환불 보호

주문이 배송되지 않거나 누락되었거나 제품 문제가 있는 경우 환불을 요청하세요.

Product Overview

Key Features:

Wall-mounted industrial single drive for 0.55kW to 250kW (0.75HP to 350HP)
Voltage range from 230V to 690V for global applications
Premium Direct Torque Control (DTC) as standard for virtually any AC motor type
Built-in Safe Torque Off (STO) and coated boards for enhanced reliability
Enclosure classes: IP21/UL Type 1 standard, with IP20 and IP55 options available
Part of ABB’s all-compatible drives portfolio – same architecture across ACS880 series

Technical Specifications

Parameter	Details
Product Series	ABB ACS880-01 Industrial Drive
유형	Wall-mounted Variable Frequency Converter / Single Drive Module
Power Range	0.55 kW to 250 kW (0.75 HP to 350 HP)
Voltage Range	3-phase: 230V to 690V AC (depending on model)
Input Frequency	50/60 Hz ±5%
Output Frequency	0…500 Hz (typical)
Enclosure Class	IP21/UL Type 1 (Standard); Options for IP20/UL Open 그리고 IP55/UL Type 12
Control Technology	Direct Torque Control (DTC) , Scalar (V/Hz)
Motor Types	Induction (ASM), Permanent Magnet Synchronous (PMSM), Synchronous Reluctance (SynRM)
Safety	Safe Torque Off (STO) as standard (TÜV Nord certified); optional safety functions module
Communication	Standard: Modbus RTU; Optional: PROFIBUS DP, PROFINET IO, EtherNet/IP, CANopen, DeviceNet, PROFIsafe, and more
I/O Configuration	Standard: 6 Digital Inputs, 2 Digital Outputs, 2 Analog Inputs, 2 Analog Outputs, 3 Relay Outputs
Brake Chopper	Integrated as standard in frames R1-R4; optional in frames R5-R9
Ambient Temperature	-15°C to +40°C (no derating); +40°C to +55°C (with derating)
Altitude	0-1000m (no derating); 1000-4000m (with derating)
Circuit Board Protection	Coated boards as standard
Frame Sizes	R1 through R9

Why Choose the ABB ACS880-01?

그리고 ABB ACS880-01 Series represents the pinnacle of ABB’s variable frequency converter technology, combining the legendary performance of Direct Torque Control with the flexibility of the all-compatible drives architecture. Whether you are controlling a simple pump or a complex crane system, this drive delivers the precision, reliability, and adaptability required for success in today’s competitive industrial environment.

With its compact wall-mounted design, built-in essential features, comprehensive safety functions, and broad range of options, the ACS880-01 simplifies engineering while providing the performance headroom to tackle future challenges. Backed by ABB’s global service network and decades of drives expertise, the ACS880-01 is the ultimate choice for demanding industrial applications.

Choose the ABB ACS880-01 for uncompromising performance, flexibility, and reliability in a compact wall-mounted package.
