産業用制御機器, Frequency Converter

ブランド

公認

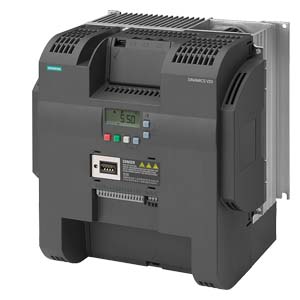

SIEMENS ‌SINAMICS V20 Series Frequency Converter

モデルである：

SIEMENS ‌SINAMICS V20 Series Frequency Converter

SKU：

776851212149-SIEMENS ‌SINAMICS V20 Series Frequency Converter

製品タイプ：

AC/DC

MOQ：

1ピース

The SIEMENS SINAMICS V20 frequency converter sets the standard for simplicity in basic drives. Experience short commissioning times with intuitive operator panels and the ability to clone parameters without a power supply. Its compact design allows for push-through and side-by-side mounting, saving valuable cabinet space. With nine frame sizes optimized for power from 0.12kW to 30kW, the V20 simplifies installation and operation for applications like pumps, fans, and material handling, ensuring reliable motor control with minimal engineering effort

価格帯: $188.60 – $910.40

オプション

クリア

送料の計算

送料を計算するために、以下のフィールドに配送先の詳細を記入してください。.

計算する

ウィッシュリストに追加

迅速な発送

送料、納期はご相談に応じます。詳細については、今すぐUSとチャット。.

安全な支払い

c2psu.comで行うすべての支払いは、厳格なSSL暗号化とPCI DSSデータ保護プロトコルで保護されています。

イージー・リターン

対象となる購入品に欠陥があった場合、現地で無料返品を行う。

返金保証

ご注文の商品が発送されない、紛失している、または商品に問題がある場合に返金を請求する。

Discover the SIEMENS SINAMICS V20 series frequency converter, the perfect entry-level drive for basic industrial applications. Engineered for simplicity, ruggedness, and efficiency, the V20 covers a power range from 0.12 kW to 30 kW, supporting 1-phase 230V and 3-phase 400V systems. Ideal for pumps, fans, compressors, and simple conveyor tasks, it features easy commissioning via local or mobile panels, robust coated PCBs for harsh environments, and energy-saving ECO modes. With integrated Modbus RTU/USS communication and optional IoT connectivity via SINAMICS CONNECT 300, the V20 offers a future-ready solution for your basic motion control needs .

Technical Specifications

特徴	Specification Details
Product Line	SINAMICS V20
Power Range	0.12 kW to 30 kW (approx. 0.16 to 40 hp)
Voltage Supply	Available for 1-phase 200-240V AC and 3-phase 380-480V AC
Enclosure / Protection	Typically IP20 for standard units; optional external BOP allows for IP54 front-panel protection
Control Modes	V/f, V²/f (for energy savings), FCC (Flux Current Control), and multipoint V/f
Integrated I/O	Typically includes 4 Digital Inputs (DI), 2 Digital Outputs (DO), 2 Analog Inputs (AI), 1 Analog Output (AQ)
Communication	Integrated Modbus RTU そして USS serial interfaces for connection to PLCs (both Siemens SIMATIC and third-party)
Braking	Integrated braking chopper is available for higher power units (e.g., >10hp) for connecting an external braking resistor

代表的なアプリケーション

The SINAMICS V20 is designed for basic variable-speed applications across various industries, including :

Pumps (e.g., water/wastewater, HVAC)
Fans and Ventilating systems
Compressors
Conveyors and simple material handling systems
Basic processing machinery

Selection and Ordering Information

Siemens uses specific order numbers (MLFBs) for different V20 models. For example:

6SL3210-5BB12-5UV1: A 0.25kW drive for 1-phase 200-240V AC supply.
6SL3210-5BE22-2UV0: A 2.2kW drive for 3-phase 380-480V AC supply.
6SL3210-5BE32-2CV0: A 22kW drive for 400V AC 3-phase operation .

The series encompasses multiple frame sizes (FS AA, AB, A to FSE) to cover the entire power range with an optimized physical size for each power rating .

In summary, the Siemens SINAMICS V20 provides a practical, no-frills drive solution that prioritizes ease of use, operational robustness, and energy efficiency for a wide range of standard industrial applications.
