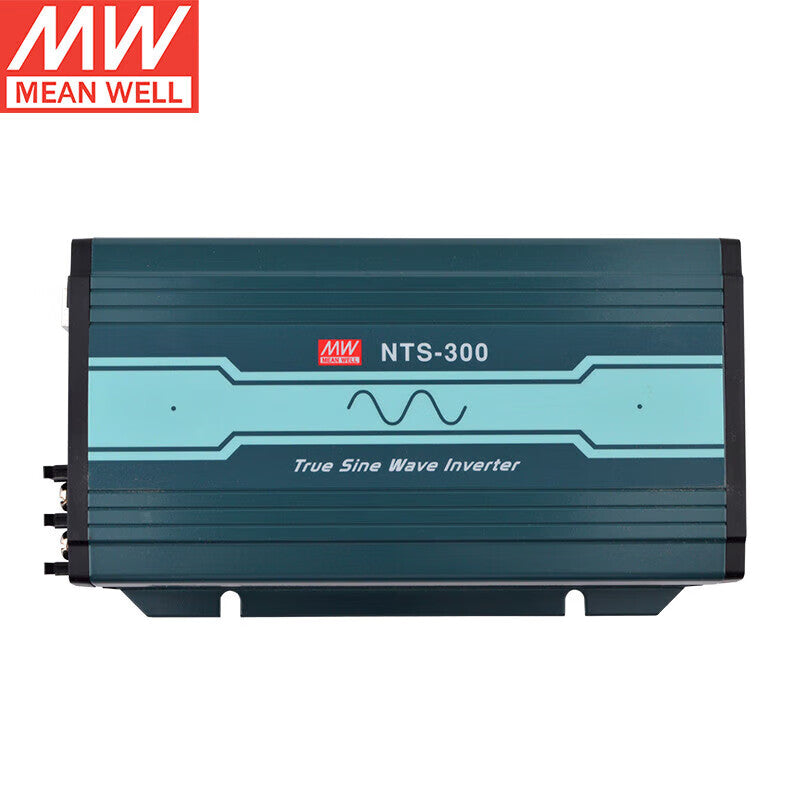

MEAN WELL NTS Series 300W-3200W True Sine Wave DC-AC Power Inverters NTS-300 / NTS-450 / NTS-750 / NTS-1200 / NTS-1700 / NTS-2200 / NTS-3200

  • Vendor:

    MEANWELL

  • Type:

    Power Inverter

$528.60 USD
$528.60 USD $530.00 USD
Sale Sold out
Shipping calculated at checkout.
Option: NTS-2200-112UN 12V250A
Output Voltage*: 100/110/115/120V

Available Bank offers

Instant 10% Discount On Selected Cards

HDFC Banks Credit/Debit Cards EMI and CreditCard Full Swipe.

Partner Offers

Get GST invoice and save up to 28% Off

Enter your business details on the registration page and you are done!

  • Express Delivery
  • 12 Months Warranty
  • 7 Days Easy Replace
Secure checkout with
  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • Description
  • Delivery
  • Certifications



Key NTS Series Family Features Summary (300W-3200W):

Feature NTS-300 NTS-450 NTS-750/1200/1700 NTS-2200/3200
Rated Power 300W 450W 750W-1700W 2200W-3200W
Surge/Peak Power 600W peak 900W peak Up to 3400W surge (NTS-1700) Up to 6400W surge (NTS-3200)
Cooling Method Fanless, convection Temperature-controlled fan Temperature-controlled fan Temperature-controlled fan
Waveform True sine wave, THD <3% True sine wave, THD <3% True sine wave, THD <3% True sine wave, THD <3%
AC Output Adjustment DIP switch selectable (100-120V or 200-240V) DIP switch selectable DIP switch selectable DIP switch selectable
Frequency 50/60Hz selectable 50/60Hz selectable 50/60Hz selectable 50/60Hz selectable
Efficiency Up to 92% Up to 93% Up to 93% Up to 93%
No-Load Consumption <1.5W <1.5W <1.7W <1.7W
Remote Control Built-in remote ON/OFF Built-in remote ON/OFF Built-in remote ON/OFF Built-in remote ON/OFF
Communication - - RS-232 (select models) RS-232 standard
Operating Temperature -25°C to +65°C -25°C to +70°C -25°C to +70°C -25°C to +70°C
Battery Compatibility Lead-acid & li-ion Lead-acid & li-ion Lead-acid & li-ion Lead-acid & li-ion
Protections Reverse polarity, low voltage disconnect, short circuit, overload, over temp Reverse polarity, low voltage disconnect, short circuit, overload, over temp Reverse polarity, low voltage disconnect, short circuit, overload, over temp Reverse polarity, low voltage disconnect, short circuit, overload, over temp
Conformal Coating Yes Yes Yes Yes
Warranty 3 years 3 years 3 years 3 years
