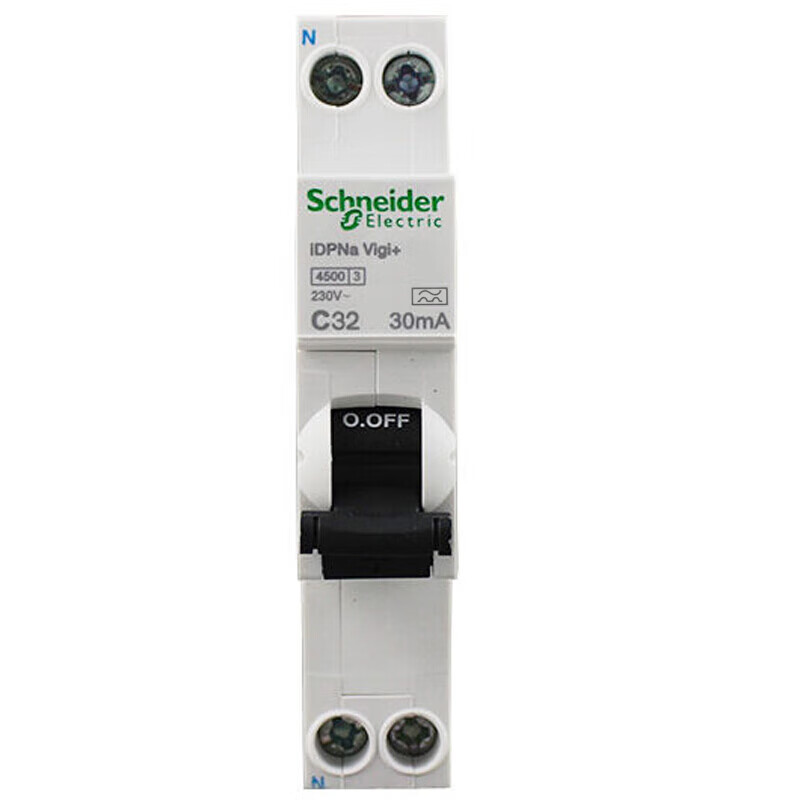

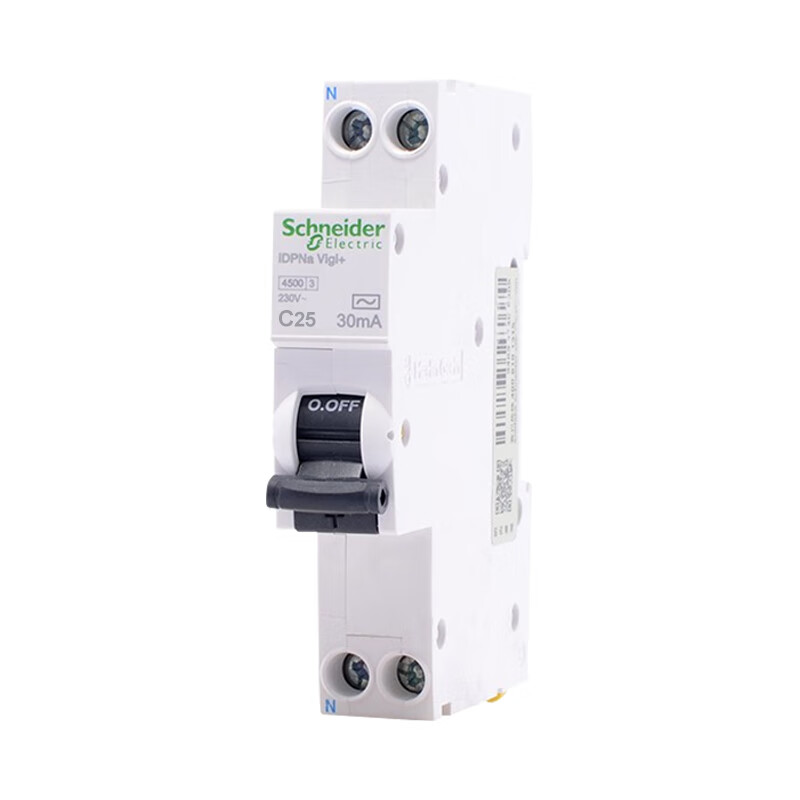

Schneider iDPNa Vigi+ RCBO | Compact All-in-One Leakage Protection Circuit Breaker for Terminal Circuits

modello:

Schneider iDPNa Vigi+ RCBO

SKU:

776851212143-Schneider-iDPNa-Vigi+-RCBO

Tipo di prodotto :

AC/DC

MOQ:

1 pezzo

Il Schneider Electric iDPNa Vigi+ is a high-performance, all-in-one Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO) from the renowned Acti 9 range. Designed as a compact, integrated unit combining a miniature circuit breaker (MCB) and a residual current device (RCD), the iDPNa Vigi+ provides comprehensive protection for terminal electrical circuits in a single 18mm width module . It safeguards installations against overloads, short circuits, and earth leakage (residual current) faults, while also offering isolation functionality . As a factory-assembled, tested, and sealed device, it eliminates the risks associated with field assembly of separate components, making it the ideal choice for reliable protection in residential, commercial, and industrial lighting and distribution systems .

Fascia di prezzo: da $34.70 a $53.90

title_tag

Opzione

Svuota

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

Aggiungi alla lista dei desideri

Spedizione veloce

Spese di spedizione e data di consegna da negoziare. Chatta con noi ora per maggiori dettagli.

Pagamenti sicuri

Ogni pagamento effettuato su c2psu.com è protetto da una rigorosa crittografia SSL e da protocolli di protezione dei dati PCI DSS.

Ritorno facile

Effettuate resi locali gratuiti per difetti su acquisti qualificati

Protezione soddisfatti o rimborsati

Chiedete un rimborso se il vostro ordine non viene spedito, è mancante o arriva con problemi di prodotto.

Product Overview

Technical Specifications

Parameter	Details
Product Series	Schneider Electric Acti 9 / iDPNa Vigi+
Tipo di prodotto	Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO)
Pole Configuration	1P+N (disconnects both phase and neutral)
Rated Currents (In)	6A, 10A, 16A, 20A, 25A, 32A
Rated Voltage (Ue)	230V AC
Tripping Characteristic	C Curve (5-10 In)
Rated Residual Current (IΔn)	30 mA
Residual Current Type	AC Type (sinusoidal); A Type (pulsating DC) available
Rated Short-Circuit Capacity (Icn)	4500 A
Rated Insulation Voltage (Ui)	400 V
Rated Impulse Withstand Voltage (Uimp)	4 kV
Width	18 mm (1 modular unit)
Mounting	On 35 mm DIN Rail
Connection Direction	Top or bottom feed
Operating Temperature	-25°C to +55°C
Standards & Certifications	IEC 61009-1, GB 16917, CCC
Environmental Compliance	RoHS, REACH

Model Number Selection Guide

The iDPNa Vigi+ series uses a clear nomenclature to identify product specifications.

Model Example	Descrizione	Poles	Current (A)	Leakage Type
A9D93610	iDPNa Vigi+, C Curve, 10A, 30mA, Type A	1P+N	10 A	A Type
A9D93616	iDPNa Vigi+, C Curve, 16A, 30mA, Type A	1P+N	16 A	A Type
A9D91632	iDPNa Vigi+, C Curve, 32A, 30mA	1P+N	32 A	—

Typical Applications

The iDPNa Vigi+ is perfectly suited for providing comprehensive protection in final circuits across a variety of settings:

Residential Buildings: Protection of lighting circuits, socket outlets, and dedicated appliance circuits in apartments and houses, especially in wet areas like kitchens, bathrooms, and outdoor installations.
Commercial Facilities: Ideal for lighting and socket outlet circuits in offices, retail stores, hotels, schools, and small commercial buildings where space is at a premium.
Industrial Applications: Suitable for control circuits, auxiliary supplies, and small machinery within factory workshops and light industrial environments requiring reliable earth leakage protection.
Renovation Projects: The compact 18mm width makes it the perfect choice for upgrading existing electrical panels to meet modern safety standards without requiring extensive enclosure modifications.
Lighting Distribution: Specifically designed for lighting circuits where C-curve characteristics and 30mA protection are required.

Why Choose the Schneider iDPNa Vigi+?

Il Schneider iDPNa Vigi+ Leakage Protection Circuit Breaker offers the perfect balance of safety, reliability, and space efficiency. By integrating four essential protection functions into a single, ultra-compact 18mm unit, it maximizes panel capacity while ensuring comprehensive safety for people and equipment . The innovative VisiTrip and VisiSafe indicators provide unparalleled troubleshooting clarity and operator safety, reducing downtime and maintenance costs. Backed by Schneider Electric’s global reputation for quality and its Acti 9 platform reliability, the iDPNa Vigi+ delivers a dependable, long-lasting solution for any modern electrical installation requiring robust protection in a minimal footprint -1 -3.

Choose the Schneider iDPNa Vigi+ Series for a compact, compliant, and feature-rich circuit protection solution that prioritizes safety without compromising on space.
